įpurškimo liejimo mašina

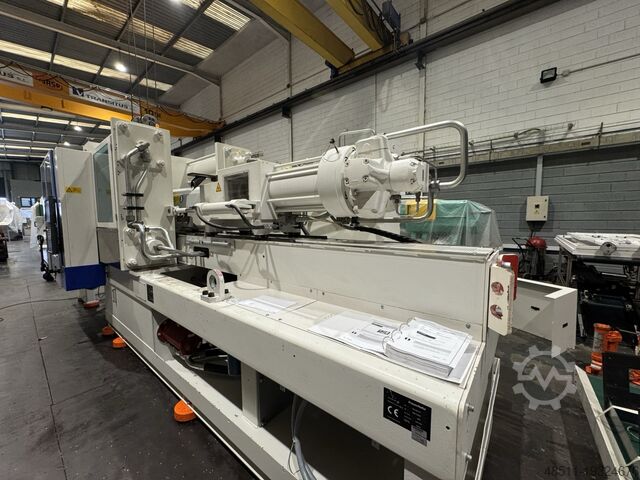

KraussMaffei KM 420-2000 CX

Būklė: labai geros būklės (naudotas), Gamybos metai: 2018, KRAUSS MAFFEI KM 420-2000 CX Injection Moulding Machine Basic Data Manufacturer: Krauss Maffei Model: KM 420-2000 CX Machine Number: 61030600 Year of Manufacture: 2018 Control System: MC6 Control Panel: Colour monitor integrated with operator console The machine is equipped with a fully hydraulic clamping system and the advanced MC6 control system. Plasticising Unit Complete plasticising unit designed for processing thermoplastics. High-performance screw: HPS-UN Screw diameter: 60 mm Non-return valve: yes Nozzle type: open Nozzle radius: 15 mm Nozzle opening: 6 mm Injection unit: SP 2000 Clamping Unit Clamping force: 4200 kN Mould opening force: 250 kN Platen dimensions (horizontal × vertical): 1270 × 1230 mm Tie bar spacing (horizontal × vertical): 800 × 800 mm Maximum mould opening stroke: 1020 mm Minimum mould height: 580 mm Maximum platen opening stroke: 1600 mm Ejector stroke: 250 mm Ejector force (forward / backward): 95 / 49 kN Injection Unit Screw diameter: 60 mm L/D ratio: 23.3 Injection pressure: 2420 bar Injection volume: 792 cm³ Shot weight (PS): 720 g Injection speed: 130 mm/s Injection throughput: 368 cm³/s Screw speed: 285 rpm Plasticising rate: 72.2 g/s Nozzle contact force: 82 kN Electrical & Hydraulic Equipment Pump motor rated power: 75 kW Installed heater power: 29 kW Number of barrel heating zones: 6 (+1 extended nozzle) Dry cycle time (EUROMAP 6): 3.0 s / 560 mm Required hydraulic oil volume: 1000 l Machine Dimensions & Weight Net weight (incl. control cabinet): 21.5 t Machine dimensions (L × W × H): 6.90 × 2.49 × 2.38 m Maximum mould weight: 6700 kg Optional ESS (Energy Saving Systems) The machine can be equipped with the ESS servo drive system, which increases the energy efficiency of hydraulic injection moulding machines. The system controls the hydraulic pump motor via a frequency inverter, adapting the motor speed to the actual demand during each production cycle. Key Benefits - Reduction of electrical energy consumption by up to 30% - Hydraulic pump servo drive technology - Worldwide quality and proven industrial technology - Reduced energy losses during idle running Hfodpfx Aoyugkwob Sod - Lower hydraulic system temperature rise - Extended service life of hydraulic components - Retrofit possible on existing hydraulic injection moulding machines

Gamybos metai: 2008, būklė: paruoštas naudoti (naudotas), A large-format vacuum thermoforming machine by Geiss is available. Sheet size (minimum): 1100mm/1300mm; maximum sheet size: 2100mm/1800mm; maximum forming depth: 620mm. Additional sheet size 1: minimum 850mm/750mm, maximum 1850mm/1250mm. Additional sheet size 2: minimum 1050mm/800mm, maximum 2050mm/1300mm. Includes a separate loading machine with pneumatic sheet separation equipment, an automatic aligner for sheet positioning in both longitudinal and transverse directions, a pneumatic pusher for removing formed parts from the loading unit, fully automatic central lubrication for the loading machine, multiple interchangeable pallets for window sheet sets, a storage rack for window sheets, a vacuum control system with four independently adjustable flow stages, and an air preparation system. Documentation is available. On-site inspection is possible. Hsdpfxswih Are Ab Sefd

Būklė: geras (naudotas), Roots vacuum pump Manufacturer: Leybold Model: RUVAC WAU 1001 Cat. No.: 11741 Pumping Speed: approx. 1000 m³/h Hfedpob Rnfiofx Ab Ssd Condition: Completely overhauled Warranty: 12 months Delivery time: ex stock

Būklė: paruoštas naudoti (naudotas), Gamybos metai: 2001, veikimo valandos: 19 853 h, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 11170000963, Įranga: dokumentacija / vadovas, drožlių transporteris, sūkių greitis be galo kintamas, 5-axis simultaneous Speed: 18,000 rpm Tool changer for 60 tools / SK 40 DIN69871 Tools included in the price Hsdswqp Hujpfx Ab Sjfd ICS (internal coolant supply) / air blast Heidenhain 426/430

Būklė: beveik kaip naujas (naudotas), Gamybos metai: 2006, Technical Data Brand: KENT Model: VK 1600MC Year: 2006 Serial Number: 2200139 CNC Controller: FANUC 18 iMD Location: Tabaza (Asturias, Spain) Table Dimensions Table Surface: 1700 x 810 mm T-slots: 22 x 5 x 160 mm Maximum Table Load: 2,000 kg Travel Longitudinal Travel X: 1600 mm Cross Travel Y: 815 mm Vertical Travel Z: 815 mm Spindle Nose to Table Distance: 220 ~ 1035 mm Spindle Nose to Column Distance: 865 mm Hsdpfx Ajqwyzfeb Sofd Spindle Taper: BT50 Spindle Speed: 30 – 6,000 rpm ZF Gear Change (2 speeds): Yes Maximum Tool Weight: 15 kg Maximum Tool Size (Diameter x Length): 125 x 300 mm ATC (Automatic Tool Changer) Maximum Tool Size: Ø125 x L250 Maximum Tool Weight: 15 kg Number of Tools: 32 Feed Rates Working Feedrate: 1 – 10,000 mm/min Rapid Traverse Rates (X / Y / Z): 18 / 18 / 18 mm/min Motor Main Spindle Motor (30 max. power): 15 / 18.5 kW Axis Drive (X, Y, Z): X: 5.5 | Y: 5.5 | Z: 5.5 Coolant Pump CTS: One air & two coolant pumps – 4 bar + 6 bar / 20 bar Weight and Dimensions Machine Weight: 16,150 kg Machine Dimensions: 4,488 x 3,448 x 3,250 mm Footprint: 5,000 x 3,500 mm.

Būklė: dilaminuotas dirbtuvėje (naudotas), Gamybos metai: 2015, Used injection moulding machine direct from the manufacturer! As the manufacturer KraussMaffei, we offer one of our pre-owned injection moulding machines for sale here. CONTROL SYSTEM - MC4 Hfsdjnh Rnujpfx Ab Sod TECHNICAL DATA CLAMPING UNIT - Clamping force: 5000 kN - Distance between tie bars (h x v): 900 x 800 mm - Maximum mould opening distance: 1170 mm - Minimum mould installation height: 480 mm - Opening stroke of platen: 1650 mm - Ejector stroke: 250 mm - Ejector force: 95 kN (reverse: 48 kN) INJECTION UNIT - Screw diameter: 90 mm - L/D ratio: 20 - Injection pressure: 1742 bar - Injection volume: 1953 cm³ - Shot weight for PS: 1777 g - Injection rate: 649 cm³/s - Nozzle contact force: 115 kN Electrical parameters - Pump connected load: 90 kW - Heating capacity: 44 kW Weight & Dimensions - Net weight: 25.8 t - Machine dimensions (L x W x H): 7.65 x 2.33 x 2.55 m As standard, we supply this machine in fully functional, basic condition. Additionally, as the original manufacturer, we can provide various options depending on individual requirements, such as: - Energy optimisation upgrades - Possible integration with KraussMaffei digital products - Plasticising unit conversions - Optional: organisation and handling of delivery (not included in the price) - Optional: setup and commissioning (not included in the price) With us, you benefit from first-class service and also have the option to purchase desired spare part packages for wear parts—ensuring seamless production with your newly acquired used machine. Don’t hesitate to get in touch with your enquiry today!

Būklė: geras (naudotas), Gamybos metai: 2012, rankos pasiekiamumas: 2 696 mm, valdiklio modelis: KR C4, KUKA Robot Model: KR 90 R2700 pro Technical Data Maximum Reach: 2696 mm Rated Payload: 90 kg Rated Additional Load Carousel / Wrist / Arm: 0 kg / 0 kg / 50 kg Rated Total Load: 140 kg Position Repeatability (ISO 9283): -/+ 0.06 mm Number of Axes: 6 Mounting Position: Floor Installation Footprint: 830 mm x 830 mm Weight: approx. 1058 kg Axis Data Motion Range A1: -/+ 185 ° A2: -140 / -5 ° A3: -120 / 155 ° A4: -/+ 350 ° A5: -/+ 125 ° A6: -/+ 350 ° Hfsdpfxstpwxlo Ab Sjd Speed at Rated Payload A1: 136 ° / s A2: 130 ° / s A3: 120 ° / s A4: 292 ° / s A5: 258 ° / s A6: 284 ° / s Operating Conditions Ambient Temperature During Operation: 10 °C to 55 °C (283 K to 328 K) Controller: KR C4

Būklė: naudotas, Automatinė mašina polietileninių maišelių (marškinėlių ar pirkinių maišelių) gamybai Gamintojas: COSMO Modelis: ST-99 Maišelio dydis: - ilgis: 350 - 650 mm - plotis: 160 - 365 mm - storis: 0,008 - 0,05 mm Hfodpfsrww E Iox Ab Sod Našumas: 180 - 300 vnt./min Įdiegta galia: 12 kW Maitinimas: 230 V, 3 fazės, 50/60 Hz Išmatavimai: 7150 x 1600 x 1750 mm Papildomai reikalingas oro kompresorius: 10 AG – komplekte nėra Techninė būklė: naudota mašina

Būklė: naujas, Šachtinė krosnis, gamintojas VEI Tipas: SCO_EB Vidinis aukštis: 1200 mm Vidinis skersmuo: 1400 mm Išorinis skersmuo: 2200 mm Išorinis aukštis (be dangčio): 1650 mm Hedpfx Abjg R Snhj Ssfd Išorinis aukštis (su dangčiu): 2600 mm Elektrinis šildymas: 64,5 kW Cirkuliacinis ventiliatorius: 5,5 kW Trifazis prijungimas: 400 V, 50 Hz Temperatūra: maks. 750°C

Būklė: naudotas, TECHNINIAI DUOMENYS STALAS - Stalo dydis: 3100/800 [mm] - Didžiausia stalo apkrova: 7000 [kg] - X/Y/Z ašių eiga: 3000/1000/1200 [mm] - Greitasis važiavimo greitis (X/Y/Z): 15000/15000/15000 [mm/min] FREZAVIMO GALVA Rankinė galva VIRPSTĖ - Įrankio tvirtinimas: ISO50 - Sukimosi greitis: 4000 [aps./min.] - Variklio galia: 27 [kW] ĮRANKIŲ KEITIKLIS Hfsdpfx Absw Tnhbj Sed - Keitiklio tipas: Skėtis (Parapluie) - Įrankių skaičius žurnale: 24 SVORIS IR IŠMATAVIMAI - Užimama vieta: 7913/5043 [mm] - Staklių aukštis: 3440 [mm] - Staklių svoris: 13410 [kg] ELEKTROS TIEKIMAS - Maitinimo įtampa: 400 [V] - Bendra variklių galia: 38 [kW] DARBO VALANDOS - Veikimo valandos (įjungta): 24689 [val.] - Darbo valandos: 23809 [val.] - Virpstės darbo valandos: 7658 [val.] PRIEDAI - Valdymas: Heidenhain iTNC530 - Elektroninis rankinis ratukas - Sąsaja: RS232/RJ45/USB - Teach-In programavimas - Aušinimo skysčio bakelis - Įrankių laikiklis
