Centrinė tekinimo ir veleno tekinimo staklės

WMW - NILES DLZ 800 x 3000 L IV

Swing diameter over bed 800 mm
Swing diameter over saddle 480 mm
Turning length 3000 mm
Swing diameter in gap 850 mm
Centre height over bed 380 mm
Bed width 550 mm
Spindle head DIN 55022/8
Spindle bore 73 mm
Speeds 18 - 900 rpm

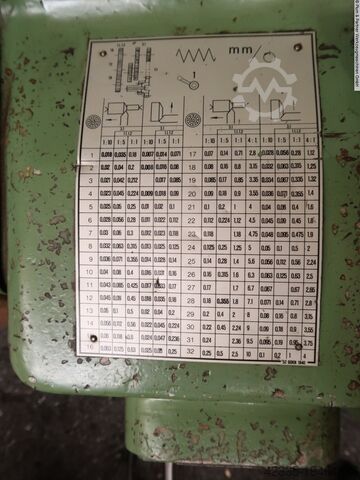

Feeds 224 / 0.018-10 mm/rev
Threads - mm pitch approx. 84: 0.2 - 224 mm
Total power requirement 17.5 kW
Chedpewwatrsfx Ahvec
Machine weight approx. 8.6 t
Space requirement approx. 5.5 x 1.8 x 1.72 m

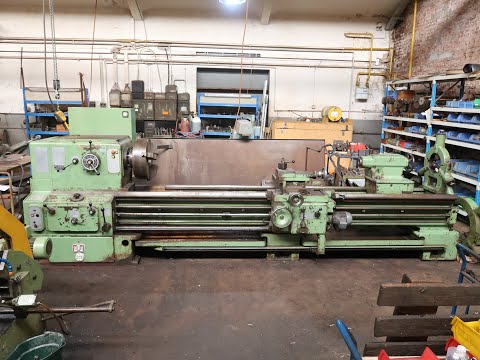

Robust universal lathe with longitudinal and cross-feed carriage, pole-changeable spindle motor (i.e. two speed ranges selectable by increasing the motor speed), single-lever control for all carriage movements, preselection switch for feeds, hardened bedways, bed designed as a double-web bed for high rigidity, the front guideway is elevated and the rear guideway is lower in the V-prism for high accuracy, triple-bearing of the spindle, threads in mm, inch, and diametral pitch. Year of manufacture is estimated. Lots of accessories included!
This is a used machine, therefore sold under exclusion of any warranty.
