Mep Shark 320 Ax pirkti naudotą (117)

Sąlyga: naujas, Saw blade diameter: 350 mm Cutting capacity at 90 degrees (round): 115 mm Kjdpofgpdlofx Abksfa Cutting capacity at 90 degrees (square): 95 mm Cutting capacity at 90 degrees (rectangular): 180 x 95 mm Working height: 925 mm Saw blade speeds: 15/30/45/90 rpm Total power requirement: 1.8/2.5 kW Machine weight: approx. 0.38 t Space requirements: approx. 0.8 x 1.0 x 1.85 m Manual vertical circular saw for mitre cuts from 60° left to 45° right.

Gamybos metai: 2001, Sąlyga: geras (naudotas), mašinos/transporto priemonės numeris: 129603-40-6, Technical Data: - Saw blade dimensions: 300 x 3.4 x 32 mm - Saw blade speed: rpm - Cutting capacity – at 90° round: 90 mm - or square: 80 mm - Pneumatic vices - Material feed automatic, position-controlled - Single stroke up to approx. 1000 mm - Multiple stroke Kodpjd Aai Tofx Abkofa - Swivel arm control panel with MEP CNC control - Motorized dust extraction + mobile chip extraction - Drive: 400 V / 1.1 kW - Space requirements: approx. W 2750 x H 1800 x D 2000 mm - Weight: approx. 600 kg

Sąlyga: naudotas, Radial fan, chip extraction blower, ventilator, extraction system, dust extraction unit, chip blower, extraction unit -Manufacturer: MEP, extraction unit with transport frame -Type: unfortunately without type designation -Motor: Cantoni 0.75 kW / 2840 rpm -Base frame: on castors Kfedpeh Szarofx Abkoa -Dimensions: 950/480/H1860 mm -Weight: 40 kg

Gamybos metai: 1997, Sąlyga: paruoštas naudoti (naudotas), Single wire diameter: 6mm-14mm, double wire diameter: 6mm-10mm, max. bending angle: 180°, motor power: 22kW, feed rate: 1.5m/s, bending speed: 1000°/s, cutting time: 0.4s, hydraulic tank capacity: 300l. Machine dimensions (L/W/H): approx. 4900mm/1640mm/2200mm, weight: approx. 3300kg. Control system defective. Documentation available. On-site inspection possible. Kjdpjuwrv Dsfx Abkofa

Sąlyga: geras (naudotas), Gamybos metai: 1995, Funkcionalumas: visiškai funkcionalus, bendras aukštis: 750 mm, bendras ilgis: 450 mm, bendras plotis: 450 mm, Band saw machines - base frame Kfedpfxovzak Hs Abksa with front flap the colour RAL 6011 reseda green

Sąlyga: naujas, Motor power: 1.1/2.2 kW Vise opening: 130 mm Blade dimensions: 350x32x2.5 mm Weight: 220 kg Speed: 30/60 rpm Cutting capacity at 0°: 115 / 100 / 130x80 mm Cutting capacity at 45° right: 100 / 85 / 90x80 mm Cutting capacity at 45° left: 75 / 75 / 90x65 mm Cutting capacity at 60° right: Cutting capacity at 60° left: Description: Manual crosscut saw for mitre cuts from 45° right to 45° left, featuring high cutting performance. Robust cast iron construction, practical and safe for every cut. The FALCON 352 is available as a workbench version or on a stand (accessory). The machine is equipped with a two-speed three-phase motor. Upon request, the machine is supplied with a pneumatic vice (FALCON 352 MA; when the head is lowered, the vice closes automatically). This version is always delivered with a stand. Standard features: - Externally adjustable clutch - Locking mechanism with vice - Slidable on prismatic guide with adjustable strip - Fixed vice jaws with axial adjustment for clamping the workpiece close to the cutting line - Adjustable steel swarf remover - 48 V electric coolant pump for blade cooling and lubrication - Double return spring for securing the loading table - Machine can be lifted - Worm shaft mounted on bearing pair - Saw blade shaft mounted on offset stamp - 2 speeds: 30 and 60 rpm - Vice opening: 130 mm - Machine supplied without saw blade Electrical equipment: - Electrical control panel Kodpfx Ajcgrkyebkofa - Marked cable connections - Main safety switch lockable with padlock - Emergency stop device - Phase failure protection - Speed selector switch - Thermal magnetic protection - Undervoltage release - Motor with protection class IP 54 - Low-voltage control unit 24 V - Electric coolant pump 48 V - Motor 1.1/2.2 kW – 400 Volt For further technical data, please refer to the attached PDF document.

Sąlyga: naujas, Saw blade diameter: 350 mm Cutting capacity at 90 degrees (round): 115 mm Cutting capacity at 90 degrees (square): 95 mm Kodpfx Abofg Rlcsksfa Cutting capacity at 90 degrees (rectangular): 180 x 95 mm Working height: 925 mm Saw blade speeds: 15 - 90 rpm Total power requirement: 3.0 kW Machine weight approx.: 0.68 t Space requirements approx.: 0.8 x 1.0 x 1.85 m Electropneumatic, vertical, linear-guided automatic saw for use with HSS saw blades, suitable for serial cuts from 60° left to 45° right on steel. The machine can also operate in semi-automatic cycle mode. CNC automatic machine with multiprocessor and two axes controlled by MEP control system of the latest generation, allowing the programming of up to 1000 different cutting programs on the same material thickness, each with different cutting lengths and quantities.

Sąlyga: geras (naudotas), Gamybos metai: 2008, mašinos/transporto priemonės numeris: 21100122-F, Offer 25108 Technical Specifications: - Saw blade dimensions: 350 x 3.4 x 32 mm - Saw blade speed: 3,400 rpm - Cutting range at 90° (round): 120 mm - Cutting range at 90° (flat): 105 x 105 mm or 180 x 70 mm - Cutting range at 45° (round): 110 mm Kjdpfx Abswq N Swskofa - Cutting range at 45° (flat): 135 x 60 mm - Mitre adjustment to both left and right: 45° - Tilt-adjustable mitre head for compound cuts to the left - Pneumatic vices - Discharge roller conveyor with length stop: 2,000 mm - Infeed roller conveyor: 3,000 mm - Drive: 400 V / 2.2 kW - Space requirement (approx.): W 600 x H 1,730 x D 1,200 mm - Weight (approx.): 180 kg

Gamybos metai: 2002, Sąlyga: geras (naudotas), MEP CONDOR 90 CNC MR automatic disc saw for aluminum profiles with controlled feed. Used, in excellent condition. Kjdpfxsikztps Abkefa

Sąlyga: geras (naudotas), Gamybos metai: 1998, pjūklo disko skersmuo: 300 mm, For sale is a MEP Tiger 300, a high-quality circular saw for metalworking applications. This machine was built in 1998 but remains in good condition. It is perfectly suited for workshops and production environments requiring a reliable and precise sawing solution. Machine features: Manufacturer: MEP (Mecchia Eredi Pio) Kfodpfxov Tlcrj Abkja Model: Tiger 300 Year of manufacture: 1998 Saw type: Semi-automatic/manual circular saw Blade diameter: 300 mm Cutting capacity: Suitable for round materials, square profiles, and mitre cuts Cutting angles: 90° and 45°, with mitre cuts possible in both directions Materials: Ideal for cutting iron, steel, and other metals Condition: Good condition Coolant supply: Integrated cooling system for improved cut quality and extended blade life

Sąlyga: naudotas, MEP 40 Straightening and Cutting Bench Bar Capacity: - n.1 Ø 40 mm - n.2 Ø 32 mm - n.3 Ø 26 mm - n.4 Ø 20 mm - n.5 Ø 16 mm 22 Fy = 600 N/mm² – ft = 650 N/mm² Minimum cutting length: 800 mm Maximum length: 12,000 mm Kfsdjvtx Eyjpfx Abkea Measurement tolerance: +/- 1 mm/m Maximum positioning speed: 2 m/s Measurement evacuation speed: 2.2 m/s Number of compartments: 5 + 5

Sąlyga: naujas, MEP TIGER 372 CNC LR 4.0 Item number: TI372CNCLR Motor power: 4.0 kW Vise opening: 190 mm Blade dimensions: 370x32x3 Weight: 1,060 kg Cutting speed: 15-150 rpm Cutting capacity at 0°: 120 / 110 / 180x100 mm Cutting capacity at 45° right: 115 / 100 / 120x100 mm Cutting capacity at 45° left: Cutting capacity at 60° right: Cutting capacity at 60° left: Description Electromechanical automatic vertical circular saw with semi-automatic function for use with HSS saw blades, designed for precision cuts from 45° right to 60° left. Equipped with multi-microprocessors and dual-axis control, allowing programming of up to 80 different cutting programs, each with individual cut length and quantity, for the same material cross section. Standard equipment: - Saw head slides on linear recirculating ball double-guides - Saw head feed with electromechanical cylinder - Rotary axis with thrust bearing - Three-stage gearbox - Material feed (length 1000 mm) via ball screw with stepper motor and mobile feeding vise - Vise opening 190 mm - Saw head stroke programmable directly from the control panel, for adjustment to workpiece height - Pneumatic vertical vise - HSS DMO 5 saw blade Ø 370x32x3 for solid and profile material - Swarf removal brush - Machine designed for pallet truck transport, including tool kit and operator’s manual Electrical equipment: - Control panel - Up to 80 different cutting programs storable - Operation readiness indicator light - Main safety switch - Console for programming and control, LCD display with automatic diagnostics - LED check display panel for machine function monitoring - Emergency stop button - Speed selector switch - Thermomagnetic protection - Undervoltage release - IP 55 protected control handle - 24V low voltage system - Electric coolant device for saw blade lubrication and cooling (option for micro-mist system) - Motor 4.0 kW - 400 V --- MEP TIGER 372 CNC LR 4.0 RC with Automatic Mitre Item number: TI372CNC LR 4.0 RC Motor power: 4.0 kW Vise opening: 190 mm Blade dimensions: 370x32x3 Weight: 1,060 kg Cutting speed: 15-150 rpm Cutting capacity at 0°: 120 / 110 / 180x100 mm Cutting capacity at 45° right: 115 / 100 / 120x100 mm Cutting capacity at 45° left: Ksdpfechkyrex Abkofa Cutting capacity at 60° right: Cutting capacity at 60° left: Description Automatic electromechanical vertical circular saw for use with HSS saw blades, for series cutting with automatic mitre adjustment from -45° to +45° on steel. In semi-automatic cycle, mitre cuts can be made between -45° and +60°. Equipped with multi-microprocessors and dual-axis control, allowing programming of up to 80 different cutting programs, each with individual cut length and quantity, for the same material cross section. Standard equipment: - Saw head slides on linear recirculating ball double-guides - Saw head feed with electromechanical cylinder - Rotary axis with thrust bearing - Three-stage gearbox - Material feed (length 1000 mm) via ball screw with stepper motor and mobile feeding vise - Vise opening 190 mm - Saw head stroke programmable directly from the control panel, for adjustment to workpiece height - Pneumatic vertical vise - HSS DMO 5 saw blade Ø 370x32x3 for solid and profile material - Swarf removal brush Electrical equipment: - Control panel - Up to 80 different cutting programs storable - Operation ready indicator - Main safety switch - Console for programming and control, LCD display with autodiagnostics - LED indicator panel for machine function monitoring

Gamybos metai: 1998, Sąlyga: geras (naudotas), mašinos/transporto priemonės numeris: 080024-38 U, Offer 23332 Technical Data: - Saw blade dimensions: 250 x 2 x 40 mm - Saw blade spindle speed: 52 rpm Ksdpfx Aep Ebn Ssbksfa - Cutting range at 90° - round: 80 mm - flat: 95 x 60 mm - Mitre adjustable up to 45° - Material vice: - Drive: 400 V / 0.5 kW - Required space (approx.): W 650 x H 1500 x D 750 mm - Weight (approx.): 100 kg

Sąlyga: naujas, MEP TIGER 352 NC 5.0 [Fully Automatic] Article Number: TI352NC Kfsdpfx Abschhhdekoa Motor Power: 3.0 kW Vice Opening: 190 mm Blade Dimensions: 350x32x2.5 mm Weight: 680 kg Blade Speed: 15 - 90 m/min. Cutting Capacity 0°: 115 / 95 / 180x95 mm Cutting Capacity 45° Right: 110 / 95 / 125x95 mm Cutting Capacity 45° Left: Cutting Capacity 60° Right: Cutting Capacity 60° Left: Description Electropneumatic, vertical, linear-guided automatic saw for the use of HSS saw blades, suitable for series cuts from 60° left to 45° right on steel. The machine also operates in semi-automatic mode. CNC automatic machine with multiprocessor and two axes controlled by MEP’s latest-generation CNC system, enabling programming of up to 1,000 different cutting programs—each with different lengths and quantities—for the same material thickness. FEATURES: - New centralized control console on an articulated arm for easy emergency stop access from any working position. - NEW: Fieldbus communication system (Modbus protocol) with dual microprocessor and serial connection. - Display with 20 characters x 4 lines showing technical parameters: + Blade speed + Number of programmed and completed cuts + Blade thickness + Feed length + Cutting time + Ammeter + Indication of over 100 diagnostic and warning messages. - NEW: Display and logging of alarm and fault messages with incident review capability. - NEW: 600 mm material feed with stepper motor and ball screw mounted on opposing bearings. - NEW: Electronic inverter for continuous regulation of blade speed from 15 – 90 rpm (optional 30 to 150 rpm). - NEW: Low-voltage control panel: Polyurethane membrane keypad with thermoformed, raised buttons and actuation confirmation signal. - Double gear set for high cutting performance. - Saw head glides on dual linear guideways with recirculating ball bearings. - Coaxial cylinder with bypass valve for rapid approach and potentiometric linear transducer for head position detection. - Programmable saw arm stroke from the control panel for adaptation to material size. - Adaptive cutting pressure control. - Rotating table with central pin and axial bearing for precise miter cuts. - Pneumatic vertical vice. - Electric coolant pump for blade cooling and lubrication. - Chip removal brush. - Signal lamp for program end or emergency stop. - HSS saw blade Ø 350 x 32 x 2.5 mm, suitable for solid and profile material. - Prepared for installation of a minimum quantity lubrication system (OPTIONAL), in addition to the standard emulsion oil lubrication system. For further technical data, please refer to the attached PDF document.

Sąlyga: naujas, MEP COBRA 352 SX evo [Semi-automatic] Article number: CB352SX Motor power: 1.5/2.2 kW Vice opening: 180 mm Blade dimensions: 350x32x3.4 Weight: 285 kg Speed: 1700/3400 rpm Cutting capacity 0°: 120 / 105 / 180x70 Ksdpfxechkv Io Abksfa Cutting capacity 45° right: 120 / 100 / 135x60 Cutting capacity 45° left: Cutting capacity 60° right: Cutting capacity 60° left: Description: Semi-automatic circular saw for cutting solid and hollow aluminium materials as well as light metal alloys, equipped with an electro-welded carbide tipped blade. Standard configuration: - Machine suitable for mitre cuts from 45° right to 45° left. - The vertical alignment allows for saw operations with a head inclined from 0° to 45° left. - * MEP features the latest generation of microprocessor controllers developed for semi-automatic machines, with single-axis control. - FEATURES: At the beginning of the cycle: - Vice closes and motor starts – saw head descends for cutting – motor switches off – saw head lifts – vice opens. - New – 16-character x 2 line display to show the following technical parameters: + Number of cuts performed + Cutting time + Ammeter + Displays over 100 diagnostic messages and warnings - New – Display and log of alarm and error messages with the ability to view the incidents occurred. Electrical equipment: - New – Low-voltage control panel: Membrane keypad made of polyester with thermoformed, raised pushbuttons and actuation control signal. - Saw bow stroke can be programmed directly from the control panel, adjustable according to the material to be cut. - Ball-bearing mounted rotary table for easy and precise rotation. - Clamping system consisting of two front-mounted vices, freely positionable along the longitudinal axis of the workpiece. - Adjustable mechanical stops for quick positioning of the head at 0° and 45° right/left. - Chip conveyor prepared for OPTIONAL exhaust system. - Automatic blade lubrication system, only activated at the start of cutting. - Machine supplied without saw blade. - Prepared for installation of the optional minimal blade lubrication kit, in addition to the standard coolant-based lubrication with emulsion oil. - Tool kit and operating manual with spare parts list included. For further technical details, please refer to the attached PDF document (catalogue, page 2).

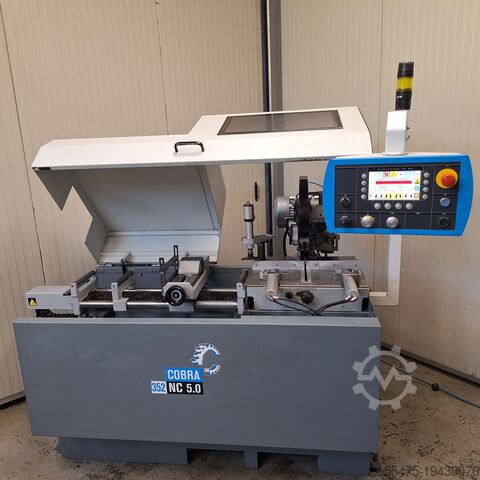

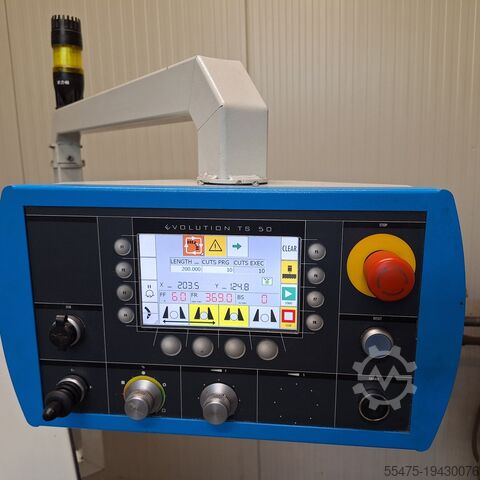

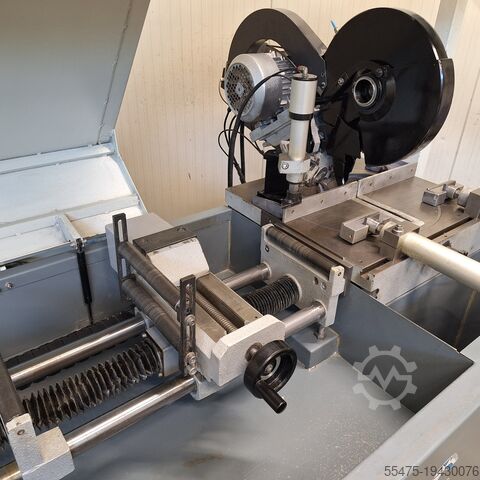

Sąlyga: naujas, MEP COBRA 352 NC 5.0 [Fully Automatic] Article number: CB352NC 5.0 Motor power: 2.6/3.5 kW Vice opening: 180 mm Blade dimensions: 350x32x3.4 Weight: 600 kg Speed: 1700/3400 rpm Cutting area 0°: 120 / 105 / 180x70 Cutting area 45° right: 120 / 100 / 135x60 Cutting area 45° left: Cutting area 60° right: Cutting area 60° left: Description Automatic mitre saw with semi-automatic function for the cutting of aluminum and light metal alloys. Mitre cuts from 45° right to 45° left, with the saw head swiveling 0°-45° to the left. Control is managed via multi-microprocessors, with two NC-controlled axes enabling programming of up to 1,000 different cutting programs per material, each with different quantities and lengths. -New centralized control console on an articulated arm, allowing easy operation from any working position with immediate access to the emergency-stop switch. -Fieldbus communication system with dual microprocessor and serial interface. -Display with 20 characters x 4 lines, showing technical parameters such as: number of programmed and completed cuts, saw blade thickness, feed length, cutting time, ammeter, and indications for over 100 diagnostic messages and warnings. -New – Display and recording of alarm and error messages, with the option to view incidents that have occurred. New – Material feed of 600 mm with cutting motor and ball screw mounted on opposed bearings. -New – Low-voltage control panel: Polyester membrane keypad with thermoformed and raised keys and actuation signal. -Lifting stroke of the saw bow programmable directly from the control panel, allowing adaptation to the cutting material. -Ball-bearing rotary table for smooth and precise rotation. -Clamping system using two front-positioned vices, which can be freely positioned along the longitudinal axis of the workpiece. -Adjustable mechanical stops for quick positioning of the saw head at angles of 0 and 45 degrees left and right. Kfedpfx Abechkwhjkea For further technical data, please refer to the attached PDF document (page 3 of catalog excerpt).

Sąlyga: naujas, MEP COBRA 352 MA Kfsdpfechku Sjx Abkja Article Number: CB352MA Motor Power: 2.2 kW Table Opening: 180 mm Blade Dimensions: 350x32x3.4 Weight: 210 kg Speed: 1700/3400 rpm Cutting Capacity at 0°: 120 / 105 / 180x70 mm Cutting Capacity at 45° right: 120 / 100 / 135x60 mm Cutting Capacity at 45° left: Cutting Capacity at 60° right: Cutting Capacity at 60° left: Description Manual circular saw for cutting aluminum, with miter cuts from 45° right to 45° left and the saw head tilting from 0° to 45° to the left. On the Cobra 352 MA (automatic vice), the vices close automatically when the saw head is lowered. Standard Equipment: - Roller-bearing mounted turntable for quick and precise miter adjustment - Clamping system for locking the saw head in any position - Automatic blade lubrication - Clamping system consisting of two vices - Saw head lock in the upper position - Adjustable length stop for repeat cuts of the same length - Vice opening 180 mm - Includes tools and user manual Electrical Equipment: - Control panel - Labeled cable connections - Operation-ready indicator light - Main safety switch - Emergency stop button - Speed selector switch - Thermal-magnetic protection - Undervoltage release - Trigger handle protection type IP 55 - Low voltage circuit 24 Volt - Motor 1.5/2.2 kW – 400 Volt For further technical details, please refer to the attached PDF document.
