Heckert pirkti naudotą (74)

Gamybos metai: 1988, Sąlyga: naudotas, Table diameter 400 mm Lrsdpfx Aeipyx Nebmju Table load capacity 0.126 t Table height 100 mm Weight 126 kg Rotary table with 400 mm diameter from a Heckert FSS 400.

Sąlyga: naujas, Funkcionalumas: visiškai funkcionalus, Spare parts for Fritz Heckert milling machines F315, F400 – even for the oldest models. We offer a complete range of spare parts for milling machines – both old and new German WMW HECKERT milling machines F315, F400, FSS-350MR, FSS-400MR, FU-350MR, FU-450MR, FU-350ApUG, FU-450ApUG, FU-350MRApUG, FU-450MRApUG. In our inventory you will find: milling heads and all associated gearboxes, dividing heads, steady rests, all electromagnetic clutches and brakes, shafts, bevel gears, worms and worm gears, pulleys, levers, longitudinal and cross-feed screws, nuts, oil pumps, coolant pumps, spindles, quills, hydraulic distributors/valves, and more. Ledevtnfpepfx Abmsru We can supply all original parts for Heckert milling machines directly from stock, ready for immediate dispatch. All parts are new, manufactured to German quality standards, and meet the highest technical requirements.

Gamybos metai: 1983, Sąlyga: geras (naudotas), Machine Number: 316204/22 Type / Model: FSS 315/E Lrsdpefli Afjfx Abmou Travel distances x-y-z: 850 – 280 – 355 mm Table: 1,200 x 370 mm Clamping area: 1,060 x 260 mm Speed range: 28 to 1,400 rpm Spindle taper: SK 50 Quill stroke: 80 mm Feed x and y axis: 16 to 800 mm/min Feed z axis: 5 to 250 mm/min Connection: 8 kW Accessories/Equipment: Swiveling head Condition: good Weight: 4 t Dimensions: 2,000 x 2,000 x 2,400 mm

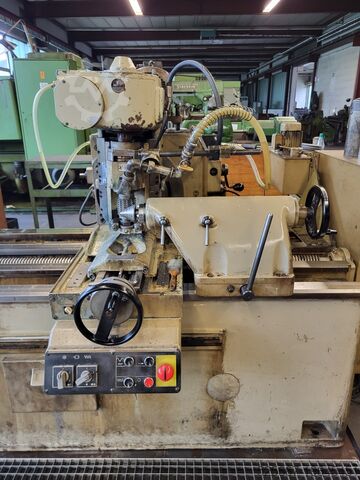

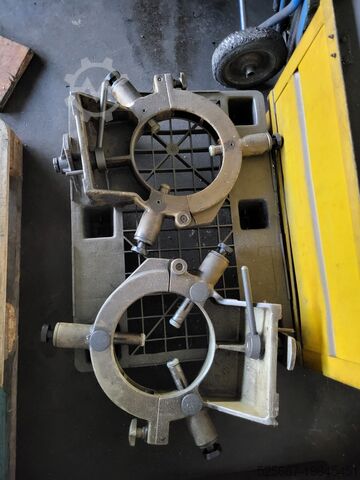

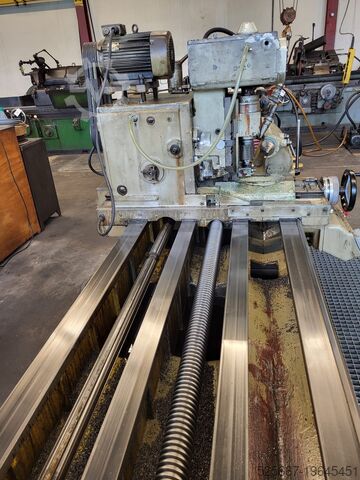

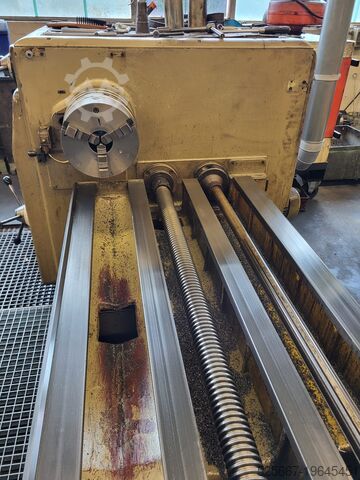

Sąlyga: paruoštas naudoti (naudotas), Gamybos metai: 1981, Funkcionalumas: visiškai funkcionalus, VEB Fritz Heckert ZFWVG 250×2000 Maximum workpiece length: 2,000 mm Maximum workpiece diameter: 250 mm Ledpfx Aew Dvanjbmjru Accessories include: second milling head, hob cutters in various modules, steady rests, clamping devices, etc.

Sąlyga: naudotas, Rotary Table, Indexing Table, Dividing Head, Index Center - Manufacturer: WMW Heckert, Rotary Table Type D 315 k TGL 28561/02 - Clamping surface: Ø 315 mm - Height: 140 mm - T-slot: 14 mm - Dimensions: 615 x 540 x H150 mm Ljdpfeg Rczfex Abmsru - Weight: 83 kg

Sąlyga: beveik kaip naujas (naudotas), Gamybos metai: 1989, 100 diverse tool holders SK 50 partially unused "NEW" Ledjg U H S Rjpfx Abmeru particularly suitable for Heckert console milling machines and machining centres C500 or C630

Gamybos metai: 1988, Sąlyga: naudotas, Diameter: various mm Weight: 200 kg Type: various 0 Ljdpfsipyybox Abmoru 14 assorted milling spindles for roller cutters and 4 counter bearings. 2 counter bearings for FU 400 (84 mm bore), 1 counter bearing for FU 315 (70 mm bore), and one smaller bearing (34 mm bore).

Sąlyga: naudotas, Gamybos metai: 2003, x-axis travel 800 mm y-axis travel 600 mm z-axis travel 805 mm Control system: Sinumerik 840D Machine weight approx. 13 t 1 horizontal machining centre Manufacturer: HECKERT Model: CWK 500D Year of manufacture: 2003 Serial No.: 16087 Control system, make: Siemens, model: Sinumerik 840D Travel paths X/Y/Z: 800 x 600 x 805 mm 2-pallet changer Pallet size: 500 x 500 mm NC rotary table: 360 x 0.001° 60-tool automatic tool changer, Tool holder: HSK 63 Max. spindle speed: 15,000 rpm Lrodpfx Abjuddgfjmju Internal coolant supply: 50 bar Operating hours: 32,450 Spindle hours: 6,080 Equipment: Coolant temperature control, band filter, chip conveyor, spindle cooling, Preparation for infrared measuring probe

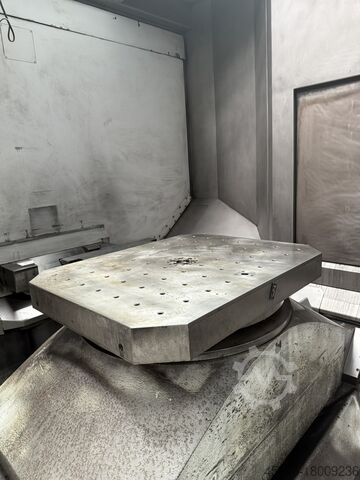

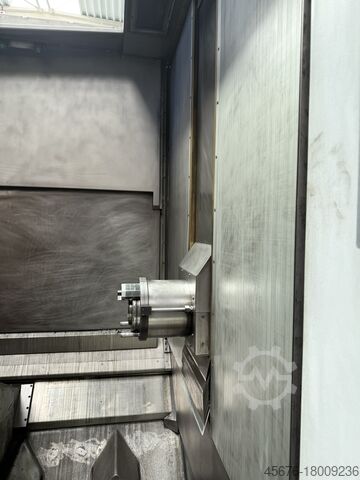

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2015, Summary of Technical Data for Starrag Heckert HEC400D (Year of Manufacture 2015): ### Basic Data - Control: SIEMENS 840D sl HMI Operate - Travel Paths: - X/Y/Z: 650/650/680 mm - B-axis: 0–360° (full-fledged 4th axis) - Speeds: - Rapid traverse X/Y/Z: 65 m/min - Feed rate during milling: 1–65,000 mm/min - Acceleration X/Y/Z: 9/9/8 m/s² - Feed Forces: - 60%: 9,000 N | 100%: 7,500 N ### Rotary Axis (B-axis) - Manufacturer: Fertigungstechnik Weißenfels GmbH - Max. Rotation: 80 rpm - Indexing: 0.001° - Torques: - Clamping torque: 3,000 Nm - Tilting moment: 5,000 Nm - Continuous torque: 550 Nm ### Pallet Changer - Number of pallets: 2 (machine/setup station) - Pallet size: 400 × 500 mm - Load capacity: 500 kg/pallet - Change time: 8–10 seconds ### Tool Magazine - Capacity: 60 slots - Tool holder: HSK-A63 - Max. tool diameter: Ø80 mm (Ø160 mm with adjacent slots empty) - Max. tool weight: 10 kg - Chip-to-chip time: 3–4 sec. (depending on weight) ### Spindle - Speed: 50–10,000 rpm - Drive power: 31/24 kW - Coolant: 7 pressure stages up to 50 bar (optionally 80 bar) ### Accuracy - Positioning uncertainty (X/Y/Z): 0.006 mm - Positioning scatter (X/Y/Z): 0.004 mm - Reversal error (X/Y/Z): 0.003 mm - B-axis: 6 arcsec (uncertainty), 4 arcsec (scatter) ### Miscellaneous - Noise emission: ≤80 dBA - Coolant volume: 420 liters (basic) / 2,250 liters (optional) - Machine weight: approx. 12,000 kg (without accessories) - Operating voltage: 400 VAC, 50 Hz - Pneumatics: 6–8 bar inlet pressure ### Special Equipment (optional) Ledpev Snvrsfx Abmeru - High-performance spindle: 10,000 rpm, up to 37 kW for heavy-duty machining - Air extraction: EU13 filter (99% filtration) - Shower cooling: 70 l/min coolant supply ### Additional Features - Remote diagnostics, pallet sequence operation, operating hours display, German/English dialog interface. The machine is painted in RAL 7035/7005/7016 and features a fully enclosed working area paneling according to accident prevention regulations (UVV).

Gamybos metai: 2001, Sąlyga: geras (naudotas), mašinos/transporto priemonės numeris: WAG737, Size: 630 x 630 mm Threaded holes according to DIN 55201 Available: 10 pieces Lsdpfx Aoddxd Tjbmoru

Sąlyga: naudotas, Universal milling head, milling adapter, milling extension, angle milling head -Spare part from a: WMW HECKERT milling machine -Quantity: 1 piece angle milling head Lrsdpfod Nz Dpsx Abmju -Output spindle taper: SK50 -Input: gear drive -Milling head: fully swiveling -Mounting recess: mm -Bolt circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Gamybos metai: 1989, Sąlyga: paruoštas naudoti (naudotas), Galia: 45 kW Magnetinės plokštės skersmuo: 1 000 mm ø Lredpfx Ashq Uk Tjbmsu Sukamo magneto skersmuo: 1 000 mm ø Svoris: apie 10 t

Sąlyga: naudotas, mašinos/transporto priemonės numeris: 1484.04.01, x-travel: 700 mm Ljdpfecxxxuox Abmjru y-travel: 400 mm Workpiece height: 620 mm Table: 1000 x 630 mm Internal grinding diameter: 250 mm Axial movement of the grinding spindle: 115 mm Stepless feed rates: 0.5–63 mm/min Total power requirement: 6 kW Machine weight approx.: 4.5 t Required space approx.: 2375 x 2470 x 2560 mm Precision coordinate grinding machine equipped with a high-speed spindle (30,000–60,000 rpm), a second auxiliary high-speed spindle (12,000–30,000 rpm), cross slide head with ±50 mm cross slide travel, feed indicator, digital speed display, electronic stepless speed control, ARKURITE model VRO 300, digital control with RS 232 interface, infinitely variable reciprocating stroke 5–100 mm, stepless planetary spindle speed 5–250 rpm, reading accuracy 0.001 mm, switch for manual and NC operation, emergency stop switch.

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2008, Control: Siemens 840-D Travel X: 1450 mm (longitudinal) Travel Y: 1100 mm (vertical) Travel Z: 1300 mm Pallet size: 800 x 1000 mm Table load capacity: 2000 kg NC rotary table with direct drive Positioning accuracy: 0.001° Max. rotary table speed: 60 rpm Rapid traverse: 60 m/min Spindle motor: 50 kW (25%) / 28 kW (100%) Lredovgxfyopfx Abmeu Spindle torque: 1210 Nm / 680 Nm Spindle speed: 6000 rpm Spindle taper: HSK 100 Tool changer: 80 positions Max. tool diameter: 325 mm Max. tool length: 800 mm Max. tool weight: 35 kg Workpiece diameter: 1600 mm Workpiece height: 1400 mm Workpiece weight: 2000 kg Through-spindle coolant Coolant shower Tool breakage detection in tool changer Spindle motor load monitoring Spindle extension by 100 mm Electronic handwheel Machine is delivered with many tools

Sąlyga: naudotas, Techninės detalės: Velenų skaičius: 1000 Gręžimo galia pliene (skersmuo): 32 mm Gręžimo eiga: 200 mm Apsisukimų diapazonas: 63 - 1000 aps./min Gręžimo galia ketuje: 50 mm Gręžimo veleno Morse kūgis: MK4 Veleno išsikišimas: 315 mm Velenų atstumas: 475 mm Gręžimo stočių skaičius: 3 Veleno galvutės pastūmos eiga: 280 mm Padavimas: 0,08 - 1,25 mm/aps. (9 žingsniai) Atstumas tarp veleno ir stalo: 710 mm Stalo paviršius: 450 x 560 mm Bendras galios poreikis: 12,4 kW Mašinos svoris: apie 3,1 t Mašinos matmenys (Ilg.xPlot.xAukšt.): apie 2,15 x 1,40 x 2,65 m Ankstesnis savininkas iš nuoseklios gręžimo staklių pašalino veleną su dėže! Ljdpfsw Th Nlsx Abmeru

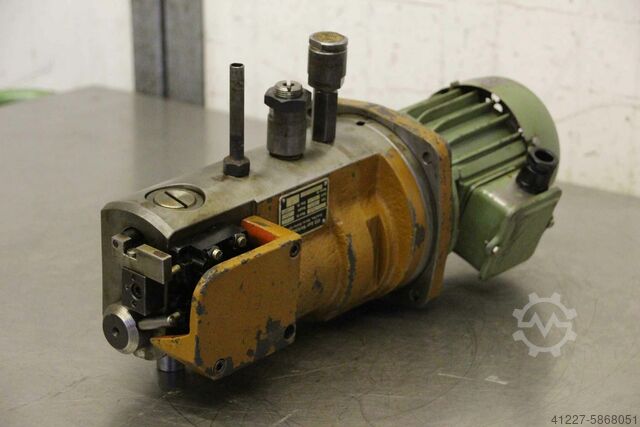

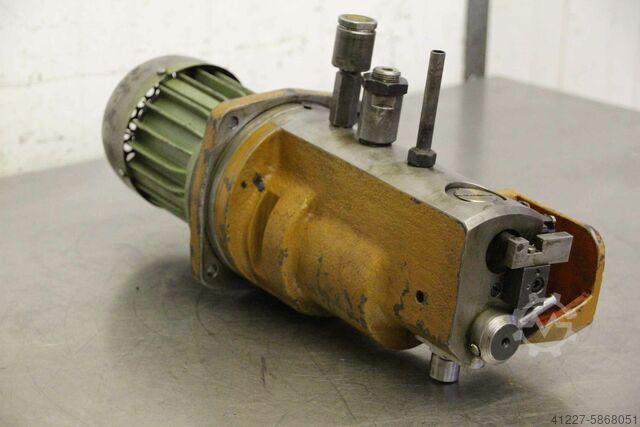

Gamybos metai: 1997, Sąlyga: naudotas, Quick-clamping device, hydraulic clamping device, electrohydraulic clamping device, Lrodpjgxcuxofx Abmeu -Manufacturer: WMW HECKERT, clamping device from milling machine FSS 315-V -Type: FHKN 3311 -Motor: VEM 0.12 kW -Dimensions: 440/150/H220 mm -Weight: 24 kg

Sąlyga: naudotas, Gamybos metai: 1980, Technical details: X-axis travel: 850 mm y-axis travel: 280 mm z-axis travel: 355 mm Spindle taper ISO: SK 45 / SK 45 Tilting spindle head left and right: each 90° Speed range: 28 - 1400 rpm / 18 steps Distance table/horizontal spindle: min.: 60 / max.: 180 mm Lsdpfxou Ndf Ie Abmoru Table clamping surface: 1070 x 270 mm Table load: 1000 kg Table swivel range +/-: 45° each Feed rate: X+Y: 16 - 800 mm/min and Z: 5 - 250 mm/min Total power requirement: 8.0 kW Machine weight approx.: 3100 kg Machine dimensions approx. LxWxH: 2.1 x 1.8 x 2.15 m Control cabinet dimensions: L: 0.8 x W: 0.45 x H: 1.65 m Clamping surface: 315 x 1250 mm Manual horizontal beam adjustment: 650 mm Mounted on the table: clamping head with 3-jaw chuck, Ø 200 mm, with internal jaws, center height 165 mm Coolant system Hand crank Milling arbor Ø 22 x 620 mm with form cutter Ø 80 x Ø 8 mm

Sąlyga: naudotas, Universal milling head, milling arbor, milling extension, angle milling head Lrsdsgxcuqspfx Abmju - Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V - Output mount: SK50 - Input: Gear drive - Milling head: fully swiveling - Stroke: 72 mm - Transport dimensions: 850/650/H520 mm - Weight: 277 kg

Sąlyga: naudotas, Technical Details: Lrodpfx Abou N Dz Aemou Table diameter: 315 mm Table rotation – manual/mechanical: 360° Approx. machine weight: 100 kg Dimensions: 620 x 530 x 135 mm Multiple rotary tables of this type are available for sale. Total height: 135 mm Additional features: - With radial scale - Surface is fine-machined - Center mounting: Morse taper 3 (MK3) - Bolt circles: 19 / 27 / 31 / 41 / 49 / 59 - Can be operated externally/mechanically via clutch on both sides (switchable between clockwise/counterclockwise with automatic reversing) - Base clamping: support surface 360 x 420 mm with 1 T-slot (face side) 16 x 200 mm

Sąlyga: naudotas, Technical details: Table diameter: 450 mm Table rotation - manual/mechanical: 360° Lrjdpou N D Aysfx Abmju Clamping table swivelling: 90° mechanical Machine weight approx.: 100 kg Dimensions: L: 800 x W: 700 x H: 400 mm The surface of the rotary table is hand-scraped. Very good condition! Micrometer-precise locking Positioning within 0.01 mm range T-slots according to DIN 650, radial arrangement Base clamping: 16 mm (6 bores)

Sąlyga: naudotas, Techninė informacija: Medžiagos storis: 1,0 mm Medžiagos plotis: 17,0 mm Vidinis skersmuo: 30,0 mm Išorinis skersmuo: 78,0 mm Lsdpsu N E Evsfx Abmoru Atsarginė dalis stalo gręžimo staklėms BT 2 Plokščioji spyruoklė – grąžinamoji spyruoklė – spiralė spyruoklė Atitikties deklaracija pagal ISO/IEC 17050-1 Prieinama patikros sertifikatas 3.1 pagal DIN EN 10204

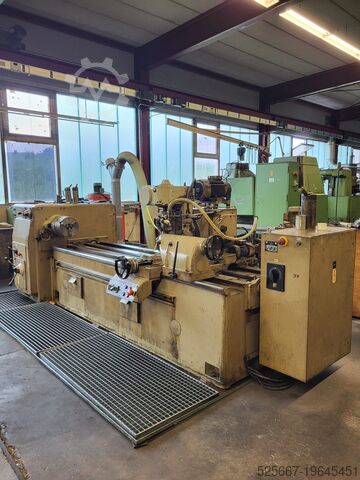

Sąlyga: naudotas, Techninės detalės: Smailumo aukštis virš staklių: 260 mm Ruonio diametras virš staklių: 500 mm Ruonio diametras virš atramos: 250 mm Frezavimo ilgis: 2000 mm Dantų skaičius: 2 - 50 Pasislinkimas: 0,023 - 5,17 mm/min Maksimalus modulis: 8 / 12 Veleno skylės diametras: 102 mm Ruonio sukimosi greitis: 18 - 224 aps./min Centro įvorės eiga: 100 mm Bendras energijos poreikis: 9,5 kW Apytikslis staklių svoris: 5,2 t Staklių matmenys (IxPxA): 3,6 x 2,1 x 2,0 m Papildoma techninė informacija: Ridinėjimo poslinkis: 0,023 - 5,17 mm/VR Išilginis frezavimas - mm/min. Lsdpfxov U T Dyj Abmoru

Sąlyga: naudotas, Technical Details: Lredpju N D Szefx Abmju Table length: 2000 mm Table width: 1800 mm Table load capacity: 12.5 t Table longitudinal travel: 1250 mm Table rotary: 360° Table positioning: 4x90° Feeds - longitudinal: 0.63 - 2,000 mm/rev Total power requirement: 6 kW Machine weight approx.: 7.6 t Machine dimensions LxWxH: 3.82 x 2.25 x 0.92 m Conventional boring mill table

Sąlyga: naudotas, Technical details: Table length: 2000 mm Table width: 1800 mm Lrsdpfxeu N Ebdo Abmeu Table load capacity: 12.5 t Table longitudinal travel: 1250/1400 mm Table rotation: 360° motorized Table positioning: 4x90° Feeds - longitudinal: 0.63 - 2,000 mm/min Height above floor: 920 mm Power supply: 380 V Total power requirement: 6 kW Machine weight approx.: 7.6 t Machine dimensions (LxWxH): 3.8 x 2.25 x 0.95 m Conventional boring mill table, operated via control panel T-slots according to DIN 650: a=28mm; h=49mm; b=52mm; c=21mm

Sąlyga: naudotas, Techninės detalės: z eiga: 1250 mm Apsisukimo skersmuo virš staklių lovos: 260 mm Ruoinio skersmuo virš lovos: 500 mm Lrjdpfx Asv U Un Hebmou Ruoinio skersmuo virš atramos: 250 mm Centų aukštis virš lovos: 260 mm Frezavimo ilgis: 2000 mm Didžiausias modulis: 8 / 12 Bendras galios poreikis: 9,5 kW Apytikslis staklių svoris: 3,8 t
