Obliavimo staklės SCM F 520

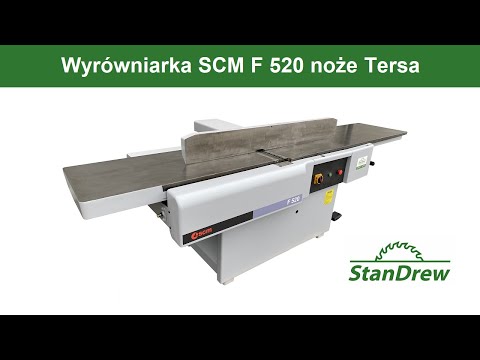

SCM F 520

Būklė: labai geros būklės (naudotas), Katalogo numeris 7776 TECHNINIAI DUOMENYS - veleno plotis 520 mm - 4 peilių velenas - slopinantis šukas - veleno gaubtas - stalų ilgis 3010 mm - pailgintas įvadas – elektrinis reguliavimas 1770 mm - ketaus stalai - abu stalai reguliuojami Iodpfoyi Twmox Aaustf - originali ketaus nuostata reguliuojama kampu - elektrinis stabdis - jungties diametras siurbimui 120 mm - variklis 4 kW - matmenys ilgis/plotis/aukštis 3010x1000x1400 mm - svoris 870 kg PRIVALUMAI – itališka gamyba – 4 peilių velenas – viršutinė valdymo konsolė – elektrinis stabdis – slopinantis šukas – ilgesnis įvadas – nedažyta – naudota obliavimo staklė, labai gera būklė, originali DTR dokumentacija, CE Grynoji kaina: 28 900 PLN Grynoji kaina: 6 880 EUR, pagal kursą 4,2 EUR (Kainos gali keistis dėl didesnių svyravimų)

Būklė: beveik kaip naujas (parodų įrenginys), Gamybos metai: 2025, CASADEI F 25 LL FK - Spindle moulder with tilting spindle and table extensions Spindle moulder with tilting spindle from -45° to +45° Robust steel and cast iron construction Dynamically balanced milling unit anchored to the worktable Especially sturdy design Smooth operation due to precision assemblies and high own weight Standard with forward/reverse rotation and electronic interlock during direction change 5 speeds from 3000 to 10000 rpm Speed adjustment is simple and convenient from the machine side Standard with MK 4 quick-change spindle system Large cast iron worktable for lasting precision Easy handling thanks to controls and speed indicator on the machine front Milling fence with fine adjustment and aluminium fence jaws as standard High-performance industrial motors Equipment details: Milling fence Milling fence adjustable with crank/handwheel from the front panel With digital readout Quick-change spindle MK 4 quick-change spindle system standard on all CASADEI F 23 and F 25 models Optional sliding table Optional sliding table for small tenoning operations and slotting Scope of delivery: Manually tiltable spindle from +45° to -45° Itedpfxjdqzcxo Aauef Speed display via LED on the front Aluminium fence jaws Curved milling guard Forward/reverse spindle rotation MK 4 quick-change spindle Milling fence adjustable with crank/handwheel from the front panel with digital readout Table extension left and right (2500 mm length) Pull-out workpiece support (2500 mm length) Model: CASADEI F 25 LL FK Article No.: 5220728 Technical data Worktable dimensions: 2500 x 810 mm Spindle tilting range: +45 to -45 degrees Usable spindle length Ø 30-35 mm: 140 mm Usable spindle length Ø 40-50 mm: 180 mm Spindle stroke: 90 mm Max. tool diameter for profiling: 250 mm Max. tenoning tool diameter: 350 mm Max. form cutter diameter: 160 mm Max. retractable tool diameter: 320 x 60 mm Speeds, 5-stage: 3000/4500/6000/8000/10000 rpm Motor power 400 V / 50 Hz / S6-40%: 7 kW Weight: 480 kg Extraction nozzle diameter at fence: 1 x 120 mm Extraction nozzle diameter under table: 2 x 80 mm Location: Ex stock 54634 Bitburg - Available immediately -

Būklė: labai geros būklės (naudotas), Išilginio obliavimo staklės SCM F520 Class Darbinis plotis: 520 mm Velenas su 4 peiliais Tradiciniai peiliai Elektroninis darbinio stalo pakėlimas ir nuleidimas Pagrindinis liniuotė reguliuojama iki 45° kampu Stalų ilgis: 2700 mm Itodpfx Aaex H S Dnousf CE sertifikatas Techninė dokumentacija (DTR) Gamybos metai: 2014

Būklė: geras (naudotas), Gamybos metai: 1990, Naudota obliavimo staklė SCM F 520 Metų gamyba: 1990 Gamintojas: SCM Modelis: F520 Darbinis plotis: 520 mm Bendras stalo ilgis: 3000 mm Įleidžiamo stalo ilgis: 1780 mm Išleidžiamo stalo ilgis: 1180 mm Hidraulinis stalo pakėlimas ir nuleidimas Reguliuojamas kampo liniuotė, matmenys 1500x175 mm Variklio galingumas: 5,5 kW Peilių veleno apsisukimų skaičius: 5000 aps./min Drožlės storio indikatorius Maks. drožlės nuėmimas: 8 mm Triukšmą mažinantys šukos ant veleno Tersa 4 peilių velenas, skersmuo 120 mm Iodpfxjyvz I Io Aaujtf Žvaigždės-trikampio paleidimas Ištraukimo jungtis: Ø 120 mm Stalo aukštis: 860 mm Matmenys (IxPxA): 299 x 95 x 110 cm Svoris: 950 kg

Būklė: geras (naudotas), Automatinė storio obliavimo staklė skirta stalių dirbtuvėms, nestandartinių baldų gamybai, medinių langų rėmų, medžio apdirbimo, lentpjūvėms, plastikams, kompozitinėms medžiagoms ir kt. - CE standartas Techniniai duomenys: • Elektroninis stalo padėties nustatymas • Pneumatinis volelių slėgio reguliavimas • Pavaros sistema su 3 didelio skersmens motorizuotais viršutiniais voleliais – lengvai keičiami • Elektroninis padavimo greičio reguliatorius 4–20 m/min • Darbinio stalo matmenys 630 x 1000 mm • Maksimali darbinė plotis 630 mm • Minimali/maksimali darbinė aukštis 3/300 mm • Mažiausias ruošinio ilgis 260 mm • 4 peiliai • Variklio galia 7,5 AG • Padavimo variklis 2 AG • Dulkių nusiurbimo angos skersmuo 150 mm • Bendri matmenys mm 1360 x 1080 x 1220 h Itjdpfeyi E T Tox Aausf • Svoris 1000 kg

Būklė: labai geros būklės (naudotas), Breite 520 mm Länge 300 cm 4 Tersa Messer hydraulischer Tischhub Itsdpeub Uifofx Aausf Ordentlich, funktioniert Sie können uns anrufen oder schreiben. Wir sprechen und schreiben Deutsch und Russisch. Sie können uns auch Nachrichten auf Englisch schicken.

Būklė: geras (naudotas), Funkcionalumas: visiškai funkcionalus, obliavimo plotis: 520 mm, bendras plotis: 95 mm, bendras aukštis: 110 mm, bendras svoris: 800 kg, bendras ilgis: 299 mm, stalo ilgis: 2 990 mm, Planer/Thicknesser SCM F520 – after technical inspection, ready for operation Specification: • Technical condition – used, professionally serviced • Manufacturer – SCM • Model – F520 • Working width – 520 mm • Table length – 2990 mm • Hydraulic table lifting and lowering • Adjustable fence, dimension 175x1500 mm Ijdjyg Rygopfx Aaustf • Motor power – 4.0 kW • Spindle speed – 5000 rpm • Chip thickness indicator • Maximum cutting depth – 8 mm • Anti-noise combs at the cutterblock • 4-knife cutterblock, Ø120 mm, for standard knives • Star-delta starter • Connection for chip extraction – 120 mm diameter • Weight – approx. 800 kg • Overall dimensions: 299 x 95 x 110 cm (L x W x H) Additional information: • The machine is in good technical condition, ready for immediate use • The photos shown reflect the actual condition of the item for sale • Possibility to connect and test the machine on-site • The auction price does not include VAT or transportation costs Financing and transport: • We organize transport using MDD fleet, courier companies, or external carriers • We offer financial support in the form of leasing or a leasing loan

Būklė: naudotas, Working width: 410 mm Planing table length: 1450 mm Number of planer knives: 4 pcs. Motor power: 4 kW Dimensions (L/W/H): 2650 x 850 x 1100 mm Machine weight approx. 750 kg Surface Planer F 410 N ----- Technical manufacturer description: Planing width: 410 mm Total table length: 2600 mm Table height: 855 mm Infeed table length: 1450 mm Aluminum fence tiltable up to 45° Fence dimensions: 1100 x 170 mm 4-knife cutter block, diameter: 120 mm Cutter block speed: 5000 rpm Motor power: 4 kW TERSA monoblock disposable reversible knife cutter block SCM guard integrated in machine base Extraction port diameter: 120 mm Manual star-delta switch Itedowzmu Dspfx Aauef Motor protection switch, undervoltage release Main switch, lockable Automatic motor brake Swiveling auxiliary fence ----- Price for the above-mentioned machine upon request! ----- (Technical data according to manufacturer – no guarantee!) All prices quoted are net, plus statutory VAT.

Būklė: naujas, Exhibition machine Technical Data: Working width (machine table) [mm]: 520 Total table length [mm]: 2750 Front table length [mm]: 1550 Rear table length [mm]: 1200 Cutter block diameter [mm]: 120 Cutter block speed [rpm]: 5000 4 knives [mm]: 35x3x520 Aluminium fence [mm]: 1200x190 Fence tilting range: from 90° to -45° Table height from floor [mm]: 845 Extraction hood diameter [mm]: 120 Maximum chip thickness [mm]: 8 Controls/Functions - Manual adjustment of the front table - Chip thickness indication via scale Safety/Protection - Cutter guard with parallelogram adjustment below the working line (CE version) - "Boomerang" cutter guard (versions with electronic safety devices) - No possible insertion work (CE version) - Lockable main switch - Thermal protection switch - 110V auxiliary control circuit - Automatic motor brake (CE version) - Emergency stop button - CE Declaration of Conformity (CE version) Accessories - Cutter block and knife holder with markings as positioning aid, complete with setting gauge for planer knives - Service tool set - Motor with direct drive: (S1): 4 kW 5.5 HP 50Hz (4.8kW 6.6HP 60Hz) (S6 -40%): 5kW 7 HP 50 Hz (6 kW 8HP 60Hz) 109999 Version according to Safety Regulations No. 1   R11163 nova f 520 CE version   930731 Voltage 400 EU   931201 Frequency 50 Hz   555014 P1 version - CE and electrical safety devices Motor power 7kW 50 Hz with automatic star-delta switch   570127 Additional folding fence for processing thin parts 570135 TERSA cutter block with reversible knives, complete with one set of knives Itodpevwf Amsfx Aauef 083250 Base   109993 MACHINE LANGUAGE: German

Būklė: beveik kaip naujas (parodų įrenginys), Funkcionalumas: visiškai funkcionalus, TECHNINIAI DUOMENYS: Techninės charakteristikos NOVA F 520 Darbinis plotis [mm]: 520 Bendras stalų ilgis [mm]: 2750 Įvado stalo ilgis [mm]: 1550 Isdpfx Aoqw Uyfsauotf Išvado stalo ilgis [mm]: 1200 Peilio veleno skersmuo [mm]: 120 Veleno greitis aps./min.: 5000 Peilių matmenys (4 vnt.) [mm]: 35 x 3 x 520 Aliumininis obliaus kreiptuvas [mm]: 1200 x 190 Kreiptuvo pasvirimo kampas °: 90–45 Darbinio stalo aukštis nuo grindų [mm]: 845 Drožlių ištraukimo jungties diametras [mm]: 120 Maks. nuėmimas [mm]: 8 Variklio galia kW (AG): 5 (7) ----- Papildomos įmontuotos parinktys: * Spiralinė galva „XYLENT”

Būklė: naujas, Gamybos metai: 2025, New machine Year of manufacture: 2025 Description: - Total table length: 3008 mm - Surface planer fence made of cast iron - Control panel above the table Itodpfjw Tfynjx Aausf - Motorized adjustment of the infeed table - Electronic digital display for chip removal - Cutterhead guard Technical data: L'invincibile f 7 Working width: 520 mm Cutterhead diameter: 120 mm / 4 knives Total table length: 3008 mm Main motor power: 7 (8) kW / 50 (60) Hz Advantages: Parallelogram table adjustment: Permanent precision. Safe operation with a parallelogram infeed table adjustment, ensuring a constant distance between the table and the cutterhead. The system operates directly via joints, which avoids stressing the table for long-lasting stability and parallel alignment. Concave/convex functions – guarantee perfect edge joining. The available settings enable perfect edge joining of workpieces, with optimal joints and invisible seams. Integrated "Smart Lifter" guard – ergonomics and safety. The patented protection system by SCM is perfectly integrated into the machine base, offering the highest level of protection while avoiding any work obstructions or inconveniences. Through automatic vertical, horizontal, and diagonal movement, the guard ensures complete coverage of the tool before, during, and after machining. "XYLENT" SPIRAL CUTTERHEAD. The 3 rows of knives ensure an excellent surface finish. The Xylent spiral cutterhead enables quiet operation and improves extraction due to the production of smaller chips. Extended tool life thanks to the ability to rotate the knives four times. Availability: short-term Location: Flörsheim am Main

Būklė: beveik kaip naujas (naudotas), Gamybos metai: 2014, Funkcionalumas: visiškai funkcionalus, obliavimo plotis: 510 mm, peilių skaičius: 4, bendras svoris: 715 kg, bendras ilgis: 2 725 mm, peilio veleno skersmuo: 120 mm, aukščio reguliavimo tipas: mechaninis, ritinio plotis: 120 mm, stalo ilgis: 2 725 mm, Įranga: variklio stabdis, Planer-thicknesser, jointer SCM F2 F520 like NEW! Jointer from the renowned brand SCM. The machine is in excellent technical condition, after a comprehensive inspection. Italian manufacturer. TECHNICAL SPECIFICATIONS: - Max planing width: 510 mm - Shaft diameter: 120 mm - Number of knives: 4 TERSA - Motor: 5.5 kW - Infeed table length: 1495 mm - Outfeed table length: 1175 mm - Total table length: 2725 mm - Adjustable height for infeed and outfeed tables - Fence dimensions: 190 x 1200 mm - Fence with angular adjustment - Safety switch - Power supply: 400 V - Cutterblock noise reduction - Cutterblock guard - Year of manufacture: 2014 - Technical documentation (DTR) MACHINE DIMENSIONS: - Length: 2725 mm - Width: 900 mm - Height: 1200 mm Isdpfx Aexxm Sbsaujtf - Weight: 715 kg Financing options available: leasing or installment plan. Simply visit our website: jbsmaszyny.pl You are welcome to test the machine. Where can you view our machines? JBS MASZYNY STOLARSKIE WOLICA DRUGA 26 23-310 MODLIBORZYCE We provide machine transport all over Europe and beyond! Tel: 664 335 465 Tel: 530 632 386
