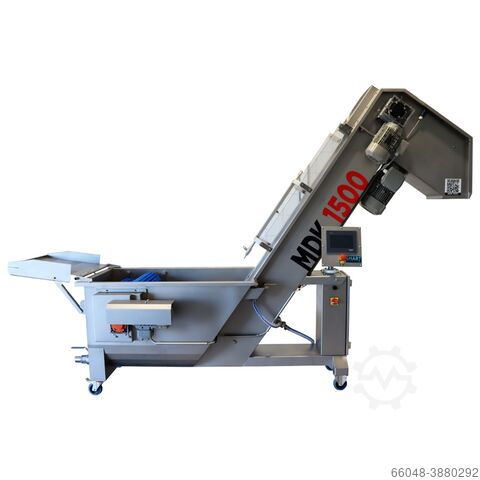

Maurer Gép MDK 1500

The fruits are conveyed from the sorting table into the washing tank and onto the washing brushes, where the first cleaning phase begins. Using the conveyor belt, the fruits are transported under the fresh water shower directly to the pivoting grating mill, where the fruit or vegetables are further processed to the desired fineness. Due to the pivoting design of the grating mill, the system can also be used as a stand-alone washing and conveying unit without any modifications.

Technical Data:
• Nominal capacity: 1,500–2,000 kg/h
• Power consumption: 4 kW, 400 V, 16 A three-phase
• Material: Stainless steel, grade 1.4301, AISI 304
• Dimensions: 950 x 3,160 x 2,000 mm
Chedpjd Aqnfefx Ahvec
• Discharge height: 1,250 mm
• Weight: 275 kg
• Washing tank water capacity: 280 l/shift
• Water consumption: 100–200 l/h (depending on settings)
• Water connection: ¾” quick coupling
• IP65 electronic control cabinet
• Machine complies with EU directives
• Minimal maintenance required
• Steplessly adjustable belt speed
• Easy to operate
• Simple to clean
• Adjustable machine feet
• Pivoting grating mill
• Noise emission: 60–70 dB
• Equipped with four counter-rotating brushes for intensive washing

Optional features:
• Various sieve inserts for the grating mill
• Stop & Go system for automated control between the belt press and the washing/milling unit
• Dosing attachment for pack presses
Also available without fruit pulper!
