Liejimo mašina

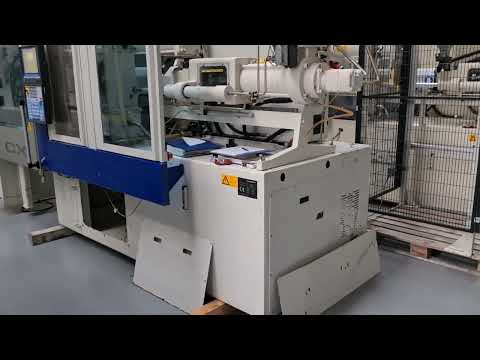

Krauss Maffei KM 160 - 750 CX

Sąlyga: paruoštas naudoti (naudotas), Gamybos metai: 2006, veikimo valandos: 58 670 h, Funkcionalumas: visiškai funkcionalus, spaudimo jėga: 1 600 kN, varžto skersmuo: 45 mm, darbinio tūrio: 318 cm³, Clamping force: 1600 kN Maximum mold opening force: 87 kN Movable platen opening force: 45 kN Movable platen closing force: 38 kN Nkjdpfxoydp Ids Af Iet Clamping platen (h x v): 820 x 845 mm Clearance between tie bars (h x v): 520 x 520 mm Mold opening stroke: 650 mm Minimum mold installation height: 300 mm Maximum daylight: 950 mm Ejector stroke: 150 mm Ejector force, forward/back: 23 kN Injection unit: Screw diameter: 45 mm L/D ratio: 22.4 Injection pressure: 2336 bar Shot volume: 318 cc Shot weight (PS): 289 g Injection flow rate: 143 cc/s Screw speed: 265 rpm Plasticizing rate: 29.3 g/s Nozzle contact force: 50 kN Electrohydraulic equipment: Rated pump motor power: 22 kW Installed heating capacity: 16 kW Cylinder heating control zones: 5 Oil capacity: 489 l Dimensions and weights: Space requirement approx.: 5.00 x 2.00 x 2.20 m Total weight: 6600 kg Max. mold weight: 1862 kg Accessories: - Oscillation elements - Krauss Maffei Robot LR 100 X: 550 mm Y: 1200 mm Z: 1500 mm C: 0 – 90° Additional equipment: - 1 x air valve - 2 x hydraulic core pulls - 6 x hot runner control zones - Robot interface according to Euromap 67

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2006, Krauss Maffei Injection Moulding Machine KM 160–750 CX Year of manufacture: 2006 Fully hydraulic clamping system. MC5 control system with color monitor, integrated control panel, and built-in USB ports. Plasticizing Unit 1 complete HPS-UN plasticizing unit for thermoplastics: Screw diameter: 50 mm Non-return valve, open nozzle Nozzle radius: 10 mm Nozzle orifice: 4 mm Technical Data Clamping Unit Clamping force: 1,600 kN Mould opening force: 86.4 kN Moving platen force: Opening: 44.8 kN Closing: 37.8 kN Platen dimensions (H × V): 820 × 845 mm Tie bar spacing (H × V): 520 × 520 mm Mould opening stroke: 650 mm Minimum mould height: 300 mm Platen opening stroke: 950 mm Nkjdpfxjx Thzpo Af Ist Ejector stroke: 150 mm Ejector force: 22.6 / 9.9 kN Injection Unit Screw diameter: 50 mm Injection pressure: 1,892 bar Injection volume: 393 cm³ Shot weight (PS): 357 g Screw speed (standard / option): 390 / 490 rpm Electrical and Hydraulic Equipment Nominal pump motor power: 22 kW Installed heating power: 10.97 kW Number of heating zones (barrel): 5 Dry cycle time (Euromap): 1,600 1/h Oil tank capacity: 489 l Dimensions and Weight Net weight with control cabinet: 6.0 t Machine dimensions (L × W × H): 4.6 × 1.6 × 2.1 m

Sąlyga: naudotas, Gamybos metai: 2008, spaudimo jėga: 160 kN, darbinio tūrio: 251 cm³, įpurškimo slėgis: 2 500 juosta, bendras svoris: 8 200 kg, darbo valandos: 37 200 h, sraigtinio konvejerio skersmuo: 40 mm, Pristatymo sąlygos: FCA Pegnitz Pristatymo laikas: pagal susitarimą Nkodpfjwd Udlox Af Iot Apmokėjimo sąlygos: 100 % išankstinis mokėjimas prieš mašinos atsiėmimą, grynasis

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2007, veikimo valandos: 25 215 h, Funkcionalumas: visiškai funkcionalus, spaudimo jėga: 1 600 kN, varžto skersmuo: 45 mm, tarpas tarp stulpų: 520 mm, darbinio tūrio: 318 cm³, išmetimo jėga: 22 000 N, išstūmimo eiga: 150 mm, plokštės ilgis: 845 mm, plokštės plotis: 820 mm, įrengimo aukštis: 2 100 mm, bendras ilgis: 5 100 mm, bendras plotis: 1 600 mm, bendras aukštis: 2 100 mm, bendras svoris: 6 600 kg, įvesties srovės tipas: trifazis, įėjimo dažnis: 50 Hz, įėjimo įtampa: 400 V, laisvas tarpatramis: 950 mm, Įranga: dokumentacija / vadovas, Sandėlio nr.: 503472 Gamintojas: KRAUSS MAFFEI Tipas: KM 160-750 CX Valdymas: MC5 Gamybos metai: 2007 Darbo valandos: 25215 h Uždarymo jėga: 1600 kN Kolonų atstumas a x v: 520 x 520 mm Plokščių dydis a x v: 820 x 845 mm Minimalus įdėjimo aukštis: 300 mm Maksimalus plokščių atstumas: 950 mm Atidarymo eiga: 650 mm Sraigto skersmuo: 45 mm Įpurškimo tūris: 318 ccm Įpurškimo slėgis: 2336 bar Įranga: - Ekrano tekstas vokiečių kalba - Ekrano tekstas anglų kalba - CEE lizdas 16A - 2x hidraulinis branduolių traukiklis - Mašina su konvejeriu Nksdpfx Ajx Icw Ujf Ist - Mašina su valdymo automatika - Mašina su apsauginiu aptvaru - Mašina su medžiagų bunkerių - Lyginimo elementai - EUROMAP 67 sąsaja - Atsparus dėvėjimuisi plastifikavimo blokas - 6x įrankio šildymas Mašinos matmenys (IxPxA): 5,1 m x 1,6 m x 2,1 m Bendras svoris: 6.600 kg Valdymo techniniai duomenys Mašinos tipas: Linijinis Markė: Krauss Maffei Valdymas: LRX S100-1321 Gamybos metai: 2008 X ašis: 550 mm Y ašis: 1.200 mm Z ašis: 2.500 mm Svoris: 280 kg

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2007, Krauss Maffei KM 110–750 CX Injection Moulding Machine Year of manufacture: 2007 Fully hydraulic clamping system. MC5 control unit with colour monitor, integrated control panel, and 3 USB ports. Plasticising Unit Complete plasticising unit for thermoplastics Version with abrasion protection Screw diameter: 40 mm Non-return valve Open nozzle TECHNICAL DATA Clamping Unit Clamping force: 1100 kN Nkodpjx Avhyofx Af Iet Mould opening force: 70 kN Movable platen traverse force: – opening: 35.4 kN – closing: 31.4 kN Platen dimensions (h × v): 745 × 770 mm Tie bar clearance (h × v): 470 × 470 mm Mould opening stroke: 600 mm Mould installation height: 300 mm Platen opening stroke: 900 mm Ejector stroke: 150 mm Ejector force: 22.6 / 9.9 kN Injection Unit Screw diameter: 40 mm Injection pressure: 2500 bar Injection volume: 251 cm³ Shot weight (PS): 228.41 g Screw speed (standard/option): 295 / 355 rpm Electrical and Hydraulic Equipment Rated pump motor power: 22 kW Installed heater power: 15.62 kW Number of barrel heating zones: 5 Dry cycles according to Euromap: 2000 cycles/h Oil tank capacity: 489 l Dimensions and Weight Net weight with control cabinet: 6.2 t Machine dimensions (L × W × H): 4.9 × 1.6 × 2.1 m

Sąlyga: naujas, Gamybos metai: 2025, Injection Moulding Machine – Krauss Maffei KM 160-750 CX Year of manufacture: 2025 Fully hydraulic clamping system. MC 6 control system based on an industrial computer utilizing real-time Ethernet technology, equipped with an integrated 21.5" operator panel featuring a colour touch screen. Plasticizing Unit Complete plasticizing unit for thermoplastics, screw diameter 50 mm, with non-return valve and open nozzle. Nksdpfxexdd N Uj Af Ist Nozzle radius: 10 mm Nozzle bore: 4 mm Technical Data (standard version) Clamping Unit Clamping force: 1,600 kN Opening force: 86 kN Platen dimensions (H x V): 820 x 845 mm Tie bar spacing (H x V): 520 x 520 mm Opening stroke: 650 mm Minimum mould height: 300 mm Maximum daylight: 950 mm Ejector stroke: 150 mm Ejector force forward/backward: 23 / 10 kN Injection Unit Screw diameter: 50 mm L/D ratio: 20.2 Injection pressure: 1,892 bar Injection volume: 393 cm³ Shot weight (PS): 357 g Injection speed: 90 mm/s Injection rate (standard): 177 cm³/s Screw speed (standard): 265 rpm Electro-hydraulic System Pump motor power: 22 kW Installed heating capacity: 15.5 kW Dry cycle time according to Euromap 6: 2.1 s Oil tank capacity: 400 L Linear Robot – Krauss-Maffei LRX 100 Payload < 10 kg (gripper + drives + parts) Part placement on operator-opposite side Axes: X axis (from mould): 620 mm, servomotor Y axis (vertical, with motor brake): 1,200 mm, servomotor Z axis (transverse): 1,500 mm, servomotor Dimensions and Weight Net weight (with control cabinet): 6.10 t Machine dimensions (L x W x H): 4.93 x 1.62 x 2.04 m
