Kūno presas

Gannomat Concept Eco

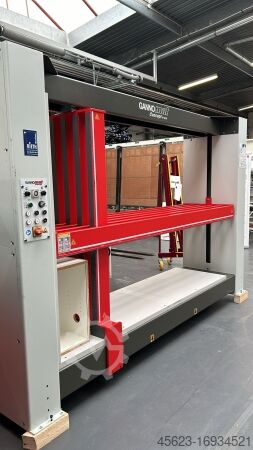

Būklė: naujas, Gamybos metai: 2026, Gannomat Concept 70 Eco Lamella Case Clamp with Rapid Traverse Technical data: Lamella case clamp from our showroom; Working range: width from 150 – 2,500 mm, height from 150 – 1,400 mm; depth 700 mm; - Upper lamella pressure beam with 6 elements, side lamella pressure beam with 5 elements - Lamella pressure beams with proven tolerance compensation for tightly pressed case joints - Counterpressure surfaces are continuous 40 mm thick, coated support plates - The pressing force of the pressure beams is continuously electronically adjustable via 2 potentiometers and set using a frequency inverter, ensuring absolutely wear-free torque transmission. Hnjdpjy Egz Ssfx Abvsl - Pressing force for horizontal pressure beams, min. 500 daN (kg) up to max. 2,200 daN (kg), continuously adjustable - Pressing force for vertical pressure beams, min. 300 daN (kg) up to max. 2,200 daN (kg), continuously adjustable - Included option: Rapid traverse travel speed for quick positioning of the pressure beams, controlled by automatic workpiece detection using sensors in the pressure beams; pressing speed 5/10/25 mm/sec and rapid traverse travel speed 50 mm/sec; sensors can be deactivated for clamping special workpieces. - Jog mode for precise positioning of both pressure beams, e.g. for low pressing forces, drawers, and 45-degree cases. Easy operation via 6 separate push buttons, freely adjustable pressing time preselection with automatic opening, loading height 300 mm Machine is on display with us and can be delivered immediately. Location: ex stock 54634 Bitburg - immediately available -

Būklė: naujas, Technical data: Working width: 1100 mm Sanding belt dimensions: 1120x2150 mm Maximum working height: 160 mm Calibrating steel roller diameter: 150 mm Rubber roller diameter: 150 mm Sanding pad width: 50 mm Total motor power for both sanding units: 11 kW Sanding belt speed: 16/18 m/s Feed motor power: 0.55 kW Variable feed belt speed: 4-20 m/min Work table motor power: 0.25 kW Hedpfx Aogtm U Aobvenl Pneumatic shoe, lift/lower function: YES

Gamybos metai: 2025, būklė: naujas, New Machine Year of manufacture: 2025 Features and technical data: Complete in standard configuration with: - Robust, torsion-resistant steel frame, manufactured as a welded and bolted structure - Top lamellar pressure beam with 6 elements, side lamellar pressure beam with 5 elements - Lamellar pressure beams with field-proven tolerance compensation (Ganner system) for tightly clamped carcass joints - Counterpressure surfaces (side pressure wall, base) made from 38 mm thick, coated, continuous support panels - Continuous pressing area with a height of 95 mm at the lower vertical pressure beam - Electromotive adjustment of the two pressure beams via precision trapezoidal threaded spindles (with enhanced lead and runout accuracy) and high-performance slide nuts with grease reservoir - Pressing is performed electromotively, using 2 separate worm gear motors (2 x 0.75 kW each) - The pressure force of the beams can be steplessly adjusted electronically with 2 potentiometers and is regulated via frequency converters, ensuring completely wear-free pressure control - Pressing force for horizontal pressure beam: min. 500 daN (kg) up to stepless max. 2200 daN (kg) - Pressing force for vertical pressure beam: min. 300 daN (kg) up to stepless max. 2200 daN (kg) - Pressing and adjustment speed of the pressure beams with fine positioning, selectable via 3-step switch: 5 / 10 / 25 mm/sec - Jog function for precise positioning of both pressure beams, e.g., for low pressing forces, drawers, and carcasses at 45° - Simple operation via 6 separate push buttons; 8 movement cycles can be selected via control panel - Freely adjustable press time preselection 0–30 min (switchable to seconds or hours) with individually programmable opening dimensions of the two pressure beams - Re-press function to increase or decrease pressing force during the pressing process - Working height/loading height: 300 mm - Working dimensions: Length min. 150 mm, max. 2500 mm; Height min. 150 mm, max. 1400 mm; Depth: 700 mm Including surcharge for rapid traverse speed for fast positioning of the pressure beams, controlled via automatic workpiece detection with sensors in the pressure beams. Press speed: 5 / 10 / 25 mm/sec and rapid traverse speed: 50 mm/sec. Sensors can be disabled for pressing special components. Including set of machine feet for 500 mm working height Hnsdpfx Abew Nafkevel Location: Flörsheim Availability: Short-term

Būklė: beveik kaip naujas (parodų įrenginys), Gamybos metai: 2024, Technical Data: Lamella carcass press from our showroom; Hnsdpfsb Eln Dox Abvol Working range: width from 150 - 2,550 mm, height from 150 - 1,400 mm; depth from 150 - 700 mm; Variable pressing force adjustment of the side press beam: 300/700/1100/1400/1800/2200 dN(kg); Variable pressing force adjustment of the top press beam: 500/800/1200/1500/1900/2200 dN(kg); Simple operation via 6 separate push buttons, freely adjustable pressing time preselection with automatic opening, loading height 300 mm. The machine is available in our showroom and can be delivered immediately. Location: ex-stock 54634 Bitburg

Būklė: beveik kaip naujas (naudotas), Funkcionalumas: visiškai funkcionalus, galia: 7 kW (9,52 AG), pjūklo disko skersmuo: 305 mm, bendras ilgis: 3 100 mm, bendras plotis: 3 100 mm, bendras svoris: 3 000 kg, pjovimo ilgis (maks.): 3 100 mm, pjovimo aukštis su įrėžėju (maks.): 70 mm, X ašies padavimo greitis: 40 m/min, padavimo greitis Z ašis: 50 m/min, vietos reikalavimas ilgis: 3 100 mm, reikalingas plotis: 3 100 mm, Įranga: dozatorius, sūkių greitis be galo kintamas, Panel Sizing System SCHEER PA 4136 – 3100 x 3100 The PA 4136 is a high-performance, electronically controlled panel saw designed for precise, efficient, and automated cutting of wood-based materials. Ideally suited for industrial applications in joineries, furniture manufacturing, and panel processing. Condition & Service: Condition: Very good Functionality: Fully operational Warranty: 12 months CE-compliant and dust-tested (limit value < 2 mg/m³) Technical Main Data & Equipment: Longitudinal saw FM 20-3100 with hardened guides Automatic forward and return stroke of the saw unit (return stroke automatically lowered) Feed drive via three-phase geared motor, frequency inverter-controlled Feed speed: 2 – 40 m/min (infinitely variable) Return speed (rapid traverse): 50 m/min Extraction channels in machine base & pressure beam Score saw adjustable externally (without opening the hood) Protective hood interlock with lamella curtain SZ 5008 3-stage cutting height adjustment LA 4143 6 recesses in the pressure beam for offcuts up to 5 mm Saw motor: 7.0 kW | Scorer motor: 1.1 kW (can be switched off) Cutting length: 3100 mm | Cutting height: 70 mm Material Handling & Feed: Angle pressure device WP 5003 with hold-down claw for crosscuts Adjustment range: 2400 mm Fully automatic control via DNC-AT Material infeed table HP 5091 2 top-mounted guides, rack-and-pinion guide Servo drive material pusher Feed speed: 25 m/min (safety limited) Return: 40 m/min 6 clamping fingers, 4 double roller tracks Table length: 3100 mm | Gauge depth: 3150 mm Closed Pertinax surface in the angle stop area Control & Operation: Operating system: Ubuntu Linux Integrated PC with hard drive, parallel & serial interface Network capable (LAN/WLAN), remote maintenance via Internet (TeamViewer, Remote Desktop) USB print function Multilingual dialog programming 15" flat screen, multifunction keyboard in swiveling control panel Graphical display of cutting patterns and processes Software / Programs: OPTIMAX: Office optimization, offcut calculation, material requirements OPTIMIN: Direct optimization at the machine PC with parts list entry Processing via USB, floppy disk, or online (optional) Manual, automatic, & special operating modes (e.g., grooving, veneered parts) Additional Equipment: Angle stop table HP 5085: 1,720 x 800 mm | Pertinax overlay Hsdpfxowrn Efo Abvenl Workpiece support table HP 5025: 1,720 x 800 mm | Pertinax overlay Air cushion system LK 5030 integrated in both tables Circular saw blade KSB 4005: Ø 305 mm, Z = 60 Circular saw blade KSB 4006: Ø 200 mm, Z = 60, conical Reliability in Continuous Operation: This machine is used worldwide – even under extreme conditions. Whether in the dry climate of Africa or high humidity in Southeast Asia (e.g., Thailand): the PA 4136 runs reliably in 3-shift operations – 365 days a year – and stands out for its outstanding stability and endurance. Warranty: We are so confident in the quality and durability of our machines that we offer a 7-year warranty on the machine construction and guideways. (Excludes electrical supply parts and wear parts.) 📞 Contact us for a customized quote or to schedule a viewing appointment. Machine available from stock. Delivery, commissioning, and training available as options.

Būklė: naujas, Gamybos metai: 2025, Gannomat Concept 70 Eco Lamella Carcase Clamp with Rapid Traverse Technical Data: Lamella carcase press from our showroom; Working range: width from 150 to 2,500 mm, height from 150 to 1,400 mm; depth 700 mm; - Upper lamella pressure beam with 6 elements, side lamella pressure beam with 5 elements - Lamella pressure beams with proven tolerance compensation for tightly pressed carcase joints Hnjdpfx Aboiidm Novel - Counterpressure surfaces are 40 mm thick, coated continuous support plates - The pressing force of the pressure beams is continuously electronically controlled via 2 potentiometers and set by frequency inverter, thus the torque transmission is completely wear-free. - Pressing force for horizontal pressure beams: min. 500 daN (kg) up to stepless max. 2,200 daN (kg) - Pressing force for vertical pressure beams: min. 300 daN (kg) up to stepless max. 2,200 daN (kg) - Including option: Rapid traverse speed for fast positioning of the pressure beams, controlled via automatic workpiece detection with sensors integrated into the beams; pressing speeds of 5/10/25 mm/sec and rapid traverse speed of 50 mm/sec; sensors can be deactivated for clamping special parts. - Inch mode for precise positioning of both pressure beams, e.g. for low pressing forces, drawers, and carcases at 45 degrees. Simple operation via 6 separate push-buttons, freely adjustable pressing time preselection with automatic opening, feeding height 300 mm. The machine is on display in our showroom and available for immediate delivery. Location: ex stock 54634 Bitburg - immediately available -

Būklė: naujas, Gamybos metai: 2025, Funkcionalumas: visiškai funkcionalus, Gannomat Concept 70 Eco Cabinet Press Year of manufacture: 2025 including the following options: - Rapid traverse speed: adjustment speed up to 50 mm/sec - Machine feet (working height 500 mm) The Concept Eco and Concept Primus are ideal assembly aids for dowel joints during carcass pressing, as well as for drawer production. Brief overview: • Field-proven tolerance compensation (GANNOMAT system) • Two potentiometers for infinitely adjustable pressing force • Minimum pressing force: 300/500 daN (kg) for Concept Eco, minimum pressing force: 600/800 daN (kg) for Concept Primus • Maximum pressing force: 2200 daN (kg) for Concept Eco, maximum pressing force: 3500 daN (kg) for Concept Primus • Three pressing and adjustment speeds: 5 / 10 / 25 mm/sec (with fine positioning / creep speed) • Freely selectable pressing time preset with automatic opening • Concept Eco: Simplest operation via six separate pushbuttons for eight movement sequences • Concept Primus: Simplest operation via LCD display Universal application: • Cabinets, e.g. for furniture and cupboards • Mitered carcases • Carcases with protruding tops • Drawers, drawer boxes • Simultaneous pressing of multiple cabinets / drawers Advantages: • Proven tolerance compensation (GANNOMAT system) • Electromechanical cabinet press with frequency-controlled gear motors • Independently adjustable vertical and horizontal pressing beams • Extended service life thanks to proven, high-quality components • Sturdy and robust construction • Space-saving design • Cabinet pressing = Simple + Fast + Efficient + Flexible + Precise + Professional • Easy to operate via straightforward and practical control panel • Fast thanks to beam positioning speeds up to 50 mm/sec (optional) • Efficient due to precise pressing of various carcass sizes • Flexible through adjustable parameters such as pressing force, pressing time, movement speeds • Precise due to angle-accurate pressing of furniture cabinets and drawers • Professional production of cabinets and drawers with a modern cabinet press Hodpfx Absvxgrrovsnl

Būklė: naujas, Gamybos metai: 2026, Korpusų tvarkymo sistemų komplektavimas rankinėms, pusiau ar visiškai automatizuotoms korpusų surinkimo linijoms visada atliekamas atsižvelgiant į kliento reikalavimus. Korpusų surinkimo linijų, kurios palengvina darbą, sumažina perstatymo laiką ir padidina gamybos pajėgumą, privalumus mielai paaiškinsime asmeninio pokalbio metu. Hedpfxodx R D De Abvsnl

Būklė: naudotas, Gamybos metai: 2024, New demonstration machine! List price: €32,665 complete in standard configuration with: - Sturdy, torsion-resistant steel frame in welded and bolted construction Hedpfjuf Hx Hox Abvonl - Top lamella pressure beam with 6 elements; side lamella pressure beam with 5 elements - Lamella pressure beams with proven tolerance compensation system (Ganner system) for tightly pressed carcass joints - Back pressure surfaces (side pressure wall and base) are continuous, coated support panels, 38 mm thick - Continuous pressing surface with a height of 95 mm at the lower vertical pressure beam - Electromotive adjustment of both pressure beams via precision trapezoidal-thread spindles (with increased lead and concentricity accuracy) and high-performance running nuts with grease reservoir - Pressing is performed electromotively via two separate worm gear motors (2 x 0.75 kW) - The pressing force of the pressure beams is infinitely electronically adjustable via 2 potentiometers and controlled by a frequency converter, resulting in absolutely wear-free press force regulation - Pressing force for horizontal pressure beam: min. 500 daN (kg) up to max. 2200 daN (kg), infinitely adjustable - Pressing force for vertical pressure beam: min. 300 daN (kg) up to max. 2200 daN (kg), infinitely adjustable - Pressing and adjustment speed of pressure beams with fine positioning via 3-step selector switch: 5 / 10 / 25 mm/second - Simple operation via 6 individual push buttons; 8 movement sequences selectable via the control system - Freely adjustable press time preselection with automatic opening, 0–30 min (switchable to seconds or hours) - Working height/loading height: 300 mm - Working dimensions: Length min. 150 mm, max. 2500 mm; Height min. 150 mm, max. 1400 mm; Depth: 700 mm - Weight: approx. 1800 kg - Net dimensions (L x W x H): 3.45 m x 0.95 m x 2.30 m - Electrical connection: 400V, 3Ph, 50Hz (3.2 kVA, 16A) Additional equipment: - Rapid traverse speed for fast positioning of the pressure beams, controlled via automatic workpiece detection with sensors in the pressure beams; pressing speed 5 / 10 / 25 mm/sec and rapid traverse speed 50 mm/sec; sensors can be deactivated for pressing special parts - 1 set of machine feet (working height 500 mm) Storage location:

Būklė: naujas, Funkcionalumas: visiškai funkcionalus, obliavimo plotis: 530 mm, obliavimo peilių skaičius: 4, Įranga: variklio stabdis, Houfek Planer R 530 - 400V/50Hz, 5.5 kW (7.5 HP), Working Width 530 mm 1.1 Motor: 5.5 kW (7.5 HP), Tersa cutter block 1.2 Total table length: 3100 mm 1.3 Guide fence dimensions: 1300 x 150 mm with tilting auxiliary fence 1.4 Precision-ground table 1.5 Overhead control panel with ELGO Z60 digital display Electronic depth adjustment 0 - 7 mm Tilting angle of auxiliary fence 0°- 45° with digital readout Infeed table inclination adjustment (straight or concave jointing) 1.6 "SUVAMATIC" cutter block guard 1.7 4-blade cutter block D=120 mm 1.8 Automatic star-delta motor starter Hnedou Rnqqopfx Abvol 1.9 Electromagnetic brake 1.10 Extraction port with outlet D=150 mm 1.11 Knife setting gauge 1.12 Voltage: 400V/50Hz 1.13 Standard packaging in PE film 1.14 Machine built according to CE electrical and safety standards
