Apatinio veleno frezavimo staklės

CORMAK WS1000TA

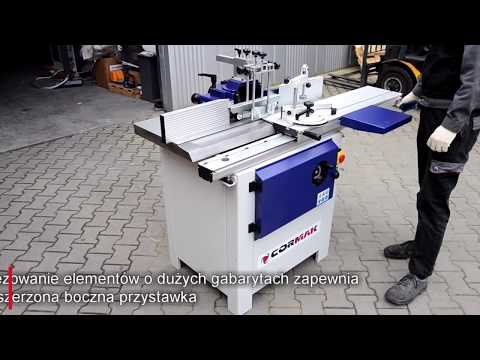

CORMAK WS1000TA Spindle Moulder is a technologically advanced machine designed for professional wood processing in joinery workshops, furniture factories, and production plants. Thanks to its tilting spindle, large cast iron table, and precise tool guidance system, the moulder allows for efficient and accurate machining of both straight and profiled components.

Key Features

- Tilting spindle from +5° to -45° – enables beveling, rabbeting, and creation of special shapes.
- Large, heavy-duty cast iron worktable – ground and polished for perfect glide and stability.
- Four-speed spindle: 1800 / 3000 / 6000 / 9000 rpm – flexibility for working with various materials and tools.
- Rigid, steel frame structure – provides vibration damping and precise operation even under heavy loads.
- Spindle stroke 100 mm and max. tool diameter 180 mm – allows use of a wide range of cutters.
- Precise spindle and fence adjustment – ensures accurate machining and dimensional repeatability.
- Easy tool change – optimized access to the spindle assembly shortens setup time.

Construction and Technology

The CORMAK WS1000TA spindle moulder is engineered for durability and functionality in serial production environments. The machine body is made of thick-walled steel plates for high rigidity and resistance to deformation. The main table, measuring 1000 x 360 mm, and the optional sliding table, 1000 x 240 mm, enable effective handling of long workpieces. The 2.8 kW (S1) / 3.9 kW motor delivers the power required for processing solid timber and wood-based materials.

Precision and Efficiency

This machine supports precise milling operations, including angled machining. The tilting spindle allows for non-standard tasks, and the accurate spindle guidance on the column eliminates play and improves finish quality. The V-belt transmission guarantees quiet and stable operation across all speed ranges.

Applications

The CORMAK WS1000TA spindle moulder is ideal for:
- professional carpentry workshops,
- production of door and furniture components,
- machining tenons, grooves, rebates, and decorative profiles,
- angle cutting and curved milling (with attachment).

Standard Equipment

- 30 mm spindle
- Side and top material hold-downs
- Precision milling fence
- Curved milling attachment
- Angle fence
- User manual (Polish)
Lrsdsycu Awepfx Af Isg
- CE declaration of conformity

Optional Equipment

- Sliding table (1000 x 240 mm) – shown in photos
- Mechanical feed systems
- Specialized guards and guides

Technical Specifications
CORMAK WS1000TA Spindle Moulder – Angles and Specifications

Spindle diameter [mm]: 30
Spindle speed [rpm]: 1800 / 3000 / 6000 / 9000
Spindle stroke [mm]: 100
Table dimensions (L x W) [mm]: 1000 x 360
Sliding table dimensions (optional) [mm]: 1000 x 240
Table height [mm]: 900
Max. cutter diameter [mm]: 180
Spindle tilt [°]: +5 to -45
Motor power [kW]: 3.9
Motor power S1 100% [kW]: 2.8
Weight [kg]: 270
Warranty [months]: 12
User manual (DTR)
