Tvirtinimo plokštės pirkti naudotą (415)

Sąlyga: naudotas, Table width: 3500 mm Table depth: 1500 mm Table height: 250 mm Weight: 3400 kg Rjdsh Ep Eaepfx Ah Hsbt T-slot pitch: 220 mm Edge distance: 100 mm Number of T-slots: 6 T-slot width: 28 mm Identical clamping plate as S1843

Sąlyga: naudotas, Plate width: 7000 mm Plate depth: 5250 mm Plate height: 330 mm Weight: approx. 4400 kg Dimensions: Length: 7000 mm Width: 5250 mm Height: 330 mm The plate field consists of six clamping plates with the following dimensions: 1750 mm x 3500 mm The plates can also be purchased individually. Total area: 36.75 m² T-slot specifications: Number of T-slots: 21 T-slot spacing: 250 mm T-slot dimensions: 58 mm x 34 mm T-slot depth: 60 mm Rjdouddfnspfx Ah Hsbt

Sąlyga: labai geros būklės (naudotas), Plate width: 1600 mm Plate depth: 2000 mm Plate height: 100 mm Length: 2000 mm Width: 1600 mm Thickness: 100 mm Rbsdpfeud Ik Ijx Ah Hjt Thread: M20 Hole spacing: 60 mm Quantity available: 7 pieces

Sąlyga: naudotas, Plate width: 2870 mm Plate depth: 2000 mm Plate height: 300 mm Weight: 5200 kg 3 identical plate sections available (A2017) LxWxH: 2870 x 2000 x 300 mm Area for 3 plate sections: 17.22 m² T-slot dimensions: 36 x 64 mm – Height: 45 mm Number of slots: 8 Edge distance: 108 mm Slot spacing: 215 mm Rbsdpfx Asgrm U Esh Hjt

Sąlyga: naudotas, Plate width 3200 mm Rbedpfsud Ipqjx Ah Hot Plate depth 2000 mm Plate height 210 mm Machine weight approx. / t Clamping plate Dimensions: 3200 x 2000 x 210 mm T-slot dimensions: ? x ? x ? (H)

Sąlyga: naudotas, Plate width 3200 mm Plate depth 2250 mm Plate height 420 mm Approx. machine weight / t Clamping plate Dimensions: 3200 x 2250 x 420 mm T-slot dimensions: 34 x 62 x approx. 74 (H) Rsdpfxsud Iqbj Ah Hobt The images are for illustrative purposes only. Additional photos will follow.

Sąlyga: naudotas, Plate width: 1500 mm Plate depth: 3500 mm Plate height: 250 mm Weight: 3400 kg Edge distance: 100 mm Number of T-slots: 6 T-slot spacing: 220 mm Rsdjhrz D Sspfx Ah Hebt T-slot width: 28 mm Identical clamping plate as S1844

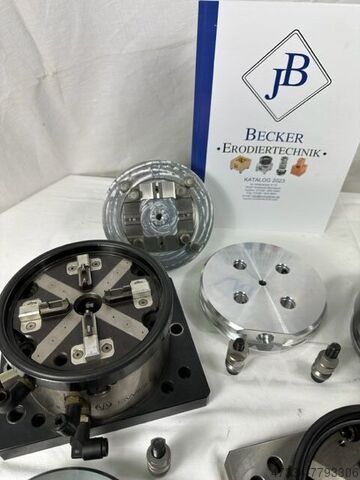

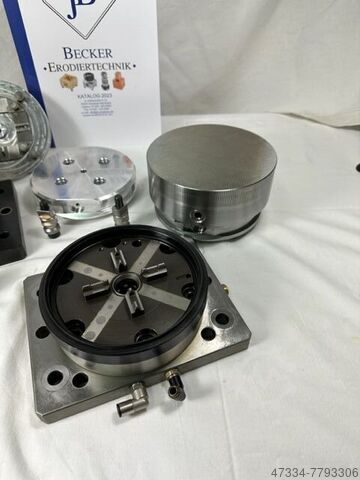

Sąlyga: naudotas, Weight / kg Spindle taper MK / Hydraulic STARK zero-point clamping systems, set of 4 Brand: STARK Rbjdpfx Ahjibnnke Hst Pmax: 40 bar Dimensions Length: 350 mm Width: 350 mm Height: 320 mm

Sąlyga: naudotas, Plate width 2250 mm Plate depth 3500 mm Plate height 445 mm Weight 6500 kg Rbsdpfx Ahjm Hfc Ts Hjt Slot spacing 370 mm Number of slots 6 Edge distance 170 mm T-slot dimensions: 36 x 62 mm – Height: 68 mm

Sąlyga: naujas, Gamybos metai: 2023, Funkcionalumas: visiškai funkcionalus, bendras svoris: 2 300 kg, bendras aukštis: 600 mm, bendras ilgis: 1 500 mm, bendras plotis: 1 500 mm, Clamping cube – T-slot plates – Plate field 1500 x 1500 x 600 mm If you have not found the size you require, you may also send us an email with the completed PDF form. With this information, we can arrange for a custom-manufactured plate tailored to your specifications. Parameters can be combined as required. Clamping plate: 1500 x 1500 x 600 mm T-slot width: 38 mm x 22 mm T-slot spacing: 140 mm Edge distance: 40 mm Number of slots: 10 Cast quality: HT250 Flatness less than 0.12 mm Rjdpfxotrk Tfj Ah Hjbt Surface machined according to DIN 876/III

Sąlyga: naujas, Gamybos metai: 2025, Funkcionalumas: visiškai funkcionalus, bendras svoris: 2 595 kg, bendras aukštis: 800 mm, bendras ilgis: 1 500 mm, bendras plotis: 1 500 mm, plokštės aukštis: 800 mm, plokštės plotis: 1 500 mm, griovelio atstumas: 140 mm, GERD WOLFF Clamping Cube 1500 x 1500 x 800 mm Also available in 600 mm version (H1153). The images above show the clamping cubes with dimensions 1500 x 1500 x 600 mm. Shortly, we will provide photos of the 800 mm high variant; the only difference is an additional, fourth T-slot on the side. If you did not find your desired size, simply email us the completed PDF form. This enables us to offer you a custom plate tailored to your requirements. T-slot size: 38 x 22 mm T-slot spacing: 140 mm Number of slots: 14 Edge distance: 120 mm Weight: 2,595 kg Cast iron quality: HT250 Flatness: less than 0.12 mm Surface machined according to DIN 876/II Clamping cube, cubic clamping table, multi-side clamping, angle clamping cube, precision cube, CNC clamping cube, angle plate, machine cube, 90-degree clamping fixture, drilling hole cube, modular clamping cube, workpiece positioning, assembly cube, locating cube, clamping block Rbjdpfx Ahexbpnqo Hjt

Sąlyga: naujas, bendras svoris: 6 700 kg, bendras aukštis: 6 000 mm, bendras ilgis: 4 000 mm, bendras plotis: 2 000 mm, Clamping Plates – T-slot Plates – Plate Table Rbodstrlgvopfx Ah Hot 4000 x 2000 x 600 mm If you have not found your desired size, you can also send us an email with the completed PDF form. With this, we can have a custom plate manufactured specifically for you. Edge distance: 112 mm T-slot spacing: 225 mm T-slot width: 28 mm Cast quality: HT250 Flatness: less than 0.12 mm Surface machined according to DIN 876/III 2 units available in stock

Sąlyga: naujas, Gamybos metai: 2025, bendras svoris: 4 200 kg, bendras aukštis: 600 mm, bendras ilgis: 3 000 mm, bendras plotis: 1 000 mm, Tvirtinimo kubas – T formos griovelių plokštės – Plokščių laukas 3000 x 1000 x 600 mm Jei neradote norimo dydžio, galite atsiųsti mums užpildytą PDF formą el. paštu. Pagal ją galime pagaminti jums individualiai pritaikytą plokštę. Parametrai gali būti derinami pagal poreikį. Rsdpfx Astrlahsh Hebt T formos griovelio plotis: T griovelių atstumas: Atstumas nuo krašto: Griovelių skaičius: 10 Lietinio geležies kokybė: HT250 Lygumas mažiau nei 0,12 mm Svoris: 4200 kg Paviršius apdirbtas pagal DIN 876/III

Gamybos metai: 1999, Sąlyga: naudotas, Table length mm Table width mm Table load capacity t Plate width 2980 mm Plate depth 3000 mm Plate height 1400 mm Total power requirement 11 kW Machine weight approx. t Space requirements approx. m Clamping surface: 2980 mm x 3000 mm x 1400 mm Max. workpiece mass: 5000 kg Tilting range: 90° Total weight: 22,500 kg Number of T-slots: 12 T-slot dimensions 48 x 28 mm – Height: 49 mm Motor Power: 11 kW Speed: 1440 rpm Rated torque: 200 Nm Redpfxsgxqvze Ah Hobt Hydraulic unit Drive motor: 1.5 kW Delivery rate: 8.9 l/min Operating pressure: 100 bar Tank: 13 l

Sąlyga: naujas, bendras svoris: 4 400 kg, bendras aukštis: 310 mm, bendras ilgis: 4 000 mm, bendras plotis: 1 500 mm, Clamping Plates – T-Slot Plates – Plate Field 4000 x 1500 x 310 mm If you have not found your desired size, you can also send us an e-mail with the completed PDF form. With this, we can have a custom plate manufactured for you. Number of slots: 5 Edge distance: 140 mm Slot spacing: 270 mm Slot width: 28 mm Material: Cast Iron HT250 Rbedpfxstrli Re Ah Hst Flatness less than 0.12 mm Surface machined according to DIN 876/III

Sąlyga: naujas, Gamybos metai: 2025, bendras svoris: 1 800 kg, bendras aukštis: 600 mm, bendras ilgis: 2 000 mm, bendras plotis: 1 000 mm, plokštės aukštis: 600 mm, griovelio atstumas: 140 mm, GERD WOLFF tvirtinimo kubas 2000 x 1000 x 600 mm Jei neradote pageidaujamo dydžio, atsiųskite mums el. laišką su užpildyta PDF forma. Taip galėsime pasiūlyti individualią, jūsų poreikiams pritaikytą plokštę. T-profilio griovelio dydis: 38 x 22 T-profilio griovelių žingsnis: 140 mm Griovelių kiekis: 10 Atstumas nuo krašto: 80 mm Svoris: 1800 kg Lieto metalo kokybė: HT250 Plokštumas mažiau nei 0,12 mm Rjdpfx Asxbpihsh Hjbt Paviršius apdirbtas pagal DIN 876/III Tvirtinimo kubas, kubinis tvirtinimo stalas, daugiakampis tvirtinimas, kampinis tvirtinimo kubas, precizinis kubas, CNC tvirtinimo kubas, tvirtinimo kampas, mašininis kubas, 90 laipsnių tvirtinimo įtaisas, skylėtų kubas, modulinis tvirtinimo kubas, ruošinio pozicionavimas, montavimo kubas, fiksavimo kubas, tvirtinimo blokas.

Sąlyga: naudotas, Technical details: Plate length: 3160 mm Plate width: 2700 mm Plate height: 410 mm Plate thickness: 410 mm Approx. machine weight: 8.0 t Clamping plate for sale Material: cast steel/profile cast Surface: finish-milled Rbedpfx Aheu Ni Dis Hjt T-slots according to DIN 650: a=41.5; h=72.0; b=70.0; c=28.5 mm Center distance: 300 mm 11 through holes Ø 32 x 60 mm 2 mounting holes on the front side Ø 41 mm

Sąlyga: naudotas, Technical Details: Plate length: 5600 mm Plate width: 1890 mm Plate height: 1. 335 mm 2. 390 mm 3. 370 mm Machine weight approx.: 9.0 t per plate Transport dimensions LxWxH: 5.6 x 1.89 x 0.335 (0.390) (0.370) m 3 clamping plates (price per plate) Weights: No. 1 = 8000 kg; No. 2 = 9000 kg; No. 3 = 8500 kg Material: Cast iron Rbsdpfx Ahju Rl Ugs Het T-slots according to DIN 650 Slots lengthwise, number: 6, size a = 36 mm, h = 64 mm, b = 60 mm, c = 25 mm Center distance: 315 mm Through holes, number: 23, size D = 130 mm Internal diameter.

Sąlyga: naudotas, Technical details: Plate length: 1345 mm Plate width: 845 mm Plate height: 28 mm Approx. machine weight: 260 kg Transport dimensions (LxWxH): 1500 x 900 mm Rbedpfx Aju N Dg Sjh Het Steel plate, cast steel, used, with various mounting holes M12 with various (9x) through holes Ø 13 mm

Sąlyga: naudotas, Technical Details: Plate length: 4750 mm Plate width: 1850 mm Plate height: 200 mm Machine weight approx.: 4785 kg Cast steel plate available for sale. T-slots according to DIN 650 a=42 mm; b=74 mm; h=65 mm Distance from edge to 1st T-slot = 150 mm Rbedpfx Aju N Dq Reh Hjt Distance between T-slots = 310 mm

Sąlyga: naudotas, Gamybos metai: 1988, Technical Details: Plate length: 4000 mm Plate width: 2000 mm Plate height: 460 mm Approx. machine weight: 6000 kg 2 cast steel plates available for sale. T-slots according to DIN 650 Rodsu N Drujpfx Ah Hobt a = 40 mm; h = 56 mm; b = 74 mm; c = 28 mm; Center distance of the T-slots = 250 mm The plates are equipped for side mounting.

Sąlyga: naudotas, Technical details: Plate length: 205 mm Plate width: 195 mm Plate thickness: 65 mm 14 plates available Rbodsu N D H Eopfx Ah Hjt T-slots in accordance with DIN 650 for T-slot nuts as per DIN 508 a = 13.9 mm; b = 24.2 mm; c = 9.8 mm; h = 19.9 mm

Sąlyga: naudotas, Techninės detalės: Plokštės ilgis: 510 mm Plokštės plotis: 270 mm Plokštės storis: 65 mm T formos grioveliai pagal DIN 650, skirti T formos akmenims pagal DIN 508 Rbjdpfxju N D Dwo Ah Hot a = 13,9 mm; b = 24,2 mm; c = 9,8 mm; h = 19,9 mm

Sąlyga: naudotas, Technical Details: Plate length: 3500 mm Plate width: 1500 mm Plate height: 345 mm Machine weight approx.: 3.7 t / per plate Transport dimensions LxWxH: approx. 3.5 x 1.5 x 0.35 m / per plate Rjdpfx Aheval Iuj Hjbt There are 4 clamping plates for sale. Manufacturer: MORA-Meuselwitzer Guss Material: cast steel T-slot according to DIN 650: a=13.5; h=24; b=24.5; c=11 mm One long side surface is fine-milled 2 plates are equipped with guide rails

Sąlyga: naudotas, Technical details: Plate length: 7040 mm Plate width: 2230 mm Plate height: 330 mm Machine weight approx.: 12,800 kg per piece 2 pieces of cast steel plates available for sale. Surface finish: planed Redpfxeu N Dl Ie Ah Hebt T-slots according to DIN 650: a = 28 mm; h = 58 mm; b = 49 mm; c = 28, and distance from T-slot to T-slot: 305 mm The plates are equipped for lateral mounting/clamping connection. Through holes: 11 pieces Ø 28 mm continuous with countersink Ø 600 mm x 260 mm, and 12 pieces Ø 28 mm continuous with countersink Ø 114 x 270 mm Our price is per plate.
