Membraninis presas

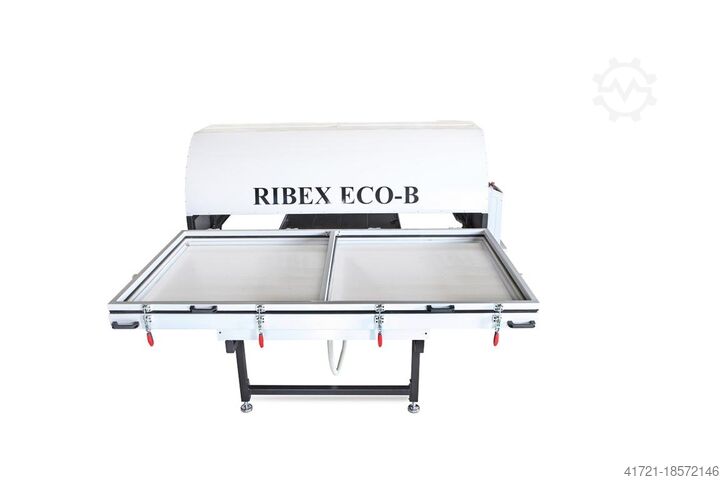

WINTER RIBEXVAC ECO-B

Sąlyga: labai geros būklės (naudotas), Breite 520 mm Länge 300 cm 4 Tersa Messer hydraulischer Tischhub Ksdpsub Uifsfx Aaysdw Ordentlich, funktioniert Sie können uns anrufen oder schreiben. Wir sprechen und schreiben Deutsch und Russisch. Sie können uns auch Nachrichten auf Englisch schicken.

Sąlyga: labai geros būklės (naudotas), MEMBRANE PRESS For laminating MDF-style panels with PVC, PP, and PET with VARIOPIN fully automatic pin system Automatic front loading/unloading and preparation table (Double tray carriage 1500 x 2800 mm) Max. total pressing force: 2,400 kN Operating pressure: 320 BAR Panel dimensions mm: 1500 x 2800 mm Usable working area mm: 1250 (or 2 x 600) x 2550 Front loading width from 1500 mm (usable width 1250 mm) Separate control cabinet and controls (with electronic programming device) SIEMENS SIMATIC panel touch Total installed power approx. 50 kW Ksdjrwxz Rjpfx Aayjdw OPTION “Paternoster” roller magazine Roll unwinder (roll holder) with coating film cutting system

Sąlyga: naudotas, Working width: 1350 mm Number of sanding units: 2 pcs. Max. workpiece thickness: 160 mm Abrasive belt dimensions: 1370 x 2150 mm Feed motor: 0.75 HP Unitek Excel LC 1370 2N RKRT MODEL: Excel 2NRKRT 2-BELT MACHINE 1st BELT: ROLLER 2nd BELT: COMBINATION UNIT ROLLER/PAD FOR SOLID WOOD, VENEER, AND INTERMEDIATE LACQUER SANDING - Usable WORKING WIDTH mm: 1350 - SANDING BELT LENGTH mm: 1370 x 2150 - MAX. WORKPIECE THICKNESS mm: 160 - STEEL CALIBRATION ROLLER mm: 180 - Rubber-coated SANDING ROLLER mm: 180 - SANDING PAD WIDTH mm: 50 - BELT MOTOR POWER kW: 14.7 - BELT SPEED m/s: 18/16 - FEED MOTOR POWER HP: 0.75 - Variable speed drive for feed carpet, continuously adjustable SPEED m/min: 4/20 - HEIGHT ADJUSTMENT MOTOR HP: 0.33 - Mechanical BELT OSCILLATION “ECO GEAR PATENT SYSTEM” - 1 pc. DRUM BRAKE for belt braking - Pivoting ROLLER for belt tensioning - 3 pcs. PRESSURE ROLLERS; rubber-coated - EMERGENCY STOP STRIP at infeed - ELECTRONIC DISPLAY of workpiece thickness - 2 pcs. ROLLER TABLES with 2 rollers each at infeed and outfeed - AUTOMATIC CENTERING OF FEED CARPET - 1 EXTRACTION PORT with 160 mm diameter - AUTOMATIC TABLE POSITIONING PLEASE NOTE: New patented belt oscillation system: 1. Without valves 2. Without photoelectric barrier 3. Not sensitive to dust 4. Energy-saving, environmentally friendly system Since 2008, the machine model with this system operates continuously without lateral belt run-off! Ksdpfxermucxo Aaysdw - Unitek steel calibration roller (same for all models) - Unitek flexible pressure pad before and after the roller (same for all machines with 1 roller) - Unitek grit compensation with mechanical grid-set with 6 positions (per piece – same for all models) - Unitek electronically segmented sanding pad with 24 segments (sanding width 1350) - Unitek belt motor power up to 18.4 kW instead of 14.7 kW (per motor) - Unitek surcharge for 2nd motor 14.7 kW (only for Excel 2-belt) - Unitek automatic table lowering in emergency stop (same for all models) - Unitek surcharge for frequency-controlled feed speed - Unitek surcharge for infeed/outfeed roller table with 4 rollers (same for all models) - Price per roller table - Unitek electronic control of machine functions with 12" touchscreen (same for all models) Automatic workpiece scanning with feed control --- Machine price in above configuration upon request! --- Options at additional cost: Surcharge for 3-belt machine Roller-Roller-Pad (Mod. 049): €8,390.00 Freight costs: €1,300.00 Assembly and instruction: €1,300.00 --- All prices stated are net prices plus statutory VAT (19%) --- (Technical data as per manufacturer – subject to change and errors excluded!)

Sąlyga: naujas, Gamybos metai: 2025, Pressing area: 3000 mm x 1500 mm Operating vacuum: -0.85 bar Vacuum pump delivery rate: 40 m³/h Pump power: 1.5 kW Kdedpfx Aou Egp Isaysw Sound level: 70 dB Heating temperature: max. 200 °C Heating capacity: 16 kW Machine length: 3100 mm Machine width: 1650 mm Machine height: 1750 mm Weight: 950 kg

Gamybos metai: 2018, Sąlyga: labai geros būklės (naudotas), Funkcionalumas: visiškai funkcionalus, Vacuum Membrane Press Wemhöner Type VARIOPRESS Model Basic 1000 S Technical Data: Kdedpfx Aov Np H Hoayow Heated platen size (mm): 2850 x 1550 Heating plate configuration: Upper electrical heating plate in aluminium Total pressing force (kN): 2400 Maximum chamber pressure (bar): 6 Maximum operating temperature: 180 degrees Celsius Maximum batch or workpiece size (mm): approx. 2460 x 1180 Thermoplastic film on rolls: film width approx. 1430 mm Film thickness (mm): approx. 0.25 - 1 Pressure chamber height (mm): max. up to 180 Connections: Installed power (kW): approx. 46 Required air pressure (bar): approx. 8

Sąlyga: labai geros būklės (naudotas), Catalogue number 7211 TECHNICAL DATA SURFACE PLANER: - Cutterblock width: 400 mm - 3-knife cutterblock - Table length: 2000 mm - Fence THICKNESSER: - Maximum workpiece thickness: 140 mm - Thicknesser cutterblock guard From above: – Anti-kickback fingers – Serrated feed roller – Planing cutterblock – Smooth outfeed roller DRILLING MACHINE: - Max tool diameter: 16 mm - Max drilling depth: 170 mm - Max drilling width: 200 mm - Table adjustable up/down, forward/backward, and sideways - Table dimensions: 560x270 mm - Workpiece clamp CIRCULAR SAW: - Max saw blade diameter: 300 mm - Max cutting height: 80 mm - Saw blade bore: 30 mm - Blade adjustable up/down - Cutting width at fence: 120 mm - Table dimensions: 1010x550 mm - Table with sliding carriage - Motor: 2.2 kW - Overall dimensions (L/W/H): 2000x2340x1200 mm - Weight: 895 kg ADVANTAGES – Made in Italy – Very good condition – Used multifunctional machine Net price: 13,900 PLN Kodpfjqwy Dtjx Aaysdw Net price: 3,300 EUR Net price calculated at exchange rate of 4.2 PLN/EUR (In case of significant exchange rate changes, the price may change)

Sąlyga: naujas, Gamybos metai: 2025, Pressing area: 3000 mm x 1500 mm Operating vacuum: -0.85 bar Vacuum pump flow rate: 40 m³/h Pump power: 1.5 kW Sound level: 70 dB Heating temperature: max. 200 °C Heating power: 16 kW Machine length: 3100 mm Machine width: 1650 mm Machine height: 1100 mm Kdodpfxji Hplks Aaysw Weight: 850 kg

Gamybos metai: 2021, Sąlyga: naujas, Mobile Vacuum Press MOVE — the high-precision vacuum press with an enormous usable area for vacuum laminating/forming and vacuum veneering of curved workpieces. Offers ultimate flexibility thanks to full mobility and a revolutionary folding mechanism, reducing the footprint to just 45% when folded. High-precision vacuum press with folding opening, including: - Revolutionary folding mechanism (reduces footprint to 45%) - 40 m³ high-performance vacuum pump (up to 900 mbar/9 t/m²), with automatic switch-off upon reaching the set pressure - Highly elastic natural rubber membrane (up to +130 °C) - Quick-change membrane system - Vacuum pressure gauge - Connection for external vacuum bag - Smooth-running swivel castors Technical data and dimensions: - Usable area: approx. 3050 x 1350 mm - Frame internal dimensions: approx. 3130 x 1430 mm - Overall dimensions: approx. 3650 x 1700 x 1100 mm - Overall dimensions (folded): approx. 3650 x 780 x 1750 mm Kdodshyg Dgspfx Aayew - Voltage: 230 V - Power: 1.2 kW - Mains frequency: 50 Hz - Weight: 850 kg Further details on request. Available immediately. Price ex stock Haldensleben: €11,900 + VAT.

Sąlyga: naudotas, Gamybos metai: 2003, Darbinis plotis: 510 mm Obliavimo velenas: juostiniai peiliai Kdedpjxgn N Rofx Aayjw Peilių skaičius: 4 Lygiavimo stalo ilgis: 2000 mm Lygiavimo tvorelės kampas reguliuojamas: taip Lygiavimo stalų pakėlimas: rankinis Didžiausias storio obliavimo praėjimas: 230 mm Storiaus stalo aukščio reguliavimas: elektrinis Obliavimo storio rodmuo: skaitmeninis ekranas Pavaros greitis: 7 / 14 m/min Padavimo volas: plieninis Išvyniojimo volas: plieninis Spaudimo sija: ištisinė Stalo volai: taip Variklio galia: 5,5 kW Variklio stabdis: taip Nusiurbimo jungtis: 160 mm Staklių ilgis: 2200 mm Staklių plotis: 950 mm Svoris: 800

Sąlyga: labai geros būklės (naudotas), Katalogo numeris: 7531 TECHNINIAI DUOMENYS Įranga: lėkštė juostos padavėjas giljotina klijų bakelis (granulės) 3 presavimo volai apdailos pjovimo agregatas su pjūkleliais Ksdpfjvtl Tqsx Aayodw 2 frezavimo agregatai kraštų formavimui (spinduliniai frezai) 2 poliravimo įrenginiai apdirbamos detalės min. ilgis: 140 mm apdirbamos detalės min. plotis: 60 mm apdirbamos detalės storis: 10–55 mm briaunos juostos storis: 0,4–3 mm ištraukiamas stalo laikiklis variklio galia: 5,6 kW nusiurbimo antgalio diametras: 120 mm matmenys (ilgis/plotis/aukštis): 3480x1050x1020 mm svoris apie: 900 kg – nedažyta – Austrijos gamyba – pagaminimo metai: 2007 – labai gera būklė – naudota briaunavimo staklė Grynoji kaina: 18 900 PLN Grynoji kaina: 4 500 EUR Grynoji kaina apskaičiuota pagal kursą 4,2 PLN/EUR (esant didesniems kurso svyravimams, kaina gali keistis)
