Lakštinio metalo lenkimo staklės - 3 ritinėliai

OSTAS 1070 x 150 SMR-S

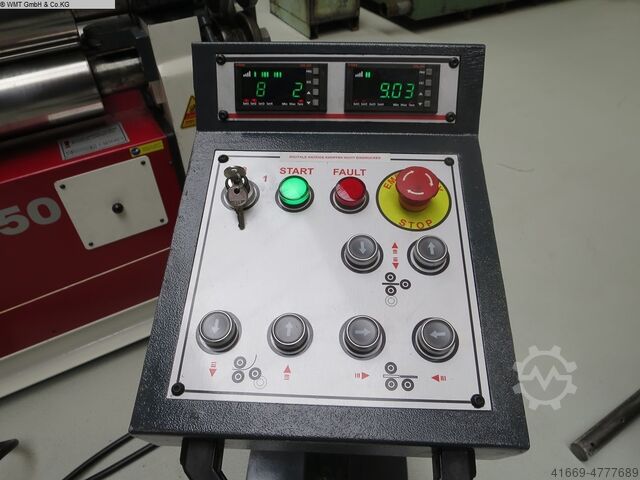

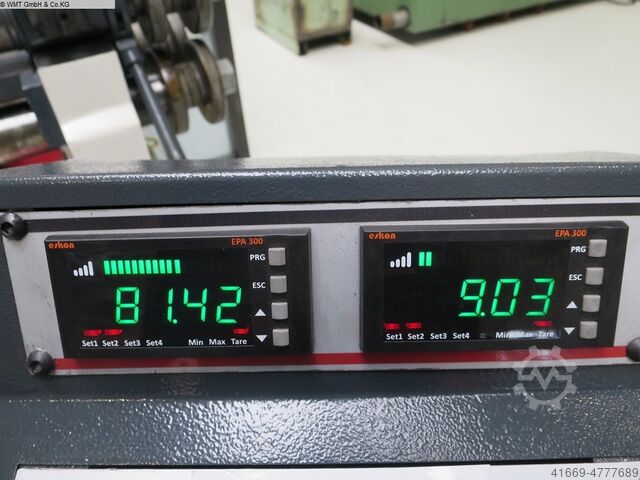

Sąlyga: naujas, Ostas 3-Roller Plate Bending Machine SMR-S 1070 x 150 Technical Specifications: Special features included in the price: - Hardened rollers - Motorized rear roller adjustment - Digital display Sheet width: 1070 mm Sheet thickness: max. 8.0 mm Pre-bending thickness: 7.0 mm Roller length: 1070 mm Smallest bending diameter: 225 mm Roller diameter: 150 mm Weight: 1400 kg Dimensions (L x W x H): 2600 x 630 x 1020 mm Motor: 4.5 kW Equipment: - Top and bottom rollers electrically driven - Top roller swing-out - Cone bending device - Asymmetrical roller arrangement Godpfx Abjiw D Ecsmouk - Self-braking main motor - Separate control and operator panel - Safety cable, CE marking Values apply for St-37 / 240 N/mm²

Gamybos metai: 2018, Sąlyga: naudotas, x-travel: 1600 mm y-travel: 1300 mm z-travel: 700 mm Distance between columns: 1500 mm Distance spindle center to table: 225-925 mm Table size: 1800 x 1300 mm Table load: 4000 kg T-slots (Width x Pitch x Quantity): 22 x 160 x 8 mm Spindle taper: HSK-A 63 Spindle speed: 24,000 rpm Spindle motor: 25/33 kW Spindle motor torque: 72.6/95.8 N.m. Rapid traverse in X-Y-Z axes: 30,000 mm/min Feed rates X/Y/Z axis: 1~20,000 mm/min Tool changer: 20 positions Max. tool diameter: 100/130 mm Max. tool length: 300 mm Max. tool weight: 8 kg Total power requirement: 80 kVA Machine weight approximately: 22 t Machine dimensions (LxWxH): 5660 x 5295 x 3930 mm CNC control: Heidenhain TNC 620 Spindle: IBAG electric spindle 24,000 rpm HSK-A 63 Glass scales: Heidenhain Tool changer: 20 positions Chip conveyor - spiral: 2 units Used CNC high-speed gantry milling machine with extensive accessories at a special introductory price. Key component manufacturers for this stock machine include: · Controller and servomotors: Heidenhain, Type TNC 620 · Ball screw bearings: Japan NSK · X-axis ball screw: Taiwan Hiwin · Y-axis ball screw: Taiwan Hiwin · Z-axis ball screw: Taiwan Hiwin · 3-axis linear guideways: Japan THK or Germany Rexroth · Electric spindle unit: HSK A63-24,000 rpm by IBAG · Linear encoders: Heidenhain · Pneumatic system: Japan SMC · Lubrication: Japan Showa · Covers: Hema · Air conditioning: Taiwan Kaokung · Spindle water cooler: Taiwan-Punkt · 3-axis cable drag chain: Germany Igus · Coupling: Germany KTR · Machine enclosure: Germany Mecano · Relays: Omron · Electrical systems: Germany Schneider · MPG handwheel: Japan Tosoku Gedpfx Abohx R Dvjmeuk For more information about the machine, standard accessories, and special accessories, please refer to the attached documentation. Of course, we are also happy to organize delivery to your location including assembly/commissioning, handover ready for operation, as well as operator training.

Sąlyga: naujas, - Capacity: 1070 x 8 mm - Electrically adjustable rear roll Guedpfxogg N R Ao Abmsk - Electrically adjustable lower roll (material clamping) - Digital display for rear roll adjustment - Hardened rolls - Cone bending capability - Centralized lubrication system - Emergency stop - Documentation - Digital display for lower roll movement (material clamping) - Hardened rolls - Cone bending capability - Swiveling upper roll - Centralized lubrication system - Braking motor - Emergency stop - Documentation - 400V

Sąlyga: naujas, Swing diameter 760 mm Turning length 3000 mm Swing diameter over cross slide 520 mm Guodoqv Iw Tspfx Abmok Centre height 380 mm Spindle speed(s) 17 (7.5 - 1015) rpm Tailstock Morse taper MK6 Quill stroke 225 mm Quill diameter 105 mm Spindle bore 132 mm Longitudinal feed 0.039 - 18 mm/min Cross feed 0.02 - 9 mm/min Total power requirement 15 kW Machine weight approx. 4700 kg Space requirement approx. 4900 x 1650 x 1650 mm Equipment: - Coolant system - Machine lamp - Chip guard at the rear - Spindle guard - Chuck guard - Toolholder guard - Change gears *Special equipment: - 3-jaw chuck Ø 400 mm, type 3204 / DIN6350, BISON - MULTIFIX quick-change tool post type C, incl. 4 tool holders - 3-axis digital readout DRO Newall - Foot pedal with CE-compliant brake function

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2006, Working length: 3100 mm Cutting capacity: 6 mm Backgauge range: 750 mm Equipped with: - 3 sheet metal support arms - Rear access safety guard - Foot pedal Gedpfjn Smtqjx Abmjuk Motor power: 11 kW Machine dimensions (LxWxH): 3750 x 2350 x 1850 mm Machine weight: 5500 kg

Sąlyga: naujas, Gamybos metai: 2025, THE PRECISE 3-ROLL BENDING MACHINE When developing this compact, mobile horizontal bending machine, the focus was clearly on producing dimensionally accurate spirals, such as handrails for spiral staircases. This is considered the supreme discipline, as two interdependent variables (radius and pitch) must be combined into a precise geometry in a single bending operation. The interplay of tube calculations on the PC, their implementation on the bending machine, and monitoring via measuring devices with final adjustment of bending values ensure accurate, precise bending. With just a few easy inputs into the PC tube calculation program, the local printer provides a printout supporting the calculation of all necessary bending and correction data for operating the machine. A new, powerful drive concept enables stepless adjustment of the bending speed, requiring only a 230 V (single-phase) power supply. Hardened steel tools and surface-friendly hard plastic tools are available. To ensure optimal feed even for tight bending radii, all three bending shafts are driven. The drive concept proves itself in demanding daily work, whether working on flat stock, bending tubes or profiles. Customers of the Bending System 4800, 5000, and 6000 can purchase the roll bending unit without the drive. The roll bending unit, designated RB43, can be adapted to the 4800, 5000, and 6000 systems via the bending shaft. In this case, the machines function as the drive unit. POSSIBLE APPLICATIONS: Godong A R Sspfx Abmjuk • Handrails/Intermediate rails for spiral staircases • Large tube and profile bends • General metalworking TECHNICAL DATA: • Bending capacity Ø 10 to 60 mm • Minimum bending radius: 300 mm at Ø 42.4 mm • Bending direction: right and left • Digital bending adjustment for radius and pitch • Safety foot switch with emergency stop function • Maintenance-free, robust three-phase motor • Construction-site suitable 230 V connection • Weight: 280 kg OPTIONAL ACCESSORIES: • Support roller – for stabilization • Lifting roller – for controlled pitch formation • MGR – Measuring device for determining the correct radius • MGV – Measuring device for determining the correct pitch via twist • MPW – PC-based calculation program for determining correct bending values • RB4303 – Universal bending tool for profiles up to 60 mm high • Tools for special profiles OUR ON-SITE SERVICE FOR YOU: • Welcome to test production in our in-house demo room • Consultation and informational meeting at your premises • Leasing/financing purchase options • Service contracts and on-site maintenance

Sąlyga: naujas, Ostas Hydraulic Profile Ring Bending Machine OPK 45 - 3 Special features included in the price: 3 powered rollers Digital display Incl. standard roller set for steel Description Hydraulic/motorized ring bending machine Usable both horizontally and vertically with 3 powered rollers All 3 rollers are motor driven Gedpfxjg Tzbwj Abmeuk Upper roller positioning is hydraulic Rollers are hardened Forward/reverse operation via foot pedal Mounting: 50mm shaft Roller diameter (top): 158 mm Roller diameter (bottom): 158 mm Speed: 4.5 m/min Motor power: 0.75 + 1.5 kW Electrical connection: 400 V Compliant with CE standards Weight: 420 kg

Sąlyga: naudotas, Gamybos metai: 2003, Valdymas 840D-PCU 50 V1 Sandėlyje vienetų: 3 Aušinimo skystis: taip Drožlių transporteris: taip Generatoriaus vardinė srovė: 110 A Prijungimo galia: 56 kW Godpfx Aoqn A Rrsbmjuk

Sąlyga: geras (naudotas), LNS ECO LOAD bar feeder Guedslg Aq Aspfx Abmsk

Sąlyga: naujas, Model designation Gusdpfsgvkglex Abmok Shark 281 SXI evo
