Kraštų juostų klijavimo mašinos 1 KETVIRTIS

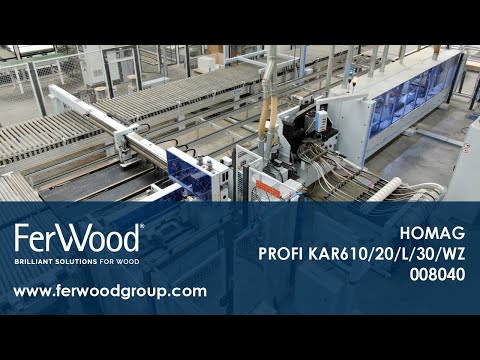

HOMAG PROFI KAR610/20/L/30/WZ

Sąlyga: beveik kaip naujas (naudotas), WEINIG Hydromat H30N, S/N 253-886, Year 1991, 9 spindles Hydromat H30 with short infeed table and heavy-duty 6-roller feed system • Maximum working width: 300 mm • Maximum working height: 140 mm • Electronic, stepless feed, 12–120 m/min. • Feed motor: 22.0 kW • 1st spindle below: 11.0 kW • 2nd spindle right: 11.0 kW • 3rd spindle left: 15.0 kW • 4th spindle left: 11.0 kW • 5th spindle right: 11.0 kW • 6th spindle top: 22.0 kW • 7th spindle below: 30.0 kW • 8th spindle top: 11.0 kW • 9th spindle below: 11.0 kW • All spindle motors with electronic brake • COMPLETELY NEW CUTTERHEAD SPINDLES • Spindle diameter: Ø 50 mm • Spindle speed: 6,000 rpm • 6 powered feed rollers in the table – hard-chromed • Spindles 1 + 6 + 7 + 8 + 9 with NEW counter bearings • Hydraulic counter bearing clamping • Spindles 2 + 3 + 8 + 9 with straight jointer • Spindles 4 + 6 pneumatic pressure • NEW feed rollers, D=170 mm • Hard-chromed table plates • Hard-chromed fences • Heavy-duty top pressure rollers – pneumatic • Heavy-duty side pressure rollers – pneumatic • Automatic table lubrication – NEW • Central lubrication points • NEW standalone control panel, 5 m cable • NEW standalone control cabinet, 5 m cable • Operating manual, spare parts list, and circuit diagram included + Many NEW spare parts/accessories Kedpfx Ahetynpxo Ejdw Dimensions: • Total length: approx. 6,150 mm • Total width: approx. 2,160 mm • Machine weight: approx. 9,500 kg Power connection: • Total connected load: approx. 157 kW Condition: Machine as shown in photos – technically as-new Payment: Payable in full by bank transfer prior to loading Delivery time: By arrangement Delivery: EXW Inspection: Possible anytime by appointment Offers & inquiries only with complete company details Errors and prior sale excepted

Gamybos metai: 2008, Sąlyga: naudotas, Panel return system for use with a single edge banding machine. The panel is conveyed to the operator via a motorized belt and a roller/belt table. Moeller mini control unit Maximum panel dimensions: 2500 x 1450 mm Maximum panel thickness: 60 mm Working speed: 8 - 25 m/min Working height from floor: 835 - 960 mm Kdedpfx Aerxzb Roh Ejw

Sąlyga: paruoštas naudoti (naudotas), Caractéristiques techniques • Pression : 2,2 kg/cm² • Chaudière à huile diathermique de 18 kW • Pressage temporisé • Affichage digital Kdodpfxjt N Auts Ah Ejw Puissance et moteurs • Tension : 400 V • Raccordement : Triphasé • Puissance : 20 kW Dimensions hors tout • Longueur : 3 500 mm • Largeur : 1 500 mm • Poids : 3 200 kg

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2008, Machining center Manufacturer: Weeke Model: BHX 500 Year of manufacture: 2008 Working range X: 2,500 mm Working range Y: 1,300 mm Working range Z: 4 - 80 mm Number of routing units: 2 Number of drilling units: 2 Vertical drilling spindles: 72 Horizontal drilling spindles X: 16 Horizontal drilling spindles Y: 4 Grooving saw: Swivels 90° X-axis speed: 130 m/min Y-axis speed: 80 m/min Z1-axis speed: 50 m/min Z2-axis speed: 27 m/min Spindle speed: 18,000 rpm Dismantled - available immediately Kdedpsh E Sghjfx Ah Esw

Gamybos metai: 2010, Sąlyga: naudotas, Panel return system for use with a single edge banding machine. The panel is conveyed to the operator via a motorized belt and a roller/belt table. Moeller mini control unit Maximum panel dimensions: 2500 x 1450 mm Maximum panel thickness: 60 mm Working speed: 8 - 25 m/min Kedorq Dmrepfx Ah Eodw Working height from floor: 835 - 960 mm

Sąlyga: labai geros būklės (naudotas), ONE-SIDED DESTACKING STATION - Upper traverse, horizontally shiftable by 180° - Console table with vacuum clamps - Lift table (internal) with motorized sheet metal roller conveyor - Front safety guard, movable - Separate control cabinet and operating panel - External roller conveyor for transporting the stack of sheets from destacking - External driven roller conveyor from destacking, optionally with belt for 90° transfer of sheets - Operating capacity (cycles/min): 12-15 - Plate thickness (min/max) mm: 10 - 40 Kodpfx Ahecggy So Ejdw - Min. plate dimensions mm: 250 x 320 - Max. plate dimensions mm: 1200 x 3000 - Total connected load Kw: 10

Sąlyga: naudotas, mašinos/transporto priemonės numeris: 007601, Working area X-axis: 4320 mm Working area Y-axis: 2245 mm Working surface: nesting table Kdsdpfx Aeu N Skfsh Ejw Main spindle power: 9 kW Number of controlled axes: 3 axes Number of drilling spindles: 16 Number of tool positions: 8

Sąlyga: labai geros būklės (naudotas), DOUBLE-SIDED LOADING STATION Kdodpfxofi Tg Ho Ah Eew Vacuum system (with pump) No. 2 vertical support columns for the upper support beam No. 1 upper horizontal support beam (with sliding carriage) No. 1 motorized carriage with horizontal metal arms External roller conveyor (at floor level) for feeding the stack of panels to the loading station External motorized roller conveyor (for receiving panels from the loading station) Separate electrical control panel Perimeter safety fence with safety mats Operating capacity (cycles / min) approx. 16 Panel thickness (min/max) mm 10 / 50 (approx.) Min. panel dimensions mm 250 x 320 (approx.) Max. panel dimensions mm 1300 x 3000 (approx.) Total connected load kW 30

Sąlyga: naudotas, Gamybos metai: 2013, Venjakob Perfect Paint Finishing Line: - Manufacturer: Venjakob - Year of manufacture: 2013 - Working width: 1,300 mm - Max. workpiece length: 6,500 mm - U-shaped layout with 90° transfer station Comprising: 1. Infeed conveyor, length 3,050 mm 2. Space reserved for a sanding machine (optional) 3. VEN SPRAY PERFECT spray machine, length 5,510 mm 4. OIR flash-off dryer, length 6,000 mm 5. VEN DRY AIR JET nozzle dryer, length 4,160 mm Kdedpju Afu Rofx Ah Ejw 6. 180-degree angle transfer with nozzle dryer 7. Supply air unit for angle transfer, 25,000 m³/h 8. VEN DRY AIR JET nozzle dryer, length 5,160 mm 4 infrared emitters 9. VEN DRY AIR JET nozzle dryer, length 5,160 mm 4 infrared emitters 10. VEN DRY AIR JET nozzle dryer, length 5,160 mm 4 infrared emitters 11. 3D UV dryer, VEN DRY UV, GA + HG 12. Discharge area, conveyor of the UV dryer 13. Supply air unit for hall, 30,000 m³/h Further information: On request

Gamybos metai: 2011, Sąlyga: naudotas, Funkcionalumas: visiškai funkcionalus, Finger jointing line for cross-sections up to 200 cm² (80/240 mm or 100/200 mm), with the following components: 1. HOWIAL Tilt Destacking Unit - SH/4t - 1.75x1.75x6.00m - 4t – minimum length 2.50 m, semi-automatic package separation. For tilting wood stacks up to 45°. Electrically driven. Maximum stack dimensions 1.75 x 1.75 x 6.00 m, max. stack load 4 t, shortest wood length 2.5 m. 2. HOWIAL Lamella Separator VE 1 for cross-cut saw. With pneumatically controlled fingers for material marked after defect detection, deposited on the underlying roller conveyor. 3. HOWIAL Grading Roller Conveyor RO-1 Digital wood moisture measurement, control and registration system for the automatic detection and control of wood moisture using the electrical resistance method in a cycle-based process. 4. Gann DMT-8 Digital wood moisture measurement, control and registration system for the automatic detection and control of wood moisture using the electrical resistance method in a cycle-based process. System integrated in a large control cabinet, complete with inkjet printer. 5. HOWIAL Cross-Cut Saw AS-30 B Pneumatically controlled under-table cross-cut saw with 2 automatic feed units, automatic cross-cutting. Special photoelectric cell control for detection of fluorescent marking lines. Automatic waste detection possible. Saw motor power 7.5 kW Saw blade diameter 700 mm Feed drive approx. 2 x 1.5 kW Air pressure 8 bar Feed speed max. approx. 60 m/min 6. HOWIAL Conveyor Belt for Cut-Off Waste, with studded belt and guide plates Belt width 350 mm Belt length 2000 mm Belt speed 0.4 m/sec 7. HOWIAL Double Roller Conveyor RO-2, 6.00 m long Incl. cross transfer, equipment for the finger jointing automation. Driven by round belts, all rollers driven. Cross removal via chain conveyor. Ejector ± moisture, right side. Adjustable transport speed 100 m/min. Length approx. 6.00 m Roller width approx. 400 mm Diameter 112 mm 8. Compact Finger Jointing Machine Cook Bolinder Technical data as per Cook Bolinder: Wood width from 75 to 245 mm Wood thickness from 20 to 105 mm Infeed length from 1 m to 6 m Cross-sections from 30 cm² to 200 cm² Pressing force 5 - 22 tons Spindle diameter 50 mm Finger profile 15/15 Spindle speed approx. 6000 rpm Total connected electrical load approx. 62 kW Machine weight approx. 9 tons. OEST comb gluing system for PU adhesives Modern Telemechanique PLC control. 9. HOWIAL Roller Conveyor with De-stacking Kodpfx Aji Ezx Doh Eodw Driven roller conveyor with automatic ejector and hydraulically operated de-stacking arms. Technical data: H: 920 mm L: approx. 12,000 mm 10. Safety Fencing including safety switches 11. Finger Joint Testing Machine BSPLT-100 Testing machine for finger joint bending test according to DIN 1052-1/A1 and EN 385. Support distances freely adjustable, integrated measuring scale, automatic calculation of support distances in software. Fully automatic test sequence via mouse click on PC (not included). Alternatively, test sequence can be triggered from control panel. Connects to any standard PC or laptop (Win 2000/XP) using provided RS232 serial cable. Fully automatic data acquisition and test report generation in MS Excel with graphical presentation. Max. wood width: 300 mm Max. wood thickness: 140 mm Max. pressing force: < 100 kN Max. support length: 2100 mm Measurement accuracy WITHOUT DISASSEMBLY
