Skersavimo pjūklas

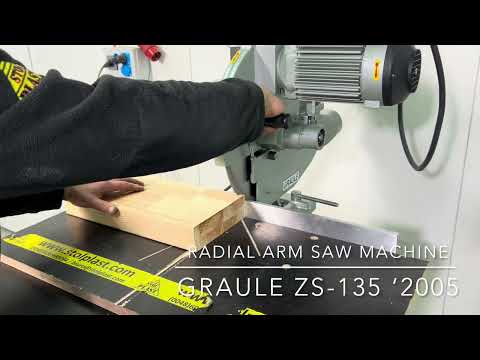

Graule ZS 135

Būklė: naudotas, Gamybos metai: 2003, Pjūklo disko skersmuo: 350 mm Gręžinio skersmuo: 30 mm Variklis: 2 kW Apsisukimų skaičius: 3800 aps./min Ištraukimo skersmuo: 95 mm Svoris: apie 105 kg be stovo Pjovimo plotis prie 90°: 430 mm Pjovimo plotis prie 45°: 300 mm Pjovimo aukštis: 135 mm Hidraulinis smūgio stabdis Be stovo ir be ritininio transporterio Sandėliavimo vieta: Nattheim Hnedjyw Tziopfx Ac Nek

Būklė: naudotas, Gamybos metai: 1999, galia: 3 kW (4,08 AG), įėjimo įtampa: 400 V, pjovimo aukštis (maks.): 200 mm, pjūklo disko skersmuo: 520 mm, bendras svoris: 350 kg, pjovimo ilgis (maks.): 420 mm, tvirtinimo skersmuo: 50 mm, pjūklo pavara: 3 000 W, No. 04511 Graule ZS 200 N Crosscut and Mitre Circular Saw Used, Year of manufacture: 1999 Saw swivels and tilts 3 kW three-phase brake motor, 400 V Saw blade diameter: 520 mm Blade arbor: 50 mm Cutting height: 200 mm Cutting height at 45° blade tilt: 140 mm Cutting length: 420 mm Table dimensions: 900 x 700 mm (L x W) Aluminium fence Includes machine stand and rear handwheel for tilt adjustment Hydraulic feed brake Pneumatic material clamping from both sides, top-down Saw blade spray unit for coolant or lubricant Carbide-tipped circular saw blade for aluminium and plastics, 520 mm diameter Roller conveyor, type RLK 4000 mm, with fold-away material stop and scale Roller conveyor, 4000 mm long after saw Roller conveyor width: 350 mm Transport dimensions of the machine approximately 1650 x 1200 x 1850 mm (L x W x H), roller conveyors approximately 4500 x 400 x 1950 mm (L x W x H) Weight approx. 350 kg To avoid misunderstandings, on-site inspection by appointment is possible and recommended Sale in current condition Hsdpfx Aeyh Nfuec Njnk Technical specifications, condition description, year of manufacture and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded. Sold as inspected. Terms of payment: Prices plus statutory VAT, payment prior to collection or dispatch Delivery terms: ex stock

Būklė: geras (naudotas), pjūklo disko skersmuo: 360 mm, Traukiamoji pjūklas / Kampinis pjūklas / Trumpinimo pjūklas / Radialinis pjūklas Hnedsyckbijpfx Ac Nok Wegoma zs 135 Kampinis pjūklas, tipas ZS135 -Variklio galia: 2,2 kW -Pjūklo diskas: Ø 360 mm, pasukamas

Būklė: naujas, Saw blade diameter 350 x Ø 30/40 mm Cutting diameter 135 mm Cutting length 430 mm Saw blade dimensions 350x3.0/2.4x40 mm Speed 3800 rpm Extraction nozzle diameter 100 mm Total power requirement 3.0 kW Machine weight approx. 100 kg Space requirement approx. 1300 x 800 x 1600 mm - Crosscut and mitre circular saws for crosscutting operations - Double-sided mitre adjustment (60° / 45°), with fixed stop - Single-sided bevel cut up to 45°, with fixed stop - Sturdy cast iron construction - Precision ball bushing guide of the tool carriage on hardened and ground steel shafts - Manual saw feed - Saw blade infinitely height-adjustable - Port for optional extraction Cutting data: Hnodpsxabqzjfx Ac Nek - Cutting length at 90° = 430 mm - Cutting height at 90° = 135 mm - Cutting length at 45° = 310 mm - Cutting height at 45° = 92 mm Special accessories included: - 1x Carbide-tipped circular saw blade 350 x 3.0/2.4 x 40 mm * Z = 108 FTZ negative for aluminium and plastics - Hydraulic feed brake, steplessly adjustable - Pneumatic material clamping from above, consisting of: * 2 vertical clamping cylinders, adjustable with hand lever valve - 1x Machine stand - More powerful drive motor (3.0 kW)

Būklė: naudotas, Gamybos metai: 2025, Cutting height at 90°: 170 mm Cutting length: 430 mm Hjdpfx Asiixxnoc Nonk Mitre range horizontal: 45°-90°-25° Mitre range vertical: 60° - 90° - 30° Swivel adjustment with hand crank: yes Roller conveyor / support table: no Saw blade diameter: 420 mm Speed: 2,800 rpm Motor power: 3 kW Motor brake: yes Extraction connection: 100 mm Machine length: Machine width: Weight: 110 kg

Būklė: naujas, NEW Description: - Crosscut and mitre circular saw with a maximum cutting height of 135 mm - The machine can be set for mitre cuts in 2 planes - Robust cast iron construction - Precision linear ball bearing guide for the tool carriage on hardened and ground steel shafts - Manual saw feed - Fast mitre adjustment up to 25° horizontally and up to 45° vertically - Adjustable end stops at 90° and 45° - Lower saw blade guard connectable to extraction system Scope of delivery: Crosscut and mitre circular saw type ZS 135 N without saw blade Technical data: - Motor: 400 V / 2.2 kW - Speed: 3800 rpm - Cutting length: 430 mm - Cutting width: 430 mm at 90° / 300 mm at 45° - Cutting height: 135 mm at 90° / 92 mm at 45° Hnedpfxovwf T So Ac Nsk - Mitre range horizontal: 45°-90°-25° - Mitre range vertical: 90°-45° (tilted to the left) - Saw blade diameter: 350 mm - Extraction port diameter: 100 mm - Weight: 100 kg

Būklė: naudotas, Gamybos metai: 2008, fully equipped version with cutting extension to 540 mm incl. HM special blade 350 x 3.5 x 40 Z 108 trapezoidal teeth flat tooth, negative, for aluminum cutting used, excellent condition, low hours Make: Graule Model: ZS 135 Year of manufacture: 2008 Machine no.: 2008/30/23 CE type-tested Motor 2 kW brake motor cutting height approx. 135 mm large cutting length extended to approx. 540 mm blade diameter approx. 350 mm blade bore approx. 30 mm swivels to the right swivels to the left machine base Hnsdeww Nd Tjpfx Ac Njk roller table right 3,000 mm with stop and scale - RLH with hand wheel adjustment, pneumatic clamping, and electronic digital display roller table left 5,000 mm type RO feed brake aluminum material support guided spray lubrication unit 2x pneumatic workpiece clamp right + left pressure reducing valve original price approx. €12,750.00 Location: 97447 Gerolzhofen, free loaded, unpacked delivery as-is, as inspected, without warranty or guarantee

Būklė: naudotas, Working width: 3,500 mm Working height: 2,550 mm Number of pressing cylinders: 6 pcs. Loading dimensions (L x W x H): 4,500 x 950 x 2,900 mm Hess Speedy Frame Press ----- Will be overhauled Maximum insertion dimension / pressing length: 3,500 mm Maximum insertion dimension / pressing height: 2,550 mm Sliding carriage for width adjustment, locking at 50 mm intervals double-hole grid system Electrically adjustable long-stroke cylinders (hydraulic) Support plate insertion height pre-selectable in 4 positions 3 vertical pressing cylinders, stroke: 1,000 mm Pressing force per cylinder: 2,000 kN / 20,000 N 3 horizontal pressing cylinders, stroke: 80 mm Pressing force per cylinder: 1,250 kN / 12,500 N Press plate depth: 100 mm; width: 140 mm Grid for cylinder fixing / support: 50 mm Central pressure beam with shut-off valve End pressure shut-off and re-pressurization control Control and pressing operation via push-button control mode Adjustable pressing pressure: min. 25 – max. 160 bar Electrical connection: 2.2 kW / 400V 3 pcs. pivoting pressure plates for tilt windows Hjdexnqw Tjpfx Ac Nenk 1 pc. pivoting pressure plate for pointed windows 1 pc. extension for pivoting pressure plate 1 pc. set of small parts Image and video are not original; they show an identical model ----- (Technical data according to manufacturer – subject to change and errors excepted!)

Būklė: naudotas, Pjovimo aukštis ties 90°: 135 mm Pjovimo ilgis: mm Kampų diapazonas horizontaliai: - Hedpfxex I Ai Dj Ac Njnk Kampų diapazonas vertikaliai: -60° iki +60° Volelių takas / atraminis stalas: ne Pjūklo disko skersmuo: Sukimosi greitis: 2800 aps./min Variklio galia: 2 kW Variklio stabdis: taip Prispaudėjas: taip Purškimo įrenginys: taip Nutraukimo jungtis: 100 mm Staklių ilgis: Staklių plotis: Svoris: 110 kg

Gamybos metai: 2004, būklė: geras (naudotas), Crosscut and mitre saw, pull saw, chop saw, aluminium circular saw, metal circular saw, metal cut-off saw, under-table circular saw with double mitre, aluminium chop saw, under-table saw, aluminium circular saw, semi-automatic aluminium circular saw, chop saw, glazing bead saw - Manufacturer: Graule Type ZS135 - Motor power: 2 kW - Speed: 2700 rpm - Saw blade: Ø 350 mm, tiltable - Cutting capacity: 90° flat 430 x 135 mm - Cutting capacity: 45° flat 300 x 135 mm - Transport dimensions: 1150/910/H1200 mm - Weight: 185 kg with pallet Hnodpet Hafkjfx Ac Nsk

Būklė: naudotas, Gamybos metai: 1996, Funkcionalumas: visiškai funkcionalus, Pjūklas Graule ZS 170, 1996 metai, 2200 EUR Frezavimo staklės Graule 6/250 - 160, 2008 metai, 2900 EUR Sukamasis sandėliavimo stovas varčioms ir rėmams, 500 EUR 7,5 m ilgio ritininė linija kaip langų sandėlis prieš įstiklinimo stotį, 600 EUR Hjdpfxewp Stzs Ac Nsnk

Būklė: dilaminuotas dirbtuvėje (naudotas), Funkcionalumas: visiškai funkcionalus, Year of manufacture: 1997, connected load: 380V 5.2A 2.0kW, saw blade diameter: 350 mm, swivels 45° to both sides, height adjustable via hand crank, cutting length: 600 mm, extraction port: 100 mm, table height: 890 mm, right-hand roller conveyor with stop, cutting length: 3200 mm, left-hand roller conveyor with stop, cutting length: 2200 mm. Hnedpfx Aowhn T Ujc Nok

Būklė: naudotas, Gamybos metai: 1999, Pjovimo aukštis 90° kampu: 135 mm Pjovimo ilgis: mm Pjūklo diskas pasukamas ir pakreipiamas: taip Vertikalus kampas: -60° iki +60° Volelių takelis / atraminis stalas: ne Pjūklo disko skersmuo: Sūkių dažnis: 2800 aps./min Variklio galia: 2 kW Variklio stabdis: taip Hnsdpfx Asxc Hklec Nek Nusiurbimo jungtis: 100 mm Staklių ilgis: Staklių plotis: Svoris: 110 kg

Būklė: labai geros būklės (naudotas), Gamybos metai: 2001, Carriage length: 3200 mm Electric saw blade angle adjustment Electric saw blade height adjustment Cutting width right: 1700 mm Main motor power: 7.5 kW Hnsdpjlcfhtefx Ac Njk Scoring saw motor power: 0.75 kW Saw blade size max/min: 400/300 mm CE certified Year: 2001

Būklė: naujas, Eine in Deutschland entwickelte und gefertigte Kappsäge mit der Möglichkeit zum einfachen Schneiden von Werkstücken im geraden oder schrägen Winkel. Ein einzigartiges Merkmal dieser Maschine ist, dass sich die Sägeeinheit beim Winkelschnitt um einen zentralen Punkt dreht und somit stets die gleiche Schnittlänge beibehält. Trotz der kompakten Bauweise bietet die Maschine eine große Schnittleistung. Präzisions-Kugelumlaufführungen auf gehärteten Stahlleisten. Stabile Konstruktion aus Grauguss mit Untergestell aus Stahl. Rückführung des Sägeaggregats durch Federmechanismus. Max. Sägeblattdurchmesser: 350 mm. 2 kW Bremsmotor. Spindeldurchmesser 30–40 mm. Horizontal schwenkbar: 45° – 90° – 25°. Verstellbarer oberer Schutz. 350 mm TCT-Sägeblatt mit 72 Zähnen im Lieferumfang. Schnittkapazität: 350 mm x 135 mm Schnitttiefe bei 90°. 250 mm Schnittbreite x 135 mm Schnitttiefe bei 45° (Schwenkbereich). Absaugstutzen 100 mm Durchmesser. Hnjdpsdy Hm Eefx Ac Nek Arbeitshöhe Tisch: 900 mm. 'N'-Modell mit vertikaler Schwenkung. Neigung von 90 – 45° nach links. Maximale Kapazität: 350 mm Schnittbreite x 92 mm Schnitttiefe.
