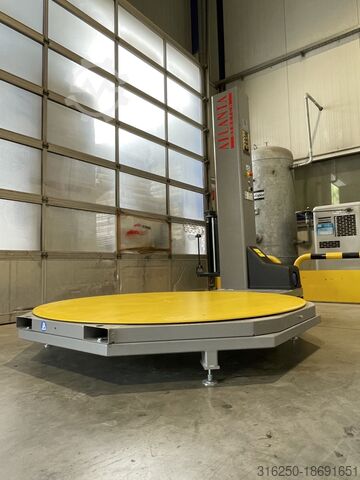

Įtempiamosios plėvelės apvyniojimo įrenginys Sukamasis stalas Padėklai

ATLANTA mit einem erhöhtem Grundgestell EVA - für E-Ameise zum unterfahren

Demonstration machine - like new.
EVA
Base frame raised by 150mm - 200mm, for loading with electric pallet truck or forklift - height adjustable
Turntable diameter: 1,500 mm
Max. pallet dimensions: 800 x 1,200 mm
Max. load capacity: 1,500 kg
Wrapping height (including pallet): 2,200 mm
Height detection via photoelectric sensor
Frequency-controlled turntable drive (soft start - start/stop)
Frequency-controlled carriage speed, adjustable up/down
Acoustic signal at wrapping start and stop at end of cycle
Emergency stop switch in accordance with CE regulations
Turntable always stops at the same home position
Anti-drop protection for film carriage
Push buttons for machine power-on as well as start & stop function according to CE standards Ø 22 mm

ADJUSTABLE PARAMETERS ON THE CONTROL PANEL
All functional parameters adjustable via display
F02 - Continuously adjustable turntable speed 5-12 rpm
Carriage speed for up and down travel adjustable independently
F03 - Upward carriage speed from 1.3 to 5.4 m/min
F04 - Downward carriage speed from 1.3 to 5.4 m/min
F05 - Number of wraps at pallet base (1 - 10 wraps)
F06 - Number of wraps at pallet top (1 - 10 wraps)
F09 - Setting for pallet wrapping height
F62 - Ergonomic height for film change

ADJUSTABLE WRAPPING PROGRAMS ON THE CONTROL PANEL
1 storable wrapping program
F01 - 1 - Cross-wrapping (upward/downward)
F01 - 2 - Simple wrapping (up or down only)
F01 - 3 - Manual wrapping
Pgjdpfx Afov Iqwdj Njg
F12 - Wrapping to a predefined height (disables photoelectric sensor)
F29 - Soft-start cycle for application of edge protectors
Soft-start function reduces film breakage on sharp pallet edges

FILM CARRIAGE TYPE “FM” WITH MECHANICAL BRAKE
Manually adjustable brake roller on the film carriage
Film specification: Max. external diameter Ø 250 mm - Core Ø 76mm - Height = 500 mm
Standard connection values: 230 V - 1L+N+PE - 50 Hz
Total power: 1.2 kW / 6A

Additional units available from stock for immediate delivery.
