Aukščio matuoklis

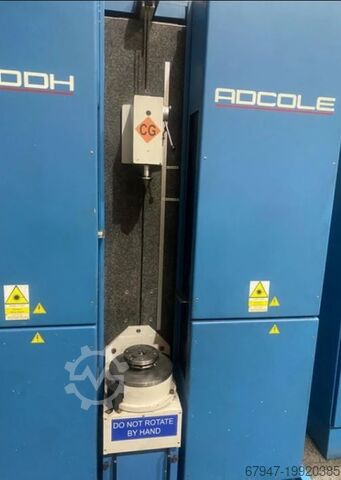

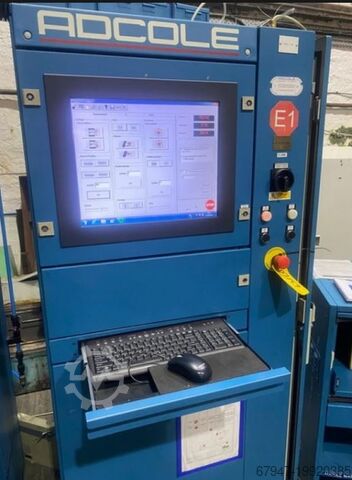

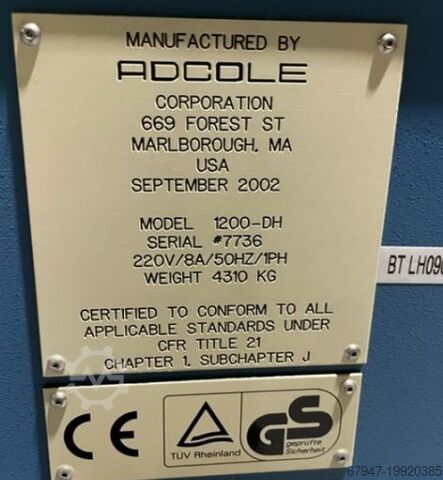

Adcole 1200DH Crankshaft Camshaft inspec

Sąlyga: naudotas, Gamybos metai: 2012, Maximum grinding diameter: 320 mm Maximum grinding length: 1,500 mm Centre height: 160 mm Nedpfxstqmrpj Aghjwp Control: Touch Jones & Shipman Max. workpiece weight between centres: 100 kg Table: Z-axis travel: 1,645 mm Travel speed: 0.0001 - 12 m/min Swivel range: +5 / -5° X-axis: X-axis travel: 260 mm Travel speed: 0.0001 - 6 m/min Grinding head: Grinding spindle motor: 7.5 kW Cutting speed: 45 m/s Grinding wheel Ø x width x bore: 450 x 50 x 203.2 mm Tailstock: Swivel range: -15 / +90° Speed range: 0 - 660 rpm Torque: 27 Nm Mount: MT 3 Total power requirement: kW Machine weight approx.: 8.5 t Space requirements approx.: 5.5 x 2.5 x 2.0 m External cylindrical grinding machine JONES & SHIPMAN - Suprema Easy 1500 E - Spare grinding wheel flange - Multi-grit diamond dresser (for peripheral and side dressing, 10 mm, 1 carat) - Tailstock with micro-adjustment (max. adjustment range ±0.05 mm) - Pneumatic quill retraction - Two-jaw steady rest (range 8-75 mm)

Sąlyga: geras (naudotas), Gamybos metai: 1990, CNC cylindrical grinding machine Manufacturer: TSCHUDIN Type: HTG 22 - 862, Year 1990 Equipped with MARPOSS E14 control system and E5 measurement-control system. Centre distance: 650 mm Centre height: 100 mm Grinding length: 620 mm Weight: approx. 4,500 kg. Nedoid Aphopfx Aghswp For further details, see: TECHNICAL DATA SHEET Includes numerous grinding wheels and holders. Complete machine documentation available. Machine in stock.

Sąlyga: naudotas, TECHNICAL DATA - Number of axes: 5 MILLING SPINDLE - Tool holder: ISO30 - Spindle speed: 18,000 [rpm] LINEAR AXES - Travel X/Y/Z axes: 705 / 425 / 610 [mm] SWIVEL AXIS A - Travel: 360 [degrees] (+/-) - Minimum resolution: 0.001 [degrees] SWIVEL AXIS B - Travel: +180 / -5 [degrees] (+/-) - Minimum resolution: 0.001 [degrees] TOOL CHANGER - Tool changer type: Bras chargeur - Number of tools in magazine: 32 TABLE - Table size: 1260 x 490 [mm] ELECTRICAL SUPPLY - Supply voltage: 400 [V] Nwodpfxouhb A Eo Aghsp - Total drive power: 22 [kVA] WEIGHT AND DIMENSIONS - Required floor space: 2600 x 2300 [mm] - Machine height: 3000 [mm] - Machine weight: 5100 [kg] ACCESSORIES - Control: iTNC 530 - Electronic handwheel - Rotary table type: 4th/5th axis integrated * Manufacturer: Fehlmann * Model: ATS 160 CNC * Clamping diameter: 300 [mm] * Center height: 160 [mm] * Clamping type: Pneumatic - Coolant tank * with high-pressure pump - Oil mist extraction - Spindle cooling - Workpiece probe: Renishaw OMP 40-2 - Electrical transformer

Sąlyga: naudotas, TECHNICAL DATA - Number of Axles: 4 MILLING SPINDLE - Tool Holder: BT30 - Spindle Drive Power: 6.7 kW - Spindle Speed: 10,000 rpm LINEAR AXES - Travel X/Y/Z Axes: 700 x 400 x 300 mm - Rapid Traverse Speed (X/Y/Z): 50 / 50 / 56 m/min - Feed Rate (X/Y/Z): 1 - 30 m/min - Distance from Table to Spindle Nose: 330 - 630 mm TOOL CHANGER - Tool Changer Type: Umbrella - Number of Tools in Magazine: 21 - Tool Change Time: 0.8 sec TABLE - Table Size: 800 x 400 mm - Max. Table Load: 250 kg ELECTRICAL SUPPLY - Supply Voltage: 220 V - Total Power Consumption: 9.5 kVA WEIGHT AND DIMENSIONS - Footprint: 2,050 x 2,220 mm - Machine Height: 2,497 mm - Machine Weight: 2,400 kg ACCESSORIES - Controller: Brother CNC-C00 - Interface: Ethernet / USB - Electronic Handwheel - Rotary Table: 4th CNC axis integrated Nedpfxjvt Eifj Aghswp * Coolant Tank * with High-Pressure Pump - Internal Coolant Supply (IKZ) - Electrical Transformer

Sąlyga: naudotas, Gamybos metai: 2005, Allgemeine Informationen: - Modell: ROBODRILL α-T2 STAMA - Seriennummer: 046VH155 - Baujahr: 2005 - CNC-Steuerung: FANUC (Modell A04B-0094-B111#BD) - Gewicht: 2.200 kg - Stromversorgung: 200 V, 50/60 Hz, Dreiphasenstrom - Leistungsaufnahme: 10 kVA ----- Bearbeitungsmöglichkeiten: - Arbeitsgänge: - Fräsen (High-Speed- und Hochpräzisionsfräsen) - Bohren - Gewindeschneiden mit starrer Gewindespindel ----- Verfahrwege: - X-Achse: ca. 500 mm - Y-Achse: ca. 400 mm - Z-Achse: ca. 330 mm ----- Spindel: - Spindelaufnahme: BT30 Nodpfx Aeuru I Roghowp - Standard-Spindeldrehzahl: bis 10.000 min⁻¹ ----- Werkzeugwechsler: - Typ: automatischer Werkzeugwechsler - Werkzeugwechselzeit: ca. 1,6 Sekunden ----- Verfahrgeschwindigkeiten: - Eilgang (X, Y, Z): 54 m/min ----- Hauptmerkmale: - Kompakte Bauweise für höchste Steifigkeit - Hohe Produktivität dank ultraschneller Bohr- und Gewindeschneidzylken - Wartungsfreundlich durch integrierte FANUC-Diagnoseschnittstelle - Kompatibel mit automatisierten Fertigungszellen (STAMA Co-Branding)

Sąlyga: naudotas, Gamybos metai: 2014, Workpiece length: 100 mm Swing diameter: 80 mm Number of spindles: 2 Control: FANUC 31i-B5 Workpiece weight: 2.00 kg Center height: 170 mm Grinding wheel diameter: 100 mm Grinding wheel bore: 32 mm Maximum grinding wheel width: 20 mm Maximum peripheral speed: 125 m/sec Steady rest pass-through: 45 - 60 mm Total connected load: 75.00 kW Machine weight approx.: 25.00 t Nwedpfovx Uvfsx Aghop Space requirement approx.: 5.00 x 3.50 x H3.50 m Camshaft grinding machine for cam components. With FANUC 31i-B5 control for non-circular grinding; loading gantry; CO₂ fire extinguisher system; for CBN grinding wheel; tailstock; steady rest; diamond roll dresser for grinding wheel mounted on the dressing spindle; grinding spindle head variant 12 (two grinding spindles can be moved independently)

Gamybos metai: 1983, Sąlyga: paruoštas naudoti (naudotas), Used for reworking profile rolls for a hot rolling mill, regularly maintained, with accessories, without spare parts, on-site inspection possible, no videos available. Njdpfx Ageriwfijhjwp

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 1999, veikimo valandos: 6 000 h, Funkcionalumas: visiškai funkcionalus, X ašies eiga: 505 mm, Y ašies eiga: 350 mm, Z ašies eigos atstumas: 610 mm, X ašies padavimo greitis: 20 000 m/min, Y ašies padavimo greitis: 20 000 m/min, padavimo greitis Z ašis: 20 000 m/min, valdiklių gamintojas: Heidenhain, valdiklio modelis: TNC 426, ruošinio svoris (maks.): 300 kg, stalo plotis: 380 mm, stalo aukštis: 1 004 mm, stalo ilgis: 920 mm, bendras svoris: 250 kg, veleno greitis (min.): 50 aps./min, veleno greitis (maks.): 18 000 aps./min, ašies variklio galia: 10 W, Įranga: dokumentacija / vadovas, sūkių greitis be galo kintamas, The machine is equipped as follows: - Tool holder: SK 30 - Tool changer with 24 positions (automatic tool change) - Coolant system Njdpfx Asv A Tyqjghjwp - Spindle cooling - Mist extraction unit - Chip drawer - RENiSHAW probe

Sąlyga: naudotas, ----- Description: General: Nwedpfov Armcex Aghop Year of manufacture: 2020 Control: WEISS CNC Centre distance: 6 mm Centre height: 200 mm Grinding wheel dimensions: 400 x 60 mm + 0 x 60 mm Workpiece spindle head: Speed: 1 rpm Max. workpiece weight: 25 kg Max. grinding diameter: 390 mm Mount: MK4 Grinding spindle head: Peripheral speed: 2 m/s Grinding wheel dimension right: 0 x 60 mm Grinding wheel dimension left: 400 x 60 mm X-axis: 380 mm Z-axis: 1.1 mm B-axis: Torque motor, stepless Tailstock: Quill diameter: mm Quill stroke: 45 mm Mount: MK 4 Micrometer adjustment: +/- 0.04 mm Equipment / Accessories: Measuring systems: Direct (glass scales) Grinding spindles: 2x grinding spindle (left/right) GAP / Crash Control: Structure-borne sound (Sensotronic) Balancing: MPM balancing device Workpiece measurement: Marposs PF ME Automation: Robot interface prepared Setup operation: Electronic handwheel Emulsion mist extractor: Mechanical Dresser: For external grinding wheel left/right Accessories: Various grinding wheels + flanges

Sąlyga: naudotas, Gamybos metai: 2004, Cursa X 700 mm Nsdpfxsumrpzj Aghjwp Cursa Y 360 mm Cursa Z 270 mm Dimensiuni masă: lungime 600 mm lățime 300 mm Număr locașuri scule: 21 Con de prindere arbore principal: BT-30 Turație maximă arbore principal: 10.000 rpm Dimensiuni (L x l x h): 1828,8 × 1574,8 × 2209,8 mm Greutate: 1.800,4 kg
