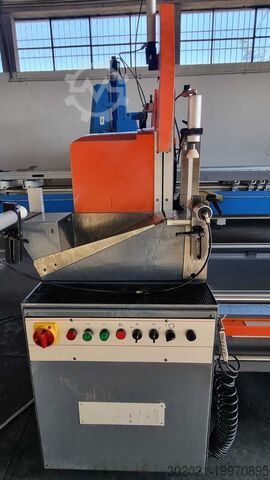

Dvigubos galvutės pjovimo staklės

Tekna TK 145

Būklė: geras (naudotas), Gamybos metai: 1996, Atstumas tarp pjūklų ties 90° maks.: 4000 mm Pjovimo aukštis ties 90°: 200 mm Pjovimo plotis: 130 mm Galia: 5,1 kW Gsdpfx Aegixvwsa Usbl Svoris: 1260 kg

Gamybos metai: 2018, būklė: geras (naudotas), For machining aluminium and steel profiles Fully functional, in very good condition Machining length: 7200mm 3-axis control with 15" display Tool changer: 8 positions / turret 8 pneumatic horizontal material clamps Autonomous clamp positioning Two separate work zones, suitable for pendulum operation 2 pneumatic material stops 8 tool positions / BT30 turret Barcode scanner Handheld control device Safety light curtain at the front and side protective fence Minimum quantity lubrication Centralised lubrication Thread cutting without compensating chuck Simple programming via control device High-speed spindle up to 18,000 rpm Includes 3 angle heads X-axis [mm]: up to 7,200 / 7,200 Y-axis [mm]: up to 485 / 310 Z-axis [mm]: up to 340 / 260 Traverse speed X/Y/Z axis [m/min]: 60/60/60 Max. milling cutter diameter: 25mm Max. saw blade diameter: 180mm Max. tool length: 200mm (tool + holder) Max. spindle speed: 6,000 rpm Spindle power: 6 kW Gbodpox Diqwsfx Aa Uel Weight: approx. 5.5 t Total operating hours: 30,844 h Total spindle hours: 11,583 h

Būklė: naudotas, Gamybos metai: 1998, Funkcionalumas: neveikiantis, mašinos/transporto priemonės numeris: 241, X ašies eiga: 4 000 mm, Tekna TK 145/20 CNC dviguba kampinė pjovimo staklės. Pjovimo ilgis: 4000 mm. Diskas: 500 mm Gbedpfxsxrg Sus Aa Uel

Būklė: naudotas, Gamybos metai: 2023, DOUBLE GLAZING BEAD SAW TRF 527 VIS CE 1 pc DOUBLE GLAZING BEAD SAW TRF 527 VIS CETRF 527 VIS: Double mitre saw for simultaneous cutting of two glazing beads positioned one above the other. The right saw unit is fixed; the left unit can be adjusted. The preset cutting length can be read on a digital measuring display. Both units feature supports that enable the simultaneous cutting of 2 glazing beads. To cut larger cross-sections, the upper support can be removed. Upon completion of the cutting process, the pneumatic clamping cylinders automatically swing aside to facilitate the loading and unloading of the machine. STANDARD EQUIPMENT • Fixed unit on the right • Digital measuring display • Pressure switch • 2 carbide-tipped saw blades • Electrical system with motor brake, undervoltage release, motor protection switch • Pressure switch • Tool kit • Safety guards with horizontal, swiveling clamping devices • Two-hand operation • Belt drive • Pneumatic unit stroke • Central support TECHNICAL DATA • Motor power: 2 x 1.2 kW • Saw blade diameter: Ø 220 mm • Max. cutting height without support: 80 mm • Max. cutting width at 90 degrees: 55 mm • Max. cutting width at 45 degrees: 40 mm • Max. cutting length: 2800 mm (optional 4000 mm) • Min. cutting length: 158 mm • Weight: 217 kg Godjxnlgcopfx Aa Uebl • Space requirement (standard equipment): 3000 x 850 mm EXTENDED CUTTING CAPACITY 1 pc Maximum cutting length: 4000 mm Star stop with 4 positions 1 pc Set of 2 mechanical stops for adjusting up to 4 intermediate angles Additional central support 1 pc Adaptations for rebated profiles 1 pc Adaptations for rebated profiles as per drawing: - Attachment on the clamping devices to compensate for the profile inclination - Spacers on the rear stops of the units and the central support In the sketch below (in green), a beveled pusher is shown, which follows the inclined profile and presses it against the (red) spacer on the stop. Location: Garbsen

Gamybos metai: 1977, būklė: visiškai atnaujintas (naudotas), I am selling a Rapid DGS double mitre saw, year 1977. Swivelling heads. Drilling heads on each side at the front included. In very good condition. Available immediately. Gbedpfxsd N Rb De Aa Usl

Būklė: naudotas, Gamybos metai: 2015, Vertikalus CNC apdirbimo centras su 3 valdomomis ašimis ir išskirtine Y ašies apdirbimo talpa. Jame įrengta vakuuminių stalų tvirtinimo sistema, kuri laiko plokštes ir lakštus vakuumo pagalba. Šis sprendimas ypač veiksmingas apdirbant plonas detales, kurias sunku pritvirtinti naudojant įprastas spaustuvų sistemas. Apdirbimo centras aprūpintas vožtuvų rinkiniu, leidžiančiu įjungti arba išjungti skirtingas stalo zonas, taip sutelkiant vakuumą tam tikroje srityje ir optimizuojant mažų komponentų tvirtinimą. Galimybė atlikti interpoliuotą frezavimą ir gręžimą kompozitinėse plokštėse, aliuminio, plieno ar titano lakštuose bei aliuminio profiliuose. Tekna tiekia patogią naudoti programinę įrangą, kurią gali valdyti tiek patyrę CNC programuotojai, tiek mažiau patirties turintys vartotojai. TKE 783 – tai apdirbimo centras su 3 valdomomis ašimis, skirtas interpoliuotam gręžimui ir frezavimui kompozitinėse plokštėse, aliuminio, plieno ar titano lakštuose bei aliuminio profiliuose. Techninė specifikacija: Modelis: Tekna TKE783 Pagaminimo metai: 2015 Galia: 29 kW Godov D A Imepfx Aa Usbl Apdirbimo stalo matmenys: 2010 x 6300 mm Svoris: 4842 kg Greitis: X ašis 70 m/min; Y ašis 55 m/min; Z ašis 30 m/min Programinė įranga: Windows, Embedded, Teach-in software CAD/CAM 2D NC TOOL Pagaminta: Italijoje Kita: buvo dirbama su aliuminio frezavimu iki 4 mm. Staklės prijunktos, galima pamatyti kaip veikia ir išbandyti Estijoje. Bus paruoštos transportavimui balandžio – gegužės mėnesį. Jei turėsite papildomų klausimų, mielai atsakysime.

Būklė: naudotas, Technical Details: Wire diameter - max.: 9.0 mm Wire diameter - min.: 2.0 mm Operating voltage: 380 V / 50 Hz Control voltage: 220 V Total power requirement: 18 kW Machine weight approx.: 5.0 t Dimensions lubricating unit (LxWxH): 830 x 650 x 1000 mm Dimensions machine approx. (LxWxH): 3.3 x 1.5 x 1.45 m Dimensions control cabinet (LxWxH): 0.7 x 1.5 x 1.75 m WIRE STRAIGHTENING AND CUTTING MACHINE / MACHINE WAS UPGRADED WITH A NEW CONTROL SYSTEM IN 2000 A programmable, electronically and hydraulically controlled universal spring coiling machine for the production of right- and left-handed tension and compression springs as well as torsion springs. Springs can be produced with any desired pitch and coil body shape. Output max. 90 pcs/min. Spring outer Ø: 10 - 120 mm Wire feed length unlimited, feed speed = 27 - 80 m/min. Coiling unit: Two-finger system, wire diameter Ø 2.0 - 9.0 mm; spring outer Ø 10 - 120 mm Single-finger system: wire diameter Ø 3.0 - 7.0 mm; spring outer Ø max. 60 mm Equipment: 5x feed rollers, wire intake 3 mm, two-finger Spring length measuring device LION PRECISION-PANTHER Wire reel holder POST, motor-driven, mandrel Ø 1,400 mm Gjdpfxjvc Aklo Aa Usbl Lubricating unit Control cabinet cooler RITA Hydraulic power unit A wide range of accessories and/or spare parts available on request! i.D.

Gamybos metai: 2008, būklė: labai geros būklės (naudotas), Oil burner Weishaupt WM-L10 Year of manufacture: 2008 We speak Russian! Viewing only by prior telephone arrangement! Preferred sale to dealers, tradespeople, or for export. All information provided without guarantee; errors and prior sale excepted. The seller assumes no liability for typing or data transmission errors. We are happy to purchase your used boiler or burner! Of course, we will also handle all formalities for you. Loading possible. Gbsdpfxei Ap Ate Aa Uol

Būklė: beveik kaip naujas (naudotas), Gamybos metai: 2003, Funkcionalumas: visiškai funkcionalus, Pramoninė juostinė pjūklas R800 - CENTAURO Naudota mašina Metai: 2003 Gsdpfxex Ifige Aa Ujbl Techninės charakteristikos: R800 diskiniai volai Plieninis rėmas Pneumatinis volų stabdymas Stalas pasviręs 15° Frikcinė krumpliastiebė Vilnonis audinys geležtės valymui ir aušinimui Variklis 11 kW - 15 AG Automatinis žvaigždės/trikampio paleidiklis Teleskopinė geležtės apsauga Viršutinis ir apatinis geležtės kreiptuvas su mediniais įdėklais Valymo grandikliai ant volų Plieninė geležtė 5530x80x0,8 mm, žingsnis 16 mm Paruošta griebtuvui (įranga neįtraukta) Papildomos opcijos: RVP210 griebtuvas, reguliuojamas greitis, paruošimas bei įeinantys volai

Būklė: geras (naudotas), Gamybos metai: 2008, - Maximum swing diameter over bed: 700 mm - Turning length: 1,500 mm Main spindle: - Speed range: 2,800 rpm - Enlarged main spindle: Ø 150 mm, bore: 110 mm - Drive power: 30 kW, 900 Nm - Spindle nose: Size 11 Total power requirement: 59.5 kVA Machine weight approx.: 14.5 t Space requirement approx.: 6.4 x 3.0 x 2.6 m EQUIPMENT: - 3-jaw chuck, SMW KNCS-N 400 K11 - Tailstock - Programmable CNC steady rest slide (cross slide NOT retractable) - SMW-AUTOBLOK SLU-3, self-centering steady rest, clamping range Ø 12 - 152 mm - Full stroke cylinder for partial hollow clamping, max. bore in draw tube: Ø 100 mm - In-process measuring system Renishaw for X-/Z-/C-axis - Programmable CNC tailstock on W-axis - Drilling/milling spindle and C-axis 0.001° - Tool changer: 80 positions Tool system: HSK-A63 - Y-axis with travel +115/-115 = 230 mm Gbjdpoxmirgefx Aa Ujl - B-axis 225°, positioning in 0.001° increments - ICS / internal coolant supply for driven tools - Synchronized thread cutting with driven tools - Software for using multifunctional tools, e.g., special tool with radially arranged indexable inserts that can be positioned in the drilling/milling spindle at 60°, 90°, 120°, and 180° positions - Hobbing software for straight and helical toothing with speed synchronization of main and milling spindles - Electrostatic extraction system - Chip conveyor - Documentation - CE marking
