Tekinimo staklės

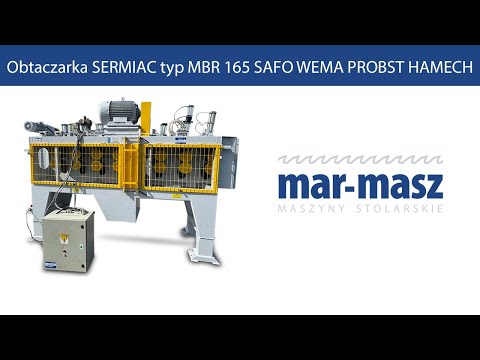

SERMIAC MBR 165 siłowniki pneumatyczne SAFO WEMA PROBST HAMECH

Sąlyga: naujas, TC 165 x 750V Image shows MIOTAL® TC 180 x 1000 Centre distance: 750 mm Centre height: 165 mm Swing over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle mount: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 rpm Mechanical speed ranges: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Cross feeds X: (40) 0.022 - 0.98 mm/rev Metric threads: (32) 0.4 - 7.0 mm Inch threads: (32) 4 - 56 TPI Module threads: (32) 0.4 - 7.0 Diametral pitch threads: (32) 7.5 - 112 Tailstock quill diameter: Ø 40 mm Tailstock quill taper: MT 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance certificate according to DIN - Precise, hardened and ground guideways - Robust headstock with oil circulation lubrication, precision spindle bearings, gears hardened and ground for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric brake system (V models) Kdedpfx Adsir Igwexow - Torsion-resistant machine beds made from MEEHANITE quality cast iron, stress-relieved and heavily ribbed for maximum running smoothness - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Impulse pushbutton for main spindle - CE / IEC and German documentation and service Standard equipment (included accessories): - Machine stand with splash guard rear wall - 3-jaw chuck - 4-position toolpost - Foot pedal with mechanical brake - Coolant system - Chuck and spindle guard compliant with European CE safety standards - 1 fixed centre for main spindle - 1 fixed centre MK3 - 1 test certificate - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle operating tools Available options for this lathe: - 3-axis digital readout - Quick-change toolpost system Multifix Also available as a geared version

Sąlyga: geras (naudotas), Gamybos metai: 1991, Braun Canali band saw, model TB 1100 Unimaster, wheel diameter 1100 mm, with tilting table for diagonal cuts. Machine dismantled, available from our warehouse in 23936 Grevesmühlen. Kdsdeucnt Hspfx Adxew

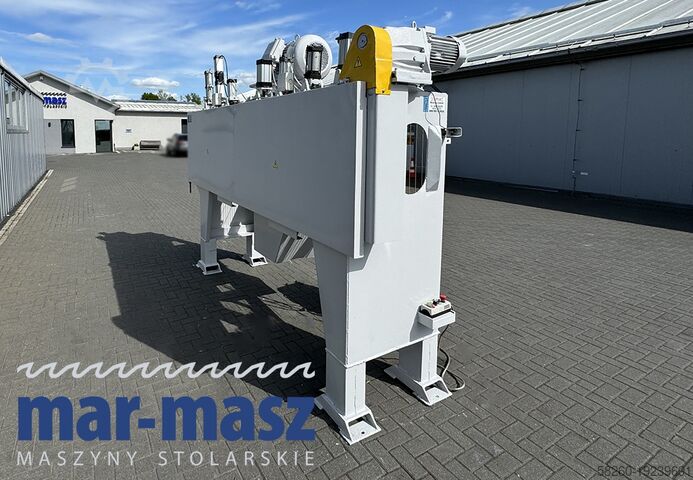

Sąlyga: naudotas, Gamybos metai: 1997, Funkcionalumas: visiškai funkcionalus, bendras plotis: 1 240 mm, bendras ilgis: 2 630 mm, bendras aukštis: 1 400 mm, padavimo variklio galia: 1 500 W, bendras svoris: 1 600 kg, darbo diapazonas: 140 mm, įvesties srovės tipas: trifazis, įėjimo įtampa: 400 V, - Polish production - Year of manufacture: 1997 - Technical documentation (DTR) - CE marking TECHNICAL SPECIFICATIONS: - Range of processed dowel diameters: 40-140 mm - Max input material diameter: 200 mm - Min input material length: 600 mm - Max machining allowance per side: 30 mm - Cutter head drive motor: 18.5 kW - Feed forward/backward - Feed motor: 1.5 kW - 3 toothed infeed feed rollers - 4-knife cutter head - 3 smooth outfeed feed rollers Kdjdov N Edbspfx Adxow - Dimensions (LxWxH): 2630x1240x1400 mm - Weight: 1600 kg

Sąlyga: naudotas, Gamybos metai: 2005, Funkcionalumas: visiškai funkcionalus, bendras svoris: 1 600 kg, darbo diapazonas: 140 mm, įvesties srovės tipas: trifazis, įėjimo įtampa: 400 V, - Polish production - Year of manufacture: 2005 - DTR (Technical Documentation), CE certificate TECHNICAL DATA: - Range of processed dowel diameters: 40-140 mm - Max. input material diameter: 200 mm Kdedpfov N Ebaox Adxjw - Min. input material length: 600 mm - Max. machining allowance per side: 30 mm - Cutter head drive motor: 18.5 kW - Feed forward/reverse - Feed motor: 1.5 kW - 3 toothed feed rollers - 4-knife cutter head - 3 smooth output feed rollers - Dimensions (LxWxH): 2630x1240x1400 mm - Weight: 1600 kg
