CNC plazminio pjovimo sistema

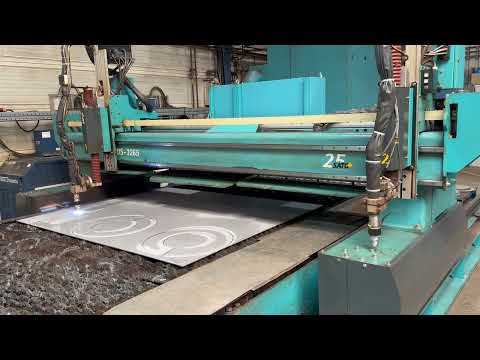

SATO Satronik DHD-S 3265

Working length: 6000 mm
Maximum working width: 2500 mm
Sheet thickness: see table
Control system: SATO CNC 3010
Torch units: 2
Track width: 3265 mm
Total width: approx. 4265 mm
Parking length: 2000 mm
Feed rate: 20000 mm/min
Power consumption max.: 15 kVA
Cut quality: EN ISO 9013
Accuracy: DIN EN 28 206
Double gantry bridge in stable, air-cooled steel frame construction, specifically suitable for bevel cutting and drilling units as well as all thermal cutting processes.

Includes extraction system with 8 filter units: Donaldson DFPRO 8 Cyclo, year of manufacture 2007

Includes 2 plasma power sources, Thermal Dynamics Ultracut 200
Includes 2 Satomatic Arc Voltage Height Controllers HV S 250 PT

Sheet thickness: see photo of table

8 m heavy-duty machine track (substructure with 8.5 m wide-flange beams on both sides)
Cedpewt Ua Sjfx Ahvehc

Operating manual available

Machine was only used in single-shift operation and not continuously. It was operated with only one torch unit. The machine was regularly serviced and is in good condition.
