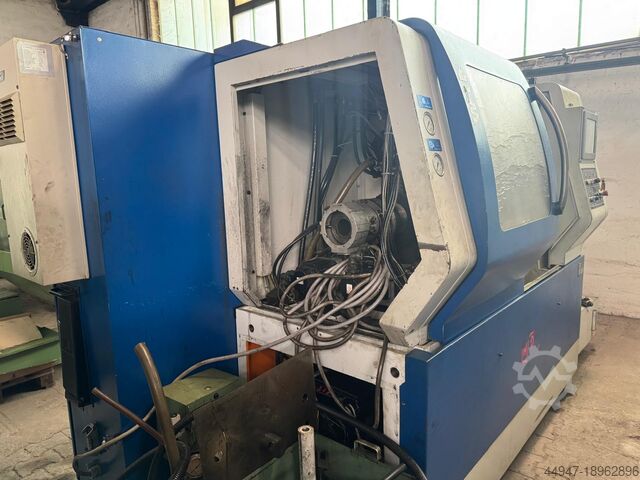

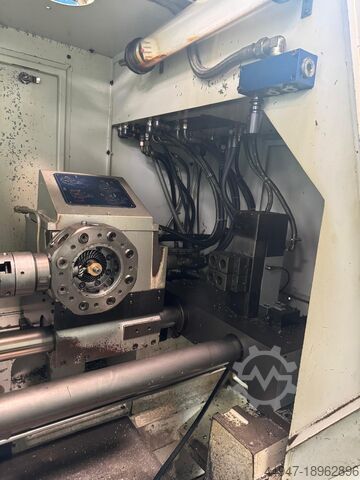

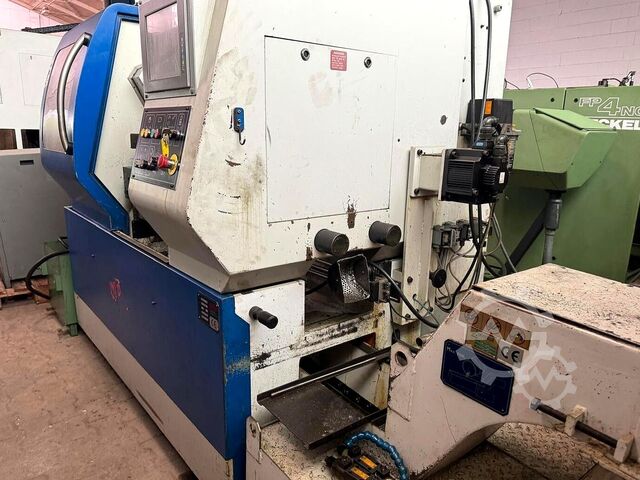

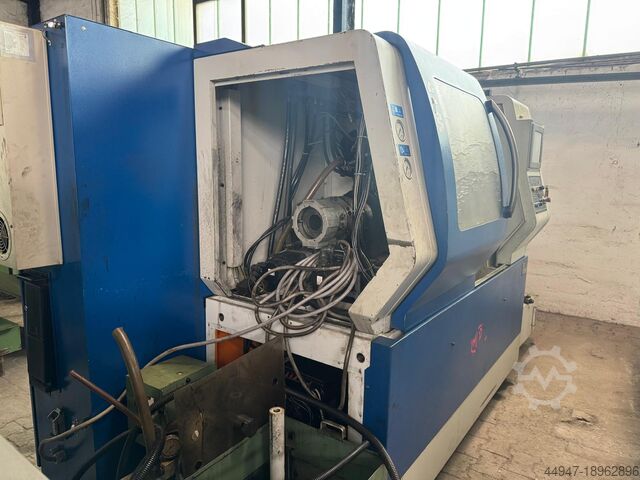

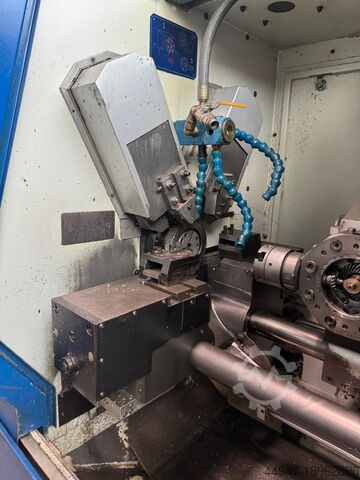

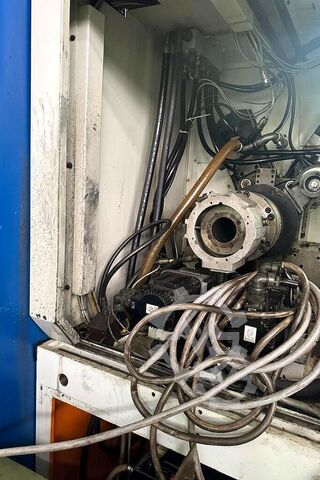

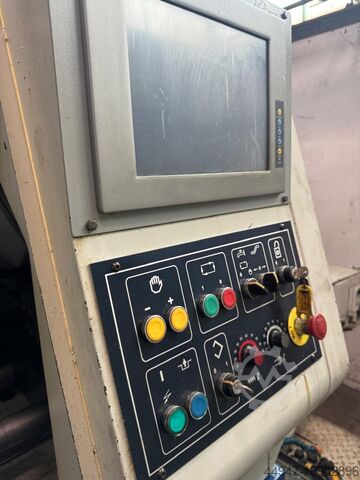

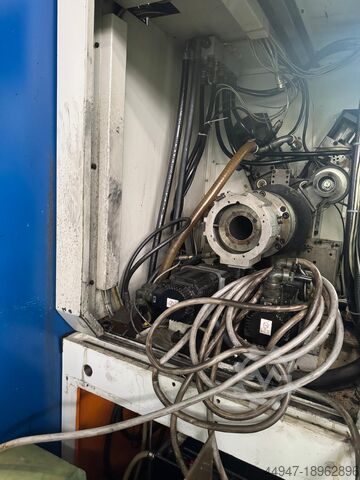

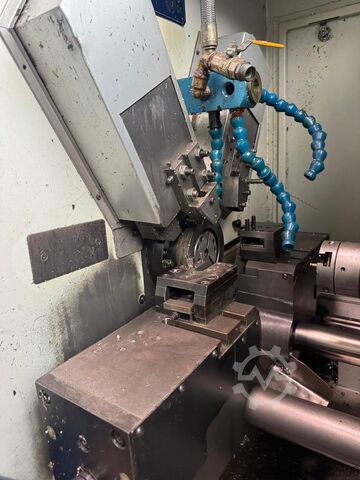

CNC tekinimo staklės

MUPEM WIN 65

Sąlyga: paruoštas naudoti (naudotas), Gamybos metai: 2002, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 211S, sukimosi greitis (maks.): 3 000 aps./min, Strypo skersmuo (maks.): 65 mm, tvirtinimo įvorės skylė: 150 mm, TECHNICAL DETAILS Max. bar capacity: 65 mm Diameter of front spindle bearing: 110/150 mm Collet clamping system up to Ø: 60 mm HAINBUCH collet system up to Ø: 65 mm Maximum spindle speed: 3,000 rpm Main spindle motor power: 11/15 kW Main Spindle Number of tools: 8 VDI-30 Maximum stroke in Z: 50 mm Rapid traverse speed: 15 m/min Feed force: 6,790 N Cross Slide Number of horizontal slides: 2 Maximum working stroke at X1/X2: 70 mm Feed force at X1/X2: 8,000 at 50 bar Maximum working stroke on Z1: 230 mm Turret Hsdewtq U Espfx Af Iefb Number of tools: 8 VDI-20 Vertical Slide Number of vertical slides: 2 Maximum working stroke in X3/X4: 70 mm Manual length adjustment: 50 mm Rapid traverse speed: 15 m/min Feed force at X1/X2: 8,000 at 50 bar MACHINE DETAILS Machine height: 1,700 mm Machine footprint: 2,900 x 1,700 mm Machine weight: 4,100 kg Voltage: 380 V Frequency: 50 Hz Power: 22 kVA

Sąlyga: labai geros būklės (naudotas), Calibrating and fine sanding machine with 1 sanding unit and 1 motor, top processing Working width: 1000 mm Sanding belt dimensions: 2200 x 1030 mm Workpiece dimensions: 3 - 170 mm Table height adjustment motor: 0.18 kW, 400 V, 50 Hz Main motor: 7.5 kW, 400 V, 50 Hz 2 feed speeds: 5.5 & 11 m/min 1st Unit: Combination unit, rubberized sanding roller, 90 Sh / pneumatic sanding pad Sanding pad NEW 2nd Unit: Cleaning brush Compressed air requirement approx. 6 bar Extraction port diameter: 200 mm Dimensions (approx.) L x W x H = 1385 x 1980 x 1900 mm Weight: approx. 1800 kg Automatic workpiece thickness adjustment with digital display Sanding belt oscillation Sanding belt emergency stop with disc brakes Table extension with 3 rollers on outfeed Emergency stop button Main switch CONVEYOR BELT LIKE NEW - replaced by us approx. 3 years ago MORE THAN 30 WIDE-BELT SANDING BELTS INCLUDED Notes on used machinery: • Subject to error in technical specifications and prior sale. • Prices quoted are ex-works and for self-collection – loading free of charge! Hsdpfeudxchox Af Iefb • The machine has been cleaned and function-tested. • All machines are sold as viewed, without any guarantee or warranty claims. Buyers are welcome to inspect the machines at our premises. • Special arrangements are only valid in written form. (We will only respond to inquiries with your address and telephone number!)

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 1996, Wide Belt Sander OTT ALPHA 110 - Machine in stock - After technical inspection - In very good condition - German production - Year of manufacture: 1996 - Segmental pad – ideal solution for lacquer / veneer TECHNICAL SPECIFICATIONS: - Working width: 1100 mm - Working height: 1-150 mm - Combination unit with membrane sanding pad, task-controlled - Main unit motor power: 11 kW Hedpfx Afogi Dryj Ijfb - Air blow on sanding belt - Pneumatic belt oscillation - Two belt speeds: 4.5 and 18 m/s - Felt roller unit - Motor power: 0.75 kW - Roller oscillation - Cleaning brush unit - Motor power: 0.75 kW - Continuously adjustable feed - Feed speed range: 4-18 m/min - Feed drive motor power: 1.5 kW - Electric height adjustment - Vacuum table - Fan motor power: 3 kW - Extraction ports diameter: 4 x 120 mm, 1 x 150 mm Transport dimensions: - Length: 200 cm - Width: 245 cm - Height: 210 cm - Weight: 2500 kg 1. Alpha Combi Unit is a sanding unit with a 150 mm diameter contact roller, 90 shore hardness. Integrated with a sectional pneumatic pad, section width: 27 mm. 2. EMS 27 Optical System – detects minimal irregularities and adjusts the pressure of each pad section to the corresponding area of the workpiece. 3. Control of respective adjacent pad sections is possible within the range -2 to +4.

Sąlyga: labai geros būklės (naudotas), Funkcionalumas: visiškai funkcionalus, Gamybos metai: 2003, valdymo tipas: CNC valdymas, pavaros tipas: elektrinis, valdiklio modelis: System 6000, darbinis plotis: 3 200 mm, karūnavimo tipas: valdomas CNC, maks. lakšto storis: 3 mm, plieno lakšto storis (maks.): 3 mm, galinis atmušas: 3 000 mm, Įranga: CE žymėjimas, avarinis stabdymas, Parduodama naudota Ras Flexibend 73.30 CNC lankstymo staklės su 3 metrų padavimo liniuotė. Varikliu valdoma sukamųjų lankstymo staklės Gamintojas: RAS Hsdpfjw T Sc Ajx Af Ijfb Modelis: Flexibend 73.30 Pagaminimo metai: 2003 Techninės specifikacijos: Gamintojas: RAS Modelis: 73.30 Metai: 2003 Naudingo lankstymo ilgis: 3200 mm Lakšto storis: 3,0 mm Viršutinio spindulio tarpas: 300 mm CNC reguliuojamo lankstymo spindulio eiga, maks.: 80 mm CNC reguliuojamo apatinio spindulio eiga, maks.: 80 mm Greitis: Lankstymo sija, maks.: 90°/s Viršutinis spindulys, maks.: 40 mm/s Padavimo liniuotė 10–1550 mm: 2 s Įranga: • Valdymas: Touch & More System 6000 – NAUJAS JUTIMINIS EKRANAS • CNC valdoma 3 metrų ilgio J formos padavimo liniuotė • Varikliu valdoma apatinio spindulio ir lankstymo sijos reguliacija • Laikymo stalas Didelis įrankių pasirinkimas: segmentiniai ir vientisi įrankiai

Sąlyga: naudotas, Gamybos metai: 1997, veikimo valandos: 10 227 h, Funkcionalumas: visiškai funkcionalus, X ašies eiga: 600 mm, Y ašies eiga: 525 mm, Z ašies eigos atstumas: 500 mm, stalo plotis: 540 mm, stalo ilgis: 1 000 mm, bendras svoris: 4 500 kg, veleno greitis (maks.): 12 000 aps./min, For sale is a machining centre from Deckel Maho, model DMU 60 E. The machine is fully functional and ready for immediate use. The low program run hours are a particular highlight. Technical data: Year of manufacture (estimated): 1997 Control: HEIDENHAIN TNC 426PB Control on: 8,283 h Machine on: 31,148 h Program run: 10,227 h Total power requirement: approx. 26 kVA Travel X-axis: 600 mm Travel Y-axis: 525 mm Hfsdpow I R I Hsfx Af Ijb Travel Z-axis: 500 mm Clamping surface: 1,000 x 540 mm Maximum table load: 350 kg Spindle speed range: 20 - 12,000 rpm Tool holder: SK 40 Feed rate: 20 - 10,000 mm/min Rapid traverse X/Y-axis: 18 m/min Rapid traverse Z-axis: 15 m/min Tool changer: 25 stations Dimensions (L x W x H): approx. 2.95 x 2.1 x 2.26 m Weight: approx. 4,500 kg Transport and loading can be organised throughout Europe on request and at extra cost. All prices are subject to VAT. Inspection is possible by appointment. Please contact us—our team is happy to assist you. Trade-in or exchange is possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINERY AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or would you like to sell yours? For further information or to get in touch, please visit our website.

Sąlyga: naudotas, Gamybos metai: 2023, Used machine Year of manufacture: 2023 Condition: absolutely as new, machine is unused Equipment and technical specifications: - 2-belt machine; 1st belt roller, 2nd belt pad - Usable working width: 1100 mm - Sanding belt dimensions: 1120 x 2150 mm - Max. workpiece thickness: 160 mm - Steel calibration roller: 150 mm - Sanding pad width: 50 mm - Belt motor power: 11 kW - Belt speed: 18/16 m/s - Feed motor power: 0.55 kW - Feed conveyor with infinitely variable speed adjustment: 4–20 m/min - Height adjustment motor: 0.24 kW - Mechanical belt oscillation “Eco Gear Patent System” - 1 pcs. drum brake for belt stop - Pivoting roller for belt tension - 3 pcs. pressure rollers with rubber coating - Emergency stop bar at infeed - Electronic workpiece thickness display - 2 pcs. roller conveyors, each with 2 rollers at infeed and outfeed - 1 extraction nozzle Ø 160 mm - Automatic table positioning - New patented belt oscillation system - No valves - No light barriers - Not sensitive to dust Hfjdpjw E Ty Uofx Af Ijb - Energy-saving, environmentally friendly system - Since 2008, the machine model with this system has been operating continuously without lateral belt run-off! - Incl. Unitek belt motor 14.7 kW instead of 11 kW (Promoter) - Incl. Unitek pneumatic sanding pad with control synchronized to feed speed Availability: short-term Location: Saxony-Anhalt

Sąlyga: geras (naudotas), Gamybos metai: 2006, CNC Multitron PS 10 Control: Column-guided Material roller conveyor on both sides 4000 mm / 1000 mm Cutting speed 15 - 105 m / min Technical details: Cutting diameter: 320 mm Saw band length: 3280 mm Cutting width: 320 mm Total power requirement: 3.8 kW Machine weight: approx. 115 kg Hjdpov I Rfuofx Af Ijfb

Sąlyga: naudotas, Gamybos metai: 2015, Su šlifavimo agregatu, sudarytu iš: - 1 vnt. kombinuoto agregato, pneumatinė šlifavimo kojele stipriam faneros šlifavimui - Dulkių šepetys Paruoštas su vakuuminiu kilimu ir vakuumo sistema. Įėjimo volelių stalas 200 mm Išėjimo volelių stalas 1000 mm Konstantinis stalas – pastovus įėjimo aukštis automatinis ruošinio storio nustatymas/aptikimas Mašinos valdymas per jutiklinį ekraną Naudotas, puikios būklės Gamintojas: Bütfering Modelis: SWT 215 / L Optimat Pagaminimo metai: 2015 Mašinos Nr. Darbinis plotis apie 1350 mm Praėjimo aukštis apie 3-160 mm CE tipo patikrinimas Juostos matmenys apie 1370 mm x 2150 mm, ilgos juostos Reguliuojamas padavimo greitis 2,5-13 m/min. 1 vnt. kombinuotas agregatas 15 kW su profiliuotu plieniniu voleliu, D 160 Skersmuo 160 mm Pneumatiškai valdomas oro batas Reikalinga vieta apie 1625 mm x 2000 mm x 2300 mm Hsdpfx Aowa Uluof Iofb Svoris apie 1500 kg Bendras pajungimo galingumas apie 16 kW Sandėliavimo vieta: 97447 Gerolzhofen, laisvai pakrauta, ne supakuota Pardavimas būklėje kaip apžiūrėta, be garantijos ir pretenzijų.

Gamybos metai: 2000, Sąlyga: labai geros būklės (naudotas), I am selling a wide belt sander Costa A CT 1150, year of manufacture 2000. Configuration: Hard rubber sanding drum – electronic segmented shoe. Working width: 1150 mm. Belts: 1180 x 2620 mm Pressure rollers for short workpieces. Compressed air cleaning for both units. Total weight: 2300 kg 2 motors: 15 + 11 kW Fitted cleaning unit with extraction and lower cleaning brush. Hsdpfx Aog Trubsf Iefb Includes full documentation. Condition: LIKE NEW! The machine has seen very little use. Available immediately.

Sąlyga: naudotas, Gamybos metai: 2001, Pagaminimo metai: 2001 1 agregatas 1 kombinuotas kontaktinio volo ir šlifavimo bato agregatas, su šlifavimo juostos grūdėtumo kompensacija ir kalibravimo funkcija Plieninis kontaktinis volas (profiliuotas) Automatiškai reguliuojamas kontaktinis volas Elektroniškai valdomas sekcijinis slėgio balkis kompaktiškoje konstrukcijoje, elemento plotis 50 mm Programiniu būdu valdoma atskirų sekcijų šlifavimo slėgio korekcija Agregato pavara su elektroniniu, be susidėvėjimo stabdžiu Trifazis, perjungiamas variklis: 3,7/7,5/15 kW (šlifavimo juostos greičiai: 4,5/9/18 m/s.) Darbo plotis: 1100 mm Šlifavimo juostos plotis: 1120 mm Šlifavimo juostos ilgis: 1900 mm Hfedpei Eu Aqofx Af Iob Staklės pilnai su gumuotais spaudimo volais Pneumatinis šlifavimo juostos įtempimas su integruotu juostos krašto kompensavimu Terminalas su 50 laisvai programuojamų šlifavimo programų visiškai automatizuotam staklių valdymui Juostos padavimas: 4 ir 8 m/min Kaina: 14.900 € be PVM.
