Juostinis pjūklas

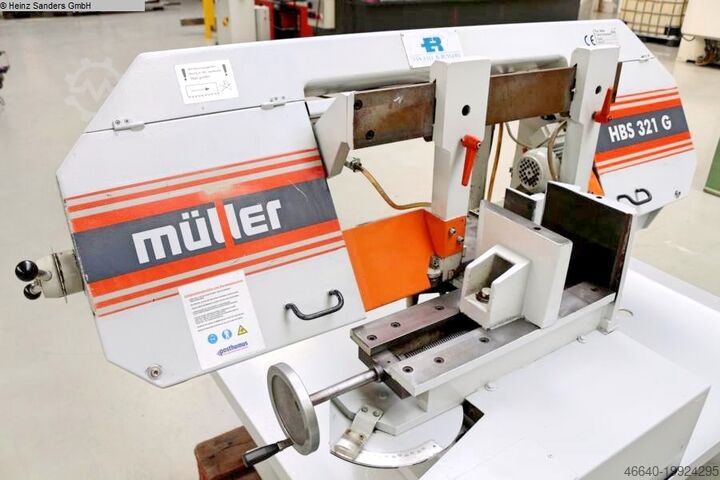

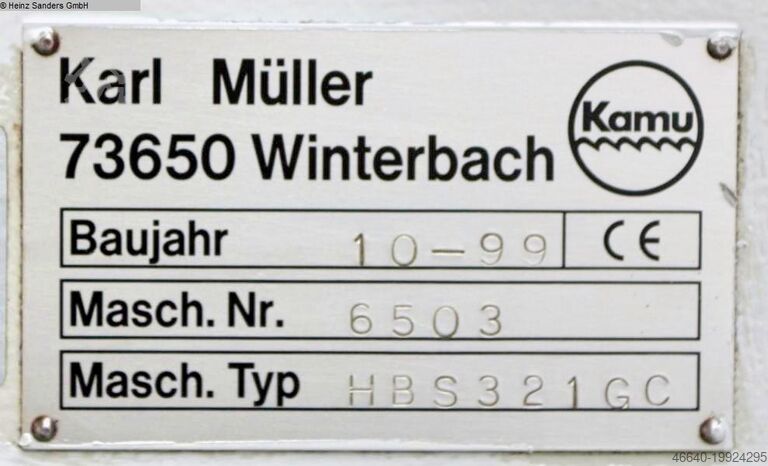

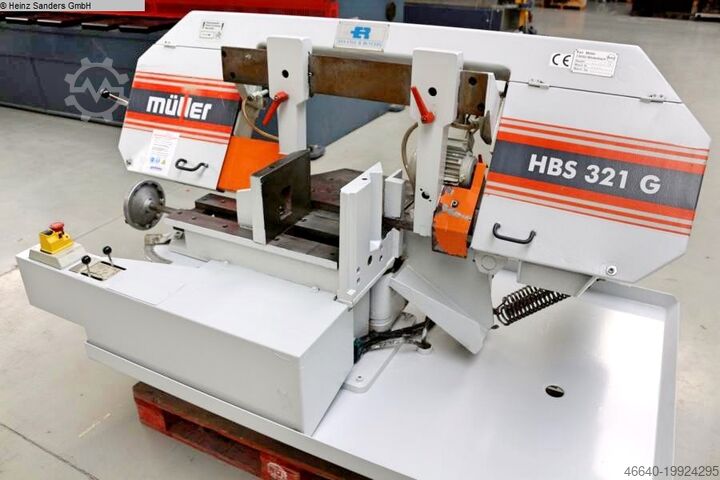

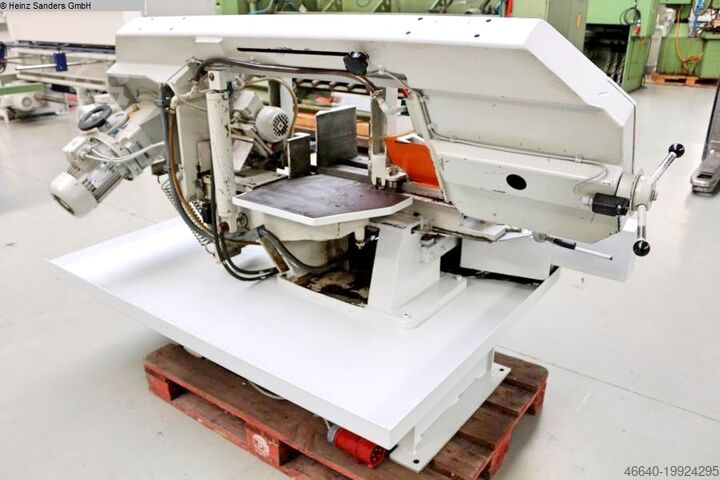

MUELLER HBS 321 GC

Būklė: naudotas, Gamybos metai: 2005, Technical Data: Dedpfxjx Irx Ie Affeup Cutting Range: 90° round: 260 mm 90° flat: 300 x 260 mm 90° square: 260 x 260 mm +45° round: 200 mm +45° flat: 200 x 240 mm +45° square: 200 x 200 mm +60° round: 165 mm +60° flat: 160 x 120 mm +60° square: 150 x 150 mm -45° round: 200 mm -45° flat: 200 x 240 mm -45° square: 200 x 200 mm Shortest remaining piece length: 35 mm Total connected load: 2.0 kW Saw motor, frequency-controlled output: 1.5 kW Infinitely variable cutting speed with frequency control: 20 – 110 m/min Saw blade dimensions: 2910 x 27 x 0.9 mm Dimensions and Weight: Length, approx.: 1,020 mm Width, approx.: 1,830 mm Height, upper part lowered, approx.: 1,460 mm Height, upper part raised to maximum: 1,900 mm Material support height: 950 mm Total weight, approx.: 510 kg Equipment: - Infinitely variable cutting speed - Carbide saw blade guides, replaceable - Hydraulic cutting feed - Mechanical saw blade tensioning - Machine lamp - Saw blade cleaning by driven, easily replaceable wire brush - Coolant: feed via 1 coolant nozzle and 1 coolant hose, coolant tank volume approx. 45 l, pump capacity 16 l/min - Minimum quantity lubrication - Infeed roller conveyor (1,000 mm) and outfeed roller conveyor (2,000 mm) with scale and length stop

Būklė: naudotas, Gamybos metai: 2000, Pjovimo skersmuo 280 mm Pjūklalapio ilgis 4930 mm Pjovimo sritis ties 90 laipsnių: kvadratinė 280 x 280 mm Pjovimo sritis ties 45 laipsnių: apvali 280 mm Pjovimo sritis ties 45 laipsnių: kvadratinė 280 x 280 mm Pjovimo sritis ties 60 laipsnių: apvali 220 mm Pjovimo sritis ties 60 laipsnių: kvadratinė 200 x 200 mm Padavimo ilgis 600 mm Padavimo ilgis daugkartinis 5400 mm Pjovimo greitis 17 - 90 m/min Likutinio ruošinio ilgis min./maks. min. 30 mm Pjovimo skersmuo min. 10 mm Valdymas KASTO, Compact Control Bendra galia 5 kW Staklių svoris apie 1,75 t Staklių matmenys I x P x A 2,68 x 2,54 x 1,59 m Priedai: aušinimo skysčio sistema, ritinėlių transporteris 3300 mm ilgio, 300 mm pločio; ritinėlių transporteris 1350 mm ilgio, 300 mm pločio Djdpfx Asw En Efjffsup

Būklė: naujas, Cutting diameter: 305 mm Saw band length: 3375 mm Cutting width: 350 mm Saw band dimensions: 3375 x 27 x 0.9 mm Cutting capacity at 90° round: 305 mm Cutting capacity at 90° square: 260 mm Cutting capacity at 90° rectangular: 350 x 200 mm Cutting capacity at 45° round: 250 mm Cutting capacity at 45° square: 230 mm Cutting capacity at 45° rectangular: 230 x 200 mm Cutting capacity at 60° round: 175 mm Duodpsu Dbvtjfx Affop Cutting capacity at 60° square: 155 mm Cutting capacity at 60° flat: 170 x 100 mm Total power requirement: 1.5 / 1.8 kW Machine weight: approx. 0.7 t Space requirement: approx. 1.5 x 1.8 x 1.9 m - Mitre cuts up to 60° left and 45° right - Material height sensor - Ball bearing rotary table - Hydraulic vice, laterally adjustable - Heavy-duty, large material support - Automatic coolant system

Būklė: naudotas, Gamybos metai: 2011, Pjovimo skersmuo: 260 mm Juostos ilgis: 3340 x 27 x 0,9 mm Pjovimo sritis 90 laipsnių kampu: kvadratas 260 mm Pjovimo sritis 90 laipsnių kampu: plokščias 380 x 260 mm Juostos greitis: 37 / 74 m/min Dsdswkvq Hopfx Affsup Pjūklo variklis: 1,5 kW Staklių svoris: apie 0,62 t Užimama vieta: apie 1,7 x 1,4 x 1,3 m Kampinis juostinis pjūklas - Pusiau automatinis - Dvigubas kampinis pjovimas - Medžiagos atpažinimas nuleidimo metu - Komplekte 7 juostiniai pjūklo geležtės

Būklė: geras (naudotas), Gamybos metai: 2007, 1 used band saw Manufacturer: Bauer Model: SA 320 Year of manufacture: 2007 Technical specifications: Type of electrical connection: 3 x 400 V / 50 Hz Motor power: 3000 W Number of speed settings: 2 Saw band speeds: 30–120 m/min Saw band dimensions: 4150 x 34 x 1.1 mm Material feed table height: 800 mm Cutting capacities: Cutting capacity at 0° for round profiles: 320 mm Cutting capacity at 0° for solid round material: 320 mm Dodpfxottbf Ro Affsup Cutting capacity at 0° for lying square material: 320 x 320 mm Cutting capacity at 0° for upright square material: Coolant pump

Būklė: geras (naudotas), Gamybos metai: 2015, Funkcionalumas: visiškai funkcionalus, pjovimo aukštis (maks.): 320 mm, Apvalaus plieno pjovimo diapazonas ties 45°: 260 mm, Infinitely variable cutting speed Hydraulic material clamping Automatic feed Coolant system Roller conveyor Manually swiveling saw frame for miter cuts Technical data: Cutting range round 0°: 320 mm Cutting range square 0°: 350 x 320 mm Cutting range round 45°: 260 mm Cutting range square 45°: 250 x 180 mm Dedpfx Afjwvi Agofeup Cutting speed: 20–100 m/min Saw band dimensions: 3660 x 27 x 0.9 mm Drive capacity: 3.9 kW Machine weight approx.: 1,825 kg Technical data, accessories, and machine description are subject to change and non-binding.

Būklė: paruoštas naudoti (naudotas), Gamybos metai: 2018, Cutting diameter: 300 mm Saw band length: 3660 x 27 x 0.9 mm Cutting range at 90 degrees, flat: 320 x 290 mm Cutting range at 45 degrees, round: 290 mm Cutting range at 45 degrees, flat: 260 x 280 mm Cutting range at 60 degrees, round: 200 mm Cutting range at 60 degrees, flat: 180 x 170 mm Dedpfex A H T Hjx Affsup Coolant capacity: approx. 100 l Control: PLC Total power requirement: 2.4 kW AC Weight: 904 kg Dimensions (L x W x H): 2410 x 1920 x 2020 mm in well-maintained condition Original price approx. €22,000 Special price on request - Inspected condition - Machine video - ?v=LAhu_AI9J5A Equipment: - robust electro-hydraulic mitre band saw, fully automatic (INDUSTRIAL VERSION) * Fully automatic with automatic material feed * Material feed unit with ball screw drive - incl. MITSUBISHI PLC control unit * 20 programmes with up to 15 cutting lengths & quantities each, programmable - for angles from 0° to 60°, with ball-bearing rotary table * Mitre cuts up to 45° possible in automatic mode * Mitre cuts up to 60° possible in semi-automatic mode * manual mitre adjustment * infinitely variable mitre angle setting - Saw band guides made from carbide plates - Infinitely adjustable saw feed via precision flow control valve - Rigid machine bed and torsion-free saw frame - Stepless saw band speed adjustment - Coolant system - Operating manual for machine and controls * Special accessories included: - 1x PEGAS chip conveyor - Spare saw bands

Būklė: naujas, Gamybos metai: 2026, Ultra-robust, reliable, and modern semi-automatic metal band saw with automatic raising and lowering of the saw arm. The saw arm swivels both left and right from -45º to +60º. This machine is indispensable in any metalworking shop, making it ideal for cutting pipes, profiles, and solid materials. Product Features The CORMAK S-200RH saw is equipped as standard with automatic raising and lowering of the arm, as well as a height regulator enabling the arm to be raised to a level matching the material being cut. Thanks to the automatic hydraulic damper, manual operation is simplified to feeding and clamping the material in the vise. The arm is made from a single cast iron piece and, together with a refined, massive, and stable construction, ensures exceptional rigidity of the S-200R band saw, resulting in dependable operation and very high cutting precision. The innovation and production of CORMAK PREMIUM LINE semi-automatic and automatic band saws, manufactured according to ISO:90001 and ISO:140001 certified standards, guarantees safety, quality, and reliability. The use of M3V series motors from ABB—a globally recognized and respected manufacturer, and one of the world leaders—guarantees long, trouble-free operation. As the manufacturer and sole representative in the Polish market, we guarantee product authenticity and provide professional, well-trained warranty and post-warranty service. Djdsi D D A Sspfx Affoup Technical Data TYPE – semi-automatic ARM LIFTING AND LOWERING – hydraulic with stepless adjustment BAND SPEED – 36/70 mm/min MITER CUTTING – left 45° to right 60° VISE – hydraulic MINIMUM CUTTING DIAMETER – Ø5 mm MINIMUM MATERIAL LENGTH IN VISE – 30 mm VISE BASE HEIGHT – 780 mm BAND SIZE – 27x0.9x2910 mm TOTAL POWER – 2.1 kW DIMENSIONS (LxWxH) – 1600 x 800 x 1400 mm WEIGHT – 530 kg Cutting Capacity Angle 0º -----ø250 320 x 240 240 x 240 45º L ø200 220 x 120 190 x 190 45º R ø220 235 x 120 210 x 210 60º R ø110 155 x 110 100 x 100 Standard Equipment • Control console on a separate pedestal • Integrated hydraulic unit • Hydraulic arm operation (up-down) with stepless lowering speed regulation • Arm position memory (arm returns after cutting to a preset height) • Miter cutting L/R 45° - 0° - 45° - 60° • Band cleaning brush • Cooling system • Bimetal band saw blade • CE declaration of conformity • Operating and maintenance documentation The price listed is NET, does not include shipping costs. For more information, please contact us by phone or email. Visit our website to see our full offer.

Būklė: naudotas, Technical details: Cutting diameter: 260 mm Saw band length: 2925 mm Saw band width: 0.9 mm Cutting range at 90 degrees, round: 270 mm Djdpfx Afsv T Tcmofsup Cutting range at 90 degrees, flat: 350 x 240 mm Cutting speed: 35/72 m/min Height above floor: 1,050 mm Total power requirement: 1.9 kW Machine weight approx.: 660 kg Machine dimensions approx. (LxWxH): 1.2 x 0.75 x 1.05 m Bandsaw - Semi-automatic Heavy-duty industrial bandsaw with roller conveyor Mitre cuts possible Hydraulic workpiece clamping as per specification.

Būklė: naudotas, Gamybos metai: 2009, mašinos/transporto priemonės numeris: 150006, Pasiūlymas 25301 Techniniai duomenys: - Pjovimo sritis ties 90° apvalus: 280 mm - Pjovimo sritis ties 90° kvadratinis: 280 x 280 mm - Pjovimo sritis ties 45° apvalus: 240 mm - Pjovimo sritis ties 45° kvadratinis: 210 x 210 mm - Pjūklo juostos matmenys: 3400 x 27 x 0,9 mm - Neribojamas pjovimo greitis: 20–100 m/min - Hidraulinis pjūklo rėmo pakėlimas ir nuleidimas - Neribojamai reguliuojamas pjovimo slėgis: 0–10 m/min - Bendra variklio galia: 400 V / 1,7 kW - Aušinimo skysčio sistema - Atmušėjas - Užimama vieta apie: P 900 x A 1100 x G 1800 mm - Svoris apie: 550 kg Duodpfjxtmzljx Affjp
