CNC horizontalūs apdirbimo centrai Morbidelli M100 2018

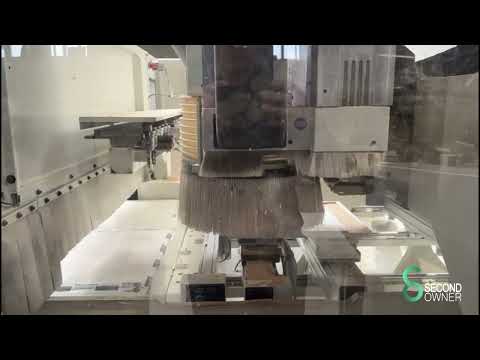

Morbidelli M100

Sąlyga: naudotas, Gamybos metai: 2019, bendras aukštis: 2 450 mm, bendras ilgis: 9 500 mm, bendras plotis: 2 400 mm, Unladen weight: 5,000 kg Price: On request CNC Machining Center SCM Morbidelli M100 Brand: SCM Type: Morbidelli M100 Year of manufacture: 2019 Serial number: AA100001570 Worktable dimensions: 5510 x 1620 mm (LxW) 400 Volt / 50 Hz PRO-Speed Safety System TEPCAD control panel with touchscreen color display Linear tool changer TBR14 (Y=1620 positions) Linear tool changer FAST14 Air blower at the electrospindle Protective fencing for X-Y axes Vacuum pump 150/300 m³/h 50/50 Hz 5-axis head, 'JQX' version, 13.5 kW Fixed base 145x145 H=75 mm Swiveling gondola 145x55 H=75 mm Clamp for 8 rails TV FLEX / TV FLEXDRIVE / TV FLEXMATIC MULTIGRIP 90 round clamp (H83) for TV FLEX / TV FLEXMATIC Maestro connect: 1 year (includes gateway kit "plug & play") SCM DIGITAL SOLUTIONS: MAESTRO CONNECT MAESTRO ACTIVE software for the human-machine interface (HMI) Maestro software for CNC programming Hardware dongle for Maestro CNC Advanced Maestro 3D module Additional dongle for Maestro CNC (USB connection) Windows 10 embedded 64-bit operating system Console with integrated PC "eye-M PRO" Axis movements Maximum vectorial rapid traverse speed (X-Y axis): 56 m/min Z-axis travel: 180 mm Milling unit Motor power: 5.5 kW Speed: 4000 rpm Tool changer with up to 44 positions Air consumption: 4430 m³/h Air velocity: 25 m/sec Connection diameter: 250 mm Overall dimensions: 9700 x 5020 x 2650 mm (LxWxH) Bcodpfx Ajwnibtebfou - Year of manufacture: 2019 - Documentation available: No - CE marking present: Yes - CE certificate available: No - Serial number: AA10001570 - Transport dimensions: 9500 mm x 2400 mm x 2450 mm (L x W x H) - Transport weight [kg]: 5000 kg Financial Information VAT: The price is exclusive of VAT VAT/Margin scheme: VAT deductible for businesses Delivery and trade-in possible at any time for all industrial sector equipment Glenn Smeets

Sąlyga: beveik kaip naujas (naudotas), Gamybos metai: 2022, veikimo valandos: 850 h, Funkcionalumas: visiškai funkcionalus, tekėjimo ilgis: 610 mm, sukimosi skersmuo virš skersinio stumduko: 500 mm, tekėjimo skersmuo: 725 mm, veleno greitis (maks.): 5 000 aps./min, veleno skylė: 65 mm, X ašies eiga: 260 mm, Y ašies eiga: 80 mm, Z ašies eigos atstumas: 610 mm, greitas poslinkis X ašimi: 30 m/min, greitas poslinkis Y ašis: 15 m/min, greitasis eiga Z ašyje: 30 m/min, padavimo ilgis X ašis: 260 mm, padavimo eiga Y ašimi: 80 mm, padavimo ilgis Z ašis: 610 mm, sukimo momentas: 250 Nm, strypo praėjimas: 65 mm, Įranga: dokumentacija / vadovas, sūkių greitis be galo kintamas, For sale: As-new EMCO MAXXTURN 65-G2 SMY, year of manufacture 2022, equipped with Siemens Sinumerik ONE with ShopTurn control! CNC turning center for complete machining of turned/milled parts. Features: - Integrated spindle motors, counter spindle water-cooled (preloaded roller guides) with Y-axis, - On main/counter spindle - Latest control technology SINUMERIK ONE with ShopTurn conversational programming. Main spindle: • Max. bar capacity: 65 mm • Max. torque: 250 Nm Bcodpox E Dncsfx Abfou • Speed range: 0-5000 rpm Counter spindle: • Drive power: 22 kW • Max. torque: 130 Nm • Speed range: 0-7000 rpm Tool turret: • 12-station tool turret VDI 30 radial with direction logic for up to 12 driven tool holders - Max. drive power: 6.7 kW - Max. torque: 25 Nm - Max. speed: 5000 rpm Y-axis: • Travel range: +/-40 mm • Hollow clamping cylinder incl. draw tube • C-axis for main/counter spindle • Sinumerik ONE / OPERATE control • 22" multi-touch display • SHOPTURN • 3D simulation • Rest material detection • USB interface • Control cabinet air conditioning unit • Coolant system incl. coolant pump (3.5 bar) • Chuck flushing (extra pump 3.5 bar) • Parts ejector and flushing through the counter spindle Hydraulic unit • Interface for chip conveyor • Documentation and CE certificate Control language: German/English Electronic handwheel EMCO TOOL BREAKAGE AND WEAR MONITORING / SINUMERIK ONE Alternating spindle speed COUNTER SPINDLE AS TAILSTOCK This cycle allows the counter spindle with mounted live center to be used for supporting workpieces. Thus, shaft parts can be supported and machined on machines without a tailstock by using the counter spindle. The maximum contact pressure is limited to 50% of the maximum axis force. EMCO PROFI-NET ROBOT INTERFACE Interface for connecting robots. Implementation via HARTING connector. Signal exchange via Profinet. Safety signals 2-channel/potential-free. Digitization package for Sinumerik Condition monitoring SIEMENS ONE INTERFACE for connection to MDE/BDE systems Standard with the following information: • Machine on - AUX ON • Automatic operation • Production mode - program active • Program running and override between 95 and 105% • Piece count pulse (M30) • Programmable pulse (M300) 3D MACHINE DATA / MT65-G2 3D data model of the machine including: Pneumatically operated finished part catcher for gentle unloading of finished parts. Finished parts can be transported to a catch box (standard) or via a conveyor belt (option). • Max. finished part length: 175 mm • Max. finished part diameter: 65 mm • Max. finished part weight: 4.5 kg INTERFACE SL1200 HT65-DT/TT + MT65-1000 For connecting the EMCO SL1200 short bar loader. etc.... Machine is available immediately!

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2018, Funkcionalumas: visiškai funkcionalus, Darbas X, Y, Z ašyse Darbinis plotas 3100x1340 mm, Z ašis = 180 mm Horizontalių grąžtų X ašyje - 6 vnt Horizontalių grąžtų Y ašyje - 4 vnt Vertikalių grąžtų X ašyje - 8 vnt Vertikalių grąžtų Y ašyje - 6 vnt Du magazinai: šoninis - 11 pozicijų ir pernešamas - 14 pozicijų Įpjovimo pjūklas X ašyje Velenas 8 kW, aušinamas oru, 600-24.000 RPM, HSKF63 Becker vakuuminis siurblys 2,2 kW Galimybė dirbti dviejose darbo zonose X ašies greitis - 25 m/min (programuojamas) - 56 m/min (vektorinis) Bcodpfex Upffox Abfsu Y ašies greitis - 50 m/min (programuojamas) - 56 m/min (vektorinis) Z ašies greitis - 15 m/min

Sąlyga: paruoštas naudoti (naudotas), Gamybos metai: 2019, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: AA100001570, Z ašies eigos atstumas: 180 mm, stalo plotis: 1 620 mm, stalo ilgis: 5 510 mm, greitas poslinkis X ašimi: 56 m/min, greitas poslinkis Y ašis: 56 m/min, TECHNICAL DETAILS Worktable dimensions (L x W): 5,510 x 1,620 mm Z-axis travel: 180 mm Maximum vector rapid traverse speed, X/Y-axis: 56 m/min Spindle speed: 4,000 rpm Tool changer positions: 44 Connection diameter: 250 mm Bcedpfoxmgr Rex Abfeu MACHINE DETAILS Dimensions & Weight Dimensions: 9,700 x 5,020 x 2,650 mm (LxWxH) Net weight: 5,000 kg Spindle motor power: 5.5 kW Air consumption: 4,430 m³/h Air velocity: 25 m/s Voltage: 400 V / 50 Hz EQUIPMENT PRO-Speed safety system TEPCAD control panel with touchscreen color display Linear tool changer TBR14 Linear tool changer FAST14 Air blower on electrospindle Protection grating for X and Y axes Vacuum pump 150/300 m³/h 5-axis aggregate 'JQX' version 13.5 kW Fixed base: 145 x 145 H=75 mm Swiveling gondola: 145 x 55 H=75 mm Clamp for 8 rails TV FLEX / TV FLEXDRIVE / TV FLEXMATIC MULTIGRIP 90 round clamp (H83) for TV FLEX / TV FLEXMATIC Maestro connect 1 year (including gateway kit plug & play) SCM DIGITAL SOLUTIONS: MAESTRO CONNECT MAESTRO ACTIVE software for human-machine interface (HMI) Maestro software for CNC programming Hardware dongle for Maestro CNC Advanced Maestro 3D module Additional Maestro CNC key (USB interface) Windows 10 embedded 64-bit operating system Console with integrated PC eye-M PRO

Sąlyga: naudotas, Gamybos metai: 2021, Travel paths (X, Y, Z): 4062, 2,922, 660 mm Number of vertical drilling head spindles: 13 pcs. Number of horizontal drilling head spindles: 6 pcs. Number of tools: 27 pcs. Number of milling units: 1 pc. Working area: 3200, 1500, 200 mm Motor power: 12 kW Control: BECKHOFF MASTERWOOD Project 385 (Winner) ----- Exhibition machine, year of manufacture 2021, immediately available, with manufacturer's warranty for new machines! 5-axis CNC machining center in gantry design for use in interior fitting, doors, stairs; optionally upgradable with solid wood clamp for frame processing and arched windows. Brief summary: ----- Working area: X = 3200 mm; Y = 1500 mm; Z = 200 mm 1 unit 5-axis high-performance spindle, 12 kW, HSK 63 F interface 1 unit fixed mounted drilling head with 19 spindles: 7 individually selectable vertical drilling spindles in X direction 6 individually selectable vertical drilling spindles in Y direction 2 double horizontal drilling spindles in X direction 1 double horizontal drilling spindle in Y direction Sawing unit integrated in drilling head 27 tool change positions: Carousel tool changer with 22 slots, 102 mm pitch Linear 5-tool magazine for large tool diameters Original SCHMALZ tubeless worktable. Console table with 6 beams Workpiece lifting device Automatic tool length measurement system. 12 pcs. Original Schmalz vacuum cups, 114 x 140 mm, height = 125 mm 1 Becker vacuum pump, 100 m³/h 1 chip conveyor Bcsdpoxmk Atjfx Abfsu Design software Masterwork: 2D-Wop for standard panel working/interior fitting, arched components, doors Master 3D Level 2: for more complex operations, optionally also available for full 5-axis interpolation Prepared for use of solid wood clamp (arched components), Clamps can be offered as an option if required later Technical details as per attached comprehensive description ----- Total price for this configuration ex stock Oberkochen: on request! ----- Transport and commissioning on request! Options for frame/arched window production, subject to additional charges: ----- Reference ring for the attachment of chip deflection elements on 5-axis electrospindles with HSK 63F interface: €410.00 Basic kit for clamping of arched components - 6 pneumatic clamps with two movements for arched components: €7,090.00 (technical information according to manufacturer - no liability!) Chip deflection elements, price per unit: €460.00 All prices listed are net, plus VAT. (technical data as per manufacturer - no liability!)

Sąlyga: naudotas, Gamybos metai: 2016, MORBIDELLI AUTHOR M400 MAIN FEATURES 5-AXIS PROCESSING UNIT "PRISMA": TOP-LEVEL QUALITY AND PRODUCTIVITY SOFTWARE XILOG MAESTRO: EXTREMELY EASY PROGRAMMING "MATIC" WORKTABLE: SINGLE POSITIONING FOR MULTIPLE OPERATIONS TECHNICAL DATA AUTHORM400 AXES Working area X-axis (reference side): 3,680 mm Working area Y-axis (max. loadable workpiece at rear stops): 1,680 mm Workpiece passage Z / Number of Z axes: 170 mm / 1 Workpiece length for pendulum operation: 1,650 mm Travel speed X-Y axes Pro-Speed: 85 m/min Z-axis speed: 30 m/min INSTALLATION Installed power: 62–82 KVA Compressed air requirement: 400 NL/min Extraction air requirement: 4,430 m³/h Extraction air velocity: 25 m/s Extraction port diameter: 250 mm GENERAL FEATURES CNC-controlled drilling and milling center in gantry design with worktable and workpiece supports suitable for: - Vertical drilling on panel surfaces - Horizontal drilling on all four workpiece edges - Grooving with disc cutter - General milling operations (3-4-5 axes) MACHINE STRUCTURE The base structure is a monolithic construction made of thick-walled steel, reinforced throughout the entire machine bed for extreme rigidity and stability through welded-in reinforcements. The table design with a large base is the key to ensuring permanent precision and stability. The machine layout offers the operator an optimal workflow with a minimal footprint. The moving gantry is built from a solid monoblock and is guided on prism-ground rails with ball-bearing carriages in the X-axis. The mobile unit carries the operating unit, which is also mounted on prism-ground rails and ball-bearing guides. AXIS MOVEMENT All axes move on large-cross-section linear prism guides with wide-bearing ball-bearing shoes to ensure optimal gliding even at the highest speeds and accelerations. The precise and fast positioning of the moving gantry (X-axis) is achieved via rack and pinion with helical teeth. Large-diameter ball screws ensure accurate positioning of the working unit along the moving gantry (Y and Z axes). MOTORS, DRIVES, AND INVERTERS Perfect mechanical dynamics and maximum positioning accuracy are achieved with high-quality drives and brushless motors, sized for speeds up to 90 m/min, ensuring the best possible surface finish. CONTROL SYSTEM Bcsdpfxsxnldbe Abfju The control unit consists of a numerical controller for milling and drilling with "Xilog Maestro" graphic interface on a Windows 7-based Office operating system: - 17" color LCD screen - QWERTY keyboard - Swiveling operator panel - Machine operation interface with Xilog Maestro software Xilog Maestro Features: Programming - Parametric graphical programming - Import of DXF files (2D; geometries like "SPLINE", "POLYLINE 3D", straight or circular interpolation in three axes, linear in space, spiral in the chosen plane) - Supported programming with graphical and syntax aids for drilling and milling operations - Automatic optimization of drilling operations and tool change cycles - Option to shift panel zero-point for drilling on slanted or curved panel edges

Sąlyga: paruoštas naudoti (naudotas), Caractéristiques techniques : - Usinage : X 3180 mm, Y 1340 mm - Capacité de perçage : X 3405 mm, Y 1260 mm - Blocage pneumatique - Broche électro HSK63, 12 kW, 3 axes - Vitesse de déplacement : 0-100 m/min - Groupe de rainurage lame 0-90° - Tête de perçage verticale 14 broches, horizontale 6 broches - Armoire de commande écran 15" incluse, avec logiciel et contrôle - Machine à remettre en service - Nombre de ventouses : 12 Bsdpfxotqka Tj Abfecu - Nombre de poutres : 6 Caractéristiques usinage : - Pompe à vide incluse - Capacité pompe à vide : 100 m3/h Puissance et moteurs - Dimensions hors tout : À préciser

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 1993, max. Edge thickness: 0.2 – 15 mm Feed speed: 12 / 18 m/min Heating-up time: approx. 6 min Automatic magazine (strip magazine) Roll magazine Machine converted for ABS edges Granulate quick-heating tank Guillotine: 0.2 – 3.0 mm Flush trimming unit Radius trimming unit Operation via selector switch / push buttons Extendable roller support Soundproof enclosure Machine length: 3,800 mm Note on used machines: - Errors in technical specifications and prior sale excepted. - Listed prices are ex location – loaded free of charge! - The machines have been cleaned and function-tested. - All machines are sold as inspected, without any claim to warranty. Buyers are free to inspect the machines at the site. - Special agreements are only valid in written form. Bcedpofbr S Refx Abfsu (We only respond to inquiries specifying your address and phone number!)

Sąlyga: naudotas, Gamybos metai: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Traverse length X-Y: 4,200 x 2,000 mm Description of units and accessories (basic version) The main body structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed by welded-in triangular plates, providing exceptional stability. The use of triangles—with a wide base—for all load-bearing components ensures lasting precision and stability. The machine layout allows for optimal workflow with minimal space requirements. This construction provides the processing unit with a balanced and secure foundation, ensuring superior load distribution. The mobile unit carrier, designed as a gantry, is constructed as a solid monoblock. It is moved in the X-direction along precision-ground prismatic guides via recirculating ball carriages. The working unit is also mounted onto this mobile carrier using precision-ground prismatic guides and recirculating ball carriages. Axis movement: The Y and Z axes are driven by precision-ground recirculating ball screws of the highest accuracy class. The X axis drive employs a backlash-free preloaded precision rack-and-pinion system, ensuring balanced load distribution during positioning—critical for smooth movements, even in complex operations. The axes are driven by brushless AC servomotors. These provide excellent positioning speeds due to very low acceleration/deceleration times. Furthermore, these motors include fully integrated measurement systems, making this drive system entirely maintenance-free. · Rapid traverse in X: 40 m/min · Rapid traverse in Y: 60 m/min · Rapid traverse in Z: 22.5 m/min Vacuum system (base version) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. vacuum (connection): 0.9 bar Control / control cabinet · Office PC or industrial PC (see options) · Base NC control: ESA-GV KVARA 6.0 · Cable remote control with main functions ELECTRICAL/ELECTRONIC CNC CONTROL Universal is equipped with a high-performance NC controller. The integrated office PC provides the CNC with an unmatched degree of user-friendliness: the software operates on Windows XP and allows for swift and straightforward programming, which is easy to learn even for inexperienced users. The system is open and allows the connection of CD-ROM drive, sound card, barcode scanner, modem, printer, scanning systems, etc. Additionally, the installation of all standard network systems as well as all off-the-shelf CAD programs is possible. To save space, the control cabinet is placed beneath the machine table, and the operator works at a separate, mobile terminal that can be positioned freely. XILOG PROGRAMMING SYSTEM Software features: - Import of DXF files - Import of ASCII files - User interface in operator's native language (available for I - GB - F - D - E) - Linear and circular interpolation in three axes, linear in space, spiral on the selected plane - supported programming - Calculator for direct transfer of computed data - Graphic and syntax helpers for drilling and milling operations - Parametric programming, to perform identical panel machining on different p Bcodpfx Asvvi Nzsbfou

Gamybos metai: 2013, Sąlyga: paruoštas naudoti (naudotas), Connected load: 4 kW, Weight: 1 t. Bcedpfx Aehlp Efebfju
