Stumdomas stalo pjūklas

Martin T 74

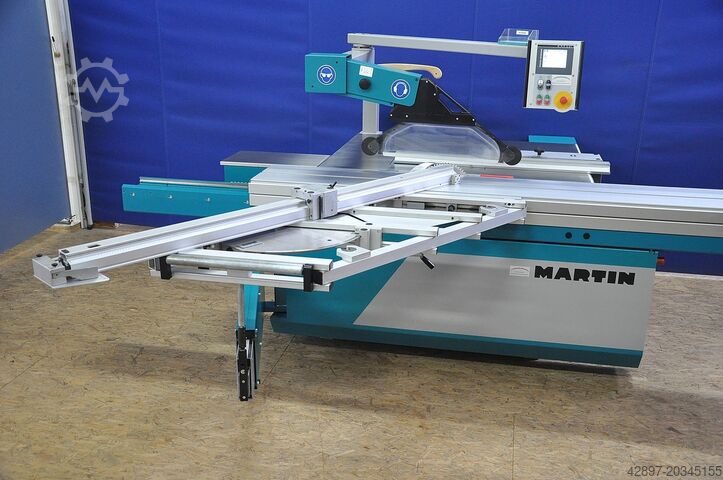

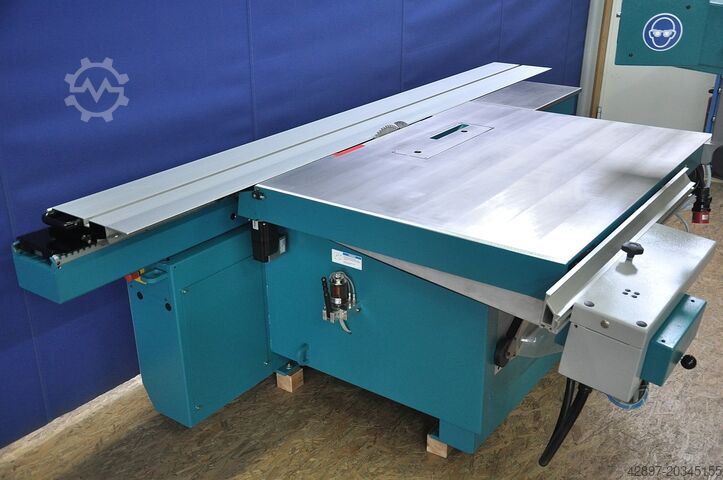

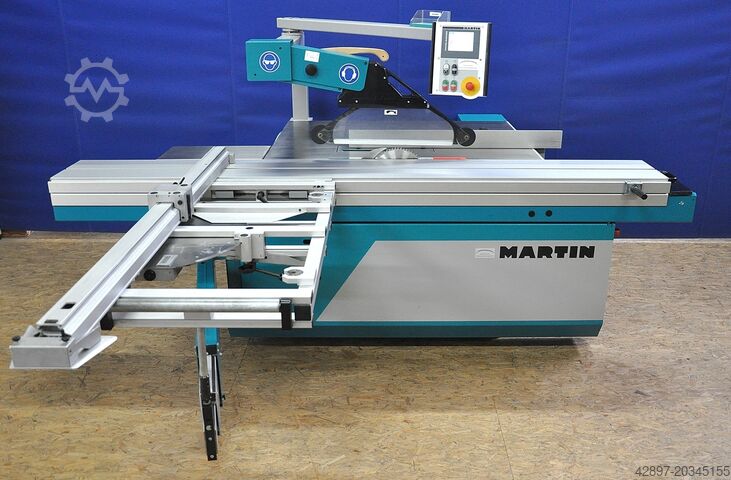

Tilting panel saw T74 by Martin with 3-axis scoring unit, 3m table and electro-motorized rip fence
From vocational school

Control panel at eye level with color touch screen control
Sliding table length: 3000mm
Saw blade tilting from 0 to 46 degrees
Speeds: 2800, 4000 and 5500 rpm with electronic speed display
Reinforced drive motor 7.5kW with automatic motor brake

Saw blade diameter up to 500mm
Saw spindle with Pro-Lock quick-change system
Max. cutting height: 170mm
Cutting width up to 1100mm, electrically adjustable, programmable and adjustable by hand
Tilting angle and height adjustment electrically adjustable
Crosscut fence with 2-point stop up to approx. 3350mm

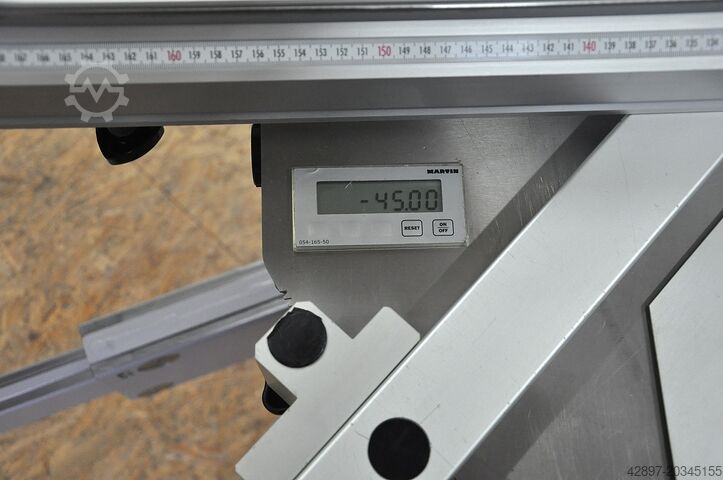

Parallelogram cross table with digital angle display

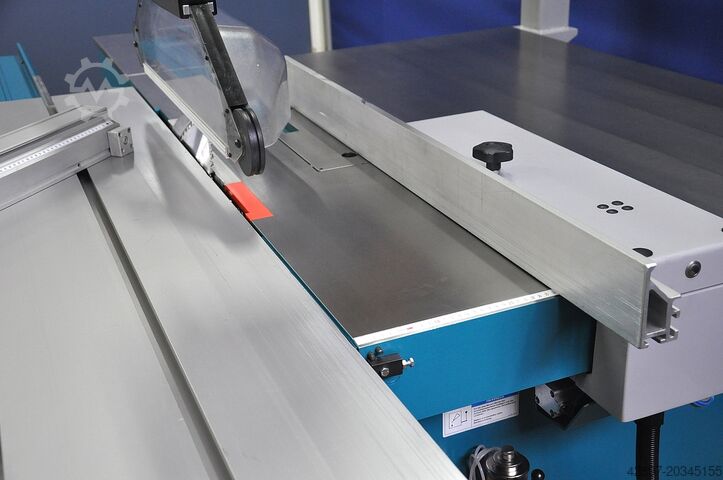

Rip fence foldable
Extraction ports 120 + 100mm
Sliding carriage can be locked in any position
Handle
1 set of plastic saw blade with matching 3-axis scorer, freshly sharpened
3 riving knives

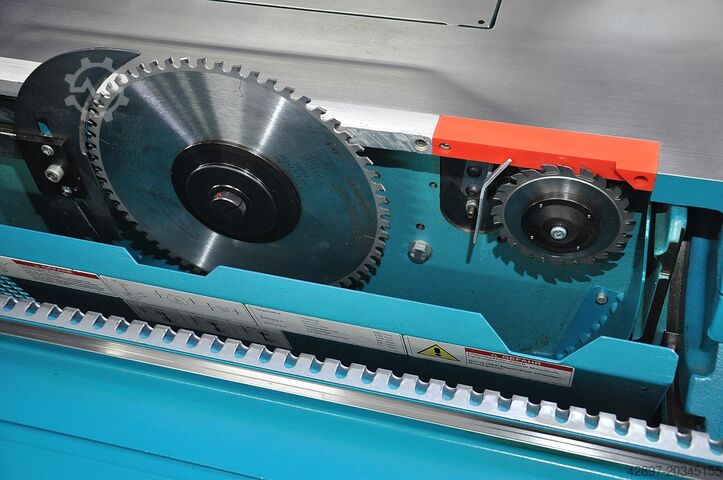

3-axis scoring unit, fully electrically adjustable while the machine is running
2 safety hoods
Tool compartment
Emergency off switch

Operating manual
Kdedpfoxp Rmdex Acuju
CE mark

Machine with minor signs of use on the anodized surface of the sliding table. Small nicks on the sliding table have been repaired. Original paint, only retouched in spots.
Excellent condition from vocational school, as shown on the original pictures.

Dimensions approx. 3150 x 3600 x 1700mm (LxWxH). Weight approx. 1950kg.

The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration in our warehouse, see "further offers from this seller."
