Hidraulinis presas

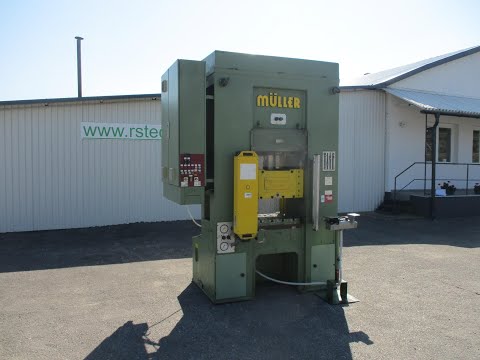

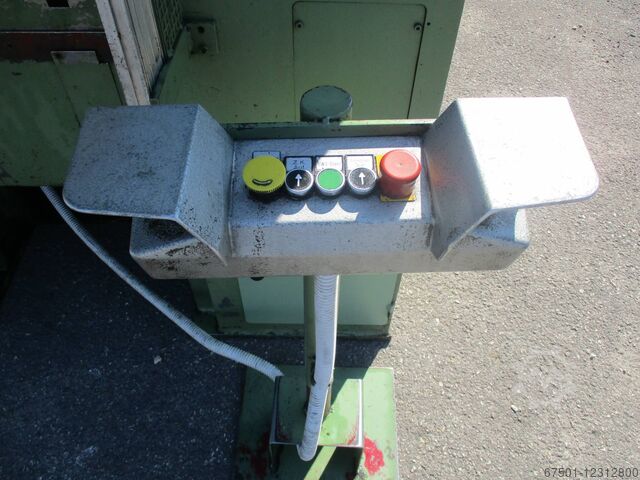

MÜLLER Doppelständerpresse SDZ 63t Viersäulenpresse (2382)

Būklė: naudotas, Gamybos metai: 1983, Technical details: Pressure: 160 t Throat depth: 360 mm Ram stroke - max.: 500 mm Distance table to ram: 800 mm Clamping plate on table: 1250 x 630 x 100 mm Duodpeu Nfvuefx Ac Isu Pass-through opening in table: 4x Ø 62 mm Ram speed, forward: 200 mm/s Ram speed, return: 125 mm/s Ram area: 450 x 850 mm Pin hole in ram: Ø 49 mm Height above floor: 810 mm Total power requirement: 17 kW Machine weight approx.: 7200 kg Machine dimensions (LxWxH) approx.: 2.1 x 1.4 x 3.4 m Manual counter i.e. *

Gamybos metai: 2000, būklė: naudotas, x-travel 1000 mm y-travel 1600 mm z-travel 800 mm Control: WENZEL WPC 2040/FW31.351 Total power requirement: kW (not specified) Machine weight approx. 5500 kg Space requirement approx.: m (not specified) WENZEL CNC-controlled vertical 3-D coordinate measuring machine Model: LH 108 CNC Year of manufacture: 2000, but continuously serviced and calibrated by manufacturer Axis configuration: - Y-axis as long-travel measuring bridge: 1,600 mm - X-axis as measuring head carriage (cross travel): 1,000 mm - Z-axis as vertical measuring quill: approx. 800 mm Maximum workpiece weight / table load: approx. 2,250 kg Clearance under measuring bridge: approx. 900/1000 mm Overall table size: approx. 2,600 x 1,250 mm Table height above floor: approx. 700 mm Table plate thickness: 380 mm Machine height: approx. 3,100 mm Weight: approx. 5,500 kg Special Features / Accessories: Djdpfxot Hw Nye Ac Iouu • Measuring table, crossbeam, and quill made from dark natural hard stone; table with 6 x 9 threaded holes for workpiece/fixture clamping • All axes are air-bearing for smooth, virtually wear-free operation; equipped with incremental scales, 0.0005 mm resolution • WENZEL CNC control type WPC 2040 / FW31.351 built into worktable (controller replaced approx. 3 years ago) • WENZEL measurement software METROSOFT QUARTIS R 12 SP 1 with SurfPro package and QUARTIS Q-DAS • RENISHAW motorized rotary and swivel head (automatically indexable in 7.5° increments), probe head model PH 10 M plus, with TP 20 probe and various probe accessories • RENISHAW probe head controller unit type PHC 10 C-3 plus, also built into the worktable • Automatic probe changer, 6-position probe magazine model MCR 20 mounted on the table • Mobile hand control panel with progressive control lever (joystick) for manual adjustment of all 3 axes with infinitely variable travel speeds • Sphere standards for table setup, work table, various clamping devices, etc. Condition: Very good – generally in stock, powered for inspection. Ready for demonstration. Disassembled by a CMM specialist at the seller and reassembled here. Delivery: Ex-stock – as is, as inspected Payment: strictly net – upon receipt of invoice.

Būklė: geras (naudotas), Studer S30-12 Cylindrical Grinding Machine TECHNICAL DATA Main Dimensions Centre Height: 125 mm Distance Between Centres: 400 / 700 / 1025 mm Maximum Longitudinal Slide Travel: 400 / 700 / 1000 mm Longitudinal Slide Djdpsvca Izofx Ac Isuu Table Speed: 50 – 5000 mm/min Reversal Delay: 0-6 s Minimum Automatic Travel: 1.5 mm Max. Travel: 400 / 700 / 1020 mm Max. Table Swivel: 12 / 30 / 78° Cross Slide Swivel Range: ±45° Rapid Adjustment: 40 mm Feed Travel with Handwheel: 20 mm Maximum Plunge Depth: 1.7 mm Grinding Spindle Headstock Grinding Wheel Diameter x Width x Bore: 450 x 80 x 203 mm Rotational Speed: 1340 / 1500 / 1625 / 1800 / 2000 / 2200 rpm Coarse Adjustment: 210 mm Workpiece Headstock Swivel Range: 0 – 90° Speed Range: 30 – 675 rpm Taper Mount: Morse 5 Collets: W25 Tailstock Taper Mount: Morse 3 Quill Travel: 30 mm Total Power Requirement: 5 / 8.25 kW No liability is accepted for the correctness, completeness or accuracy of the information provided.

Būklė: naudotas, Technical details: Swing diameter: 200 mm Centre distance: 450 mm Cross travel: 245 mm Longitudinal travel: 830 mm Table feed rate: 0.05-4.5 m/min, stepless Speed: grinding spindle 1,780 / 2,050 rpm Speed: workpiece spindle 50–500 rpm Grinding wheel dimensions: 350x32x127 mm Table size: 2,200x280 mm Table swivels both sides: 9° forward, 10° backward Total power requirement: 6.0 kW Machine weight approx.: 2.2 t Machine dimensions: 2.2x2.05x1.6 m UNIVERSAL CENTRE GRINDING MACHINE without internal grinding device - For precision grinding of external (and internal) as well as tapered surfaces. - Grinding spindle head infeed manually or hydraulically - Hydraulic, stepless table feed - Grinding spindle swivels 60° - Workpiece spindle head swivels 90°, with Morse taper MK 4 - Tailstock with Morse taper MK 3 Equipment: - Wheel dressing device Djdju Ng Dgjpfx Ac Ieuu - Coolant tank incl. pump and feed line in current condition.

Būklė: labai geros būklės (naudotas), Gamybos metai: 2008, veikimo valandos: 35 598 h, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 07400004031, ašies variklio galia: 20 W, veleno greitis (min.): 3 250 aps./min, veleno greitis (maks.): 5 000 aps./min, strypo praėjimas: 90 mm, bendras svoris: 10 000 kg, capacità barra 90 mm - 2 torrette motorizzate a 12 posizioni - asse Y sulla torretta superiore - contropunta - CNC Siemens 840D powerline - macchina in condizioni perfette, sempre utilizzata con olio - dotazione utensili molto, molto completa - caricatore di barre LNS Sprint S2. Dujdpfx Ajuyx Hzec Iou

Būklė: naudotas, Gamybos metai: 1974, Wheel diameter - max. 400 mm Wheel width 75 mm Total power requirement 25 kW Machine weight approx. 7 t LORENZ High-Performance Gear Shaping Machine Model LS 400 Dedpet Hww Dofx Ac Iouu Year of manufacture 1975 S/N 12592 _____ Max. external gear diameter 400 mm * (possibly larger) Max. internal gear diameter approx. 350 mm Max. gear width 75 mm Module range 0.5 - 6 Stroke length 82 mm Stroke position adjustment 0 - 100 mm Distance from shaping spindle to machine body 205 mm Spindle taper approx. MK 5 Strokes per minute roughing/finishing 118 - 1,000 /min. Table size 400 mm Table bore 125 mm Installation height between table and shaping head min./max. 190/290 mm Fixed distance shaping spindle 250 mm Table axial travel approx. 295 mm Number of teeth approx. 12 - 150 Feed range Tooth depth 0.01 - 0.063 mm /stroke -"- Radial feed at tool-Ø 125 0.125 - 3.150 mm /stroke Spindle / total drive approx. 19 kW / 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special equipment: • Hydrostatically guided slideway with separate hydraulic unit • Built-in intermediate plate 100 mm to increase shaping head height • Hydraulic workpiece clamping system, brand RINGSPANN, integrated in the table for flat components and internal clamping, various clamping chucks for different workpiece diameters • Infinitely variable stroke speed adjustment for roughing and finishing (SIMOREG DC-Master) • Automatic stroke speed change and automatic feed change for roughing and finishing in up to 3 cuts • Automatic and motor-driven stroke position locking at top dead center after finishing • Separate control cabinet • Integrated coolant system with chip conveyor and magnetic separator • Approx. 20 change gears Condition: Satisfactory to good, shortly demonstration-ready Delivery: Ex stock – as inspected Payment: Net – upon receipt of invoice

Būklė: labai geros būklės (naudotas), Gamybos metai: 1975, -KOM 1002- Offered here is a press from HYDRAP, model HKPS8000. Technical Data: Djdpfx Asg Ufvbec Iouu Model: HKPS8000 Year of manufacture: 1975 Effective stroke: 200 mm Throat depth: 250 mm (centered) Table size: 320 x 320 mm Installation height: approx. 345 mm Voltage: 380 V Permissible load: 80,000 N Drive type: hydraulic Drive power: 1.5 kW Oil capacity: 60 l Oil viscosity: 3°E With your purchase, you will receive a proper invoice with VAT shown separately. We have many more interesting items for sale. Feel free to browse all our listings. If you are interested or have any questions, please contact us via the message function!

Būklė: naujas, - Shaft diameter 50 mm - The upper roller is hydraulically operated - Three driven rolls - Digital display Dsdpogg N Twefx Ac Iouu - Can be used horizontally or vertically - Foot switch - Emergency stop - Documentation - 400V

Būklė: labai geros būklės (naudotas), Gamybos metai: 2001, veleno greitis (maks.): 10 000 aps./min, Spaustuvai nepridedami prie komplektacijos! Duedpfsxb Dyhex Ac Ieu

Būklė: naudotas, Gamybos metai: 2013, A 4-axis CNC machining center by Spinner is available. Travel distances X/Y/Z: 1600mm/810mm/700mm, rapid traverse X/Y: 18m/min, rapid traverse Z: 15m/min, table dimensions X/Y: 1800mm/810mm, max. table load: 2000kg, spindle speed: 10000 rpm, power: 22kW, tool holder: SK40, tool positions: 24, weight: approx. 8000kg. Documentation available. On-site inspection is possible. Dujdpfxowqd R Uj Ac Ieu
