Nepertraukiamo gręžimo staklės

Lazzoni Group Expert CNC L 100 GT(typu INSIDER FTT R8)

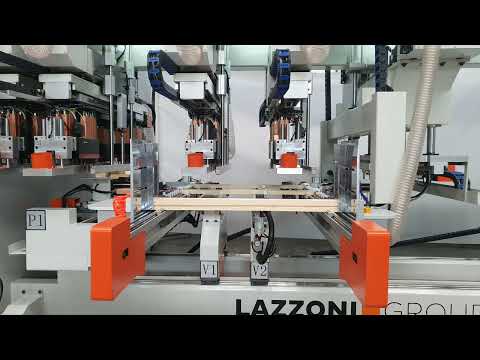

DESCRIPTION OF THE DRILLING MACHINE
This is a high-performance automatic drilling center for furniture components. The machine is particularly dedicated to high-volume, small-batch production. The drilling machine allows for simultaneous drilling of two workpieces.

Cjdevdq Ubspfx Aa Ssrh
WORKPIECE TRANSPORT
The machine is equipped with a magazine from which elements are picked up by carriers mounted on a chain.

TECHNICAL SPECIFICATION:
Workpiece length: 280 – 1500 mm*
Workpiece width (1 piece): 45 – 450 mm
Workpiece width (2 pieces): Three-sided drilling (right, left, top): 45 – 400 mm
Workpiece width (2 pieces): Four-sided drilling (right, left, top, front/rear face): 45–300 mm (mirror image 45–350 mm)
Workpiece width (2 pieces): Five-sided drilling (right, left, top, front face, rear face): 45–300 mm
Horizontal drilling: From 25 mm from the workpiece edge along the X axis
Workpiece thickness: 12 – 40 mm
Total power: ~24 kW
Weight: ~5,500 kg
Dimensions: 5,100 x 2,500 x 2,450 mm
Number of upper drilling units: 4
Number of horizontal drilling units: 1 left, 1 right
Total number of spindles: 80 pcs*
Number of material stops: 2 pcs
Capability to drill 2 workpieces at once: Yes
Supported file formats: .dxf, .mpr
*The drilling machine is available in two variants: maximum panel length 1500 mm or 2500 mm

NUMBER OF DRILLING UNITS:
Upper vertical heads: 4 pcs
Left horizontal head: 1 pc
Right horizontal head: 1 pc

EXTRACTION:
Vertical heads: Fitted with extraction nozzles
Horizontal heads: Fitted with extraction nozzles
