Balių presas 100 t su transportavimo technologija VK 8818 R-FU

HSM GmbH + Co. KG, Deutschland VK 8818 R-FU

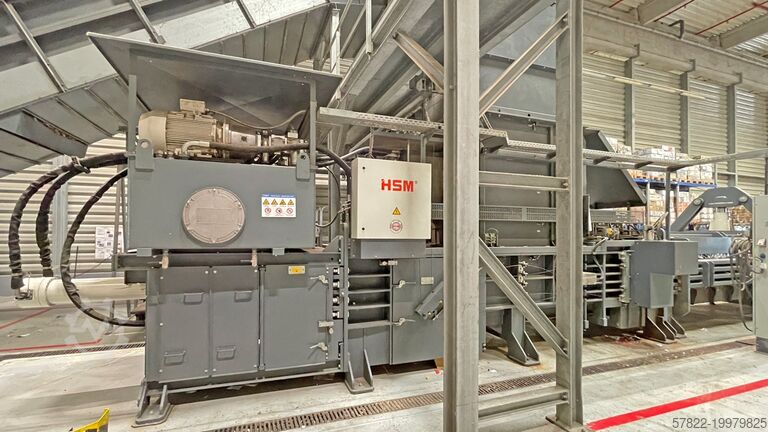

Technical Data Press:
Manufacturer: HSM GmbH + Co. KG, Germany
Model: VK 8818 R-FU
Year of Manufacture: 2015
Operating Hours: 19,750 hours (as of July 2025)
Number of Bales Pressed: 24,760 bales (as of July 2025)

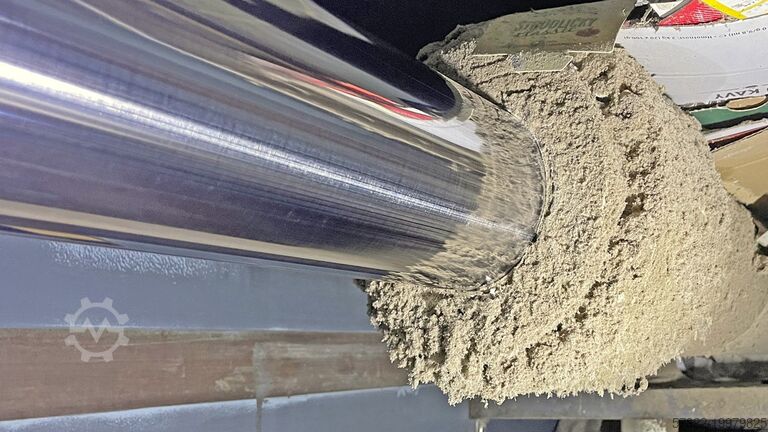

Main Ram Pressing Force: 1000 kN
Specific Pressing Force: 120 N/cm²
Pressing Force of Cutting Edge Ejector: 121 kN

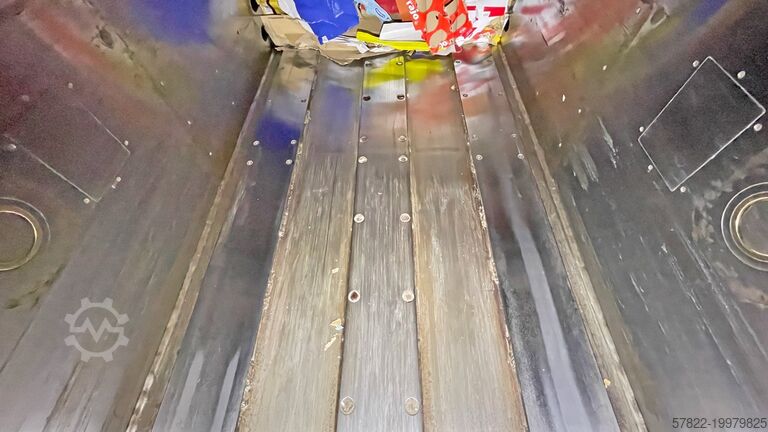

Feed Hopper Dimensions: 970 x 1,800 mm
Theoretical Cycle Time (Idle Run): 8.3 seconds
Theoretical Throughput: 643 m³/hour
Chedpfxsxb Dvvj Ahvsc

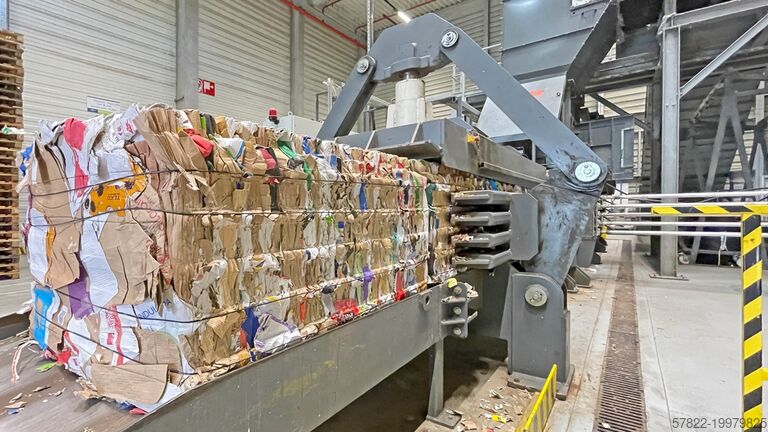

Bale Dimensions: 1,100 x 750 mm (Length variable from 600 up to 2000 mm)

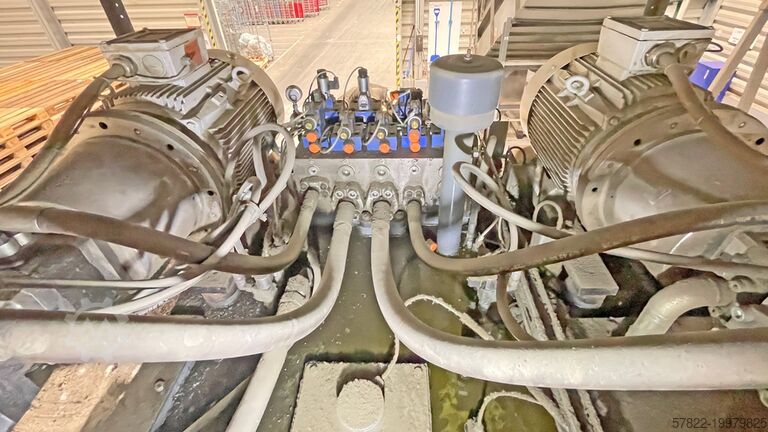

Drive Power: 2 x 45 kW, frequency controlled
Connected Load: 110 kW
Total Current Draw: 213 A
Fuse Protection: 250 A slow blow

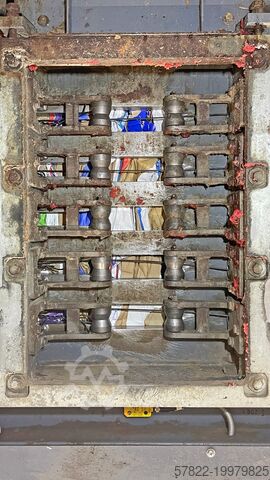

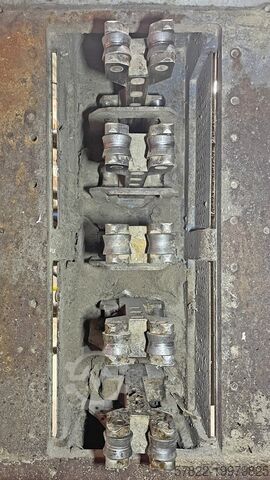

Tying System: 5-fold horizontal, fully automatic
Throughput at Bulk Density of 20 kg/m³: 12.86 t/hour
Throughput at Bulk Density of 50 kg/m³: 32.15 t/hour
Bale Weights at Length approx. 1.2 m: 650 up to 750 kg/bale, depending on material

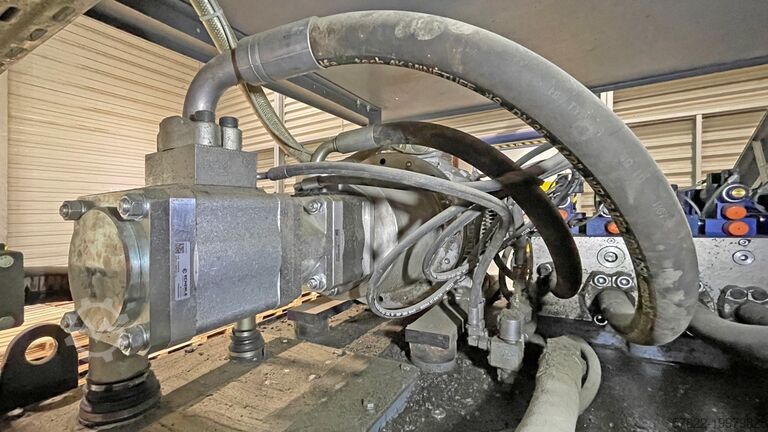

Hydraulic Oil Tank Capacity: 2,000 L HVI 46
PLC Control: Siemens S7-300
Operator Panel: Siemens TP 700

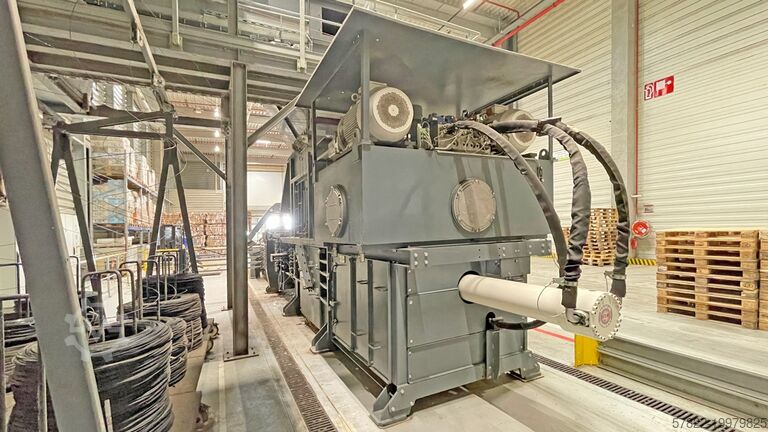

Press Dimensions (assembled): 12,130 x 4,800 x 3,270 mm (L x W x H)
Installation Dimensions with Conveyor System: 35,000 x 8,480 x 7,745 mm (L x W x H)
Approx. Weight of Press: 33 t (main press approx. 12 t, press channel with bale clamp approx. 10 t)

Special Machine Equipment:
Access locking via key transfer system
Electro-hydraulic locking of the press carriage during the tying process to prevent the ram from moving position when processing highly expansive materials

Additionally Ordered Special Equipment:
Frequency-controlled main drive, 2 x 45 kW, with up to 40% energy savings compared to standard drive 2 x 45 kW, with the same performance output
Manual enabling/disabling of the number of wire ties to save tying wire on non-expansive material
Cutting edge ejector with 121 kN pressing force
Sensor-based wire monitoring, with press shutdown in case of wire break or end
Bale slide
Visual warning signal mounted on the control cabinet

Press Condition:
The complete baling system (press and conveyor system) is in good, ready-to-use condition. The equipment is cleaned weekly by the operator, lubricated, and serviced according to manufacturer specifications.

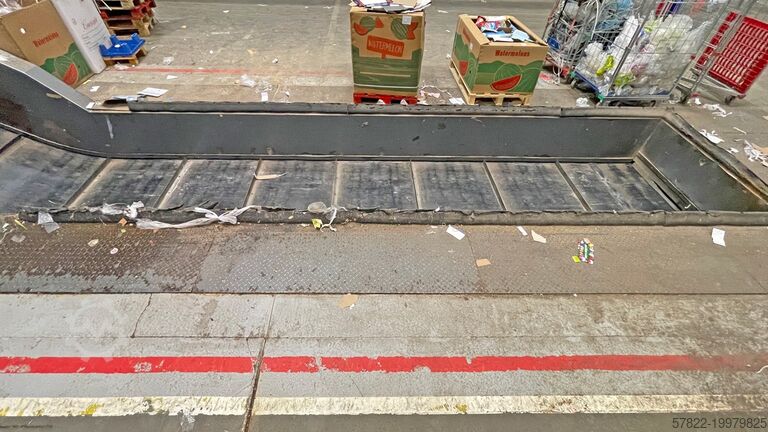

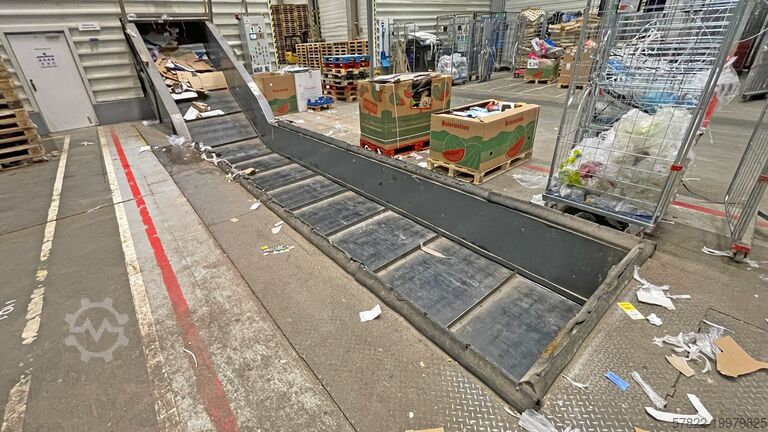

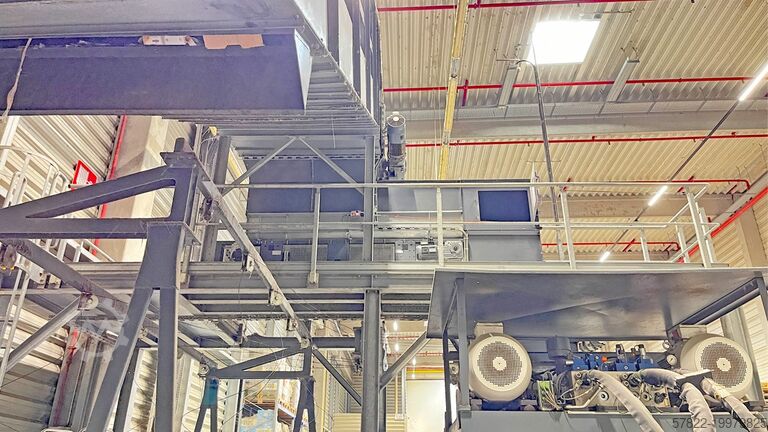

Technical Data of Chain Belt Conveyor:
Manufacturer: Stadler Anlagenbau GmbH
Model: Chain Belt Conveyor KF 1800
Year of Manufacture: 2015
Belt Speed: 0.36 m/second
Feed Belt Length: 7,000 mm
Incline Belt Length: 14,500 mm
Swan Neck Length: 1,550 mm
Incline: 30°
Nominal Width: 1,800 mm
Usable Width: 1,638 mm
Overall Conveyor Height: 7,745 mm
Pit Dimensions for Conveyor: 11,200 x 3,000 x 1,250 mm (L x W x H)

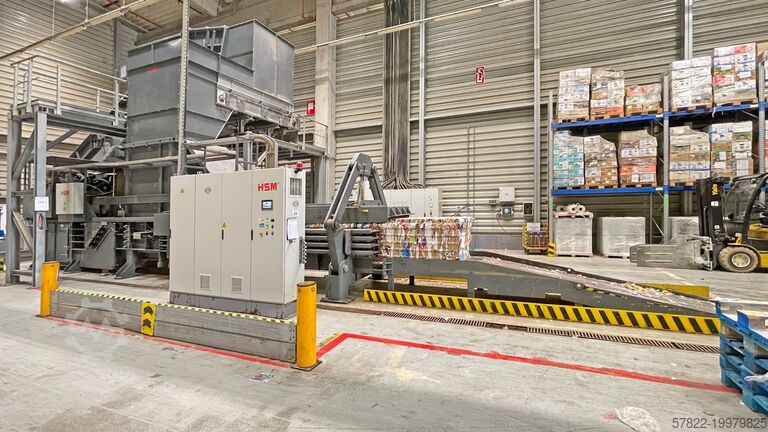

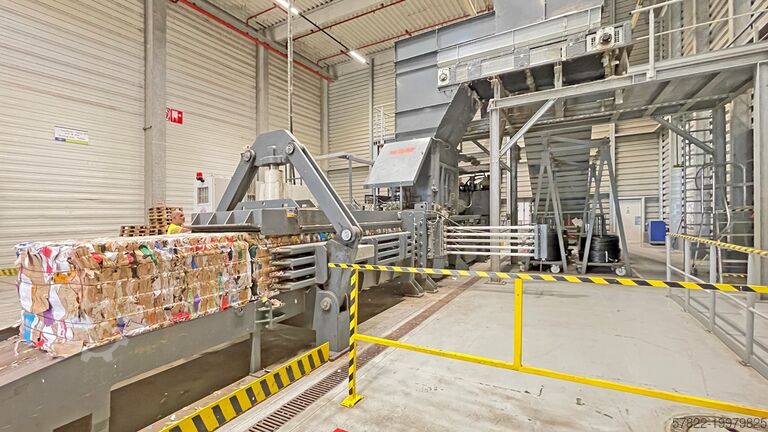

Scope of Delivery:
The sale includes the feed conveyor, the cross-distributor conveyor, and the baler with bale slide, but without wire feed stations and without wire.

Remarks:
Complete documentation (operating manual, CE declaration, electrical/hydraulic circuit diagram) is available. Inspection by arrangement is possible. We accept no liability for the technical data or any potential errors.
