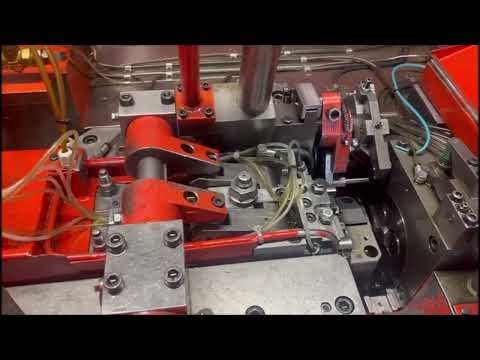

Rotacinis presas

HILGELAND HC5-40A

Būklė: naudotas, Gamybos metai: 1990, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: M06L/9048, Pasiūlymo numeris: M06L/9048 Mašinos tipas: Rotacinė presas Gamintojas: HILGELAND Modelis: HC5-40A Gamybos metai: 1990 Skersmens diapazonas: 6 mm Kotelio ilgis po galvute: 40 mm Maks. ruošinio ilgis: 60 mm Našumas vnt./min: 600 Hnodpfx Aow Nxqljlron Vieta: Mūsų sandėlyje

Būklė: naudotas, Gamybos metai: 1998, Bore diameter: 90 mm Stroke: 490 mm Throat depth: 400 mm Total connected load: 10 kW Machine weight approx. 3,500 kg Space requirement approx. m KADIA Vertical Honing Machine Model: VZH 90 / 450 F Year of manufacture: 1998 Serial no.: 50 / 1790 _____ Hodpfxjt Hw T Se Alrenn Max. honing diameter: 10 - 90 mm Max. honing depth: 30 - 450 mm Max. spindle stroke: 490 mm Spindle throat: 400 mm Mounting height under spindle nose top approx.: 1,200 mm Table size approx.: 400 x 600 mm Max. workpiece diameter approx.: 700 mm Spindle speeds, infinitely variable: 160 – 830 rpm Stroke speed, infinitely variable: 25 mm/min Spindle drive: 4.5 kW Total drive: 10 kW - 400 V - 50 Hz Weight approx.: 3,500 kg Overall machine height approx.: 4,000 / 3,300 mm Accessories / Special equipment: • Machine equipped with SIEMENS S5 / Unipos 4.0 PLC for entry of all key honing parameters such as tool speed, stroke length, expansion, honing time, fault messages, etc. • With a fixed table 600 x 400 mm • Automatic shut-off after a preset time, followed by spindle return • Automatic motorized expansion of the honing tool via electromechanical feed head ESZ 90/1 D • Separate hydraulic unit, central lubrication, workpiece clamping device on the table • Currently no suitable coolant system, no honing tools included. Condition: good to very good - ready for demonstration Delivery: ex stock - as inspected here Payment: strictly net - upon receipt of invoice

Būklė: naudotas, Gamybos metai: 2000, Grinding diameter: 360 mm Grinding length: 1600 mm Center height: 180 mm Internal diameter: 0 mm Grinding depth: 0 mm Swing diameter: 0 mm Total power requirement: 40 kW Machine weight approx.: 10,000 kg Space requirement approx.: m KARSTENS Universal CNC External, Internal and Surface Grinding Machine with polygon, non-circular, multi-edge, and thread grinding capability BWO CNC control type 900 C, type K 51 - 1500 Year of manufacture: 2000 Serial No. 99 033 ----- Center height: 180 mm Distance between centers / grinding length: 1,700 / 1,600 mm Max. workpiece weight between centers: 250 kg External grinding: Grinding diameter approx.: 5 - 360 mm Grinding wheel size (diameter x width x bore): 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s): 1,900 / 2,200 rpm Drive power external/surface/internal: 7.5 / 7.5 / 4.0 kW Grinding spindle carrier with 3 positions B-axis swivel range: 240 / 17.5 ° X-axis / cross slide travel: 360 mm Grinding slide feed: 0.001 – 125 mm/min Workpiece spindle speeds, infinitely variable: 1 – 1,000 rpm C-axis spindle mount / bore: 24 mm, MK 4 Table speed (Z-axis): 0.01 – 10 m/min Total power installed: 40 kW – 400 V – 50 Hz Weight approx.: 10,000 kg Accessories / Special Equipment: Universal CNC cylindrical grinding machine suitable for almost all grinding tasks, in particular also for non-round grinding / eccentric/cam contour grinding and polygon grinding as well as face grinding on multi-edged workpieces and even thread grinding with appropriate grinding wheel profiles. Freely programmable BWO CNC control with a variety of subprograms and simple parameter input. Grinding of multiple diameters in a single setup possible. • B-axis with three grinding spindles, one of them with MOVOMATIC touch probe • MOVOMATIC pneumatic diameter measurement head CR 60, for mounting on the grinding table, control unit type ES 400, • MPM grinding wheel balancing device, straight dresser with diamond fleece mounted on the table, powered diamond wheel dresser, • Workpiece headstock pneumatically shiftable, hydraulic tailstock with adjustable quill, • Various other accessories, but without coolant system Condition: Good to very good – ready for demonstration under power, Hedpet Hw Rdjfx Alronn Ideal machine for spindle manufacturing, etc. Delivery: ex-stock as inspected Payment: strictly net - upon receipt of invoice

Būklė: paruoštas naudoti (naudotas), Gamybos metai: 1970, Funkcionalumas: visiškai funkcionalus, veleno ilgis po galvute: 30 mm, dalies ilgis (maks.): 52 mm, Double-action press Hilgeland CH1 KHA Hedjur N Dajpfx Alronn Year of manufacture: 1970 The machine is immediately ready for operation!

Būklė: naudotas, Grinding diameter: 350 mm Grinding length: 1500 mm Centre height: 175 mm Grinding wheel diameter: 400 mm Grinding wheel width: 50 mm Bore: 127 mm Workpiece spindle taper: MK5 Workpiece spindle speed: 20–400 rpm Workpiece headstock swiveling: 360° Grinding head swiveling: 180° ± Grinding spindle speeds: 1500, 1700, 2200 rpm Infeed in steps: 0–40 mm/Ø Continuous infeed: 0–40 mm/Ø Table swiveling: ±6.5° Longitudinal table travel: 1530 mm Table speed: 0.02–6 m/min Workpiece weight between centres: 130 kg Workpiece weight max. (between centres, including clamping): 130 kg Cross travel max.: 270 mm Internal spindle mount: 80 mm Tailstock quill mount: MK3 Quill stroke: 30 mm Total power requirement: 6.5 kW Machine weight approx.: 3.05 t Space requirement approx.: 4 x 2 m Overhauled according to Kellenberger guideline Including new, modern and future-proof control system. Photo shown: Example of an already delivered machine with special options -The operation via the touch panel is extremely simple. -The symbols on the control panel are practically identical to the original controller, so no retraining is required. -Diagnostics function with display of PLC notifications and digital I/Os -Dressing function can be expanded or modified on request. -Spindle positioning of the workpiece spindle available on request. -New maximum infeed: 40 mm, can be extended on request. -Digital readout on 2 axes. X-axis resolution: 0.5µm Options: -Encoder with digital readout on workpiece headstock -Encoder with digital readout on grinding headstock (no height adjustment possible with spindle) -New robust internal grinding device, Ø80 mm or Ø100 mm -Increase of centre height up to 225 mm -Spindle speed control for grinding spindle Included: -Operating tools -Clamping tube for chuck Further accessories on request. Hsdpfeuxftrox Alrenn The machine features an electronically controlled infeed system with stepper motor drive on the X-axis. Hydraulic longitudinal and rapid table traverse. Versatile application possibilities in production for external and internal grinding, or for external, face, and internal grinding in a single setup for individual parts. Possible options: -Semi-automatic dressing cycles for external and internal grinding -Automatic dressing compensation -Gauging control The machine currently does not comply with the basic health and safety requirements as specified in BetrSichV 2015. The required minimum safety target must be determined by a risk assessment according to BetrSichV.

Būklė: labai geros būklės (naudotas), Gamybos metai: 2012, DISKUS DDS 750 XR – Technische Daten Maschinentyp: Vertikale Doppelseitenschleifmaschine Modell: DDS 750 XR Schleifscheibendurchmesser: 750 mm Maximale Schleifbreite (Durchlauf): 180 mm Maximale Materialdicke (Durchlauf): 30 mm Maximale Schleifbreite (Einstechschleifen): 300 mm Maximale Materialdicke (Einstechschleifen): 80 mm Schleifspindelleistung 1: 48 kW Hodpfx Aljwwrqcoronn Schleifspindelleistung 2: 48 kW Scheibenperipheriegeschwindigkeit (max.): 63 m/s Kühlmittelzufuhr: durch die Spindelmitte Werkstückzuführung: Rotationsvorschub Vorschubgeschwindigkeit: 20 mm/min bis 240 mm/min Steuerung: Siemens 840 D CNC Gesamthöhe der Maschine: ca. 3.100 mm Gesamtgewicht: ca. 13.000 kg Stellfläche: Länge ca. 4.900 mm, Breite ca. 5.000 mm Konstruktionsmerkmale: Dreieckrahmen in schwerer Bauweise, Spindeln auf Linearführungen, 16 CNC-Achsen, Zentralschmierung, Kühlmittelfiltration

Būklė: geras (naudotas), Gamybos metai: 1984, Sandėlio kranas, kranas, elektrinis lyninis keltuvas, rankinė važiuoklė, ratinė važiuoklė, keltuvo vežimėlis, tiltinio krano vežimėlis, krano važiuoklė, važiavimo vežimėlis, sijos važiuoklė, pakabinamos trasos važiuoklė, kėlimo įrenginys. - Gamintojas: Abus, krano važiuoklė su elektriniu lyniniu keltuvu - Lyninis keltuvas: tipas GM1032FD - Keliamoji galia: 3200 kg - Pagrindinis/precizinis kėlimas: 5/0,7 m/min Hnsdpeu I Hpaefx Alrjn - Kablio eiga: 6,0 m - Ratukų atstumas: 1400 mm, matmenys žr. nuotraukose - Pavara: Abus - Priedai: prijungimo laidai, be krano valdymo - Transportavimo matmenys: 1550/1180/H530 mm - Svoris: 512 kg

Būklė: visiškai atnaujintas (naudotas), Gamybos metai: 2023, SACMA SP22 PROGRESYVI ŠALTO SPAUDIMO PRESAS 2 MATRICOS 2 PRAMUŠIKLIAI Visiškai atnaujinta – kaip nauja (pagal CE standartus) Su pusiau pragręžimo moduliu GAMYBOS DIAPAZONAS: Skersmuo: 10x100 mm Staklių tipas: transferinė 2 matricos – 2 smūgių galvutė Skersmens diapazonas: 10 mm Matricų skaičius: 2 Stočių skaičius (įskaitant pjovimą): 3 Pjovimo ilgis: 110 mm Veleno ilgis po galva: 100 mm Hedpfx Aopgw Ugelrsnn Našumas – vnt./min: 170

Būklė: paruoštas naudoti (naudotas), Two optical LED light curtain micrometers from Keyence are available. Repeatability: +/-0.03µm, sampling rate: 16,000 measurements/sec, light source: green InGaN LED. Documentation included. On-site inspection possible. Hnsdpfx Ajv R Exujlren

Būklė: naudotas, Gamybos metai: 1997, BOCCA MALANDRONE R 120/500 CNC centerless grinding machine TECHNICAL SPECIFICATIONS: Hnsdpfx Aljhzvkwsron Work grinding wheel dimensions: Ø610xØ304.8x508 mm Regulating wheel dimensions: Ø355xØ152.4x508 mm
