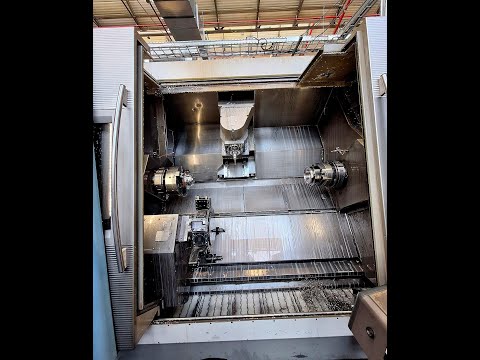

CNC tekinimo-frezavimo centras

GILDEMEISTER GMX 300 linear

Sąlyga: geras (naudotas), Gamybos metai: 2009, Gildemeister GMX 300 linear, Pagaminimo metai: 2009, Valdymas Siemens 840 D Powerline, Centro atstumas 1930 mm, Apdirbimo skersmuo Ø 640 mm, Y ašis, Revolveris 12 pozicijų – visos stotys varomos, Nenutrūkstama B ašis frezavimo galvoje, Įrankių talpa 120 HSK 63, Slėgio skirtumas, Aukšto slėgio aušinimas – 20 barų, Elektrinės durys, 5 ašių frezavimo apdirbimas, Staklės be griebtuvo, Iodpfx Abexuqdgjdetp Staklės be priedų,

Gamybos metai: 2001, Sąlyga: paruoštas naudoti (naudotas), Horizontal Machining Center Giddings & Lewis HMC 410 Pallet size: 1,250 x 1,600 mm Maximum pallet load: 7,000 kg Pallet change time: 55 sec. Number of pallets: 2 pcs Table indexing: B-axis 0.001° Table traverse (X): 3,000 mm Spindle vertical travel (Y): 2,100 mm Column longitudinal travel (Z): 1,800 mm Feed rate (X/Y/Z): 1 – 40,000 mm/min Rapid traverse (X/Y/Z): 40 m/min Itsdoguk Icopfx Abdop Rotary table speed: 6 rpm Max. swing diameter: Ø2,500 mm Spindle taper: ISO 50 Spindle motor power: 30 kW Spindle speed: 20 – 5,000 rpm Automatic tool changer: 120 stations CNC controller: Siemens Sinumerik 840D Max. workpiece height: 2,000 mm Accessories Hexagon radio tool measuring probe Loading stations: 2 pcs Year of manufacture: 2001 (See also further offers by this advertiser.)

Sąlyga: naudotas, Gamybos metai: 1999, Maximum wheel diameter: 280 mm Wheel width: 330 mm Module – max.: 5 Module – min.: 1 Control: LIEBHERR CNC Total power requirement: 28 kW Machine weight: approx. 12 t Space requirement: approx. ___ m LIEBHERR CNC-controlled gear generating and profile grinding machine Model: LCS 282 Year of manufacture: 1999 #1099 Max. wheel diameter: 280 mm Module: 1 - 5 Helix angle: +/- 35° Distance table center to tool center: 15 – 285 mm Vertical grinding slide stroke: 330 mm Shift/traverse path for tool: 200 mm Min. number of teeth: 7 Grinding spindle position above table min./max.: 70 - 360 mm Workpiece clamping length: 420 to max. 620 mm Grinding worm/profile grinding wheel diameter: 145 x 210 / 175 mm Grinding worm/profile tool speed: 2,500 – 10,000 rpm Table rotation speed max.: 750 rpm Spindle drive: 28 kW Total drive approx.: 50 kW - 400 V – 50 Hz Total weight approx.: 12,000 kg Accessories / Special equipment: • LIEBHERR CNC control type LH 90 GG: easy-to-program CNC control (B+R/IPC 5000) with gear-specific user interface and diagnostic features for quick troubleshooting. (Remote diagnosis also possible) • Equipped with an automatic device for threading the grinding wheel into the tooth gap. • The machine operates with three grinding processes: a. Generating grinding using CBN grinding worms = fastest processing b. Profile grinding with CBN profile grinding wheels (one or two wheels) = highest accuracy! Ijdpfst Hwu Aox Abdstp c. Combination of a and b (most economical solution): pre-grinding with grinding worm / finish grinding with profile grinding wheel in single-part processing • Automatic shifting of the grinding worm or automatic positioning of the profile wheel • Automatic workpiece loading device using a ring loader mounted on the counter column, which automatically moves raw and finished parts in and out. The workpieces are transported to the ring loader via a separately positioned FLEX LINK chain conveyor, picked up and removed. This enables unmanned production. • Hydraulic workpiece clamping in the table, but without clamping devices. Tailstock slide on the counter column present but without tailstock. Slide stroke up to approx. 350 mm. • Complete work area enclosure with sliding door and separate CO2 extinguishing system / IR sensor No original coolant system (as central supply), and no dressing device supplied. Condition: good to very good – powered, ready for demonstration, compact design! Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice We appreciate your interest – a further 200 gear machining machines available from stock at all times.

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2001, Funkcionalumas: visiškai funkcionalus, sukimosi skersmuo virš skersinio stumduko: 500 mm, tekėjimo ilgis: 1 630 mm, tekėjimo skersmuo: 500 mm, veleno skylė: 62 mm, veleno greitis (maks.): 4 500 aps./min, veleno greitis (min.): 45 aps./min, X ašies eiga: 430 mm, Y ašies eiga: 190 mm, Z ašies eigos atstumas: 1 474 mm, ašies variklio galia: 22 000 W, greitas poslinkis X ašimi: 25 m/min, greitas poslinkis Y ašis: 12 m/min, greitasis eiga Z ašyje: 20 m/min, bendras aukštis: 23 000 mm, bendras ilgis: 54 050 mm, bendras plotis: 28 880 mm, Įranga: dokumentacija / vadovas, Okuma MacTurn 30 - 1500 OSP U100L CNC-Steuerung Achszahl – 5 +2 Umlaufdurchmesser über Bett – Ø500 mm Umlaufdurchmesser über Schlitten – Ø500 mm Max. Drehdurchmesser – Ø500 mm Max. Drehlänge – 1474 mm Verfahrweg X-Achse oben – 430 mm Verfahrweg X-Achse unten – 140 mm Verfahrweg Z-Achse oben – 1474 mm Verfahrweg Z-Achse unten – 1305 mm Verfahrweg Y-Achse – 190 mm (+95/-95 mm) Verfahrweg W-Achse – 1305 mm Itedjrdvhhspfx Abdsp C-Achse 360° (0,001°-Schritte) Eilgang: Obere X-Achse: 20.000 mm/min Untere X-Achse: 15.000 mm/min Obere Z-Achse: 25.000 mm/min Untere Z-Achse: 20.000 mm/min Y-Achse: 12.000 mm/min C-Achse: 200 min⁻¹ Spindelaufnahme – JIS A2-6 Hauptspindeldrehzahl – 45–4.500 min⁻¹ Gegenspindeldrehzahl – 45–4.500 min⁻¹ Hauptspindelleistung – 15 kW Gegenspindelleistung – 15 kW Hauptspindeldurchmesser – Ø100 mm Gegenspindeldurchmesser – Ø100 mm Hauptspindelbohrung – Ø62 mm Gegenspindelbohrung – Ø62 mm Werkzeugspindel Drehzahl – 6.000 min⁻¹ Werkzeugspindel Leistung – 6,8 kW ATC Magazin – BT40 Werkzeugplätze – 40 Max. Werkzeugdurchmesser – Ø110 mm Max. Werkzeuglänge – 300 mm Max. Werkzeuggewicht – 10 kg Späneförderer – Hoch Gewicht – 12.100 kg

Sąlyga: naudotas, Gamybos metai: 2001, Tip circle diameter: 1000 mm Root circle diameter: 50 mm Module - max.: 18 mm Module - min.: 1 mm Gear diameter - max.: 1000 mm Gear width: 630 mm Profile height max.: 41 mm Helix angle (left/right) max.: 45° Isdswp S Thspfx Abdotp Table diameter: 720 mm Maximum table load: 1500 kg Grinding wheel diameter min./max.: 180 / 400 mm Grinding wheel width: 60 (45/30) mm Grinding spindle speed: 0 - 3100 rpm Total connected load: 30 kVA

Gamybos metai: 2022, veikimo valandos: 10 h, Sąlyga: naujas, Universal Testing Machine H5TMC Mechanical Design: according to DIN EN ISO 7500-1 2 backlash-free ball screw spindles, driven by AC servo motor, Fmax = 5 kN, stiffness 10 kN/mm 1 test space up to nominal load: Test space width: 420 mm (optional extensions: +190mm / +330mm / +620mm) Itodpfxjiq Hw Ue Abdjp Maximum test stroke without test fixtures, adapters, and KMZ: 1025 mm (optional extensions: +250mm / +500mm) Optional: Conversion to floor-standing model, required additional module: base table Travel Speeds: Testing speed 0.001 - 2000 mm/min at full load Return speed 2000 mm/min Force Measurement: Measurement range: within 0.4 - 100 % of the nominal load, Class 1 (optional Class 0.5) (+/- 1 % of the displayed value according to DIN EN ISO 7500-1) Force measurement resolution: +/-180,000 digits at 20 ms integration time The machine is delivered with a factory test certificate. If a factory or DKD calibration at the installation site is required by the customer, this service must be charged separately. Crosshead Travel Measurement: Incremental square-wave input with encoder monitoring, storage of crosshead position Resolution of crosshead travel measurement:

Sąlyga: paruoštas naudoti (naudotas), Gamybos metai: 2008, Funkcionalumas: visiškai funkcionalus, Naudotas, kapitališkai suremontuotas Niles ZSTZ 630 C3P. Iodpfx Aoxaptkebdjtp Maksimalus krumpliaračio skersmuo: 630 mm Krumpliaračio plotis: 215 mm Maksimalus modulis: 12 Minimalus modulis: 1 Eigos ilgis: 225 mm Stalo skersmuo: 500 mm

Sąlyga: naudotas, Gamybos metai: 2008, Wheel diameter - max. 900 mm Wheel width 450 mm Module - max. 10 Module - min. 1 Number of teeth - min. 8 Cutter diameter x width 192 x 215 mm Distance table / center of milling spindle 910 / 630 mm Distance between center of workpiece spindle and milling spindle 50 / 550 mm Cutter slide travel 200 mm Isdpfxewzmp Us Abdstp Swiveling range of the milling slide 240 degrees Table diameter 700 mm Table bore diameter 160 mm Milling spindle speed range 25 - 160 rpm Total power requirement 21 kW

Sąlyga: naudotas, Gamybos metai: 2007, Wheel Diameter – max. 500 mm Hypoid Adjustment ±70 mm Axis Cross Angle 90° Y-Axis Distance 150 – 350 mm Z-Axis Distance 120 – 340 mm Speed Range – stepless 0 – 5,000 rpm Torque at Spindle 57 Nm Taper 99.2 mm Pulling Force – Tool Clamping 23,000 N Maximum Braking Torque 93 Nm Total Connected Load 20 kVA Total Power Requirement 15 kW Machine Weight approx. 6 t Space Requirement approx. 2.35 x 2.24 x 2.5 m Working Area: Itjdpfx Asukitxsbdop Max. Ring Gear Diameter – 500 mm Hypoid Adjustment X (v) – ±70 mm Axis Angle – 90° Distance Y-(H) Axis Ring Gear/Pinion Spindle Flange – 150 ... 350 mm Distance Z-(J) Axis Pinion/Ring Gear Spindle Flange – 120 ... 340 mm Pinion Spindle Head: Speed Range, stepless – 0 ... 5,000 rpm Torque – 57 Nm at n= 0 ... 1,240 rpm Torque – 54 Nm at n= 1,240 ... 5,000 rpm Internal Taper (with adapter) – Ø99.2 mm (#39) Pulling Force for Tool Clamping max. – 23,000 N Ring Gear Spindle Head: Speed Range, stepless – 0 ... 3,000 rpm Torque – 95 Nm at n= 0 ... 750 rpm Torque – 93 ... 24 Nm at n= 750 ... 3,000 rpm Internal Taper (with adapter) – Ø99.2 mm (#39) / (Ø35.6 mm (#14)) Pulling Force – Max. 23,000 N Maximum Ring Gear Braking Torque – 93 Nm up to 3,000 rpm pinion speed at i = 1:4 Maximum Ring Gear Braking Torque – 93 Nm up to 1,200 rpm pinion speed at i = 1:1.6 Maximum Ring Gear Braking Torque – 59 Nm up to 1,200 rpm pinion speed at i = 1:1 Electrical Specifications: Total Connected Load – 20 kVA (effective machine capacity) Voltage – 3 x 400V (other voltages on request) Voltage Tolerance – ±10% Frequency 50 Hz (other frequencies on request)

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2000, Funkcionalumas: visiškai funkcionalus, Type of machine: CNC Lathe Manufacturer: Okuma Model: LU15-M Year of manufacture: 2000 Control: OSP-U100L Country of origin: Japan Delivery time: ex stock Long turning length – 1000 mm Travelling tailstock – automatic G152 Partial hollow clamping device The lathe is in very good condition. The basic and additional equipment of this used machine allows for machining of long turning lengths up to 1000 mm. Efficient production is further supported by the travelling tailstock (automatic), tool breakage/wear monitoring, partial hollow clamping device, K-pump, and conversational programming (IGF). This is an ideal machine for economical and reliable production. The machine is operator-friendly and can be immediately integrated into production. Machine Equipment - Spindle motor VAC built 22/15 kW - Long turning length – 1000 mm - Travelling tailstock – automatic G152 - 3-jaw chuck Forkardt, diameter 250 mm - Steady rest preparation on B-turret - Partial hollow clamping device - Conversational IGF - K-pump - Tool breakage / wear monitoring - Chip conveyor Technical Data - Max. turning diameter: 340 mm - Max. turning length: 1000 mm - Travel X-axis: upper 260 mm (170+90); lower 140 mm (90+50) - Travel Z-axis: upper 1,040 mm; lower 1,015 mm - Travel C-axis: 360° - Spindle – number of speed ranges: 2 – automatic - Bore diameter: 62 mm - Turret A (upper): 12 tools, all M-tool capable, VDI 40 - Turret B (lower): 8 tools, VDI 40 - Rotating tool speed: 45~4500 rpm - Rapid traverse: m/min X:15, Z:20, C:200 min⁻¹ - Tailstock quill diameter: 90 mm - Tailstock quill stroke: approx. 100-120 mm - Machine dimensions without attachments LxW: approx. 4800 x 2200 mm - Machine height: approx. 2030 mm - Weight: approx. 6900 kg Optional Itjdpfx Abov Id Ezedsp - Transport organization and execution - Machine installation and setup - Machine commissioning and production-ready handover
