CNC tekinimo staklės

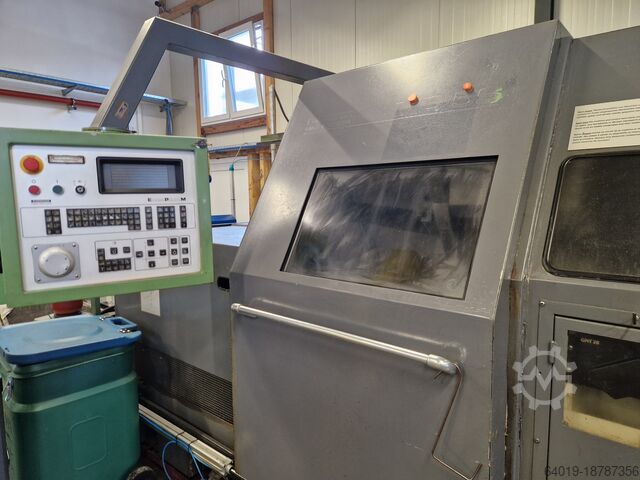

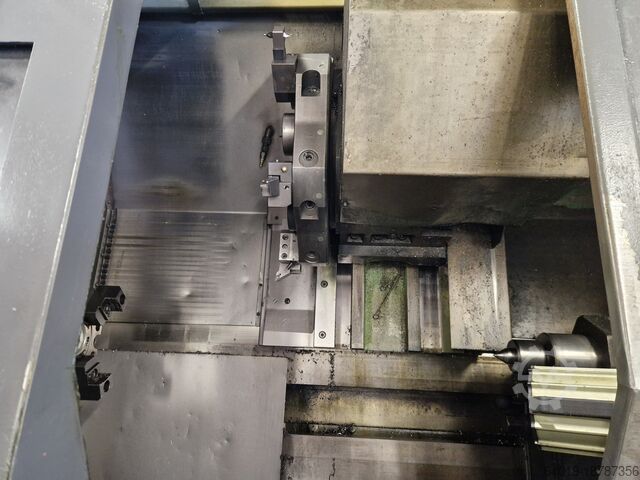

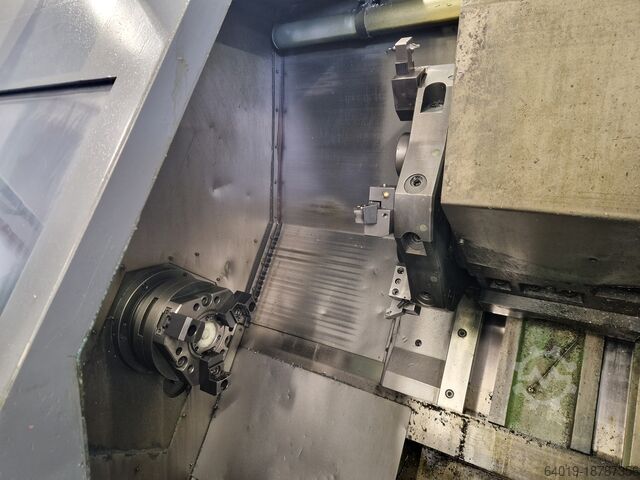

Gildemeister Max Müller MD5S

Sąlyga: naudotas, Gamybos metai: 2000, Swing diameter over bed: 520 mm Swing diameter over cross slide: 480 mm Turning length: 3000 mm Control: Siemens 840 D Number of tool stations: 12 Driven tools – number: 6 Spindle bore: 103 mm C-axis: yes (0) Scope of delivery — basic machine: - SINUMERIK 840 D - 3 controlled axes - Swing diameter over bed: 520 mm - Turning diameter over cross slide: 480 mm - Tool turret with 12 cylindrical shank holders, Ø 50 mm - Single-speed AC main drive, 53 kW, 50% duty cycle - Speed range: 30 – 3000 rpm - Main spindle head, Size 8 - Clamping force generator for clamping devices - Chip conveyor TURNING LENGTH: 3000 mm 12 cylindrical shank holders, DIN 69880-50x78, of which 6 positions can be fitted with driven tools, Dkodpewp S Sqefx Ab Seg Power: 6 kW at 60% duty cycle, Speed range: 20–2500 rpm 2 gearbox stages C-AXIS Speed range: 0–20 rpm Max. angle input: 9999.999° Working area according to work area diagram POWER CHUCK 3 NHF 315-82 A8 MANUFACTURER: FORKARDT With centrifugal force compensation, External diameter: 315 mm, bore diameter: 82 mm, With hardened top jaws, precision ground, Bar material max. Ø 63 mm Including draw tube and mounting

Sąlyga: labai geros būklės (naudotas), Tuscan LC38 x 3000mm CNC Drehmaschine Dkedpfxevtw Ims Ab Sog Umlaufdurchmesser über Bett: 970 mm Umlaufdurchmesser über Planschlitten: 420 mm Spitzenhöhe: 490 mm Spitzenweite: 3000 mm 12-fach Duplimatic Revolver Reitstock Ausbohrstangenhalterung Ausbohrstange 2 x 3-Punkt-Feste Lünette 1 x Mitlaufende Lünette Fanuc OiTC Steuerung C-Achse & angetriebene Werkzeuge Seriennummer: LC223806086 Baujahr: 2010 /10

Sąlyga: labai geros būklės (naudotas), Neu 2008 Umlaufdurchmesser über Bett – 600 mm (Ø 23,62 Zoll) Drehdurchmesser × Bearbeitungslänge – Ø 300 × 600 mm (Ø 11,81 × 23,62 Zoll) Max. Drehdurchmesser – Ø 380 mm (Ø 14,96 Zoll) Max. Verfahrweg Z-/X-Achse – 600 / 240 mm (23,62 / 9,44 Zoll) Z-Achse: FANUC 2,8 kW (4 PS) / 3.000 U/min X-Achse: FANUC 2,8 kW (4 PS) / 3.000 U/min Spindelbohrung / Zugrohrdurchmesser – Standard: Ø 77 / Ø 52 mm (Ø 3,03 / Ø 2,04 Zoll); Option: Ø 86 / Ø 77 mm (Ø 3,38 / Ø 3,03 Zoll) Spindeldrehzahl – Standard: 8" Spannfutter 3.500 U/min; Option: 8" Spannfutter 4.500 U/min, 10" Spannfutter 3.500 U/min Dkodpferfx Tnjx Ab Ssg Spannfutter-Durchmesser – Standard: Ø 8"; Option: Ø 10" Hydraulischer Reitstock – Hub 465 mm (18,3 Zoll), MK 4 VDI-Werkzeugstationen – Option: 8, Standard: 10 Kühlschmierstoffanlage Späneförderer Anschlusswert – 208–220 Volt / 100 Ampere / 3 Phasen / 60 Hz Stellfläche (L × B × H) – 4.080 × 1.675 × 1.842 mm (160,62 × 65,94 × 72,51 Zoll) Gesamtgewicht (ca.) – 5.200 kg (11.440 lbs)

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 1999, Control: Fanuc 21T Turning diameter: 158 mm Swing diameter over bed: 340 mm Spindle speed: 6,000 rpm 8-position turret Tailstock 3-jaw chuck, 2-jaw chuck, collet chuck Collets Dkedpfx Abowmzhpe Seg Wide range of tool holders

Sąlyga: geras (naudotas), Gamybos metai: 1989, veikimo valandos: 64 136 h, Centre height: 350 mm Turning length: 1000 mm Max. swing diameter over bedway cover: 600 mm Max. swing diameter over cross slide: 360 mm Spindle bore: 107 mm Speed range: 16 – 3150 rpm Feed range longitudinal and face: 0.5 – 5000 mm/min Rapid traverse longitudinal + face: 9 m/min Main drive: 30 kW Machine dimensions with chip conveyor (L x W x H): 5400 x 2200 x 2000 mm Weight: 6400 kg Accessories / Special features: • CNC control GILDEMEISTER EPL 2 with TFT display General description: CNC hand-input control with program input via function and numeric keypad. All information is entered interactively via screen dialogue. Integrated menu technology and plain-text display of all functions. Operating keypad, screen, and handwheel are housed in a separate chip protection panel. The EPL control provides the following capabilities: Programs can be entered and modified directly by the operator via the EPL control without prior manual programming preparation. NC programs according to ISO/EIA standard can be entered or output via the RS 232 serial interface, or entered manually. Machining cycles: Roughing cycles for longitudinal, facing, and contour turning, including allowance. Threading. Undercuts according to DIN 509 Form E and F and DIN 76, including programmable grinding allowance. Axial and radial grooves to DIN 471 and 472, also with bottom finishing. Radii 90° and chamfers 45°. Automatic tool nose radius compensation for cycles, undercuts, grooves, radii, chamfers. Programming: Block-oriented, metric/inch, diameter in absolute input mode, radius in incremental input, full-circle programming, subroutine technique, skip levels for program sections. Workpiece zero offset. Mode selection via menu. Program input and output: Interactive via menu with operator guidance or directly in dialogue • Hydraulic 3-jaw chuck, Ø 315 mm, with through-spindle bore Ø 80 mm • Hinged chip conveyor • 12-station VDI 40 turret, 6 standard tool positions + 6 driven tool positions • Coolant system • RS 232 interface • Electronic handwheel • Electric foot switch for 3-jaw chuck and tailstock quill • Lighting • 12 miscellaneous standard tool holders (details to be discussed on site) Dkedsvr Eh Espfx Ab Sjg Overhauled servo drive for the main spindle, 06/2025 Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Sąlyga: visiškai atnaujintas (naudotas), Gamybos metai: 2010, Funkcionalumas: visiškai funkcionalus, X ašies eiga: 450 mm, Y ašies eiga: 400 mm, Z ašies eigos atstumas: 240 mm, bendras svoris: 6 000 kg, veleno greitis (maks.): 42 000 aps./min, 5-axis HSC milling machine Röders RXP500DSC with linear direct drives in all axes and torque drives in the rotary axes. The machine is completely overhauled, checked, and measured in-house. It meets new machine tolerances again! Travel ranges: X 450 mm, Y 400 mm, Z 240 mm Dodpfx Astt Argob Sskg Distance spindle/table: approx. 315 mm - Linear direct drives in all axes – maintenance-free - 19-position tool changer - Cooling unit for drives, milling spindle, and control cabinet - Measuring laser for fully-automatic measurement of milling tools (length/diameter/contour/cone angle) as well as wear monitoring, including tool cleaning before measurement - Hand-held control unit - Remote maintenance - Automatic 3D probe including calibration ball in the tool changer - Minimum quantity lubrication - Emulsion cooling - HSK40E spindle with max. 42,000 rpm - Spindle length compensation - EROWA zero-point clamping system integrated into the machine table - Manual chuck actuation - Automation package for retrofitting the machine with a pallet changer - Hand-held control unit An inspection of the machine in ready-to-operate condition is possible at any time. You are also welcome to find out more about the scope and quality of our overhauled machines on our website or on our Hüttmann YouTube channel.

Sąlyga: visiškai atnaujintas (naudotas), Gamybos metai: 1974, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 1276, CNC Warm-Radialschmiedemaschine GFM SX-13 Baujahr: 1974 / (Modernisierung 2022) Neue Steuerung: PLC SIEMENS S7 Maschinennummer: 1276 Anzahl der Hämmer: 4 Schmiedekraft je Hammer: 160 Tonnen Hammerschläge / min: 700/min Hammerlänge: 240 mm Einstellbereich Durchmesser: 80 mm Maximaler Schmiededurchmesser: Baustahl, Rundquerschnitt: Ø 130 mm Quadratquerschnitt: Ø 115 mm Kleinster schmiedbarer Durchmesser: Ø 25 mm Manipulator A max. Verfahrweg: 6.820 mm Manipulator B max. Verfahrweg: 7.150 mm Maximale Werkstücklänge: 6.000 mm Schnellgeschwindigkeit Manipulator: 400 mm/sec Gesamtanschlusswert: 300 kW, 380 V, 50 Hz Dkedpfx Aeq U R T Nob Sog Maschinenabmessungen: Schmiedehöhe über Boden: 615 mm Gesamthöhe der Maschine über Boden: 1.665 mm Gesamtlänge der Maschine: 32.670 mm Gesamtlänge des Fundaments: 33.400 mm Gesamtbreite der Maschine (ohne Zusatzausrüstung): ca. 3.885 mm Gesamtbreite des Fundaments: 16.000 mm Gesamtgewicht der Maschine: 84.000 kg

Gamybos metai: 1989, Sąlyga: naudotas, Cutting diameter: 420 mm Saw band length: 6300 mm Table height: 700 mm Drive power: 5.5 kW Cutting speed: 20–130 m/min Minimum cut-off length: 6 mm Minimum diameter: 10 mm Machine weight: approx. 2.9 t Space requirement: approx. 2.4 × 3.3 × 2.4 m Fully automatic band saw, hydraulic saw blade tension, infinitely variable cutting feed, hydraulic material feed, automatic feed with horizontal vice. Clamping force: approx. 400–2000 daN Dodpfjrc I H Eex Ab Sskg Coolant supply via three coolant nozzles, approx. 135 l, approx. 30 l/min.

Sąlyga: beveik kaip naujas (naudotas), Gamybos metai: 2015, Juostos plotis: 2000 mm Pjovimo plotis: 300–1700 mm Maksimalus atriedimo skersmuo: 800 mm Maksimalus suvyniojimo skersmuo: 600 mm Pjovimo metodas: skutimosi peiliukas Suvyniojimo velenai: dvigubi suvyniojimo velenai Didžiausias mechaninis greitis: 400 m/min AC servovariklis su įtampos reguliavimu Juostos vedimas Medžiagų rūšys: BOPP, PET, PE, laminuota plėvelė, plėvelė, popierius Dedpfx Ajwvv Hfob Sokg

Sąlyga: geras (naudotas), Funkcionalumas: visiškai funkcionalus, X ašies eiga: 12 000 mm, Y ašies eiga: 1 800 mm, Z ašies eigos atstumas: 1 000 mm, MECOF CS 50 CNC Universalfräsmaschine SELCA S3045L, Baujahr 1997, Zweiachsiger Kopf: C-Achse 360° x A-Achse 3° Aufspanntisch: 13.300 x 1.090 mm X-Achse, Längsverfahrweg: 12.000 mm Y-Achse, Vertikalverfahrweg des Fräskopfs: 1.800 mm Z-Achse, Ausleger (Ram) 390 x 390 mm, Hub: 1.000 mm Aufspanntisch: 13.300 x 1.090 mm Zweiachsiger Kopf: C-Achse 360° x A-Achse 3° Spindelaufnahme: ISO 50 Spindeldrehzahl: 10 - 4.500 min⁻¹ Spindelmotor: 20 kW Dedowdm U Nopfx Ab Sskg Automatischer Werkzeugwechsler: 41 Plätze
