Kondensacinio vandens testeris 1000 litrų

Erichsen HYGROTHERM 529

Here we offer you an Erichsen Condensation Water Test Device.

Erichsen Condensation Water Test Device HYGROTHERM 529 / 1000 liters incl. control unit and compressed air connection.
Condensation Water Test Device for standard-compliant condensation water testing.

HYGROTHERM 529 Purpose and Application:
In the HYGROTHERM 529 condensation water test device, susceptibility to corrosion and climate behavior of materials and assemblies are tested according to various standards and specifications, such as the behavior of protected substrates under constant condensation climate in accordance with DIN EN ISO 6270-2-CH.

The HYGROTHERM 529 condensation water test device is available with a test chamber volume of 1000 liters.
The device consists of a control unit (with test hour counter and temperature controller) for wall mounting, as well as a separate, double-walled test chamber in rectangular design with pneumatic dome opening.

Technical Data:

Dimensions and Weight
Control Unit
Width: 425 mm x Height: 530 mm x Depth: 200 mm
Net weight approx. 20 kg
Test Chamber 1000 liters (rectangular design)
Width: 1800 mm x Height: 1350 mm x Depth: 1000 mm
Internal dimensions: Width: 1500 mm x Height: 670 mm x Depth: 810 mm

Specifications:
Power supply: 230/400 V three-phase, 3~, 50 Hz
Net weight: Control unit approx. 20 kg
Test chamber 1000 liters approx. 150 kg
Power consumption:
Control unit: approx. 120 VA
Test chamber 1000 liters: approx. 2000 VA
Heating capacity:
Test chamber 1000 liters: approx. 2400 W
Compressed air connection: R 3/8 female thread
6-8 bar overpressure
Type: HYGROTHERM 529
Condition: used

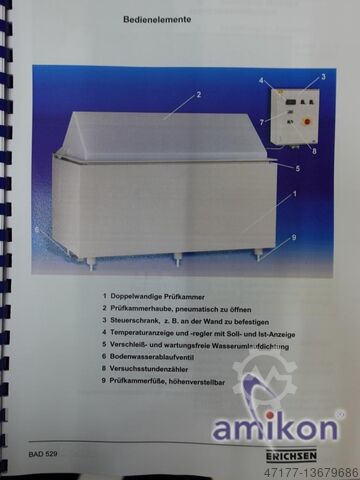

Scope of delivery: (see picture)
Crjdpeqbtchsfx Aa Ssh
(Specifications and technical data are subject to change and errors excepted!)

If you have further questions, we are happy to answer them by phone.
