Temperatūrų bandymo kamera –70 °C iki +180 °C

CTS TS-70/1150-10 -10 K/min

CTS
Type: TS-70/1150-10
CTS Temperature Test Chamber, Water-Cooled

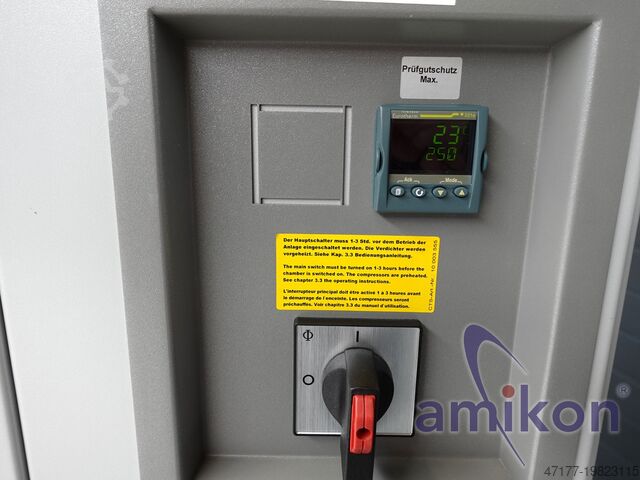

Control: 32-bit controller
LCD control panel
Digital display of set and actual values
Numeric input of set values
Error messages in plain text
RS 232 interface
Ethernet interface
Free switching channels for customer-side test specimen control
Operation: Capacitive touch display & PC-based control (USB/Ethernet)
Test chamber dimensions: Height approx. 1250 mm / Width approx. 1000 mm / Depth approx. 920 mm
External dimensions: Height approx. 2000 mm / Width approx. 1800 mm / Depth approx. 1600 mm
Temperature testing range:

Temperature range: -70°C to +180°C
Temperature deviation ≤ ±0.5 K over time
Temperature change rate according to IEC 60068-3-5
Heating: 10 K/min
Cooling: 10 K/min
Thermal irradiation approx. 5000 W at -20°C
Technical data refer to an ambient temperature of +25°C
Test volume (internal): approx. 1150 liters
Operating data:
Electrical connection
Rated voltage: 400V 3/N 50Hz
Power: 27.6 kW
Rated current: 47.5 A
Cooling system: two-stage
R404A (17.8 kg) + R23 (5.4 kg)
Codpfxsw R Tuns Ahvshc
Weight: approx. 1500 kg
The following points are carried out on our offered chambers in advance:
1. Functional check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers are subjected to a documented test run.
Condition: used
Scope of delivery: (see picture)
(Changes and errors in the technical data, information subject to confirmation!)
Feel free to contact us by phone for further questions.
