Becentrinio šlifavimo staklės

Cincinnati Milacron 20 440

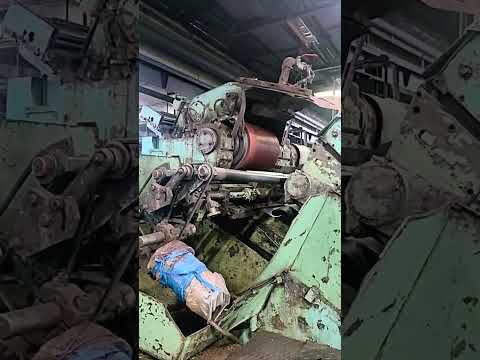

Būklė: geras (naudotas), Funkcionalumas: visiškai funkcionalus, Gamybos metai: 1990, mašinos/transporto priemonės numeris: 4ROLL, apatinio volelio skersmuo: 470 mm, viršutinio volo skersmuo: 470 mm, šoninio volelio skersmuo: 420 mm, volelio skersmuo: 470 mm, vėjo ilgis: 3 050 mm, darbinis plotis: 3 050 mm, darbinio aukščio: 1 800 mm, maks. lakšto storis: 50 mm, plieno lakšto storis (maks.): 45 mm, aliuminio lakšto storis (maks.): 45 mm, vario lakšto storis (maks.): 45 mm, bendras svoris: 43 000 kg, bendras ilgis: 7 700 mm, bendras plotis: 2 410 mm, bendras aukštis: 2 470 mm, galia: 37 kW (50,31 AG), įėjimo įtampa: 380 V, įvesties srovės tipas: trifazis, darbinis ilgis: 3 050 mm, Įranga: avarinis stabdymas, dokumentacija / vadovas, Blechbiegemaschine FACCIN – 4-Walzen-Hydraulik 3000 x 40 mm Modell: 4HCI3-35/30 Baujahr: 1990 Plattenbiegemaschine mit Linearführungen und doppelter Vorbiegung (Double Pinch) Die Maschine befindet sich in gutem Arbeitszustand. Bwjdewb Scmjpfx Af Asl Biegeleistung: - Blechbreite: 3.000 mm - Blechstärke rundbiegen: 40 mm - Vorbiegung: 35 mm Walzenabmessungen: - Nutzlänge: 3.050 mm - Zentrale Ober-/Unterwalze: 470 mm Durchmesser - Seitenwalzen links/rechts: 420 mm Durchmesser • Gehärtete Oberflächen aller 4 Walzen für hohe Festigkeit • 3 Walzen angetrieben über Getriebe mit Hydraulikmotor • Konische Biegevorrichtung: Seitenwalzen kippbar zur Formung von Konen, mit Gegenlagerwalze • Hydraulischer Stirnseitenabwurf zum Entladen der geschlossenen Schale • Stufenlos regelbare Drehzahl der Arbeitswalzen (hydraulisch, schnell/langsam) • Elektrisches Bedienpult auf Fahrgestell mit zentralen Steuerungen, Joysticks und 3 Digitalanzeigen • Digitale Positionsanzeigen der Walzen für Wiederholgenauigkeit beim Biegen und Vorbiegen • Hydrauliktank: 350 Liter Fassungsvermögen – Elektromotor: 37 kW – Betriebsspannung: 380 V / 50 Hz • Abmessungen: 7.700 x 2.410 x H 2.470 mm – Gewicht: 43.000 kg

Būklė: labai geros būklės (naudotas), Perfekt erhaltene sechsspindlige INDEX MS 25 Mehrspindel-Drehautomat mit sechs Quer- und sechs Längswerkzeugführungen. Der Preis ist verhandelbar und abhängig von der gewählten Zusatzausstattung: Spannzangen, Werkzeugen, Späneförderer usw. Bedpsqhkukefx Af Aewl Die Maschine befindet sich noch im Produktionseinsatz. Besichtigung nach Absprache möglich.

Būklė: naudotas, Grinding diameter 350 mm Grinding length 600 mm Centre height 175 mm Grinding wheel diameter 400 mm Bwodpfsuxft Ejx Af Asl Grinding wheel width 50 mm Bore diameter 127 mm Workpiece spindle taper MK5 Workpiece spindle speed 20–400 rpm Workpiece headstock swivels 360° Grinding spindle head swivels 180° ± Grinding spindle speed 1500, 1700, 2200 rpm Stepwise infeed 0–9.99 mm/ø Continuous infeed 0–9.99 mm/ø Table swivel ±10° Longitudinal table travel 1100 mm Table feed rate 0.02–6 m/min Workpiece weight between centres 130 kg Max. workpiece weight (supported) 130 kg including setup Max. cross travel 270 mm Internal spindle holder 80 mm Tailstock quill mount MK 3 Quill stroke 30 mm Total power requirement 6.5 kW Machine weight approx. 3.05 t Space requirement approx. 4 x 2 m Reconditioned according to Kellenberger guidelines including new, modern, and future-proof control system. Photo shows a machine previously supplied with 1000 mm centres. -The operation via touch panel is extremely simple. -The symbols on the control panel are nearly identical to the original controls, so no retraining is required. -Diagnostic function with PLC fault display and digital I/O indication. -Dressing function can be extended or modified as per customer request. -Oriented spindle stop of the workpiece spindle available on request. -New maximum infeed amount 40 mm, can be further increased on request. -Digital display in 2 axes. X-axis resolution 0.5 µm Options: -Encoder with digital display in the workpiece headstock -Encoder with digital display in the grinding spindle headstock (height adjustment not possible with spindle) -New rigid internal grinding attachment, diameter 80 mm or 100 mm -Increase of centre height up to max. 225 mm -Speed control for the grinding spindle Included: -Operating tools -Clamping sleeve for chuck Additional accessories available on request. The machine features an electronically controlled infeed system on the X-axis with stepper motor drive. Hydraulic longitudinal and rapid table traverse. Versatile use in production for external cylindrical and internal grinding, or for external, face, and internal grinding in one single setup of workpieces. Possible options: -Semi-automatic dressing cycles for external and internal grinding -Automatic dressing compensation -Measurement control Currently, the machine does not comply with the basic safety and protection requirements as specified in BetrSichV 2015. The necessary minimum protection targets must be determined by means of a risk assessment in accordance with BetrSichV.

Būklė: visiškai atnaujintas (naudotas), Funkcionalumas: visiškai funkcionalus, Löser centerless tube grinding machine - belt grinding machine - centerless tube polishing machine - cylindrical grinding machine Centerless tube grinding / polishing machine for workpieces with a minimum length of 1,100 mm. The machine was built in 1988 and was completely overhauled in 2012. During the overhaul, it was converted for polishing and has since only polished approx. 10,000 parts. After that, the machine was no longer in use. During the general overhaul, the motors, bearings, and the entire electrical cabinet with frequency converters were completely renewed. The machine can be used for both wet grinding and polishing. Bedpfx Afspugwie Aewl A wastewater treatment system including pumps is currently not available. We can retrofit this to your specifications upon request. The transport systems (roller conveyors) between the grinding stations must also be retrofitted to suit your workpieces. The machine is suitable for tube diameters from 10 mm to 160 mm. The grinding/polishing motors have a power output of 7.5 kW per station. The system can be inspected by appointment at our warehouse in D-63128 Dietzenbach.

Būklė: naudotas, Gamybos metai: 1994, Technical Details: Number of spindles: 8 Spindle bore: 32 mm Item: cam-controlled multi-spindle automatic lathe Brand: Schütte Model: AF32 S DNT Year of manufacture: 1994 Eight-spindle automatic lathe with 8 main spindles Max. nominal through-bore D=32mm Control: Siemens SIMATIC S7 electronic cam switchgear Balluff Gripper at station 8 for rear-side machining CNC cross-slide at position 6 CNC cross-slide at position 7 Workpiece conveyor belt Coolant system Schimpke Chip conveyor with magnetic separator Bsdpfel Su Rxsx Af Aowl Thread-cutting clutches Displayed tool equipment may differ from delivery scope! Please contact us for further information and images via mail(at) or *

Būklė: naudotas, Gamybos metai: 1984, x-axis travel: 2500 mm y-axis travel: 750 mm z-axis travel: 1000 mm Table clamping surface: 2550 x 800 mm Bwodpstqqnwsfx Af Ajl Spindle taper: SK 50 Control: HEIDENHAIN TNC 150 B Machine weight approx. 16 t

Būklė: naudotas, TECHNICAL DATA - Distance between centres: 650 [mm] - Centre height: 175 [mm] - Max. workpiece weight between centres: 80 [kg] - Travel X/Z axis: 285 / 800 [mm] - X-axis programmable feed rate: [mm/min] - Resolution: 0.0001 [mm] - Z-axis programmable feed rate: [mm/min] - Resolution: 0.0001 [mm] - Table swivel range: 0 - 8.5 [degrees] GRINDING WHEEL HEADSTOCK - T1 grinding wheel dimensions: 500 x 63 x 203.2 [mm] - Speed: 50 [m/s] - Power: 9 [kW] - Manual swivel range: -15 / +195 [degrees] - Minimum resolution: 2.5 [degrees] - Internal grinding speed: 40,000 [rpm] - Power: 3 [kW] Bjdoylc R Uspfx Af Aswl WORKHEAD - Taper type: MT5 - Speed: 1 - 1500 [rpm] - Power: 1.8 [kW] - Bore diameter: 30 [mm] - Minimum C-axis resolution: +/- 0.5 [degrees] TAILSTOCK - Taper type: MT4 - Quill diameter: 50 [mm] - Quill stroke: 35 [mm] ELECTRICAL SUPPLY - Supply voltage: 400 [V] - Total connected load: 20 [kVA] WEIGHT AND DIMENSIONS - Footprint: 2,670 x 2,050 [mm] - Machine height: 1,900 [mm] - Machine weight: 4,000 [kg] MACHINE HOURS - Power-on hours: 190 [h] EQUIPMENT - Control: FANUC Oi-TD - Electronic handwheel - 3-color status lamp - Oil mist extraction system - Direct position measuring systems axes: X / Z - Dynamic grinding wheel balancing: MPM - Automatic touch detection: SENSITRON 6 - Fixed dressing device - Workpiece probe system - Coolant tank: 375 [l] * with paper filter

Būklė: naudotas, Manufacturer: CINCINNATI Bwodpjwrpykofx Af Ael

Būklė: naudotas, Technical Details: Spindle diameter: 130 mm Drilling depth: 1,380 mm X-travel: 2,500 mm Y-travel: 1,600 mm Z-travel: 380 mm W-axis: 900 mm spindle feed U-axis: 320 mm facing slide feed Control system: on request Tool holder: ISO SK50 Speed – facing slide: 4.5–180 rpm Drive spindle speed: 4.5–900 rpm Feed – x/y: 5–2,000 Total power requirement: approx. 40 kW Machine weight approx.: < 35 t plus auxiliary equipment Bodpovr S Ulefx Af Ajwl The machine can be offered in four different sales options. Please choose! 1. The machine is in as-new mechanical condition, as it stands. 2. The machine as it stands, including plate table 4,000 x 2,000 x 300 mm = Stock No. 1101081 3. The machine rewired, with new control cabinet, digital readout, 4-axis, Siemens AC drives, Siemens axis motors (50A/31Nm) with 12 month warranty on all new parts. 4. Additional accessories can also be optionally offered, e.g. coolant system, chip conveyor, enclosure, etc. Please contact us to discuss these options.

Būklė: naudotas, Srieginės volų staklės ORT RP30U 2 volai Bwsdpfxst H Ty Uj Af Ael 30 tonų Pasukami galvutės Keitiklis (inverteris) #1331 Mašina gali būti apžiūrima mūsų sandėlyje Gussago BS mieste dirbant. Yra galimybė parodyti įrangos veikimą. Sriegiavimo volavimas yra mechaninis procesas be pjovimo drožlių, jis gali būti atliekamas šaltai arba karštai, siekiant pagerinti paviršiaus kokybę (taip pat ir nuovargio savybes). Galia (tonomis): 30 Volelių skaičius: 2
