Keturi moduliniai Soleo EvO kepyklos anga, naudota, BONGARD

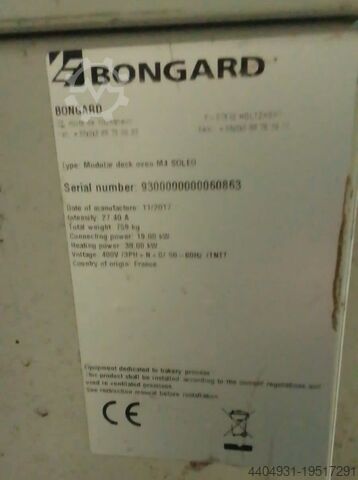

BONGARD M4 Soleo

Būklė: naudotas, -M4 Soleo -Bendri matmenys (IxPxA): 1730x1526x2480 mm -Naudojamas kepimo plotis: 1370 mm -Naudojamas kepimo gylis: 965 mm -Kepimo paviršius viename aukšte: 1,32 m² -Skardų kiekis viename aukšte: - 4 vnt. 400 x 600 - 4 vnt. 460 x 660 - 3 vnt. 460 x 760 - 2 GN 530 x 650 Podjwx I Utjpfx Alcorc -Šildymo galia: 30 kW -Prijungta galia: 19 kW -Įtampa: 400 V / 3 PH+N / 50-60 Hz -Svoris: 759 kg -Pagaminta: 11/2017

Būklė: naudotas, Gamybos metai: 2007, x eiga 900 mm Prsdpfx Alow Rrb Hecsc y eiga 300 mm z eiga 1000 mm Valdymas Siemens Sinumerik 840D Detalės skersmuo – maks. 1600 mm Modulis – maks. 20 mm Galvos apskritimo skersmuo 350 mm Frezavimo veleno skersmuo 375 mm Bendras elektros poreikis 80 kVa Staklių svoris apie 33,5 t Užimama vieta apie 10,530 x 6,375 x 4,680 m Padavimo greitis: - X ašis 1–3000 mm/min - Y ašis 1–3000 mm/min - Z ašis 1–4000 mm/min Veleno apsisukimų dažnis (aps./min): - Įrankis 26–265 - Detalės stalas 0–8 Įranga/priedai: - Motorizuota frezavimo galva M 2 - Frezavimo velenai - Alyvos aušintuvas - techninė dokumentacija

Būklė: beveik kaip naujas (parodų įrenginys), Gamybos metai: 2025, CMS Ypsos Vertical Glass Processing Center Working dimensions: Max. glass length: 3,100 mm Max. glass height: 2,000 mm Min. glass length: 320 mm Min. glass height: 220 mm glass thickness: 4–15 mm Included equipment: - 2x suction units, each with 2 vacuum suction cups - Electrospindle 6 kW, 0–12,000 rpm - Magazine with 12 and 11 tool stations - Rear drilling unit - CAD/CAM system Prodpfx Aowd Ichslcsc - Centralized lubrication

Būklė: naudotas, Gamybos metai: 2000, mašinos/transporto priemonės numeris: SO126, Used HDPE extrusion blow molding machine for 10 L – approx. 300 bph – Overview Pre-owned Uniloy Milacron HSM10/D extrusion blow molding machine designed for the production of HDPE containers up to 10 L. Equipped with a single parison head and robust clamping unit, this EBM unit is ideal for industrial packaging and beverage manufacturing auxiliary lines (e.g., water canisters, edible oils) and can be integrated into a used bottling line. Documentation and operating manuals available. Reference number: SO126. Technical Specifications & Performance Data Main Data - Manufacturer/Model: Uniloy Milacron HSM10/D - Year of Manufacture: 2000 - Technology: Extrusion Blow Molding (EBM), Single Parison - Material: HDPE - Number of Cavities: 1 - Max. Container Volume: 10 L - Indicative Output: up to approx. 300 bph at 10 L (application-dependent) - Operating manuals: included - Reference number: SO126 Extruder - Screw diameter: 100 mm; L/D 24 - HDPE screw speed: 0–70 rpm - Plasticising capacity (HDPE): approx. 300 kg/h - Main extruder motor: 89 kW - Heating zones: 6; Barrel heating power: 31.4 kW - Motor cooling capacity: 0.58 kW; Barrel cooling capacity: 1 kW Parison Head - Type: PE 1/200, single parison - Max. die head diameter: 200 mm - Head heating power: 14.2 kW - Parison wall thickness control: hydraulic (wall thickness programming) Clamping & Blowing Unit - Clamping force: 200 kN - Max. mold size: 650 × 500 mm (H) - Mold thickness: 2 × 150 mm - Mold opening stroke: 300 mm - Horizontal carriage stroke: 660 mm - Blow pin stroke: 240 ± 5 mm - Blow pin thrust at 50 bar: 320 kg Electrical - Installed power: 156 kW (average consumption approx. 104 kW) - Supply: 400 V, 50 Hz, 318 A, 3 + N Hydraulic System - Oil tank capacity: 400 l - Pump flow (1470 rpm): 123 l/min - Max. pressure (main circuit): 190 bar - Main hydraulic motor: 37 kW; Oil cooler motor: 1.5 kW Pneumatics - Operating pressure (general): 6–8 bar; Air consumption: 2000–2500 Nl/min - Post-cooling pressure: 6–8 bar; Air consumption: 1000–1500 Nl/min Cooling Water - Mold circuit: 8–12 °C; Flow rate 15 m³/h - Extruder & hydraulic oil cooling: 10–24 °C; Flow rate 4 m³/h Dimensions & Weights - Approx. machine dimensions (L × W × H): 7600 × 7700 × 3900 mm - Blow unit weight: 7600 kg; Extrusion group weight: 6400 kg Pjdpfx Aljyhbt Hjcerc - Noise level at operator station: < 85 dB(A) Advanced Automation & Control Systems - Hydraulic wall thickness programming for precise parison control, optimizing weight distribution and upper load capacity for 10 L containers. - Dedicated Uniloy command and control software (version code available in manuals) with operator interface for setpoint management and diagnostics. - Integrated temperature control via six extruder zones and heated head for stable processing at up to 300°C transformation temperature. - Interlocked safety guards and emergency stop switches for safe operation. Capacities for Integration into Production Line

Būklė: labai geros būklės (naudotas), Acemal vaflių gamybos linija. Sudaryta iš tešlos dalytuvo, kildinimo kameros, karštos plokštės krosnies ir aušinimo spiralės. Nauja įsigyta 2015 m., beveik nenaudota. Nuo 2 000 Liège vaflių per valandą. Prsdpfx Alexnqtzococ

Būklė: beveik kaip naujas (naudotas), Gamybos metai: 2017, Funkcionalumas: visiškai funkcionalus, veikimo valandos: 11 700 h, galia: 8,9 kW (12,10 AG), X ašies eiga: 700 mm, Y ašies eiga: 400 mm, Z ašies eigos atstumas: 300 mm, veleno greitis (maks.): 27 000 aps./min, The machine is used for fine machining of smaller parts. (Aluminium, steel) Podpfoq N Ayfjx Alcerc

Būklė: labai geros būklės (naudotas), Gamybos metai: 2022, veikimo valandos: 1 400 h, Funkcionalumas: visiškai funkcionalus, tekėjimo ilgis: 1 350 mm, tekėjimo skersmuo: 550 mm, ašies variklio galia: 48 W, veleno greitis (maks.): 3 000 aps./min, veleno skylė: 95 mm, X ašies eiga: 380 mm, Y ašies eiga: 140 mm, Z ašies eigos atstumas: 1 350 mm, veleno nosis: A2-11, 12 įrankių laikiklis Prodpszzb Amefx Alcec Sukamųjų įrankių greitis: 12 000 aps./min. Įrankių matavimo ranka Metalinių drožlių konvejeris Aukšto slėgio siurblys, 15 bar Atraminė įvorė „Autoblok SLU3.1“ Gręžtuvo griebtuvas, skersmuo 315 mm Automatinio staklės įrengimo sąsaja Įrankių laikiklių komplektas

Būklė: naujas, Pilnai kapitališkai suremontuota mašina Kaina: 6.000 EUR Predpfxjx N Edts Alcsc Spiralinė maišyklė Talpa: 75 kg miltų Kemper Tešlos talpa: 120 kg Nerūdijančio plieno dubuo Įtampa: 380V / 50Hz / 3 N/PE

Būklė: naujas, Gamybos metai: 2021, Laser power: 6000W / 12000W / 20000W Predpog A N Scsfx Alcoc Applicable material: Metal Condition: New Laser type: Fiber laser Cutting area: 3000*1500mm Cutting speed: 200m/min Supported graphic formats: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT Cooling method: WATER COOLING Certification: CCC, CE, GS, ISO, SGS Laser source brand: IPG/MAX Weight (kg): 11,000kg Warranty: 3 years Power supply: 110V/220V/380V 50Hz/60Hz 1. Flagship Series Super-dynamic response, easy handling of complex sheet patterns. 2. Automatic Edge Detection Capable of identifying irregular sheets, reducing edge detection time to 3 seconds. 3. Automatic Nozzle Changer The machine changes its nozzle in as little as 35 seconds at maximum speed—saving 50% on time costs.

Būklė: naudotas, Funkcionalumas: visiškai funkcionalus, Gamybos metai: 2007, veikimo valandos: 22 372 h, lazero valandos: 11 345 h, lazerio galia: 4 000 W, plieno lakšto storis (maks.): 20 mm, aliuminio lakšto storis (maks.): 8 mm, bendras svoris: 16 000 kg, bendras ilgis: 11 600 mm, bendras plotis: 5 200 mm, bendras aukštis: 2 200 mm, darbo diapazonas: 40 002 000 mm, Įranga: aušinimo blokas, Standard equipment: • Enclosed machine frame with integrated laser unit • Laser unit: CO₂ laser TruFlow 2000, high-frequency excited, maintenance-free turbo radial blower, mirror telescope, cooling unit, logbook function • Automatic pallet changer • Longitudinal conveyor belt for small parts/waste • Drive: Maintenance-free three-phase servo motors • Quick-change cutting head system Laser cutting head with 5" lens and laser cutting head with 7.5" lens • Programmable cutting gas pressure control • ControlLine capacitive height regulation and process control • Automatic focus adjustment FocusLinePlus • Laser power control • Positioning laser • NitroLine high-pressure cutting Prodpfx Aov Sm Rujlcsc • High-speed processing with SprintLine • Automatic production of small holes • PlasmaLine plasma sensor technology • Automatic sheet metal and edge detection • Programmable power cycles • Microweld • Spray device for safe thick sheet processing • Automatic air blow-off device • Residual heat extraction • Control Sinumerik 840D: Open PC-based control, simple operation, online help, integrated e-shop, diagnostic functions, maintenance logbook, technology data, teleservice • Workshop programming with TruTops Laser lite Safety: • Multibeam light barriers, fully encapsulated and ventilated beam guidance, monitoring system, multi-chamber extraction and compact dust collector, safety cabin • Network connection RJ45 via teleservice installation • 3.5" floppy disk drive • TFT color display Higher-performance lasers: • TruFlow 4000, incl. NitroLine Plus, beam path ventilation with nitrogen and lens monitoring sensors Extended machine equipment: • PierceLine Process Control System • Total of 2 auxiliary machine pallets, steel slats • Crane-liftable traverse for manual pallet handling • Compressed air cutting
