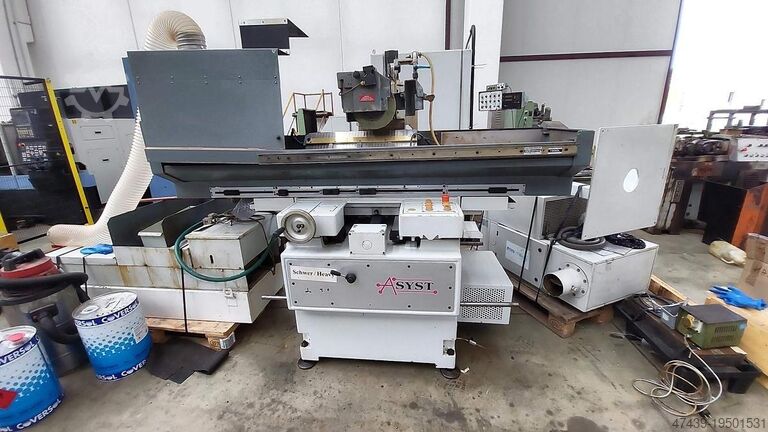

Asyst PNC100

Asyst PNC100

Sąlyga: geras (naudotas), Gamybos metai: 2001, šlifavimo ilgis: 650 mm, šlifavimo plotis: 525 mm, bendras aukštis: 350 mm, stalo ilgis: 600 mm, stalo plotis: 350 mm, Manufacturer: Geibel & Hotz Model: FS 635-Z SA Control: Digital readout Year of manufacture: 2001 Magnetic table 600 x 350 mm Enclosed housing for CE compliance Vertical automatic feed (SA) Automatic lubrication Coolant tank Specifications Metric / US Standard X-axis travel: 650 mm Y-axis travel: 525 mm Z-axis travel: 350 mm Table length: 600 mm Table width: 350 mm Table load capacity: 400 kg X-axis feed rate: 35,000 mm/min Z-axis feed rate: 1,000 mm/min Grinding wheel dimensions: 300 x 50 x 76.2 mm Power: 3.7 kW Speed: 2,800 rpm Dimensions (approximate) Redpfx Ahevdal Ao Hsbt Length: 3,200 mm Width: 2,000 mm Height: 2,870 mm Weight: 2,300 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. As such, this does not constitute representation or contractual terms. We recommend verifying all critical details.

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2001, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 930088, Country of Manufacture: CH Voltage: 400V / 50/60Hz / 3ph. Net Weight (machine + cabinet): 3250 kg + 400 kg Customs Tariff Number: 8456.30 20 Dimensions: 260x281x225 cm TECHNICAL SPECIFICATIONS Machining Type: immersion Maximum workpiece dimensions: 1200x700x400 mm Maximum workpiece weight: 1500 kg Table size: 900x600 mm Floor to table distance: 900 mm Total dielectric volume: 1200 L X, Y, Z, U, and V axes X, Y, Z travels: 550 x 350 x 400 mm U, V travels: 550 x 350 mm Anti-collision protection: X, Y, U, V, Z axes Rbedpfx Ahow Ucyue Hot Taper machining, max. cone: +/- 30° / 400 mm Available wire diameters: Ø 0.25 mm (option 0.1/0.2/0.3 mm) Wire guide type: closed diamond, gapless Available spool weight and type (DIN standard): 1.6 kg (K 100) to 8 kg (K 160) Available spool weight and type (JIS standard): 3 kg (P3) to 5 kg (P5) Dielectric Paper filters: 2 cartridges Dielectric temperature: +/- 1°C Total deionization resin volume: 20 L Maximum injection pressure: 20 bar Generator: double Isopulse source Power supply: 380/400V 3-phase Total power: 10 KVA Maximum cutting speed: 400 mm²/min Minimum surface roughness: 0.20 micron Ra Measuring system: glass linear scales Measuring resolution: 0.5 micron Servomotors: AC type All technical data provided without liability for errors or omissions.

Sąlyga: naudotas, Puodo formos plokščių šlifavimo staklės / Cilindrinių galvučių šlifavimo staklės Maksimali šlifavimo sritis apie 550 x 250 mm Redpfjwlbz Tox Ah Hsbt Elektromagnetinė tvirtinimo plokštė 500 x 200 mm Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Sąlyga: paruoštas naudoti (naudotas), Travel distances X/Y/Z/U/V: 400mm/250mm/400mm/400mm/250mm, max. workpiece dimensions X/Y/Z: 850mm/500mm/400mm, wire diameter: 0.1mm–0.3mm, max. table load: 1000kg, power requirement: 10kVA. Machine dimensions X/Y/Z: approx. 1800mm/1600mm/2230mm, weight: approx. 2800kg. An on-site inspection is possible. Rbodpfx Ahjuqacke Hst

Sąlyga: naudotas, Gamybos metai: 1969, Grinding length 500 mm Grinding width 200 mm Workpiece height 250 mm Total required power 5.5 kW Machine weight approx. 2500 kg Space requirements approx. m Rsdjt Hwzijpfx Ah Hebt J U N G Horizontal Precision Surface and Profile Grinding Machine Model HF 50 RD Year of manufacture approx. 1969 Machine No. 4082 _____ Maximum grinding length 500 mm Maximum grinding width 200 mm Table size 600 x 200 mm Table speed 1 – 20 m/min Working height under grinding wheel approx. 350 mm Grinding wheel size 225 x 25 x 51 mm Grinding wheel speed, infinitely variable 1,000 - 4,500 rpm Vertical infeed 0.001 - 0.01 mm/stroke Grinding spindle drive, continuously adjustable 0.5 to 1.5 kW Total drive power approx. 6 kW - 380 V – 50 Hz Weight approx. 2,500 kg Accessories / Special Equipment • This version, due to the infinitely variable speed range, is particularly suitable for grinding high-alloy tool steels. • Automatic infeed of the grinding carriage for surface and profile grinding operations with automatic infeed shut-off via dial indicator, as well as with dial indicator holder and dial indicator for height control. • Machine can be set for standard grinding operations with and without infeed, either with continuous cross movement or with table reversal, or for plunge grinding operations without cross adjustment. • Manual straight dresser mounted above the grinding wheel • Mounted permanent magnetic chuck approx. 400 x 200 mm, tiltable • Separately standing wet grinding unit with coolant tank and belt filter • Separate converter cabinet for infinitely variable speed regulation and display of cutting speed. • Approx. 3 flanges with and without grinding wheels, rapid grinding head traverse, Condition : good – ready for demonstration under power, partially overhauled by specialized company (piston rods, lubrication, infeed, dresser, bellows, etc.) Delivery : ex stock – as inspected Payment : strictly net – upon receipt of invoice

Sąlyga: geras (naudotas), Gamybos metai: 1992, 1 used surface grinding machine Manufacturer: ELB Model: SUPER - RUBIN 024 CNC Year of manufacture: 1992 Travel ranges: Grinding length: 600 mm Grinding width: 275 mm Grinding height: 375 mm Clamping area of table: 900 x 300 mm Table load capacity: 300 kg Vertical feed: max. 300 mm/min Rjdpfx Asi Ra Tysh Hsbt Cross feed: max. 2,000 mm/min Control system: UNICON Included in delivery: grinding wheels as shown in the photos.

Sąlyga: naudotas, Gamybos metai: 2003, Die-sinking EDM machines Travel X: 350 mm Travel Y: 250 mm Travel Z: 300 mm Table size X: 500 mm Table size Y: 400 mm Max. workpiece dimensions X: 780 mm Max. workpiece dimensions Y: 530 mm Max. workpiece dimensions Z: 300 mm Rsdpfx Aevyzf Njh Hobt Max. electrode weight: 50 kg Max. workpiece weight: 500 kg Electrode changer: 4-fold Generator: 64 amps Lowerable tank Control: Charmilles

Sąlyga: naudotas, Gamybos metai: 1982, Grinding length: 500 mm Grinding width: 225 mm Rbjdpfx Aocxxtmeh Hst Workpiece height: 400 mm Total power requirement: 5.5 kW Machine weight approx.: 3.4 t with NC control NC81, table toothed belt drive 100-25000 mm/min, automatic feed, electronic straight dressing with speed compensation, coolant pump, emergency stop safety device

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2013, veikimo valandos: 250 h, Šlifavimo staklės Stähli FLM 750 Gamintojas: Stähli Läpp Technik AG Tipas: FLM 750 Pagaminimo metai: 2013 Įtampa/dažnis: 3x400V + N + PE / 50Hz Galia: 11,5 kW Maksimali srovė: 25 A Svoris: 2500 kg Sukamojo stalo skersmuo: 750 mm Išlyginamojo žiedo vidinis skersmuo: 300 mm Sukimosi greitis: 6–75 sūkių/min Pavaros galia: 4,0 kW Pneumatiniai cilindrai: 3 vnt. Rsdpfxexpnnxe Ah Hobt Suspausto oro tiekimas: 6–10 bar Matmenys: 1700 x 1250 x 2200 mm Triukšmo lygis:

Sąlyga: naujas, Vollautomatische Inline-Maschine für das stabile und präzise Stapeln von Paletten. Die PSR ist benutzerfreundlich und lässt sich einfach auf verschiedene Palettengrößen einstellen. Die Maschine stapelt Paletten sicher und exakt in Lagen, die bereit zum Verladen oder zur Lagerung sind. Die PSR wird am Ende einer Produktionslinie eingesetzt. Funktionsweise: Die PSR hebt den Stapel mit zwei Hubarmen an, während ein Kettenförderer eine neue Palette oder ein Deck unter den Stapel befördert. Die Einstellungen für unterschiedliche Palettengrößen lassen sich ganz einfach per Knopfdruck anpassen. Mychrome bietet verschiedene Zusatzmaschinen an, die unkompliziert an bestehende Anlagen angedockt werden können. So lässt sich die Linie beliebig verlängern und weitere Prozessschritte automatisieren. Anpassungen an Design und Größe der Paletten sind auch mit der Zusatztechnik weiterhin möglich. Deck-/Palettenmaße: Min./Max. Länge: 600 mm – 1.600 mm Min./Max. Breite: 600 mm – 1.600 mm Technische Daten: Bedienpersonal | 0 Länge | 3,3 m Rbedpfjwduv Iex Ah Hot Breite | 2,5 m (ohne Plattformleiter) Höhe | 2,3 m Leistung | 3 kW, 3x400 V+N Pneumatik | 7 bar, getrocknete Druckluft: 200 l/min Maschinenleistung | 4 Paletten oder Decks/Minute Standardausstattung | Motorisierte Verstellungen
