Perdavimo staklės, specialioji apvali staklės

Steinel BE 10 VK Steienel Bohreinheiten

Manufacturer: Steinel
Model: 8 Stations
Drilling Units: Type Steinel BE 10 VK
Year of Manufacture: 1971
Weight: approx. 4,500 kg

General / Technical Data:

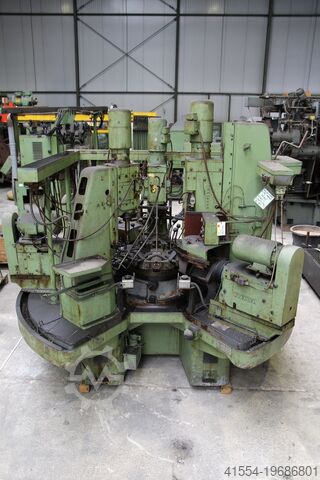

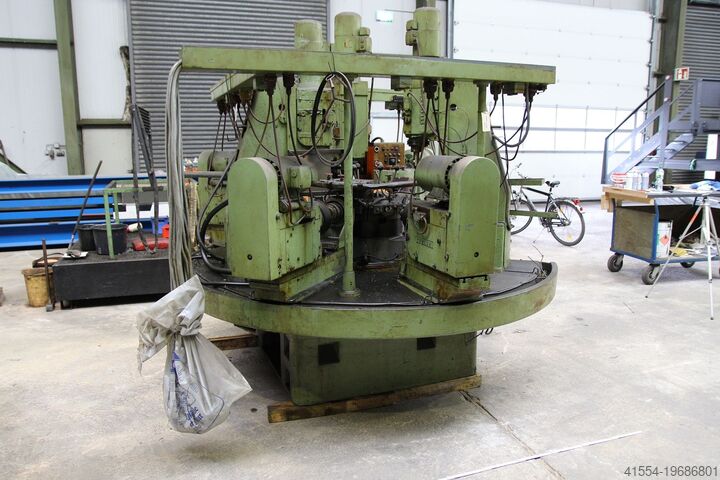

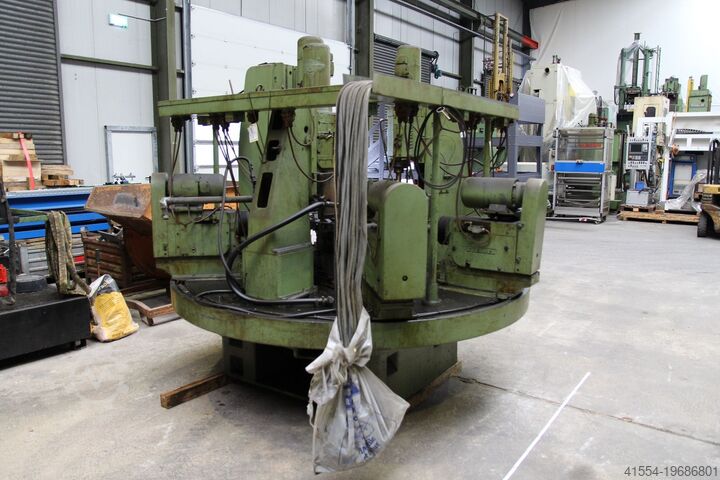

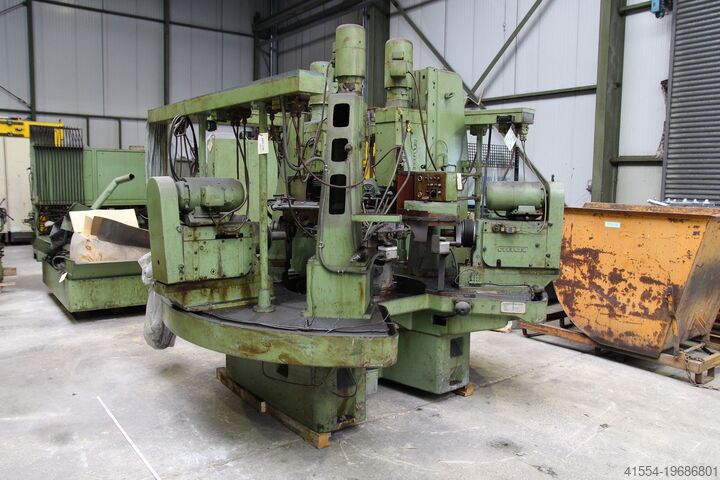

8-station rotary indexing special drilling machine for vertical and horizontal drilling in workpieces, featuring manual collet clamping.
Drilling Units: 7 units

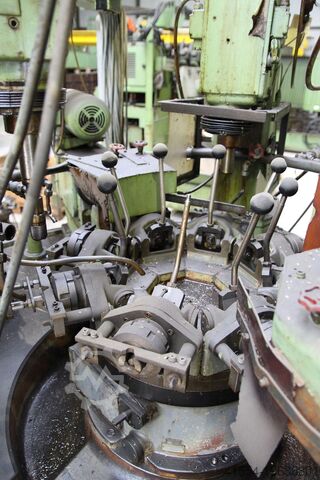

Station 1 – Loading and Unloading
Station 2 – Horizontal drilling unit, Type: BE VK, Power: 2.2/3 kW, Holder: sleeve Ø 36 mm
Station 3 – Vertical drilling unit, Type: BE VK, Holder for collets
Station 4 – Horizontal drilling unit, Type: BE VK, Holder: sleeve Ø 36 mm
Station 5 – Vertical spindle unit, Type: BE VK, Holder: sleeve Ø 28 mm
Station 6 – Horizontal drilling unit, Type: BE VK with additional guide, Holder: sleeve Ø 28 mm
Station 7 – Horizontal drilling unit, Type: BE VK, Power: 2.2/3 kW, Holder: sleeve Ø 36 mm
Station 8 – Vertical spindle unit, Type: BE VK, Power: 2.2/3 kW, Holder: sleeve Ø 28 mm
Drilling units feed: mechanical feed via quill
Indexing table: mechanically indexing, 8 positions, Ø 500 mm
Workpiece clamping: manually actuated collet, Ø 45 mm
Machine dimensions (W x D x H): approx. 2,600 mm x 2,400 mm x 2,500 mm
Power supply / Connected load: 380 V, 50 Hz

Accessories / Special Features:
• Designed for large-scale series production
• Equipped with a robust cast machine table, chip discharge to the rear, and a separate large coolant tank
• Extensive range of clamping and auxiliary tools
• Mechanically switched 8-station rotary indexing table
• Coolant system with chip tray
Chsdew E Hpvepfx Ahvjc
• Very stable machine bed; ideally suited for the rebuild of a special-purpose machine as well
