60 000 litrų šildomas/aušinamas V2A slėginis indas

Schleifenbaum & Weber 9080

GENERAL
Equipment: Crane lugs
Design: vertical
Remarks: Manhole cylinder NW 600; small sheet metal cutouts in the insulation jacket
External diameter: 3,200 mm
Internal diameter: 3,000 mm
Overall length: 12,300 mm
Heating/Cooling: available
Insulation: available
Max. permissible operating temperature: 250°C
Max. permissible operating overpressure: 6.0 bar
Max. overpressure: 1.5 bar
Mounting type: feet
Location: Bremen
Technical documentation: drawing
Nameplate:
Vacuum: 0.2 bar
Volume: 60,000 litres
Double jacket volume: 105.0 litres
Cylinder wall thickness: 5 mm
Lhjdpfxexqb Rvj Af Ieb
Product-contact material: V2A 1.4541 (AISI321)
Condition: used
Cylindrical height: 9,000 mm
Last application: rapeseed oil

VESSEL
Max. permissible operating temperature: 200°C
Number of feet: 4

HEATING/COOLING JACKET
Base temperature control: half-pipe coil

INSULATION
Insulation jacket: bolted
Insulation material: mineral wool
Insulation jacket material: aluminium

EQUIPMENT
Manhole / Dome: on cylinder, top head, top head (DN 600)

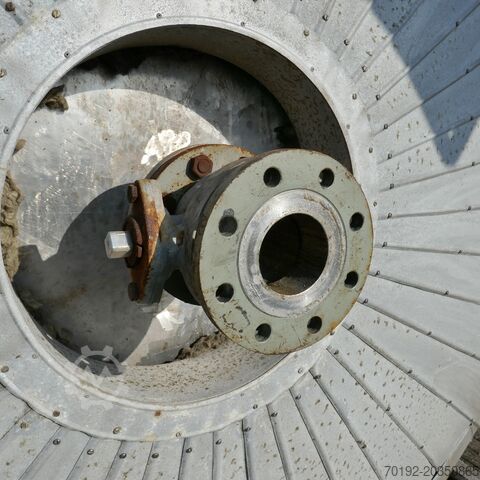

Outlet: flange DN80

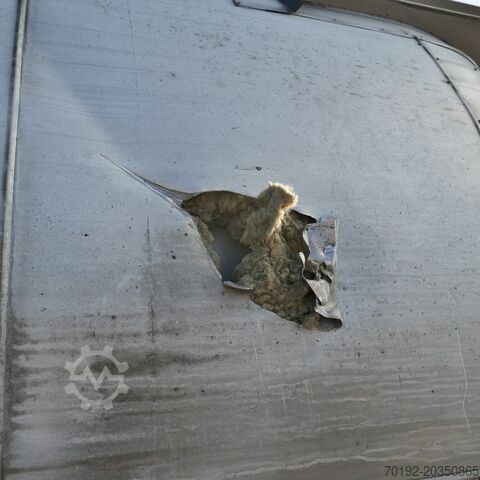

Note: Dents on insulation jacket, manhole cover plated

MATERIAL SPECIFICATION
Temperature control system material: V2A 1.4301 (AISI304)
Feet material: steel

TECHNICAL DATA / DIMENSIONS
Base wall thickness: 10 mm
Top head wall thickness: 7 mm
