Vamzdžių šlifavimo staklės

Rohrschleifmaschine Eigenbau

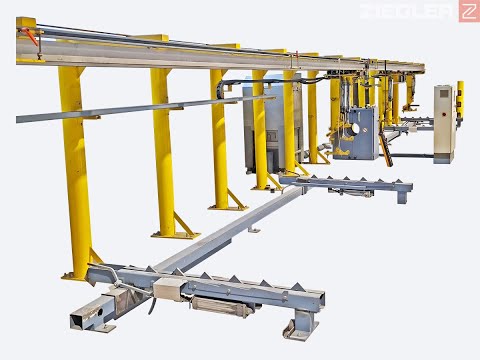

Pipe Grinding Machine – Custom-Built

- Pipe grinding machine with CE marking
- Suitable for grinding and surface preparation of various pipes
- Previously used for the surface pretreatment of galvanized steel pipes prior to painting
- Can be modified for other materials (using different sanding belts and possibly adjustments to the feed system)
- Control system: Mitsubishi
- Automatic feeding and discharge from the machine
- Multiple pipes can be loaded, processed sequentially, and temporarily stored after discharge
- Pipes are picked up by a gripper and conveyed through the machine to the discharge point
- Includes Felder RL125 extraction unit for collecting grinding dust
- Compressed air required for operation
- Machine is sold without safety devices
- Year of manufacture: 2011

Technical Data

- Min. pipe diameter: 76 mm
- Max. pipe diameter: 200 mm
- Min. pipe length: 3,600 mm
- Max. pipe length: 10,000 mm
- Connected load, grinding machine: 6.75 kW
- Connected load, extraction system: 3 kW
Fjdjx E T Swopfx Admsgk
- Footprint (without extraction unit): 2,500 x 20,500 mm
