Nenaudota 150 l mobili farmacinė processo talpa, šildoma/vėsinama, Aisi 316 su magnetiniu maišytuvu
Raff & Grund 9889

Name: Raff & Grund 9889
Brand: Raff & Grund
Price: 23900 EUR
Availability: InStock

EXW Pradinė kaina neįskaitant PVM

23 900 €

Gamybos metai

2021

Sąlyga

Naudotas

Vieta

Bremen

Nenaudota 150 l mobili farmacinė processo talpa, šildoma/vėsinama, Aisi 316 su magnetiniu maišytuvu Raff & Grund 9889

Rodyti žemėlapį

Duomenys apie mašiną

Įrenginio aprašas:: Nenaudota 150 l mobili farmacinė processo talpa, šildoma/vėsinama, Aisi 316 su magnetiniu maišytuvu

Gamintojas:: Raff & Grund

Modelis:: 9889

Gamybos metai:: 2021

Sąlyga:: naudotas

Kaina ir vieta

EXW Pradinė kaina neįskaitant PVM

23 900 €

Vieta:: Bremen

Skambinti

Techniniai duomenys

Bakelio talpa:: 150 l

Pasiūlymo informacija

Sąrašo ID:: A20349185

Nuorodos Nr.:: 9889

Naujinta paskutinį kartą:: Data 2025.10.22

Aprašymas

Location: Bremen
Condition: unused
Volume: 150 liters
Vacuum: 1.0 bar
Max. overpressure: 3.0 bar
Tank

Max. operating temperature vessel / °C: 95 °C

Top cover: removable/hinged top cover
Kjdpfx Acjxqakbsujnc
Design: upright
Tank

Mounting: mobile on castors
Number of legs: 4 pcs

Heating/Cooling: available
Double jacket volume: 11.0 liters
Max. permissible operating overpressure: 6.0 bar
Heating/Cooling Jacket

Max. permissible operating vacuum (double jacket/piping): 1.0 bar

Max. permissible operating temperature: 95 °C
Cylinder temperature control: double jacket
Heating/Cooling Jacket

Bottom temperature control: double jacket

Insulation: available
Insulation

Insulation jacket: hermetically welded
Material insulation jacket: stainless steel

Internal diameter: 490 mm
External diameter: 550 mm
Cylindrical height: 630 mm
Overall height: 1,750 mm
Technical data / Dimensions

Bottom wall thickness: 4 mm

Cylinder wall thickness: 5 mm
Technical data / Dimensions

Top cover wall thickness: 6 mm

Year of manufacture: 2021
Technical documents: Drawing, various documents, acceptance certificate, CE marking and declaration of conformity
Nameplate:

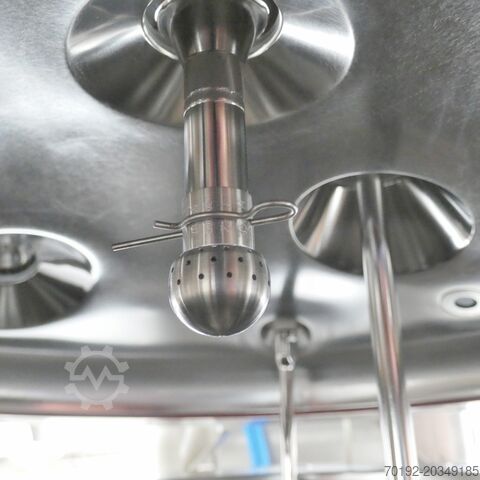

Equipment: spray head, control cabinet (without guarantee)
Equipment

Outlet (alternative input): 25 mm

Remarks: Vessel was only tested for validation purposes; technical documents have been ordered from the manufacturer but have not yet arrived; plastic castors for the legs were removed for shipping and are included loose (see photos)
Product contact material: V4A 1.4401/04 (AISI316)
Material specification

Temperature control system material: V2A 1.4301 (AISI304)
Leg material: stainless steel

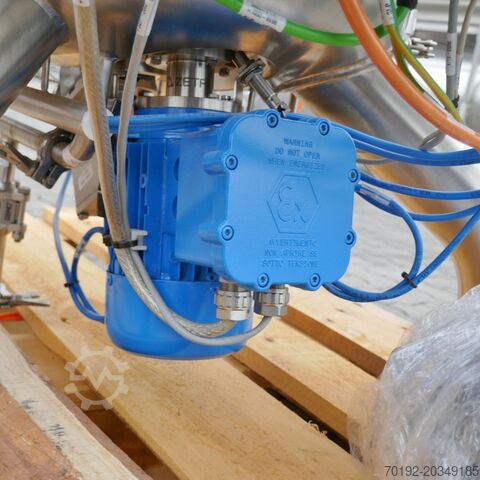

Agitator

Agitator manufacturer: Zeta GmbH

Power: 0.09 KW
Speed: 125 - 800 rpm

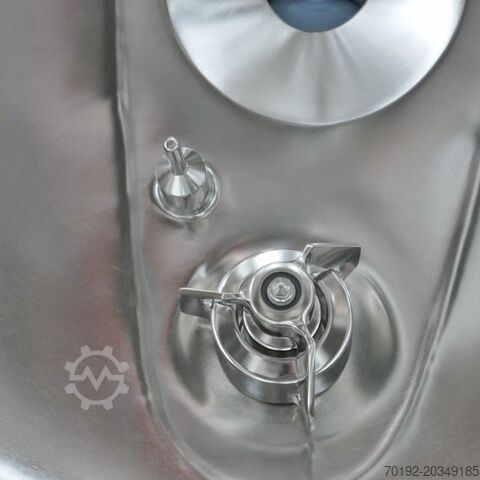

Agitator: magnetic stirrer
Agitator

Voltage: 230/400 Volt

Explosion-proof: Motor is explosion-proof (compliance with current ATEX guidelines under local conditions must be verified)
Agitator

Agitator arrangement: bottom entered

Skelbimas verčiamas automatiškai, todėl jame gali būtų vertimo klaidų.
