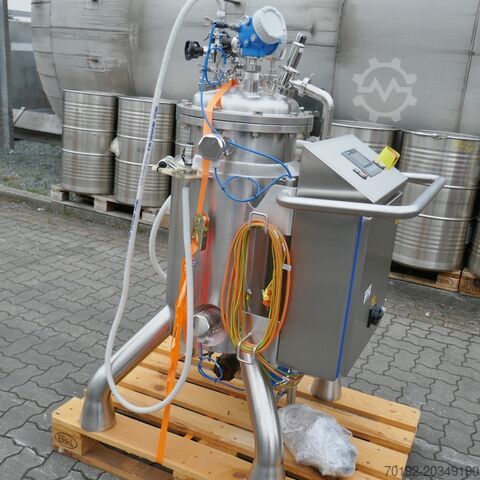

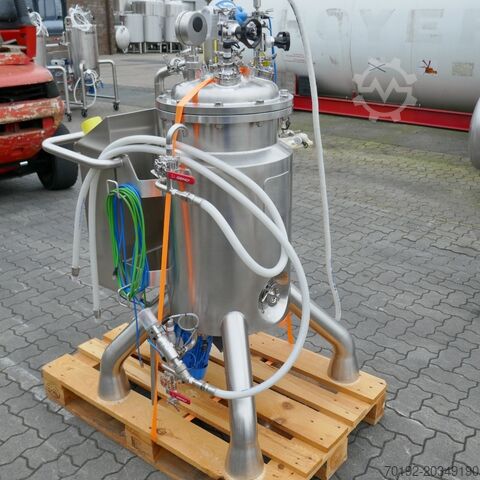

Nenaudotas 80 litrų mobilus šildomas/šaldomas farmacinis procesų rezervuaras iš V4A su magnetiniu ma

Raff & Grund 9888

GENERAL

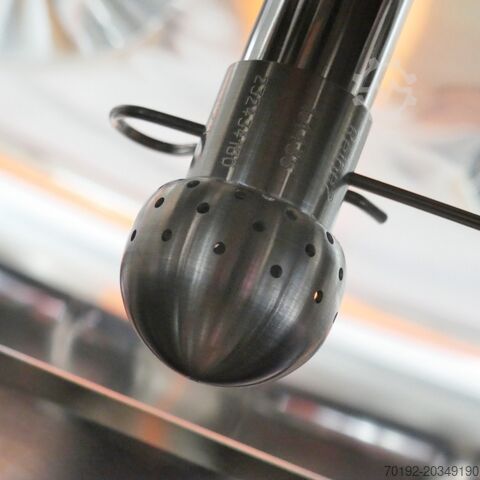

Equipment: Spray head, control cabinet (without guarantee)
Design: upright
Year of manufacture: 2021
Remarks: The tank was only tested for validation purposes; technical documentation has been ordered from the manufacturer but has not yet arrived; plastic castors on the feet were removed for shipping but are included loose (see photos)
Speed: 125 - 800 rpm
Outer diameter: 457 mm
Inner diameter: 357 mm
Explosion protection: Motor is explosion-proof (compliance with current ATEX directives under local conditions must be checked)
Overall height: 1,650 mm
Heating/cooling: available
Insulation: available
Power: 0.09 kW
Max. permitted operating temperature: 95 °C
Max. permitted operating overpressure: 6.0 bar
Max. overpressure: 3.0 bar
Top lid: bolted cover
Dcsdoxqakhjpfx Admer

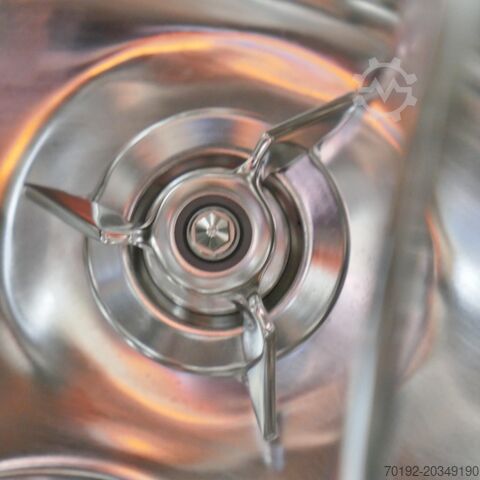

Agitator: magnetic stirrer
Base design: mobile on castors
Location: Bremen
Technical documentation: drawing, various documents, test certificate, CE marking and declaration of conformity
Cylinder temperature control: double jacket

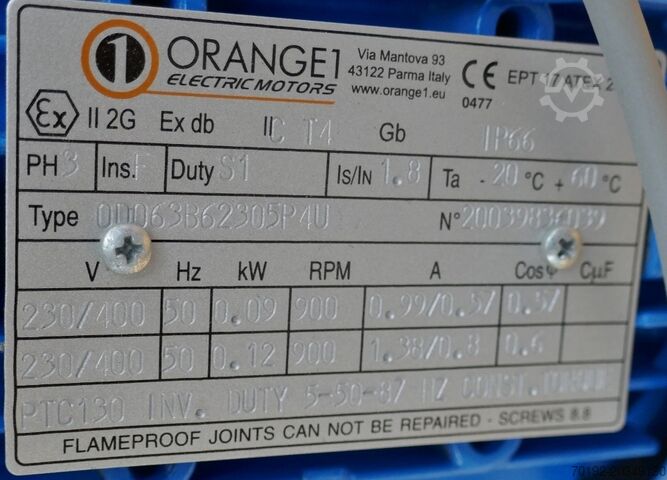

Nameplate:
Vacuum: 1.0 bar
Volume: 80 litres
Double jacket volume: 16.0 litres
Cylinder wall thickness: 3.4 mm
Product-contact material: V4A 1.4401/04 (AISI316)
Condition: unused

TANK
Max. permitted operating temperature: 95 °C
Number of feet: 4 pcs

HEATING/COOLING JACKET
Max. permitted operating vacuum: 1.0 bar

INSULATION
Insulation jacket: hermetically welded
Insulation jacket material: stainless steel

EQUIPMENT
Outlet: 25 mm

MATERIAL SPECIFICATION
Temperature control system material: V2A 1.4301 (AISI304)
Foot material: stainless steel

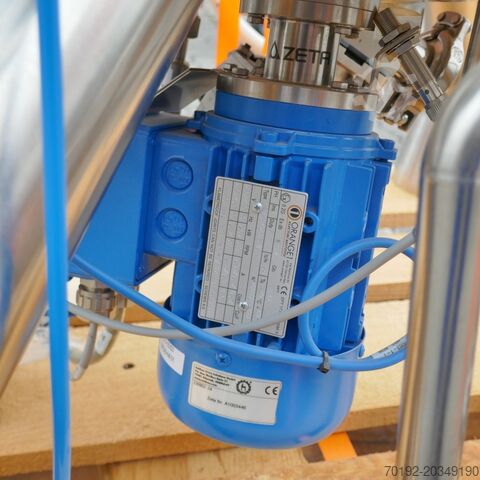

AGITATOR 1
Agitator manufacturer: Zeta GmbH
Rated voltage: 230/400 Volt

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 3 mm
Agitator arrangement: bottom-mounted
