Tekinimo frezavimo centras

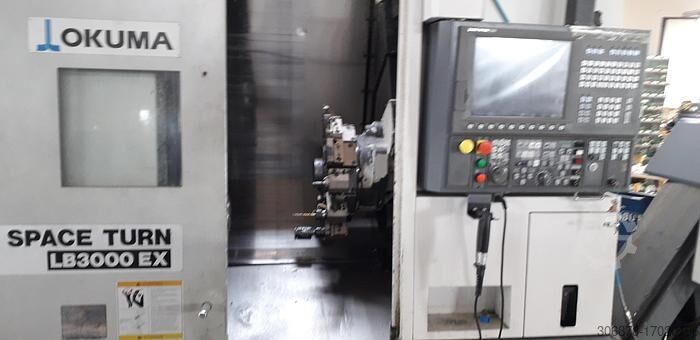

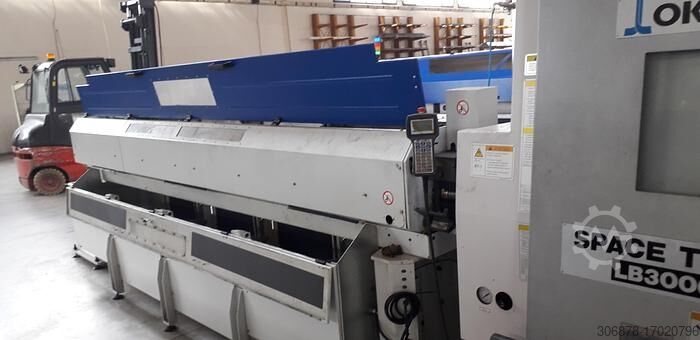

Okuma LB 3000 EX

Gamybos metai: 2008, Sąlyga: naudotas,

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2016, Turning-milling center Takisawa TMM 250 3, year 2016, Fanuc Turning length: 1300 mm Turning diameter: 350 mm Max. spindle speed: 4000 rpm 9 axes 2 x spindles 2 x C-axis Swing diameter: 780 mm Max. turning diameter: 350 mm Max. turning length: 1,300 mm Chuck diameter left: 250 mm Chuck diameter right: 200 mm Upper tool turret with Y-axis (260 mm travel) and B-axis (230° / +/- 115°) Complete with 30-station tool changer Lower tool turret: 15-position turret – all positions driven Full simultaneous 5-axis machining with turning/milling support. Tool changer with 30 tool stations Workpiece magazine, right side of the machine, with gantry handling Driven tools on the turret. C-axis for left and right spindle Chip conveyor Iedert Ip Nspfx Abkjbf Internal coolant supply through milling spindle, 20 bar Due to high administrative expense (customs regulations), we do not deliver to Turkey, Iran, Russia, or Belarus.

Sąlyga: geras (naudotas), Gamybos metai: 2012,

Gamybos metai: 2022, Sąlyga: paruoštas naudoti (naudotas), Bendrieji duomenys Mašinos svoris: 6850 kg Valdymo blokas Prekės ženklas: OKUMA Modelis: OSP-P300LA Pagrindinis pavara Velenų skaičius: 2 Veleno anga: 120 mm Ašių skaičius: 5 Judesiai X ašies eiga: 260 mm Y ašies eiga: 115 mm Ibodpfx Abex D Rvnoksf W ašies eiga: 895 mm Ruošinys Ruošinio skersmuo virš lovos: 580 mm Ruošinio skersmuo virš atramos: 470 mm Revolverinė galvutė Sukamieji įrankiai: Taip Ši 3 ašių Okuma LB 3000 EX II pagaminta 2022 metais, pasižymi tvirta horizontalio sukimo funkcija. Komplektuojama su Iemca KID 80 štangos padavėju, 250 mm SMW griebtuvu ir 170 mm Kitagawa griebtuvu. Pagrindinis veleno variklio galingumas - 22 kW, sukimosi greitis siekia iki 6000 aps./min., tad įranga užtikrina efektyvias tekinimo operacijas. Jei ieškote aukštos kokybės tekinimo galimybių, siūlome apsvarstyti mūsų turimą Okuma LB 3000 EX II įrenginį. Susisiekite dėl detalesnės informacijos. Pritaikymo sritys Tekinimas

Sąlyga: naudotas, Gamybos metai: 2010, Technical details: X-axis travel: 800 mm Y-axis travel: 685 mm Z-axis travel: 630 mm C-axis: 360° (faceplate table) Control: Siemens 840D Power Line Spindle speed: 20 - 10,500 rpm Spindle torque: 180 Nm Tool holder: HSK-A63 DIN 69893 Tool magazine with: 40 positions Number of tables: 2 Table swivel range +/-: 120° each (A-axis) Table clamping surface: 280 x 275 mm Table load capacity: 320 kg Interface: RS232 Spindle operating hours: 38,700 h Total power requirement: 37 kW Machine dimensions approx. LxWxH: 4.0 x 4.4 x 3.0 m Chip conveyor dimensions LxWxH: 2.1 x 1.05 x 1.5 m Coolant system dimensions LxWxH: 1.3 x 1.6 x 1.95 m CNC machining center – 5-axis machining center Clamping table for 4th and 5th axis (swivel range 120° right/left, rotation speed 50 rpm, and rotary operation with faceplate Ø 280 mm / 200 rpm) Max. workpiece size: 940 x 650 mm for/on table With chip conveyor, manufacturer Knoll, model 750 K-1/150; year 2009 Coolant system Bürener with paper band filter, band width 700 mm; year 2009 Both switch cabinets equipped with Rittal chiller A range of accessories, such as various clamping fixtures (manufacturers HILMA and Chick, among others), can be offered separately. In good condition. Ibodju Idgpspfx Abkjf *

Sąlyga: geras (naudotas), Gamybos metai: 2007, tekėjimo ilgis: 1 065 mm, tekėjimo skersmuo: 470 mm, Chip conveyor SMW 315 3-jaw chuck 2 x radial live tool holders 2 x axial live tool holders Spindle bore: 80 mm Ibodpfx Ajwq Rpwebkjf BMT tooling system Tool measuring probe Spindle hours: 6,960 / 6,270 operating hours Max. turning diameter: 470 mm X-axis travel: 260 mm Z-axis travel: 1,065 mm Spindle bore: 80 mm Spindle speed: 4,200 rpm Spindle power: 30 kW Tool changer: 12-station BMT tool system Driven tool speed: 6,000 rpm Driven tool power: 7.1 kW Length: 3,310 mm Width: 1,900 mm Height: 1,970 mm Weight: 6,100 kg

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2019, veikimo valandos: 2 044 h, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 223697, tekėjimo ilgis: 950 mm, tekėjimo skersmuo: 340 mm, X ašies eiga: 260 mm, Y ašies eiga: 120 mm, Z ašies eigos atstumas: 1 010 mm, sukimosi greitis (maks.): 5 000 aps./min, Machine with Big-Bore Spindle TECHNICAL DETAILS Spindle speed: 45 to 4,200 rpm Spindle motor: 30/22 kW Spindle mount: JIS A2-8 Spindle bore: ø91 mm Axes and Travels Turning length: 950 mm Turning diameter: 340 mm C-axis control: 360° at 0.001° increments X-axis travel: 260 mm Y-axis travel: 120 mm; +70 mm / −50 mm Z-axis travel: 1,010 mm Tool Turret Turret type: V12, radial, for L and M tools Tool holder mount: VDI Speed: 45 to 6,000 rpm Live tool motor: VAC 7.1/4.1 kW Control CNC control: OSP-P300LA with 15" touchscreen Pitch error compensation: for X/Y/Z axes Workpiece ejection detection: available Smart Interface: included API Library 2: enabled Virus Protection System - OSP-VPS: available Software Features One Touch IGF Advanced M-E Kit: standard Optional IGF Advanced M-D Kit: available Multitasking coordinate transformation: available Profile generation: available Cycle time monitoring and reduction: available Hi-Cut Pro: available Load monitoring, spindle & feed axes: available NC operation monitoring: available Spindle speed control: variable Y-axis turning: available Ibjdpfx Ajwnqdiobkof Helical milling for MY machine: X/Y plane, Y/Z plane Cooling and Lubrication Coolant pump: 0.25 kW Coolant tank: L-type, replacing I-type High-pressure coolant pump: 0.8 kW Lubrication monitoring: A-1 incl. hydraulic pressure monitoring Dimensions and Construction CE marking and EMC: available IEC compliance: available Power supply CE-compliant: adapted to local standards Guideway extension for steady rest: available TAS-C: available Chip and Coolant Management Chip pan: side discharge Chip conveyor H-type: side, CE-compliant Fully enclosed splash protection: available MACHINE DETAILS Height: 2,444 mm Footprint: 3,420 x 2,041 mm Weight: 6,600 kg

Sąlyga: naudotas, Gamybos metai: 2017, tekėjimo skersmuo: 658 mm, valdiklių gamintojas: MAZATROL, valdiklio modelis: SMOOTH X, ašies skaičius: 2, CONTROL SYSTEM .. CNC Control: MAZATROL SMOOTH X FUNCTIONALITY .. Number of spindles: 2 .. Number of turrets: 1 TURNING WORKING AREA .. Max. turning diameter: 658 mm .. Max. bar machining diameter: 80 mm .. Max. workpiece length: 1519 mm MAIN SPINDLE .. Speed range up to: 4000 rpm .. Drive power: 30 kW .. C-axis: yes SUB SPINDLE .. Speed range up to: 4000 rpm .. Drive power: 26 kW .. C-axis: yes CROSS SLIDE .. Z-axis travel: 1585 mm .. X-axis travel: 615 mm Isdpfxsxu Ufze Abksbf .. Y-axis travel: 250 mm .. B-axis swivel range up to: 210 ° .. Rapid traverse Z: 50000 mm/min .. Rapid traverse X: 50000 mm/min .. Rapid traverse Y: 40000 mm/min CROSS SLIDE .. B-axis swivel range up to: 0.0001 ° .. Speed range up to: 12000 rpm .. Drive power: 24 kW TOOL MAGAZINE .. Number of tool positions: 72 .. Max. tool diameter: 90 mm .. - with adjacent station empty: 125 mm .. Max. tool length: 400 mm .. Max. tool weight: 12 kg DIMENSIONS / WEIGHTS .. Space requirement (left/right): 4910 mm .. Space requirement (front/back): 2800 mm .. Overall height: 2720 mm .. Total weight approx.: 16900 kg ADDITIONAL TURNING EQUIPMENT .. Hydraulic unit: yes .. CE compliant: yes

Gamybos metai: 2018, veikimo valandos: 1 256 h, Sąlyga: labai geros būklės (naudotas), Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 2189, OKUMA LB3000EX-II – Ideally suited for universal turning parts and complete machining of complex workpieces, thanks to its generously dimensioned flat-bed guideways and high-torque drives that ensure high precision and long-term accuracy. Ibjdpjnt T Auefx Abkjf TECHNICAL DETAILS Swing diameter over bed: 580 mm Machinable turning diameter: 340 mm Workpiece length: 950 mm Travel X / Z / Y: 230 / 510 / 120 (+70/-50) mm C axis: 360 / 0.001° Control system: OKUMA OSP-P300LA Rapid traverse X / Z / Y: 25 / 30 / 12.5 m/min Tailstock stroke: 1015 mm Spindle speed: 4200 rpm Spindle nose: JIS A2-8 Spindle bore: 91 mm Spindle bearing diameter: 140 mm Tool holder: M-V12 with 12 stations Tool size: 25 x 25 mm Tool diameter: 40 mm Tool change time: 0.1 s Tool speed: 45 – 6000 rpm Operating hours: 1,256 h Control power-on hours: 1,660 h MACHINE DETAILS Dimensions (L x W x H): 3420 x 2041 x 2444 mm Weight: 6,600 kg Connection voltage: 400 V, 3-phase, 50 Hz Rated power: 38.9 kVA Spindle power (30 min / continuous): 30 / 22 kW Spindle torque (30 min / continuous): 700 / 512 Nm Tool power (25 min / continuous): 7.1 / 4.1 kW Tool torque (25 min / continuous): 40.4 / 23.4 Nm Note: The WTOH gear hobbing tool holder (see attached document) is not included in the scope of supply.

Sąlyga: geras (naudotas), Gamybos metai: 2021, MAZAK Integrex i-250H ST SmoothAi, pagamintas 2021 m., HALTER užkrovimo portalas su robotu, BREUNING-IRCO ILS-MUK strypo padavėjas, pagrindinis verpstė 8", priekinė verpstė 8", apdirbimo skersmuo 670 mm, strypo skersmuo 65 mm. Verpstės apsisukimai: tekinimas 5.000 aps./min, frezavimas 12.000 aps./min. Grandininis sandėlis: 38 vietų, revolveris: 12 vietų. Ibedpfxsxy T Dte Abkjf
