2950 litrų šildomas/šaldomas slėginis indas iš nerūdijančio plieno 316 su tirpiklio maišytuvu.

H. WOLFF Apparatebau KG B0053

Location: Bremen
Condition: used
Capacity: 2,950 liters
Vacuum: 0.9 bar
Max. overpressure: 2.5 bar
Tank

Max. operating temperature vessel / °C: 138 °C

Design: suspended
Tank

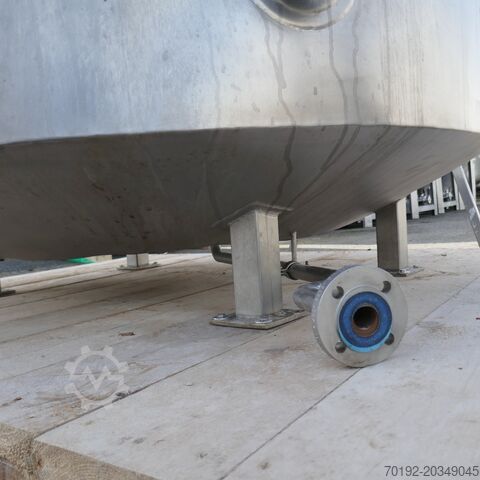

Support type: saddle feet

Heating/Cooling: present
Double jacket volume: 148.0 liters
Max. permissible operating overpressure: 5.0 bar
Max. permissible operating temperature: 151 °C
Cylinder temperature control: double jacket
Heating/Cooling jacket
Knjdpfx Aoxqadzocuec

Bottom temperature control: double jacket

Insulation: present
Insulation

Insulation jacket: hermetically welded
Insulation material: mineral wool
Insulation jacket material: stainless steel
Insulation thickness / mm: 70 mm

Internal diameter: 1,400 mm
External diameter: 1,600 mm
Cylindrical height: 1,500 mm
Total height: 3,500 mm
Technical data / dimensions

Bottom wall thickness: 7 mm

Cylinder wall thickness: 10 mm
Technical data / dimensions

Top wall thickness: 5.7 mm

Technical documentation: drawings, TÜV certificates
Equipment

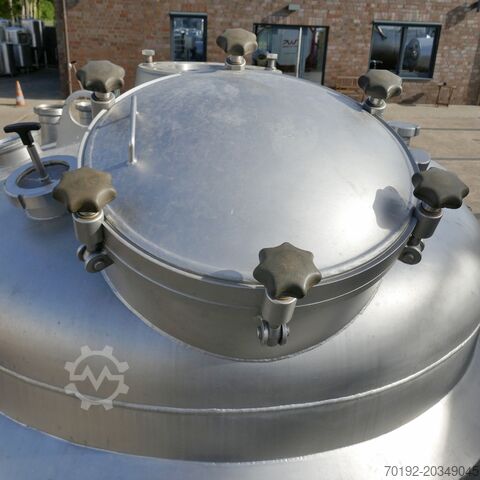

Manhole / dome: in top (DN 500)

Nameplate:
Equipment: lifting lugs
Equipment

Outlet: present

Remarks: 4 saddle supports made of V2A; total height stated is estimated
Last application: pharmaceutical sector
Product-contact material: V4A 1.4571 (AISI 316)
Material specification

Temperature control system material: V2A 1.4301 (AISI 304)
Agitator

Agitator manufacturer: PRG

Power: 15 kW
Speed: 1,475 rpm
Agitator type: dissolver
Agitator

Voltage: 400 volts
Agitator arrangement: eccentric in top
Agitator features: additionally, 1 propeller on the agitator shaft
