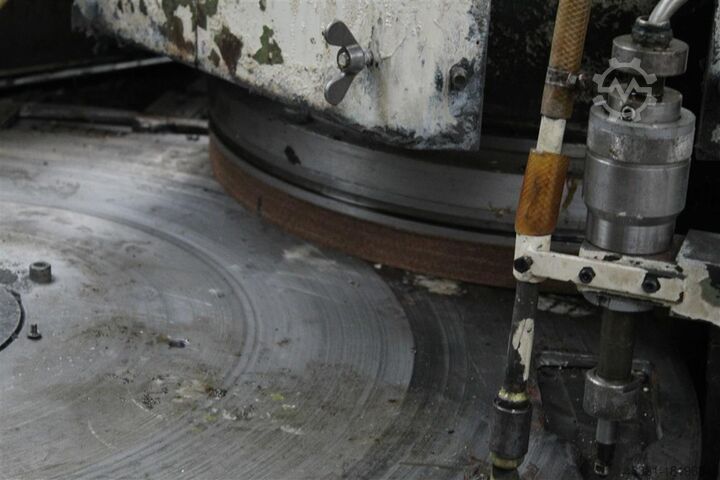

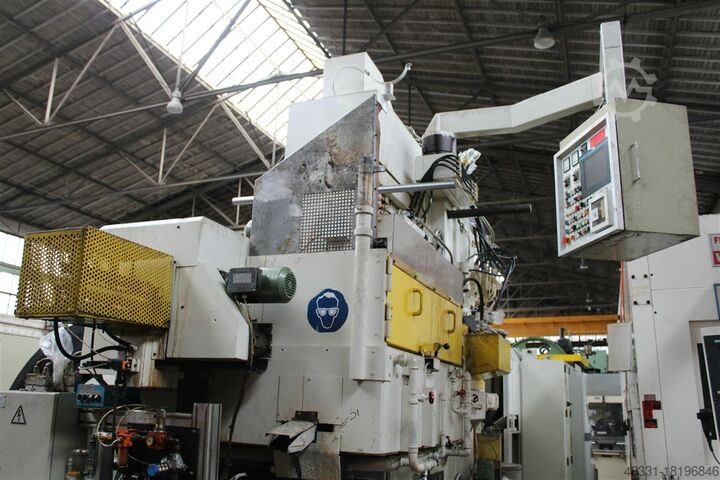

Dviejų diskų šlifavimo staklės - vertikalios.

DISKUS DDS 750 IV CRVA

Būklė: naudotas, Gamybos metai: 2014, Workpiece length: 100 mm Swing diameter: 80 mm Dedpfx Asvx Uvfsahocd Number of spindles: 2 Control: FANUC 31i-B5 Workpiece weight: 2.00 kg Center height: 170 mm Grinding wheel diameter: 100 mm Grinding wheel bore: 32 mm Maximum grinding wheel width: 20 mm Maximum peripheral speed: 125 m/sec Steady rest pass-through: 45 - 60 mm Total connected load: 75.00 kW Machine weight approx.: 25.00 t Space requirement approx.: 5.00 x 3.50 x H3.50 m Camshaft grinding machine for cam components. With FANUC 31i-B5 control for non-circular grinding; loading gantry; CO₂ fire extinguisher system; for CBN grinding wheel; tailstock; steady rest; diamond roll dresser for grinding wheel mounted on the dressing spindle; grinding spindle head variant 12 (two grinding spindles can be moved independently)

Būklė: paruoštas naudoti (naudotas), Gamybos metai: 2005, Funkcionalumas: visiškai funkcionalus, GÖCKEL G50 ELTT Precision Grinding Machine Year of manufacture: 2005 Magnetic table length: 4500 mm, width: 150 mm CNC controlled Dsdpev D Huqofx Aahscd In working condition

Būklė: naudotas, Gamybos metai: 1998, Techniniai duomenys: Vidinis skersmuo: 63 mm Sukimosi skersmuo: 320 - 800 mm Šlifavimo gylis: 380 mm Bendras galios poreikis: apie 1,1 kW Pateikimas: 0,05 - 0,40 mm/aps / 8 žingsnių aps./min Svoris apie: 1060 kg Įrenginio matmenys apie I x P x A: 1,1 x 1,1 x 1,4 m Stabdžių būgnų ir diskų tekinimo staklės Dcodpfx Aeu Ngcioahsd - Maks./min. tekinimo Ø: 800 / 320 mm - Stabdžių būgno laikiklis: 63 mm, kreipiančiosios eiga 120 mm - Pagrindinis vežimas: išilginis eiga 380 mm; skersinis eiga 200 mm - Įrankio laikiklis: 180 x 140 mm, įrankio laikiklis 58 mm, tekinimo peilis plokštelėms 20 x 20 mm - Valdymas per valdymo pultą

Būklė: geras (naudotas), Vertikali tekinimo staklės SC33 CNC Dcjdpfxjw Eplaj Aahsd Gamintojas: TITAN (Rumunija) Pagaminimo metai: 1986 Pilna staklių kapitalinė renovacija: 2005 m. Pagrindiniai techniniai duomenys: CNC Siemens 802D Plokštės skersmuo: 3000 mm Didžiausias tekinimo skersmuo: 3300 mm Didžiausias darbinis aukštis: 3000 mm Didžiausias ruošinio svoris: 18000 kg Stalo sukimosi greitis: 1,02–92 aps./min Darbinė padavimo eiga: 0,05–5 mm/aps. Pagrindinio variklio galia: 55 kW Bendri matmenys: 5600 x 5300 x 5400 mm Svoris: 47350 kg Staklės prijungtos prie elektros.

Gamybos metai: 1983, būklė: paruoštas naudoti (naudotas), Used for reworking profile rolls for a hot rolling mill, regularly maintained, with accessories, without spare parts, on-site inspection possible, no videos available. Djdsriwfiepfx Aahscd

Būklė: geras (naudotas), Gamybos metai: 1970, For sale: Hilgeland model CH5AL header The machine is in perfect technical condition. Dcedju Szucepfx Aahod Machine weight: approx. 20 tons The header is equipped with a comprehensive set of accessories. Loading provided. Maximum diameter of normalized bolt: 16 mm Maximum length: 200 mm

Būklė: naudotas, Gamybos metai: 1969, Grinding height: 60 mm Grinding width: 120 mm Grinding wheel diameter: 600 mm Grinding length: mm Workpiece height: 60 mm Total power requirement: 50 kW Machine weight approx.: 7,000 kg Space requirement approx.: m DISKUS Vertical double-sided surface grinding machine in C-frame design with rotary table workpiece feed Model: DDS 600 CRA Year of construction: 1969 Serial no.: 6672 --- Grinding wheels - diameter x bore per side: 600 x 150 mm Grinding wheel height approx.: 60 mm Workpiece transport disc outside Ø: 810 mm Workpiece: Max. grinding height x grinding width: approx. 60 x 120 mm Vertical quill adjustment per side: approx. 150 mm Hydraulic infeed pulses for depth feed: 0.0025 - 0.05 mm Outer diameter of transport disc: approx. 810 mm Rotary table feed rate steplessly adjustable: 14 – 145 mm/s Grinding wheel speed per side: (24 m/s) / 765 rpm Grinding spindle drive per side: 22 kW each Total drive: approx. 50 kW/380 V/50 Hz Total weight: approx. 7,000 kg Accessories / Special Equipment: • Workpiece rotary device for round transport discs with apertures for inserting the parts and with automatic ejection of finished parts down a chute into a transport box. • IONIC measuring control no. 9 So with measuring probe for finished workpiece height and, if necessary, with automatic hydraulic grinding wheel infeed. • Stepless speed regulation of the rotary device according to grinding dimensions and workpiece. Dodpfxet Hw N Ho Aahocd • Manual infeed of grinding wheels via corresponding buttons. • hydraulically swivelling dressing device (RA) between both grinding wheels for simultaneous dressing of both grinding wheels with appropriate compensation and with automatic repositioning to effective workpiece thickness after dressing = high time savings, can be triggered manually or by timer. • Ammeter displays for both grinding spindle drives. * Central lubrication, • Mechanical height control of workpieces with machine shutdown if overheight is detected. • Free-standing control cabinet, separate hydraulic unit, separate large band filter unit, various grinding wheels, various transport discs, etc. This machine is especially suitable for simultaneous, plane-parallel grinding of workpieces in large series. For example: shims, piston rings, hydraulic components, watch parts, stamped parts, etc. Condition: good – soon available for demonstration Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice

Gamybos metai: 1992, būklė: naudotas, Grinding height 50 mm Grinding width 120 mm Grinding wheel diameter 600 mm Total power requirement 85 kW Machine weight approx. 9,500 kg D I S K U S CNC-controlled, vertical double-sided surface grinding machine with rotating workpiece feed and IONIC measuring control. Type: DDS 600 III PRM - CNC Year of manufacture: 1992 # 7924 _____ Grinding wheel dimensions (each): 600 x 150 x 75 high mm Workpiece data: Grinding height: approx. 1.5 – 50 mm Grinding width: approx. 20 – 120 mm Vertical slide adjustment, each: approx. 150 mm Grinding wheel infeed via CNC: 0.0001 mm Workpiece transport device feed continuously adjustable: 40 - 235 mm/sec. Grinding wheel speed (30 m/s): 191–955 rpm Grinding spindle drive, infinitely variable (per spindle): 37 kW Total drive approx. 85 kW / 380 V / 50 Hz Weight approx. 9,500 kg Accessories / Special Equipment • SIEMENS CNC control SINUMERIK 810 G with monitor, for 4 axes (top and bottom infeed, dresser, and workpiece table rotation), direct input of all grinding data, and in conjunction with • IONIC measuring control no. 17 A with 2 measuring probes for scanning workpieces after the grinding cycle, triggers corresponding infeed of the grinding wheels, continuous measurement data displayed on the monitor for statistics, workpiece counting, etc. • Digital display of power (amperes) for the drive motors and the grinding wheel speed • Gantry design for increased rigidity and improved grinding accuracy • Rotational workpiece transport with continuously variable speed control as the 4th axis • Position control device for monitoring the position height of the lower grinding wheel • 2 adjustable workpiece hold-downs at both in-feed and out-feed, with height monitoring, simple raw part stacking device, and finished part discharge via conveyor belt • Semi-inclined, side-mounted grinding wheel dressing unit with pre-programmable Dcedpfot Hw Naox Aahod dressing sequence, integrated as CNC axis in the control, with safety shut-off • Large separate switch cabinet, automatic central lubrication system, advanced pneumatic setup • Large PROMATEC (F) coolant unit with filtration and magnetic separator • Various grinding wheels, flanges, table segments, transport discs, large fume extraction system, etc. This machine is particularly suitable for the simultaneous plane-parallel grinding of workpieces in large series, such as stamped parts, piston rings, hydraulic parts, etc. Condition: good to very good – ready for demonstration shortly Delivery: ex stock – as inspected Payment: net – upon receipt of invoice This represents a rare opportunity regarding both condition and price. If you require another grinding machine – especially from the manufacturer DISKUS – please send us your inquiry.

Būklė: geras (naudotas), Gamybos metai: 2003, Funkcionalumas: visiškai funkcionalus, ruošinio svoris (maks.): 12 000 kg, padavimo eiga Y ašimi: 300 mm, padavimo ilgis Z ašis: 1 080 mm, stalo skersmuo: 1 200 mm, X ašies padavimo greitis: 3 m/min, Y ašies padavimo greitis: 500 m/min, padavimo greitis Z ašis: 3 m/min, įėjimo srovė: 195 A, ruošinio skersmuo (maks.): 1 600 mm, frezos veleno ilgis: 450 mm, stalinis gręžtuvas: 400 mm, veleno greitis (min.): 250 aps./min, bendras svoris: 51 000 kg, galia: 115 kW (156,36 AG), Įranga: dokumentacija / vadovas, Liebherr high-performance gear hobbing machine LC1502 in good condition Dcsdpfx Aaswqm A Tshjd Control system: Liebherr LH90 V4, drives by Bosch Rexroth Extensive accessories such as BHG, cooling unit for lubricant and coolant, extraction system, arbor shafts, various software packages/parameter extensions and complete documentation. We can also assist with installation and commissioning through to production, according to effort!

Būklė: naudotas, Gamybos metai: 1992, Measuring range X-axis: 2400 mm Measuring range Y-axis: 1200 mm Dedpfx Aaeg Er Nlehecd Measuring range Z-axis: 1500 mm Machine weight approx. 9.00 t
