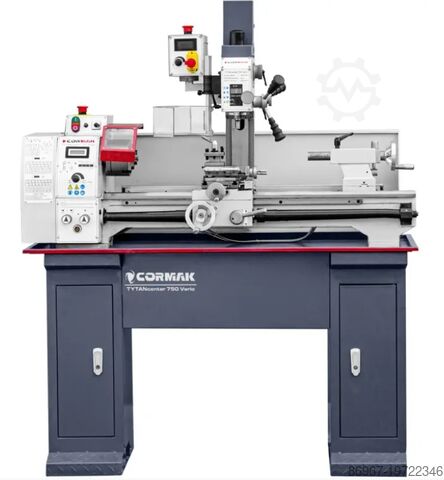

CORMAK Tokarko-frezarka TYTAN CENTER 750 VARIO

The TYTAN CENTER 750 Vario lathe-milling machine combines two machines into one unit for enhanced user convenience and space-saving in the workspace. It features stepless spindle speed control for both the lathe and milling operations. Turning capacity: 250x750mm, 0.75 kW/230V; Milling capacity: 0.6 kW/230V. Lathe functions include: external and internal cylindrical surface machining, threading, and cutting of workpieces. Milling functions include: slot milling, drilling, and reaming. This machine is ideal for small-scale industrial enterprises, workshops, garages, etc.

Main machine advantages:

- Combination of two functions—turning and milling—in one compact design.
- Separate spindle motors for the lathe and mill, each with stepless speed regulation, enabling independent operation.
- LCD displays for accurate speed monitoring and precise spindle speed adjustment.
- Two spindle speed ranges to suit various materials and machining methods.
- Complex workpiece machining—no need for reclamping between machines.
- Rigid dovetail guideways—for high stability during milling.

Technical specifications:

LATHE
- 3-jaw chuck: 125 mm
- Swing over bed: 250 mm
- Swing over cross slide: 150 mm
- Distance between centers: 750 mm
- Bed width: 135 mm
- Spindle bore: 29 mm
- Spindle taper: MT4
- Spindle speed control: Stepless (2 ranges)
- Spindle speeds: 50–1125 / 100–2250 rpm
- Metric threads: (18) 0.2–3.5 mm
- Imperial threads: (21) 8–56 TPI
- Longitudinal feed: (6) 0.07–0.4 mm/rev
- Compound rest size: 65 x 65 x 20 mm
- Max. tool dimension: 12 x 12 mm
- Top slide travel: 70 mm
- Cross slide travel: 130 mm
- Longitudinal travel: 630 mm
- Tailstock quill diameter: 30 mm
- Tailstock quill travel: 70 mm
- Tailstock taper: MT2
- Motor power (S1/S6): 0.75 / 0.9 kW / 230 V

MILLING MACHINE
- Max. drilling diameter: 16 mm
- Spindle quill taper: MT2
- Quill travel: 50 mm
- Head tilt: –90° to +90°
- Spindle–column distance: 170 mm
- Spindle–table distance: 43–250 mm
- Spindle speed range: 50–2250 rpm
- T-slot size/number: 2 x 8 mm
- Motor power: 0.6 kW / 230 V

Cedpfjw H Rdmex Ahvjhc
GENERAL PARAMETERS
- Machine dimensions (LxWxH): 1350 x 580 x 1630 mm
- Weight: 230 kg

Standard equipment:

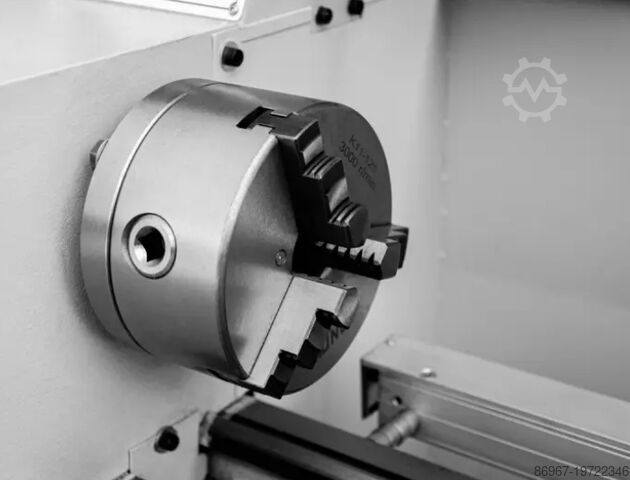

- 125 mm 3-jaw lathe chuck with reversible jaws
- Machine base
- Fixed centers MT2 and MT4
- Drill arbor and chuck MT2/B16
- Change gears
- Set of wrenches, oil can, service tools
- CE-compliant guards
