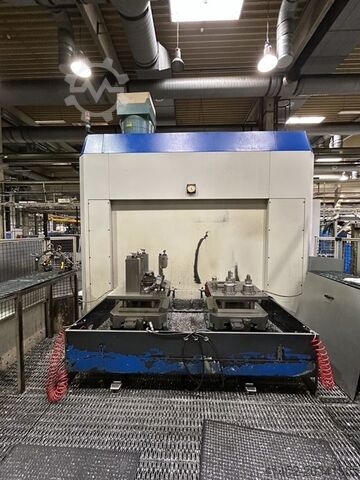

Horizontalusis apdirbimo centras

BURKARDT + WEBER MCX 750

Sąlyga: visiškai atnaujintas (naudotas), Gamybos metai: 2025, veikimo valandos: 50 h, mašinos/transporto priemonės numeris: 3018-04, Country of Manufacture: Switzerland Voltage: 380/50/3 Net Weight: 3100 kg Overall Dimensions: 230x155x170 cm Installed Power: 13 kVA Customs Code: 8460.2920 TECHNICAL SPECIFICATIONS MAIN DIMENSIONS Centre Distance: 650 mm Grinding Capacity SpW+bs -80 Stroke: 700 LONGITUDINAL SLIDE Max. Travel: SpW+50 mm Minimum Automatic Feed: 1.5 mm Nkedpfow T Sd Tsx Af Iot Speed: 50-5,500 mm/min Reversal Dwell Time: 0-6 sec. Maximum Table Swivel: 12°/10°/8.5°/6° Pneumatic Table and Workhead Relief CROSS SLIDE Max. Travel: 300 mm Rapid Traverse: 60 mm Plunge Depth (diameter): 3.4 mm Feed 1: 0.012-6 mm/min Feed 2: 0.012-1.2 mm/min Feed per Pulse: 0.001-0.05 mm WHEELHEAD Left Wheel, Outer Grinding: 400x80x127 mm Drive Power: 5.5 kW Peripheral Speed: 35 m/s Rotational Speed: 1670/2110 rpm Internal Grinding Device for Belt-driven Spindles, incl. drive unit: 1.5 kW WORKHEAD Swivel Range: 0-90° Continuously Variable Speed: 30-1000 rpm Internal Taper: Morse 5 Clamping Collets: W-25 Drive Power: 0.55 kW Max. Workpiece Weight (between centers): 130 kg Load for Non-Supported Grinding: 100 Nm TAILSTOCK Internal Taper: Morse 3 Quill Stroke: 35 mm Fine Adjustment for Cylindricity Correction: ± 40 µm TECHNICAL CHARACTERISTICS: GUARANTEED WORKING ACCURACY Generatrix Straightness over 630 mm: 0.003 mm Roundness in Unsupported Grinding: 0.0003 mm CONNECTION VALUES Max. Power Consumption: 13 kVA Permissible Voltage Fluctuation: -15% +10% Permissible Frequency Variation: ± 3% Required Compressed Air Pressure: 5 bar Except for error or omission, the above technical data are provided without obligation.

Gamybos metai: 1981, Sąlyga: paruoštas naudoti (naudotas), Working width: 2500 mm, max. sheet thickness: 20 mm, lateral cylinder support device with three adjustable support rollers and conical bending device, machine designed for interchangeable top rolls up to min. Ø 450 mm, machine overhaul in 2009, factory inspection in 2012. Nkodpfx Afjnvfdbj Iot

Sąlyga: visiškai atnaujintas (naudotas), Kellenberger vidinių ir išorinių detalių universalioji apvali šlifavimo staklė Nkjdswqlykjpfx Af Ijt Kellenberger 1500 U - 175 (įskaitant vidinį šlifavimo įrenginį) Atstumas tarp centrų: 1500 mm - Centro aukštis: 175 mm Siemens servovariklis. Dažnio keitikliai viduje ir išorėje, WSS Parduodama su įvairia papildoma įranga. Prieinama iš karto! 1000U variantas: restauravimo procese

Sąlyga: labai geros būklės (naudotas), Gamybos metai: 2016, Funkcionalumas: visiškai funkcionalus, CNC valdymas: Professional 5 (FANUC) X mm: 550 Y mm: 1.000 Z mm: 500 B mm: 150 C laipsniai: 360.000 Padėklų skaičius: - Stalo matmenys mm: ø500 Stalo apkrovos talpa kg: 350 Pjovimo eiga mm / min X,Y,Z: 32.000, 40.000, 40.000 Maks. greitaeiga m / min X, Y, Z: 48,50,50 Veleno greitis aps/min: 14.000 Veleno galia kW: 18,5 / 15 Kūgio tipas: HSK63 Sukimo momentas Nm: Keitiklio tipas: grandininis Įrankių vietų keitiklyje: 317 Maks. įrankio skersmuo mm: 90 Maks. įrankio skersmuo su gretimomis tuščiomis vietomis: 140 Maks. įrankio ilgis: 300 Maks. įrankio svoris kg: 8 Aušinimo skysčio talpa l.: - Aušinimas per veleną bar.: taip Įranga: Pasukamas stalas su skaitmeninėmis indikacijomis Nkedoxmgcpopfx Af Ijt Darbo apšvietimas Aušinimas per veleną Elektroninis rankenėlės valdymas Matmenys: Ilgis mm: 2.771 Plotis mm: 3.948 Aukštis mm: 3.264 Svoris kg: 12.400

Gamybos metai: 2006, Sąlyga: paruoštas naudoti (naudotas), Travels X/Y/Z: 800mm/800mm/800mm, feed force X/Y/Z: 15,000N/15,000N/17,500N, feed rate X/Y/Z: 50m/min, max. rotary table speed: 25rpm, spindle diameter: 100mm, tool holder: HSK 100, spindle power S1-100%: 40kW, spindle speed: 6,000rpm. Magazine positions for max. tool diameter of 280mm: 23. Max. pallet dimensions X/Y: 630mm/630mm, max. pallets in system: 6, coolant tank capacity: 1,500l, 50 bar high-pressure pump delivery rate: 22l/min. Machine dimensions X/Y/Z: approx. 6,300mm/4,900mm/4,000mm, weight: approx. 19,300kg, control: Siemens 840D powerline, operating hours: 74,637h. Includes integrated tool monitoring (IPM), remote diagnosis via modem, Renishaw MP10 probe, 4-station rotary buffer (RSP), chip removal, coolant system with Knoll VRF 250 vacuum rotary filter, pallet changer, 6x pallets (4x clamping towers with universal clamping strips), approx. 100x HSK 100 tool holders, and Losma filtration system. Documentation available. On-site inspection possible. Expected to be available from the end of January 2025. Nodpfsuxdhuox Af Ijkt

Sąlyga: visiškai atnaujintas (naudotas), Gamybos metai: 2025, Funkcionalumas: visiškai funkcionalus, mašinos/transporto priemonės numeris: 1845/455, Completely overhauled: Mechanics, geometry, hydraulics, and electrical parts Wheelhead Disassembly, cleaning of parts, replacement of worn and defective components, motor overhaul, bearing replacement, belt replacement, spindle disassembly, replacement of seals and O-rings + adjustment. Newly painted. Workhead Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, belt replacement. New spindle bearings. Newly painted. Tailstock Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, belt replacement. New spindle bearings. Newly painted. Internal Grinding Attachment Disassembly, cleaning of parts, replacement of worn and defective components, assembly of the mounting and alignment of geometry. Newly painted. Hydraulics Disassembly, motor replacement, replacement of hoses and worn or defective parts. Hydraulic block checked. X Axis Disassembly, replacement of worn parts such as O-rings, seals, segments, etc., hydraulic piston overhaul, table grinding. Z Axis Disassembly, table grinding, replacement of worn and defective parts, hydraulic piston overhaul, scraping of V and flat guides. Newly painted. Measuring System 2-axis digital readout included Electrical Cabinet Replacement of motor terminals and relay controls. New wiring. New frequency inverter for the workhead. TECHNICAL SPECIFICATIONS Distance between centers 1500 mm Distance between centers (headstock and overhanging tailstock) 1650 mm Center height, standard 125 mm Center height with raising blocks 225/250 mm Maximum grinding diameter Ø 250 mm Maximum grinding diameter with raising blocks 450/500 mm Table Usable surface 2060x140 mm Maximum length and width for surface grinding 1750x200 mm Manual or hydraulic longitudinal travel 1750 mm Manual table movement per handwheel revolution – coarse 20.006 mm Manual table movement per handwheel revolution – fine 2.457 mm Continuous table speed, hydraulic –6 m/min Table swivel 6° Stop, return 0–5 sec. Work Spindle Nodpfxext Ilfo Af Iekt Workpiece speeds, continuously variable 20–400 min-1 Swivel 360° Work spindle internal taper MT5 Tailstock Tailstock spindle internal taper MT3 Manual or hydraulic spindle retraction travel 30 mm Dressing diamond internal taper MT0 Universal Grinding Head Transverse wheel slide travel 285 mm Rapid traverse, wheel slide (forwards & backwards) 40 mm Grinding spindle speeds 1500 – 1700 – 2200 – 3600 min-1 Vertical movement of grinding spindle, center height 125–330 mm Cylindrical grinding wheel, max 400x50x127 mm Surface grinding wheel, max 250x20x76 mm Swivel of grinding head with locking at 90° increments 270° Wheelfeed One division of vernier 0.005 mm/Ø Automatic feed, max 0.9 mm/Ø Motors Grinding spindle motor 2,900 min-1 / 4.0 hp Workhead spindle motor 3,000 min-1 / 2.0 hp Coolant pump motor 2,850 min-1 / 0.12 hp Internal Grinding Device Bore 70 mm Int. grinding spindle speed Ø70 mm 14,000 min-1 Int. grinding spindle speed Ø50 mm 21,000 min-1 Unless otherwise stated, the technical data is provided without guarantee of accuracy or completeness.

Sąlyga: labai geros būklės (naudotas), tekėjimo ilgis: 5 500 mm, Manufacturer: WEIPERT Model: W1400 Control: R&D MTC3 Turning length: 5500 mm Swing over bed Ø: 1400 mm Swing over cross slide: 960 mm Length: 9000 mm Njdpowzhzlofx Af Iskt Width: 2900 mm Height: 2900 mm Weight: 32,000 kg

Gamybos metai: 2002, Sąlyga: paruoštas naudoti (naudotas), Su dviem apdirbimo moduliais, X ašis: -50 iki 725 mm, Y ašis: -200 iki 300 / -250 iki 250 mm, greitas judėjimas X, Y, Z ašyse: 18/12/30 m/min, valdymas: Siemens Sinumerik, temperatūros diapazonas: 5-40°C, srovės tipas/dažnis: 3 PEN/50 Hz, vardinė įtampa: AC 400V, valdymo įtampa: DC 24V, pagalbinė įtampa: AC 230V, prijungimo galia: 102 kVA, vardinė srovė: 148A, vardinė srovė (greita): 148A, saugiklis (lėtas): 160A, ilgis: 8000 mm, plotis: 3000 mm, aukštis: 4000 mm, svoris: apie 17 t, darbo valandų skaičius: apie 80 000 h. Mašina visiškai veikianti, Z ašies rutulinio sraigto pavarą (aplinkinis sraigtas) atnaujinta 2024 m., reguliariai prižiūrėta. Su dokumentacija, valdymo spintele, hidraulikos agregatu, filtravimo elementais ir drožlių transporterių. Galima apžiūra vietoje. Njdswbuyzspfx Af Iskt

Sąlyga: naudotas, ----- Nodpfx Afjv Armco Iokt Description: General: Year of manufacture: 2020 Control: WEISS CNC Centre distance: 6 mm Centre height: 200 mm Grinding wheel dimensions: 400 x 60 mm + 0 x 60 mm Workpiece spindle head: Speed: 1 rpm Max. workpiece weight: 25 kg Max. grinding diameter: 390 mm Mount: MK4 Grinding spindle head: Peripheral speed: 2 m/s Grinding wheel dimension right: 0 x 60 mm Grinding wheel dimension left: 400 x 60 mm X-axis: 380 mm Z-axis: 1.1 mm B-axis: Torque motor, stepless Tailstock: Quill diameter: mm Quill stroke: 45 mm Mount: MK 4 Micrometer adjustment: +/- 0.04 mm Equipment / Accessories: Measuring systems: Direct (glass scales) Grinding spindles: 2x grinding spindle (left/right) GAP / Crash Control: Structure-borne sound (Sensotronic) Balancing: MPM balancing device Workpiece measurement: Marposs PF ME Automation: Robot interface prepared Setup operation: Electronic handwheel Emulsion mist extractor: Mechanical Dresser: For external grinding wheel left/right Accessories: Various grinding wheels + flanges

Sąlyga: naudotas, Radial drilling machine CSEPEL Type RFh 75 / 1500 Machine No. 13704 Year of manufacture: 1985 Drilling capacity in steel Ø 75 mm Drilling capacity in cast iron Ø 90 mm Spindle taper MT 5 Nominal arm reach 1500 mm Njdjlhwr Rjpfx Af Iskt Maximum spindle reach 1500 mm (to column) Minimum spindle reach 440 mm (to column) Distance spindle nose – clamping surface 370 - 1700 mm Vertical adjustment of arm 950 mm Table size / clamping surface 1800 x 1100 mm Column diameter 450 mm Quill stroke 380 mm Spindle speed 19–1900 rpm, 21 steps Feed rate 0.047–2 mm/rev, 12 steps Motor power 11 kW Power supply 380 Volt, 50 Hz, 15 kW - Spindle clockwise/anticlockwise operation via hand lever switch - Hydraulic gearshift for spindle speed and feed rate - Hydro-mechanical central clamping - Motorized vertical arm adjustment - No coolant system - Machine lamp - Operating manual included Space required: Length 2720 mm x Width 1170 mm x Height max. 3770 mm Transport height with motor on column: 3500 mm Transport height without motor on column: 3250 mm Weight: 6.3 t Good condition
