Stulpo strėlės kranas

ABUS LS / 4000 MM x 250 KG

Load capacity 250 kg
Cedpfxjxak D Rj Aa Ssrh
Outreach 4000 mm
Height (lower edge of jib) 3425 mm
Total column height 4,025 mm
Slewing range 270 degrees
Total weight approx. 375 kg

Description:
- Load capacity 250 kg
- Outreach 4000 mm
- Construction height 4025 mm
- Crane painted in RAL 1007 daffodil yellow
- Design basis: DIN 15018
- Crane classification: H2/B2
- Operating location: Indoor operation
- Size / jib profile: LS36 / Form C 110x90
- Height to lower edge of jib: 3425 mm
- Operating voltage: 3/PE~50 Hz 400 V
- Control type: Direct control
- Protection class: IP55
- Slewing range, nominal: 270°
- Manual slewing

Including:
- Anchor rods, size LS 36
- Consisting of 8 pieces M24 mm x 800 mm, with 1 steel template (420/8) for
- Foundation mounting, incl. accessories

Electric chain hoist:
- Chain hoist type GM 2 250.6-1, single fall
- Painted RAL 5017 traffic blue
- Load capacity 250 kg
- Hook path 4000 mm
- Highest hook position 3034 mm
- Design basis: FEM 9.901
- Drive group 2m / M5
- Lifting, 2-stage (pole-changing) 1.5 / 6 m/min
- Lifting power 0.09 / 0.35 kW
- Duty cycle 60% ED

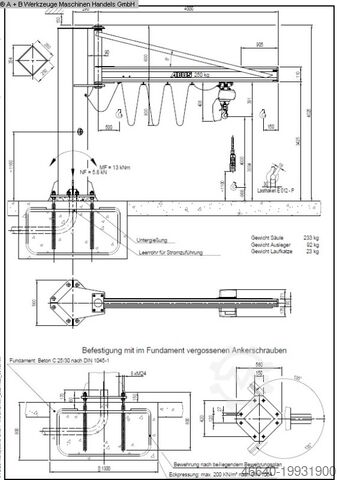

Image shows a similar crane system.
