Veido plokštelė 2013 43

500 mm 475 U/min.

Sąlyga: geras (naudotas), Faceplate Diameter 500 mm Dedocx N Atjpfx Ab Sjcb 475 rpm

Sąlyga: naudotas, Tornio Landonio TMU 1200 Dcjdpfxoizxvks Ab Ssb

Sąlyga: geras (naudotas), Used radial drilling machine SASS Mod. TRM 2200 Excellent condition, fully operational. Equipped with cube Maximum drilling diameter in solid cast iron: 100 mm (20-22) Maximum drilling diameter in solid steel R=60: 80 mm Spindle diameter (sliding quill): 102 mm Spindle Morse taper: 6 Vertical spindle travel: 500 mm Number of spindle speeds: 32 Spindle speed range with 50 Hz motor – rpm: 18 ÷ 1600 Automatic feeds Maximum arm outreach (column edge to spindle axis): 2230 mm Minimum and maximum drilling radius: 660 ÷ 2505 mm Head travel on arm: 1845 mm Vertical arm travel: 1040 mm Column diameter: 550 mm Column height with motor: 3720 mm Base plate height: 260 mm Base dimensions: 2490 x 1230 mm Spindle motor: 11 HP Dcjdpfxjikqz Ss Ab Ssb Weight: 9000 kg

Sąlyga: naudotas, Gamybos metai: 1979, Pjovimo skersmuo 440 mm Mašinos svoris apie 780 kg Dodpof Dwa Usfx Ab Secb +++++ Atkreipkite dėmesį, kad įrenginys yra išardytas ir paruoštas pakrovimui. Dėl šios priežasties negalima atlikti demonstracijos įjungus maitinimą ar pagaminti vaizdo įrašo. Mūsų skelbime pateiktos informatyviausios ir aukščiausios kokybės nuotraukos. Deja, papildomų nuotraukų atsiųsti negalime. +++++

Sąlyga: naudotas, Gamybos metai: 1988, Atstumas tarp centrų: 1200 mm Sukimosi greitis A) 70–380 aps./min. Sukimosi greitis B) 380–2000 aps./min. Svoris: 2,2 t Tekinimo staklės +++++ Atkreipkite dėmesį, kad įrenginys yra išardytas ir paruoštas pakrovimui. Dėl šios priežasties negalima jos parodyti įjungtos arba padaryti vaizdo įrašo. Mūsų skelbime pateiktos pačios informatyviausios ir geriausios kokybės nuotraukos. Deja, papildomų nuotraukų atsiųsti negalime. Dsdpfx Absk Sat De Socb +++++

Sąlyga: naudotas, Gamybos metai: 1977, Drilling capacity in steel (diameter): 75 mm Reach: 1700 mm Workpiece height - max.: 370 - 1700 mm Total power requirement: 12 kW Machine weight approx.: 7000 kg Space requirements approx.: [to be specified] Manufacturer: CSEPEL (Hungary) Radial Drilling Machine Type: RFh 75 / 2000 Year of manufacture: 1977 Serial no. 61158 Dedpfxet Hw Uve Ab Sjcb Drilling capacity in steel/cast iron: 75 / 90 mm Tapping in steel/cast iron: 60 / 70 mm Maximum reach: approx. 1700 mm Maximum workpiece height: 370 to 1700 mm Clamping table area: 1100 x 2300 mm Intermediate table approx.: 600 x 1200 x 300 mm Table height above floor approx.: 600 mm Tool holder: MK 5 21 spindle speeds: 19 – 1900 rpm 12 feed rates: 0.047 – 2 mm/rev Drill spindle stroke: 380 mm Vertical arm adjustment: 950 mm Cross-travel of drilling carriage: 1500 mm Drill spindle drive approx.: 10 kW Total drive: approx. 12 kW - 380 V - 50 Hz Weight: approx. 7000 kg Overall dimensions: approx. 3600 x 1400 x 3400 mm (height) Accessories / Special equipment: • Rotary selector for hydraulic speed adjustment • Mechanical feed preselection • Drilling with or without automatic feed, or with manual fine feed • Drill carriage adjustable by hand, vertical arm adjustment via electric motor; feed length/drilling depth set via cams on the quill nonius, with automatic depth cut-off and quill return • Electro-mechanical clamping of arm and drill head via push button • Built-in coolant system in the base table • VOGEL central lubrication, intermediate table, etc. Condition: satisfactory to good – available for demonstration under power, robust machine with high drilling capacity Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice

Sąlyga: naudotas, Gamybos metai: 1986, Cutting diameter: 460 mm Saw band length: 5,334 mm Cutting width: 1.3 mm Cutting area (square): 320 x 320 mm Cutting area (flat): 500 x 320 mm Control: minipos 807 Cutting speed: 16 - 80 m/min Saw band dimensions: 5,334 x 41 x 1.3 mm Feed length: 580 mm Multiple feed length: 5,800 mm Dodpfx Astqqrfob Secb Total power requirement: 8 kW Machine weight: approx. 3.5 t Machine dimensions (L x W x H): 2.7 x 2.95 x 2.15 m Accessories: roller conveyor 4,150 mm long, roller conveyor 2,150 mm long, bundle clamping device, chip conveyor, coolant system

Sąlyga: geras (naudotas), 1 used radial drilling machine Make: Stimin Model: GR 820 H Serial No.: 773 Year: 2004 Technical specifications: Djdpfxjtzctmo Ab Sscb Drilling capacity: 80 mm Arm reach: 1600 mm Drill spindle taper: MK 6 Drill spindle stroke: 390 mm Spindle speeds, 24 steps: 20 – 1400 rpm Right-/left-hand rotation Feed, 12 steps: 0.045 – 1.5 mm/rev Drive: 400 V / 14.5 kVA Arm and drilling unit clamping: electromechanical Distance from machined machine bed to drilling spindle: min. approx. 400 mm max. approx. 1800 mm Usable machine bed with 4 T-slots: 1170 x 2185 mm Coolant system 2 clamping tables Required floor space approx. L 2600 x H 3950 x W 1300 mm Weight approx. 8,500 kg

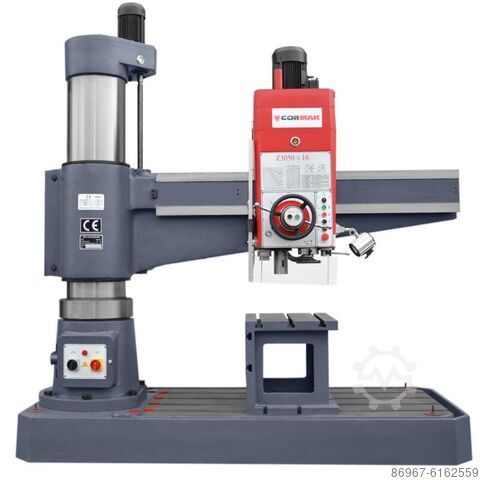

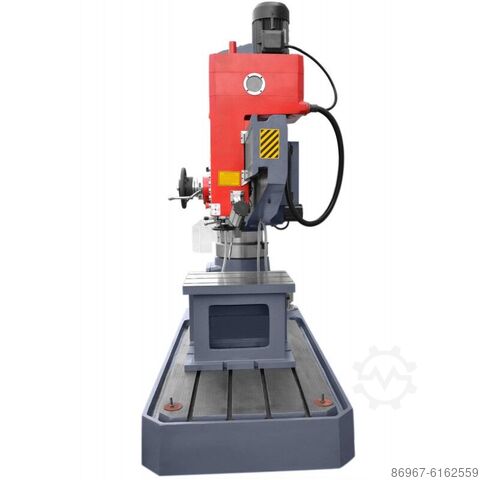

Sąlyga: naujas, Drilling capacity in steel ----- 50 mm Motor ----- 4 kW Speed range ----- 25 ~ 2000 rpm Spindle stroke ----- 315 mm Arm travel ----- 350 ~ 1600 mm Spindle taper ----- MT5 Spindle feed ----- 0.04 ~ 3.2 mm/rev Cube table ----- 630 x 500 x 500 mm Column diameter ----- 350 mm Base ----- 2400 x 1000 x 200 mm Maximum distance spindle - base ----- 350 ~ 1220 mm Dsdpega Ty Nsfx Ab Secb Weight ----- 3500 kg INCLUDES: * Hydraulic clamping! * Coolant system * CE plug * SCHNEIDER electrics

Sąlyga: naujas, Gamybos metai: 2025, Industrial radial drill press features a simple and rigid design, enabling a wide range of applications in hole processing such as drilling, reaming, counterboring, boring, and tapping. Machine Description - Drill press designed for drilling, tapping, and reaming; - Minimized vibrations due to the special machine design—additional ribbing and reinforced cast iron construction; - Oil-lubricated gearbox with ground and hardened gears made from high-quality steel alloy; - Heavy weight and rigid construction ensure stability and vibration-free operation; - Cubic worktable provides easy adaptation and clamping of the workpiece; - Large-diameter, ground steel column; - Ground base plate designed for machining larger components; - Motorized height adjustment of the arm; - Control panel located at the front of the drill for enhanced efficiency and ergonomics; - Mechanical clamping of the arm and headstock; - Boom arm height conveniently set via a lift motor; - Hydraulically operated feed and spindle drive; - Ground column surface allows for smooth, precise movement of the arm; - Ground and hardened boom guideway; - Drill equipped with manual headstock and column arm locking; - Wide speed range ensures precise and rapid machining; Technical Data MAXIMUM DRILLING DIAMETER – 50 mm DISTANCE SPINDLE AXIS TO COLUMN – 350 – 1600 mm DISTANCE SPINDLE AXIS TO TABLE SURFACE – 320 – 1220 mm SPINDLE QUILL TRAVEL – 390 mm HORIZONTAL HEADSTOCK TRAVEL – 1250 mm Dcedpfx Abog Rcd Us Sob VERTICAL BOOM TRAVEL – 590 mm SPINDLE TAPER – MT5 SPINDLE SPEED (16 steps) – 25 – 2000 rpm FEED RANGE (16 steps) – 0.04–3.2 mm/rev MAIN MOTOR POWER – 4.0/5.5 kW LIFT MOTOR POWER – 1.5 kW MACHINE DIMENSIONS – 2500x1070x2840 mm WEIGHT – 3500 kg The listed price is NET. Price does not include transport costs. For further information, please contact us by phone or email. We invite you to view our full offer on our website.
